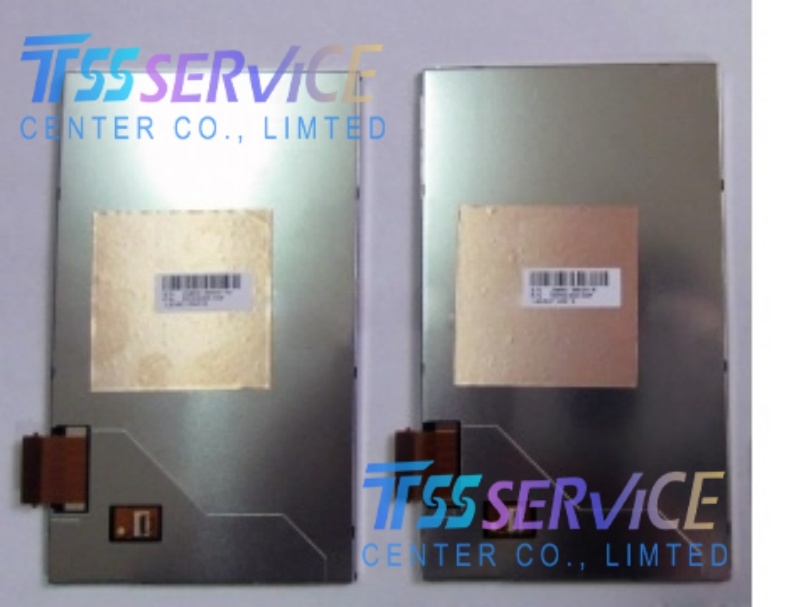

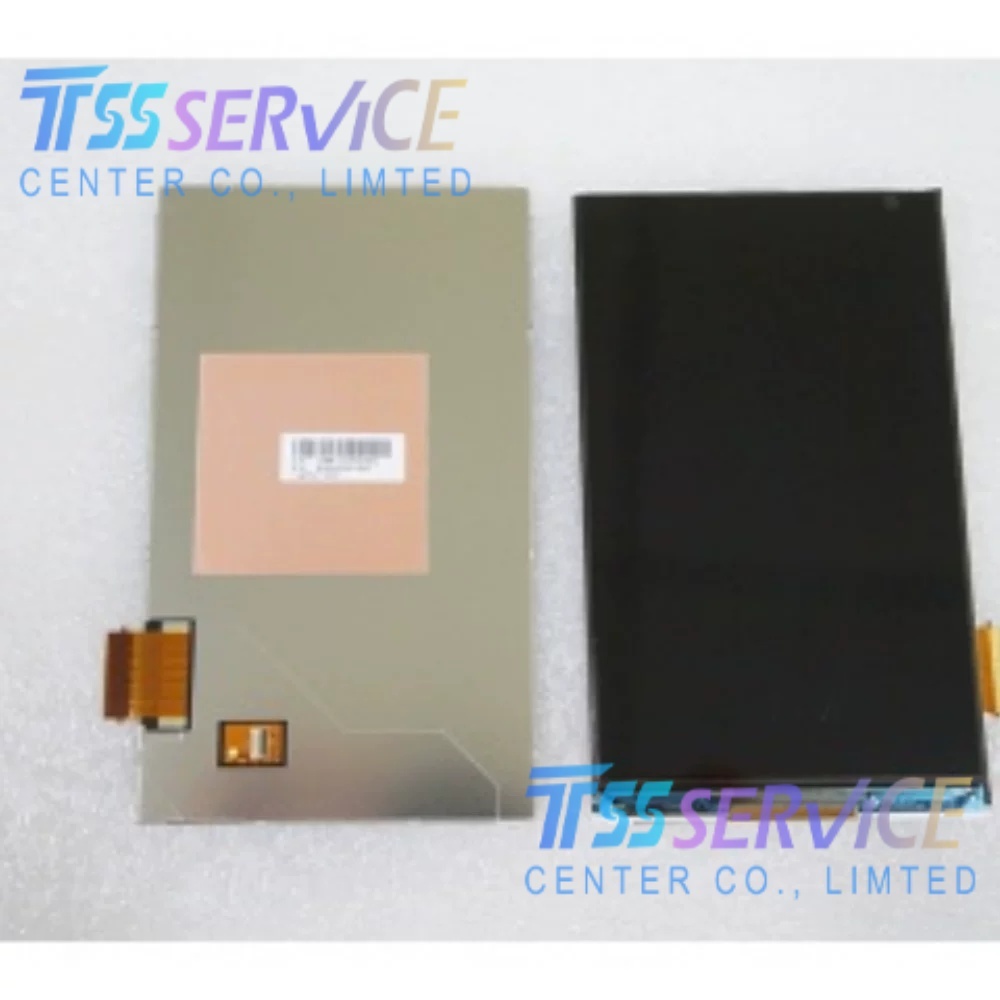

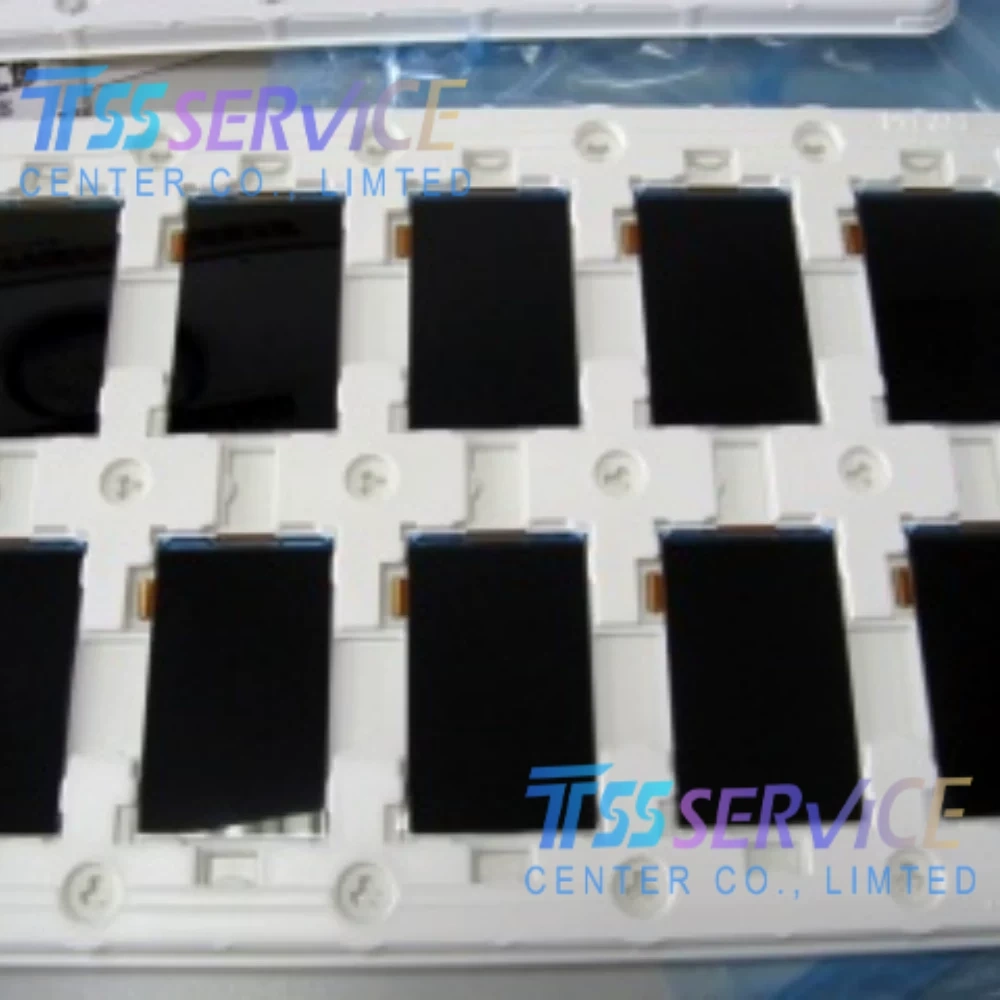

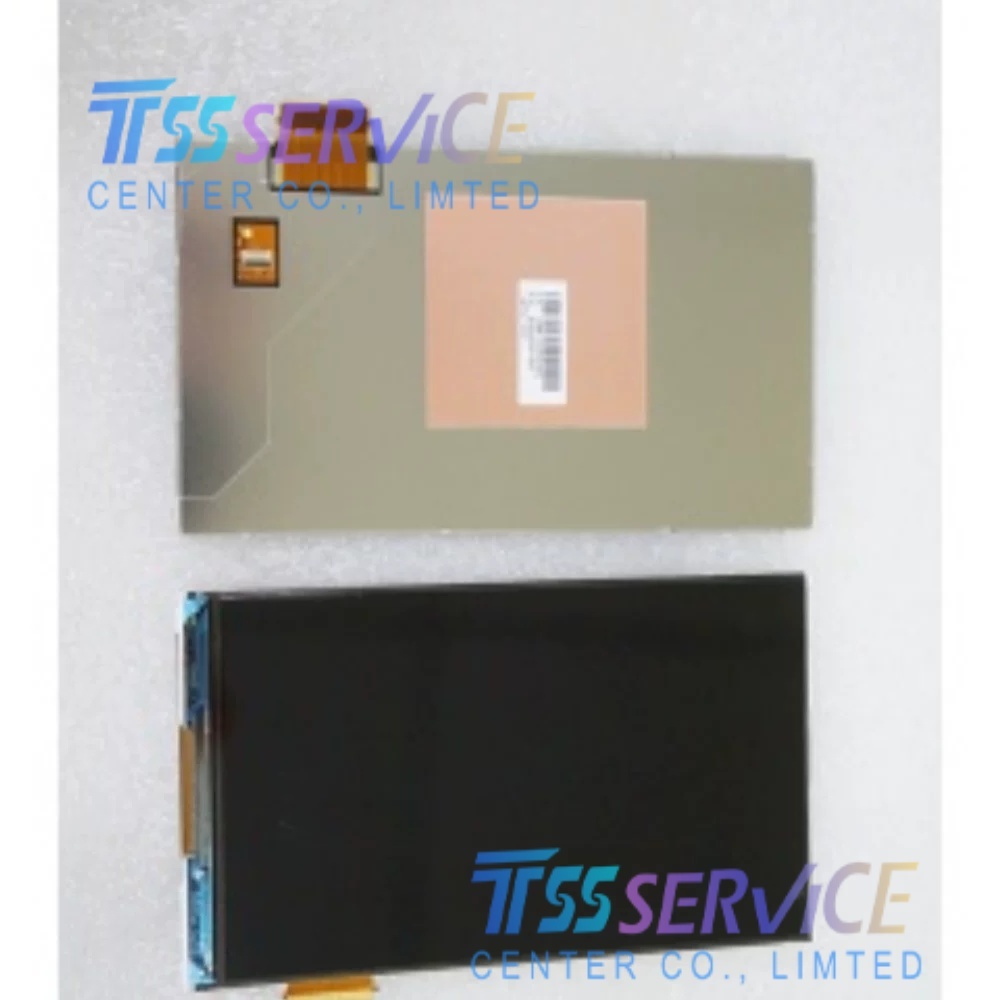

LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp

SKU: LQ043Y1DX01D
Model P/N: LQ043Y1DX01D
Diagonal Size: 4.3"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 480(RGB)×800, WVGA  217PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$48.00 $45.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
1/1
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
  • Description
LQ043Y1DX01D 4.3 inch 480×800 Industrial LCD Panel Screen For Sharp
Parameter Details
Panel Brand Sharp (SHARP)
Model Number LQ043Y1DX01D
Panel Type a-Si TFT-LCD, LCM (Liquid Crystal Module)
Diagonal Size 4.3 inches
Resolution 480(RGB) × 800 pixels (WVGA, Portrait)
Pixel Density 217 PPI
Pixel Arrangement RGB Vertical Stripe
Display Mode ASV (Advanced Super View), Normally Black, Transmissive
Active Area 56.16 × 93.36 mm (W × H)
Outline Dimensions 62.46 × 105.9 mm (W × H)
Thickness 2.1 mm
Surface Treatment Hard Coating (3H)
Brightness 350 cd/m² (Typical)
Contrast Ratio 900:1 (Typical, Transmissive)
Display Colors 65K (65,536 colors)
Color Gamut 72% (NTSC)
Response Time 35 ms (Typical, Tr + Td)
Viewing Angle 80°(L) / 80°(R) / 80°(U) / 80°(D) (Typical, CR≥10)
Refresh Rate 60 Hz
Backlight WLED (White LED), 8S1P, No Driver IC included
Signal Interface Parallel RGB (TTL), 45-pin FPC Connector
Input Voltage VCI=3.0V (Typ.), VDDIO=2.6V (Typ.)
Operating Temp. -20°C to +60°C
Storage Temp. -30°C to +70°C
Touch Screen No
RoHS Compliance Yes (Lead-free)

Key Advantages for These Applications

  • Portrait Orientation: Optimized for vertical text/GUI layouts common in handheld and industrial use.
  • ASV Technology: Delivers wide viewing angles and high contrast for consistent readability.
  • Robust Build: 3H hard coating resists scratches; wide temperature range suits harsh environments.
  • Low Power: WLED backlight and low-voltage operation ideal for battery-powered devices.
  • Compact Form Factor: Slim 2.1mm profile fits space-constrained enclosures.
