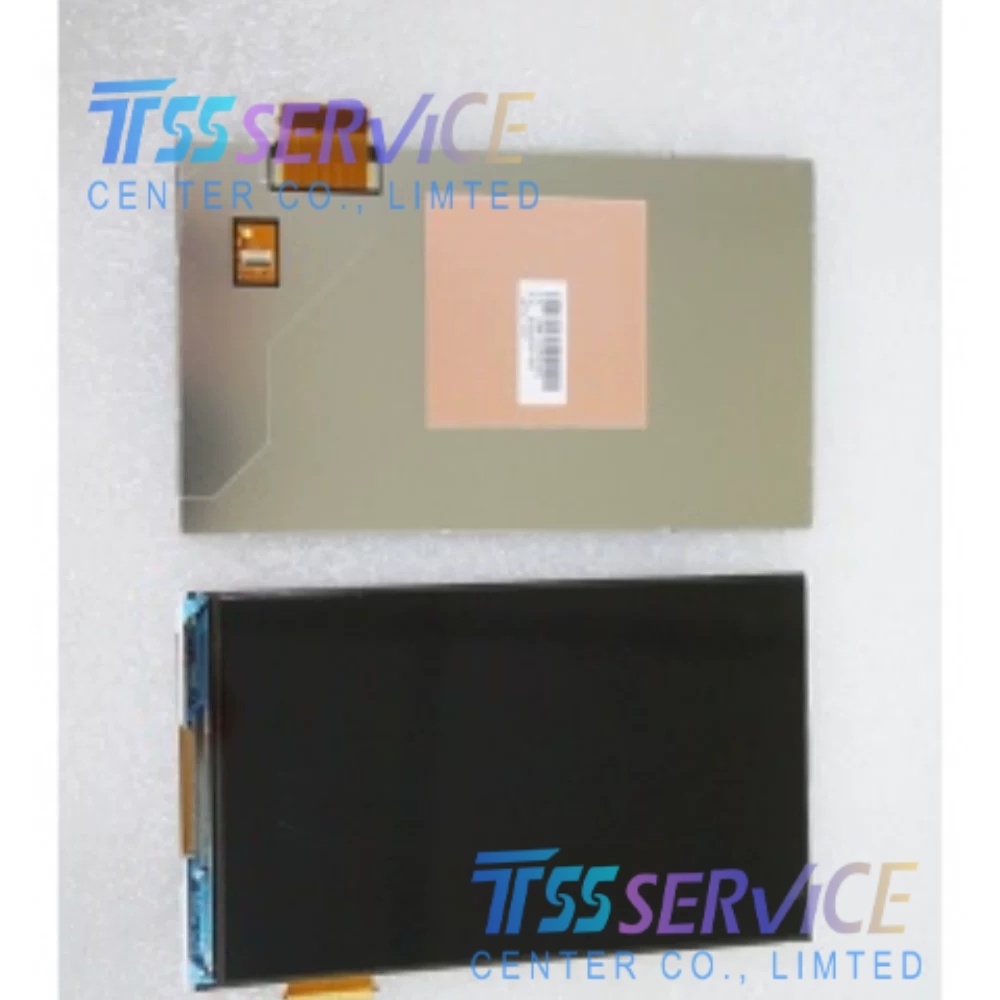

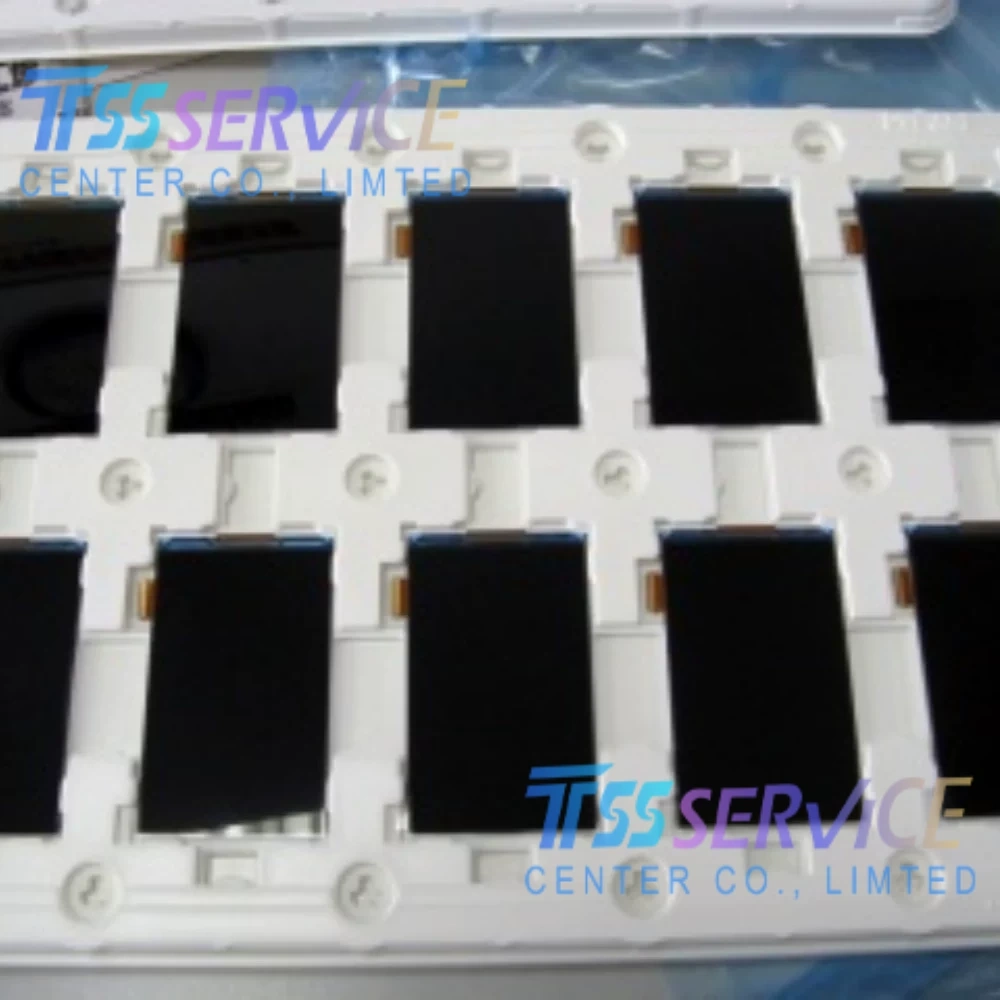

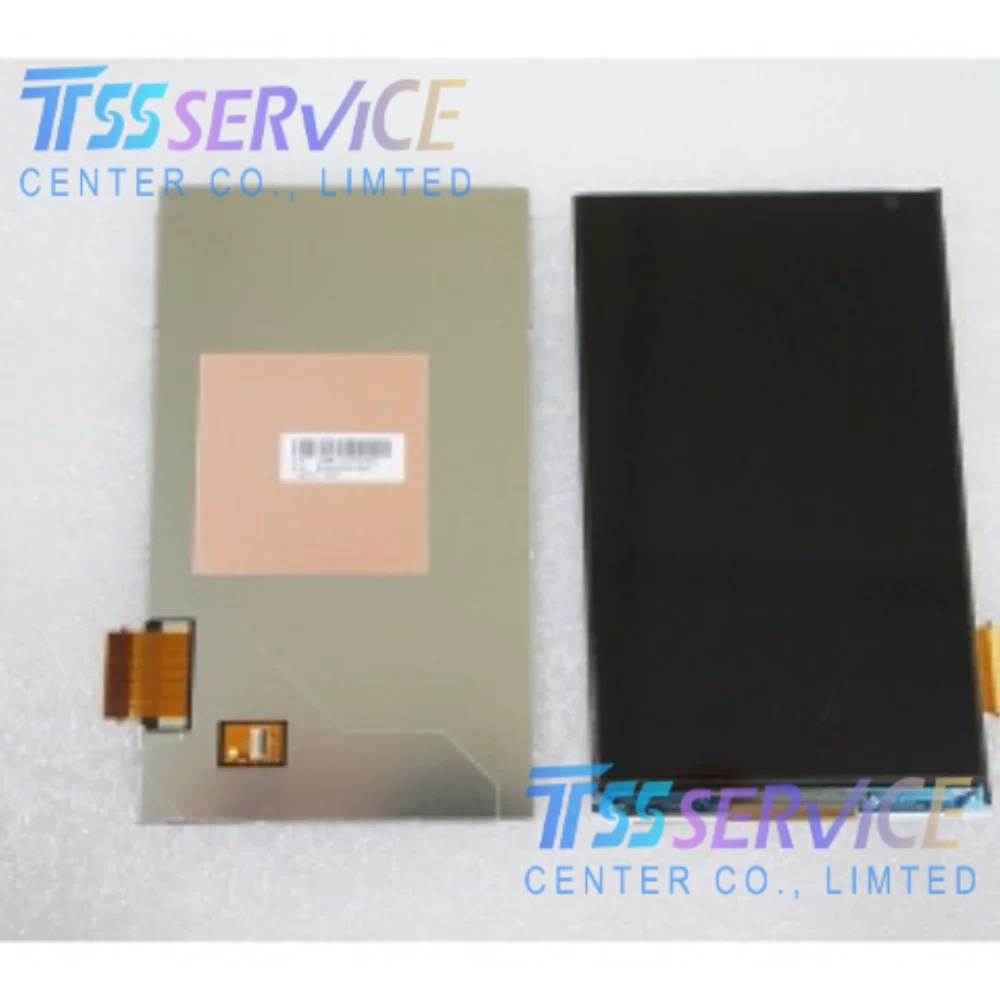

LQ043Y1DX04 Sharp 4.3 inch 480×800 LCD Panel Screen For Industrial

Name: LQ043Y1DX04 Sharp 4.3 inch 480×800 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ043Y1DX04
Price: 45 USD
Availability: InStock

SKU: LQ043Y1DX04

Model P/N: LQ043Y1DX04
Diagonal Size: 4.3"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 480(RGB)×800, 3:5, WVGA
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$48.00~~ $45.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LQ043Y1DX04 Sharp 4.3 inch 480×800 LCD Panel Screen For Industrial

Parameter	Details
Manufacturer	Sharp
Part Number	LQ043Y1DX04
Panel Type	a-Si TFT-LCD, LCM, ASV (Advanced Super View)
Diagonal Size	4.3 inch
Resolution	480(RGB) × 800 (WVGA), 217 PPI
Pixel Format	RGB Vertical Stripe
Active Area	56.16 (W) × 93.6 (H) mm
Outline Dimensions	62.46 (W) × 105.9 (H) × 2.3 (D) mm
Display Mode	Transmissive, Normally Black, ASV
Brightness	315 cd/m² (Typical)
Contrast Ratio	870:1 (Typical)
Viewing Angles	80/80/80/80° (Typ.)(CR≥10) (L/R/U/D)
Backlight	WLED (White LED), 8S1P, No driver
Color Depth	16.7M (8-bit), 90% NTSC (CIE1931)
Response Time	35 ms (Typ.)(Tr+Td)
Interface	Parallel RGB (1 ch, 8-bit) + SPI, 60-pin FPC
Supply Voltage	3.3V (VCI), 2.6V (VDDIO) (Typ.)
Refresh Rate	60 Hz
Surface Treatment	Hard Coating (3H)
Weight	30.0 g (Typ.)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +80°C
Touch Panel	None
Production Status	Mass Production

Typical Applications

Smart Handheld Devices
Smartphones, PDAs, portable communication terminals, mobile computing devices.
Industrial Handheld Terminals
Barcode scanners, portable data collectors, rugged field devices, logistics terminals.
Consumer Electronics
Digital cameras, portable media players, GPS navigation units, smart remote controls.
Medical & Healthcare
Handheld diagnostic tools, portable patient monitors, small medical instruments.
Embedded & IoT
Compact industrial controls, smart sensors, wearable electronics, battery-powered embedded systems.
Automotive & Portable Navigation
In-car navigation displays, portable GPS devices, vehicle infotainment sub-screens.
