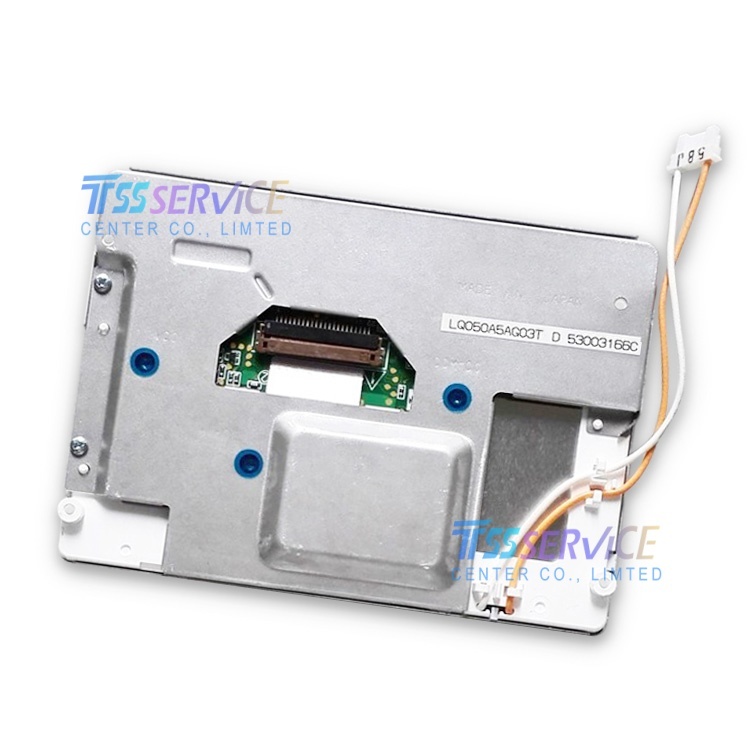

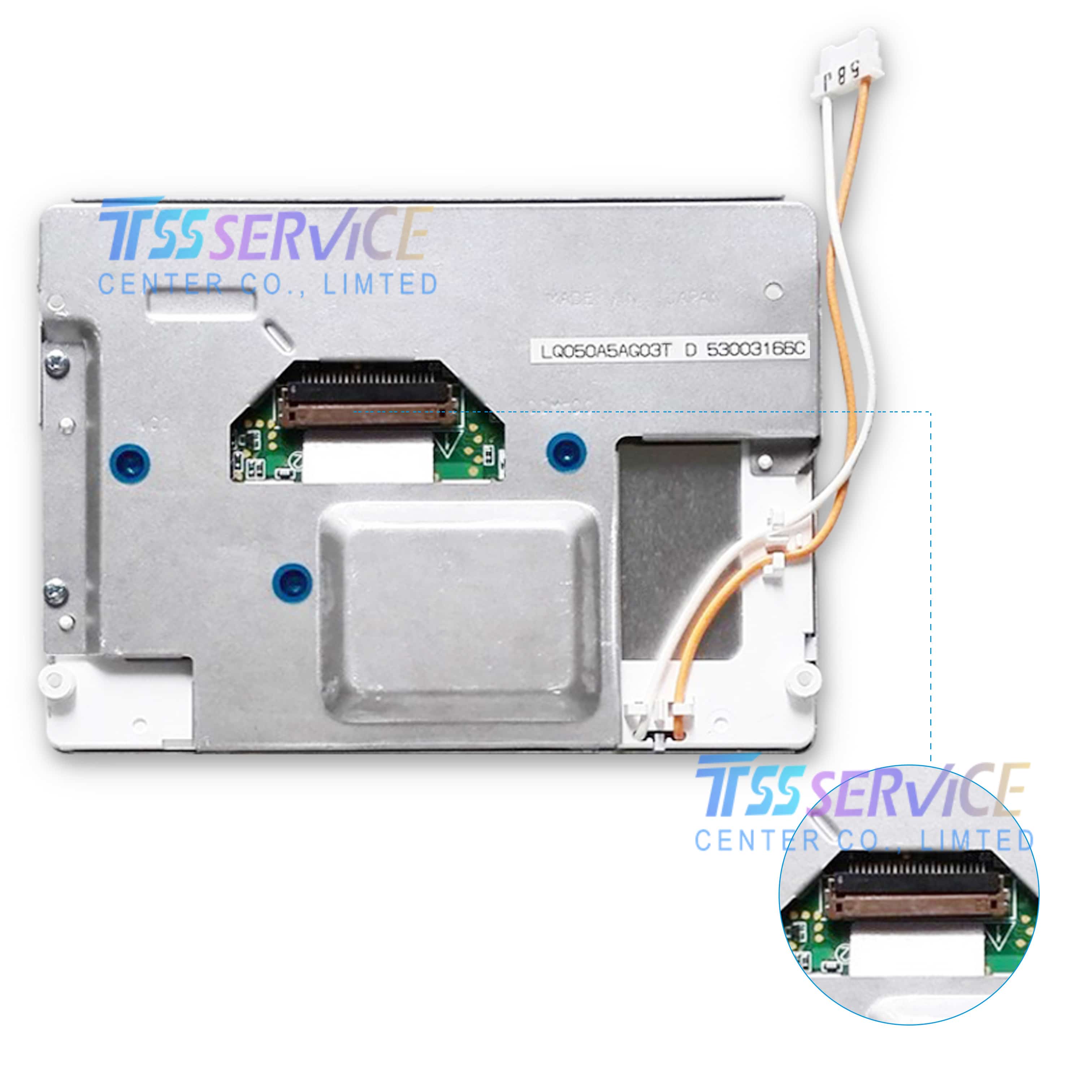

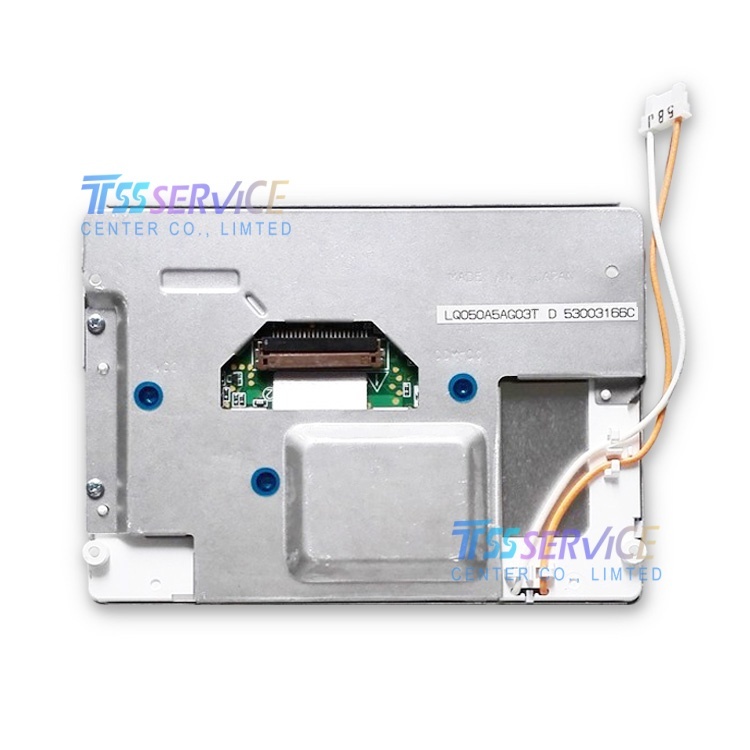

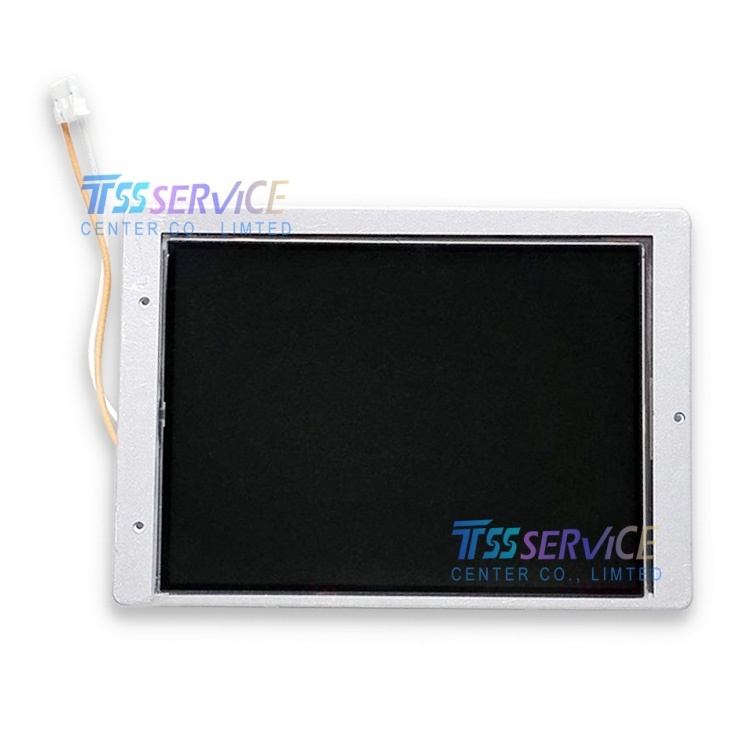

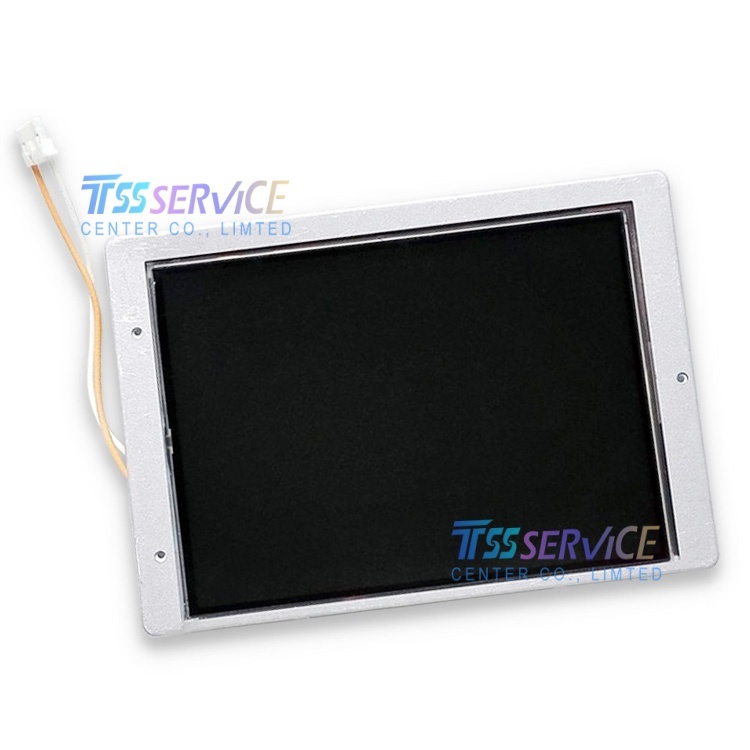

Sharp 5 Inch LQ050A5AG03T 320×234 TFT LCD Screen Display Panel

Name: Sharp 5 Inch LQ050A5AG03T 320×234 TFT LCD Screen Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ050A5AG03T
Price: 105 USD
Availability: InStock

SKU: LQ050A5AG03T

Model Number： LQ050A5AG03T
Brand: SHARP
Diagonal Size: 5.0 Inch
Native Resolution: 320(RGB) × 234
Panel Type: a-Si TN TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$107.00~~ $105.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp 5 Inch LQ050A5AG03T 320×234 TFT LCD Screen Display Panel

Item	Specification Parameter
Model Number	LQ050A5AG03T
Brand	SHARP
Diagonal Size	5.0 Inch
Native Resolution	320(RGB) × 234
Panel Type	a-Si TN TFT-LCD, Normally White Transmissive
Backlight	Single CCFL Lamp, Lifespan 10,000 Hours, No Built-in Driver
Typical Brightness	320 cd/m²
Contrast Ratio	60:1 (Typical)
Viewing Angle L/R/U/D (CR≥5)	65° / 65° / 40° / 65°
Color Performance	Full Color Display
Signal Interface	Analog RGB, 22Pin Connector
Pixel Pitch	Vertical RGB Stripe, 79 PPI
Active Display Area	102.124 (W) × 74.763 (H) mm
Overall Outline Dimension	126.8 (W) × 89.9 (H) × Max 16.5 (T) mm
Mounting Design	Rear 4×Φ2 Fixed Mount Holes
Surface Treatment	Anti-reflection Hard Coating
Touch Function	Without Touch Digitizer
Operating Temperature	-30℃ ~ +85℃ (Automotive Extreme Temp Standard)
Storage Temperature	-30℃ ~ +85℃
Supply Voltage	VSH 8.0V / VSL -5.0V Typical
Net Weight	Max 180g

Applications

Premium Vehicle OEM Navigation & Infotainment System
Direct replacement screen for Porsche Cayenne, Volkswagen Touareg, VW Phaeton factory original car navigation head unit, vehicle GPS multimedia central display, car radio audio monitor panel.
Auto Repair Aftermarket Car Screen Replacement Parts
Repair cracked, faded, dim, water-damaged original car navigation displays for VAG group luxury vehicles, plug-and-play replacement spare screen for auto repair shops.
Industrial Compact Control Terminals
Small industrial HMI operation panels, compact equipment parameter display modules, factory miniature monitoring screens, vintage test equipment replacement display.
Portable Medical Diagnostic Instruments
Mini handheld vital sign monitors, portable clinical testing devices, compact veterinary inspection equipment display screens.
Special Machinery Auxiliary Displays
Small forklift dashboard monitors, mini construction vehicle parameter screens, agricultural compact machinery control terminals.
