Sharp LQ055T3SX02Z 5.5inch 1080x1920 MIPI Interface Industrial TFT Display

Name: Sharp LQ055T3SX02Z 5.5inch 1080x1920 MIPI Interface Industrial TFT Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ055T3SX02Z
Price: 18 USD
Availability: InStock

SKU: LQ055T3SX02Z

Model: LQ055T3SX02Z
Diagonal Size: 5.5 inch
Type: Oxide TFT-LCD, LCM
Resolution: 1080(RGB)×1920 (FHD, 9:16)
Pixel Structure: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$20.00~~ $18.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

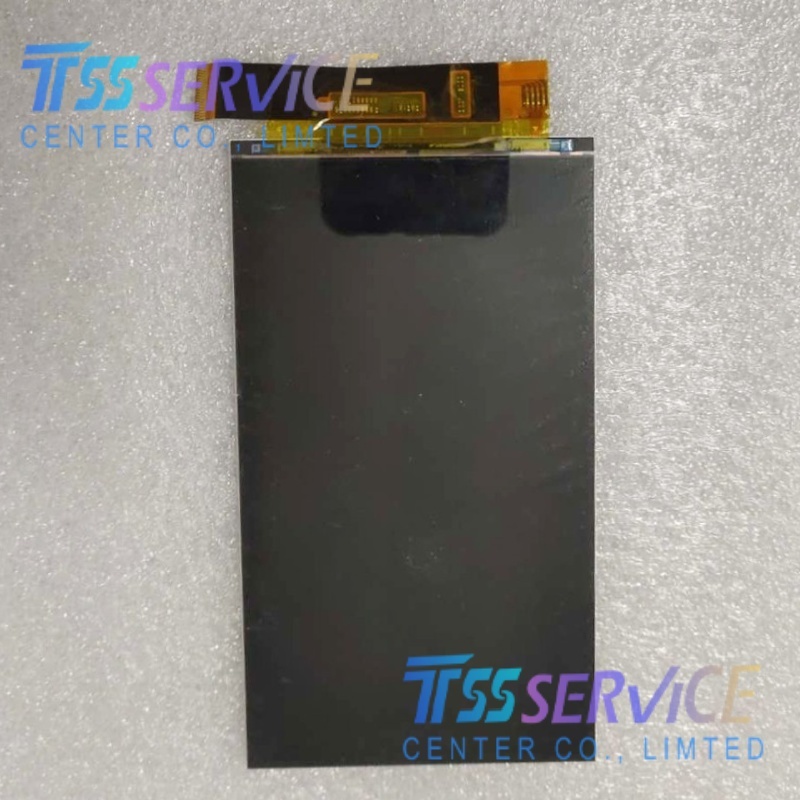

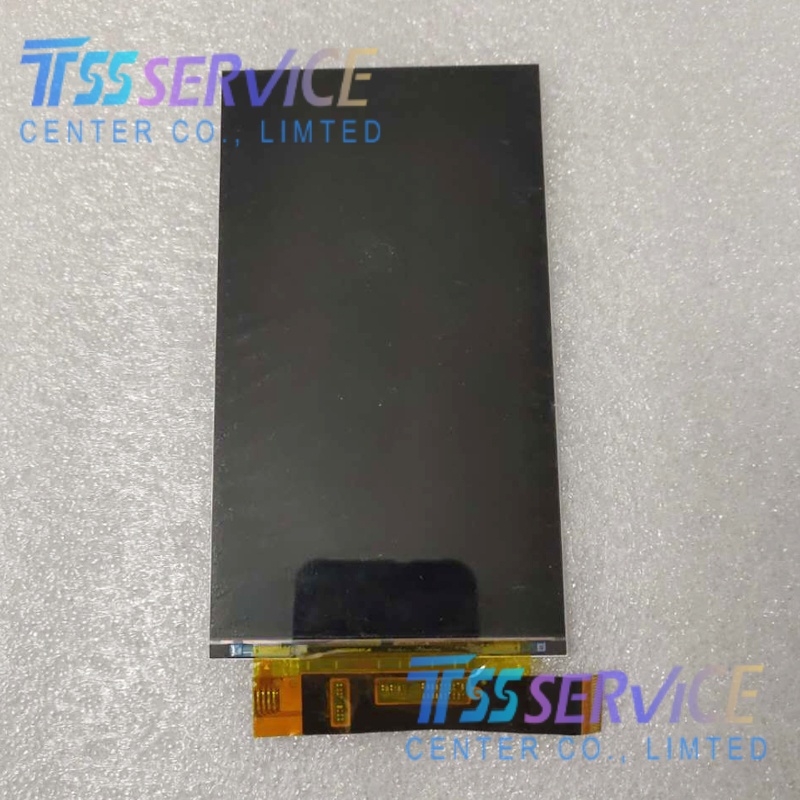

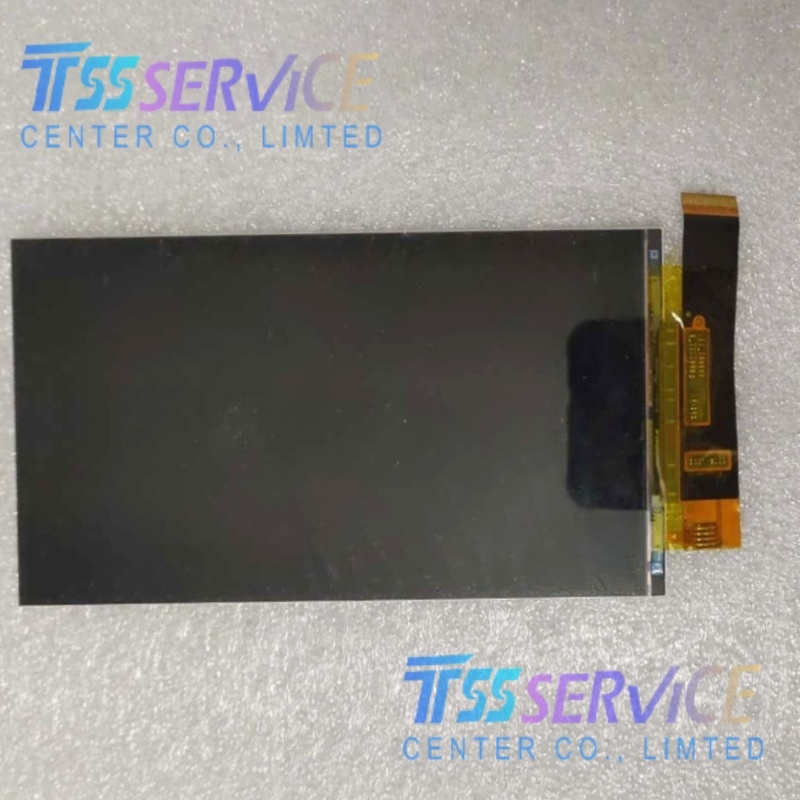

Sharp LQ055T3SX02Z 5.5inch 1080x1920 MIPI Interface Industrial TFT Display

Parameter	Details
Brand	Sharp
Model	LQ055T3SX02Z
Diagonal Size	5.5 inch
Type	Oxide TFT-LCD, LCM
Resolution	1080(RGB)×1920 (FHD, 9:16)
Pixel Structure	RGB Vertical Stripe
Display Area	68.04(W) × 120.96(H) mm / 2.68" × 4.76"
Outline Size	70.84(W) × 128.56(H) × 1.65(D) mm / 2.79" × 5.06" × 0.065"
Mass	23g (Typ.) / 0.05 lb
Brightness	450 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Response Time	35 ms (Typ.) (Tr+Td)
View Direction	Symmetry
Viewing Angle	80°/80°/80°/80° (Typ., CR≥10)
Display Mode	New Mode2, Normally Black, Transmissive
Display Colors	16.7M, 85% NTSC
Light Source	6S2P WLED, Without Driver
Frame Rate	60Hz
Touch Panel	Without Touch Screen
Interface	MIPI (4 data lanes), 39-pin FPC Connector
Input Voltage	1.8/5.8/5.6V (Typ.) (VDDI/VSP/VSN)
Operating Temperature	-20 ~ +60 °C
Storage Temperature	-30 ~ +70 °C

Applications

Handheld Devices: Industrial handheld terminals, rugged PDAs, and portable diagnostic tools.
Consumer Electronics: Smart wearables, portable media players, and compact display modules.
Embedded Systems: High-resolution control panels, IoT devices, and smart home displays.
Medical Equipment: Portable patient monitors and compact diagnostic displays.
