Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..

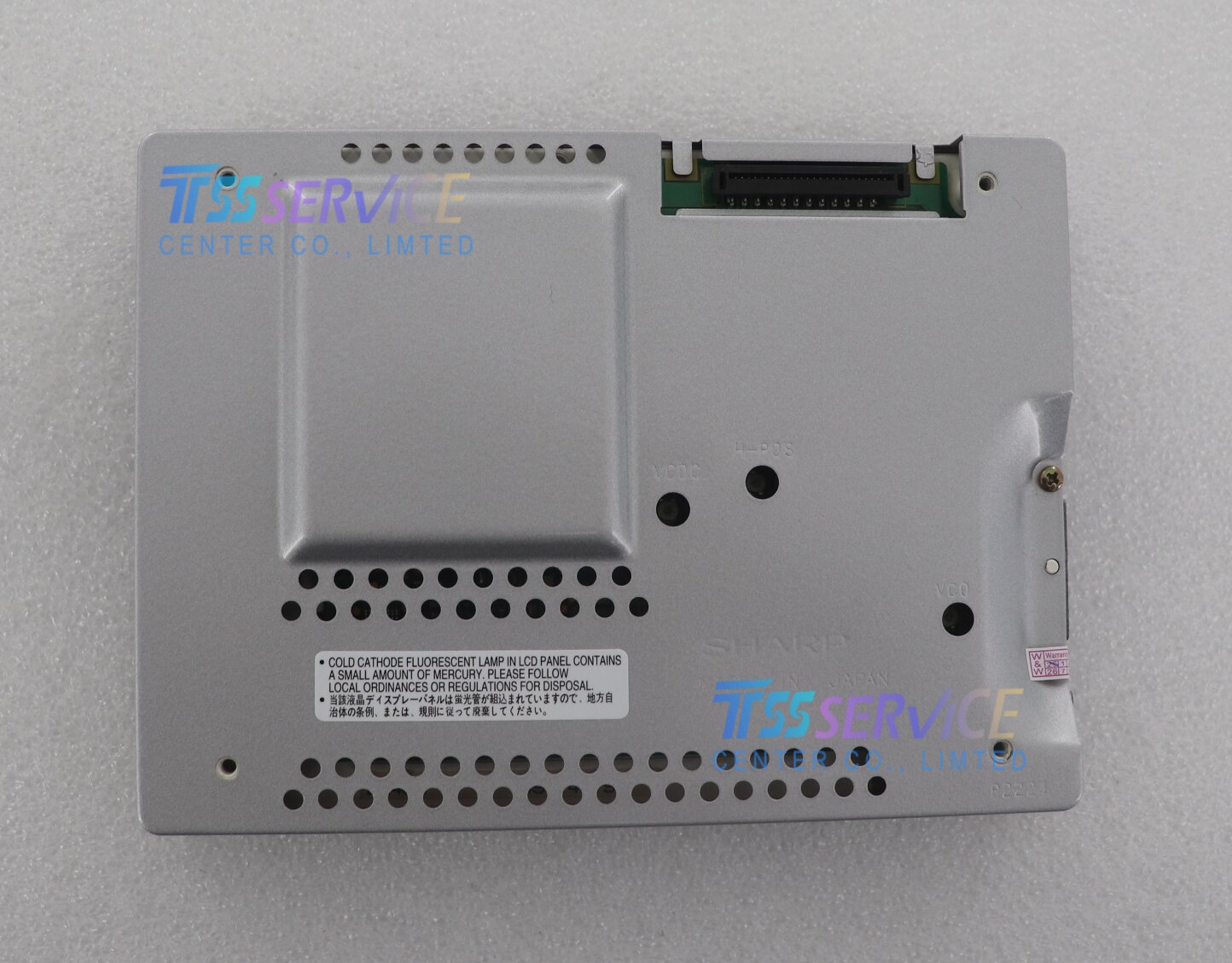

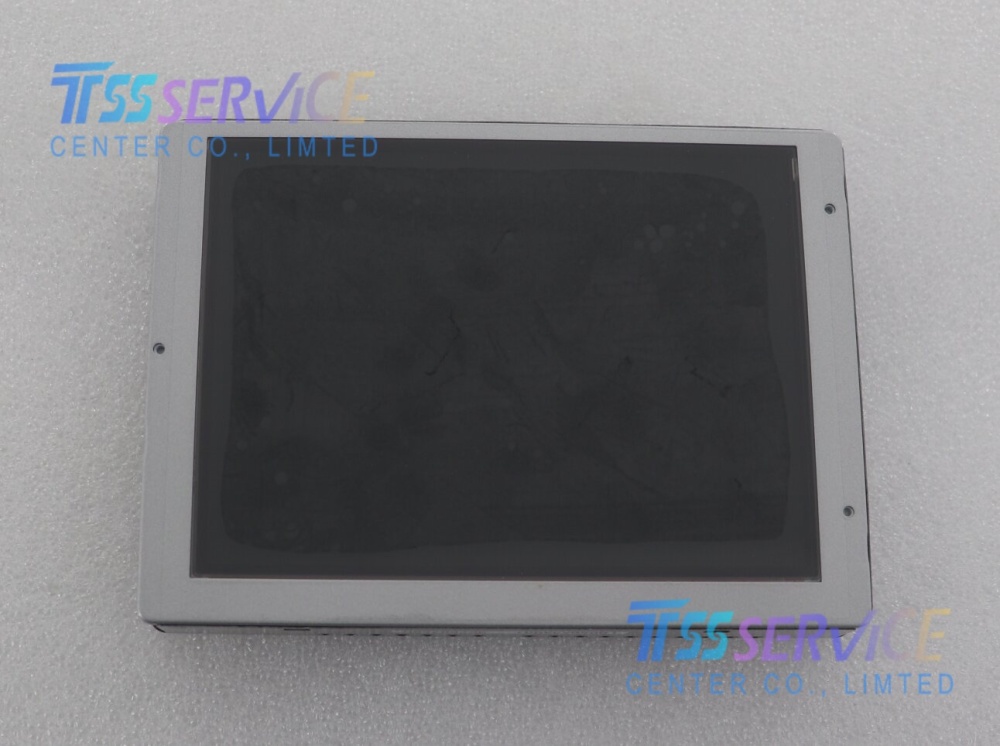

The Sharp LQ056A3AG01R is a 5.6-inch a-Si TFT-LCD display module from Sharp, a brand renowned as a pioneer in LCD technology. Engineered for versatility and reliable performance, this panel is specifically designed to meet the demands of various industrial applications, including human-machine interfaces (HMIs), industrial control systems, and specialized equipment such as optical fiber fusion splicers .
This model features a compact design and a unique analog interface, making it an excellent choice for systems that require direct video input capabilities.
| Parameter | Value |
|---|---|
| Brand | Sharp |

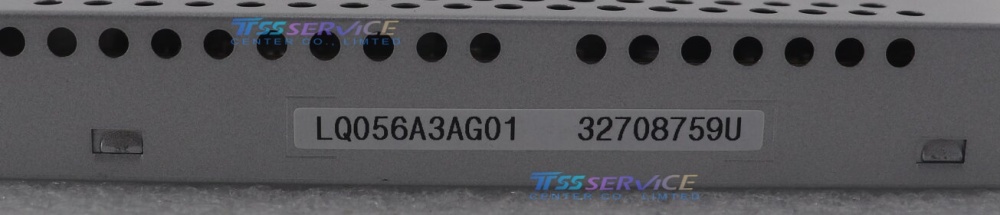

| Model P/N | LQ056A3AG01R |
| Diagonal Size | 5.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×234, 71PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 114.2(W)×83.5(H) mm |
| Bezel Opening | 120.0(W)×89.4(H) mm |
| Outline Dim. | 140(H)×102.7(V)×20.3(D) mm |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 60:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | Full color |
| Light Source | CCFL [1 pcs], 25K hours, With Inverter |
| Weight | 250±20g |
| Touch Panel | Without |

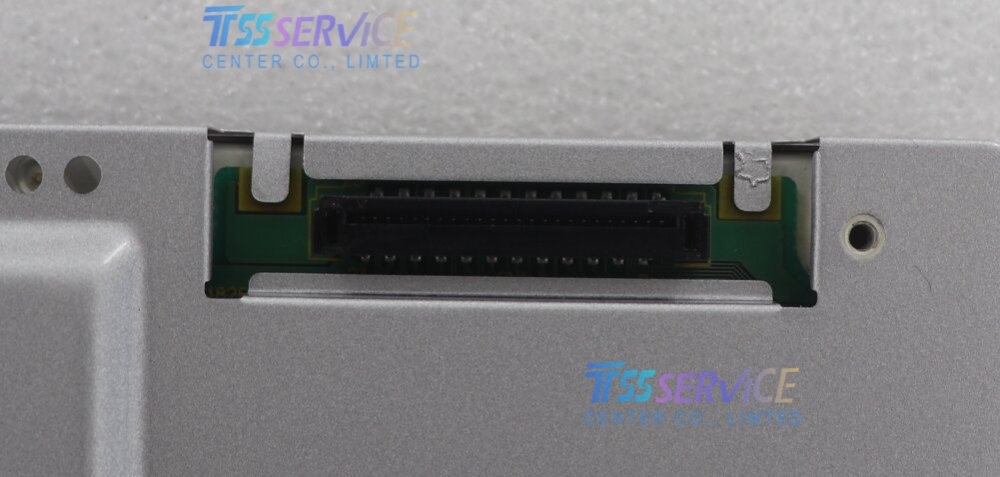

| Interface Type | Analog RGB + Composite Video (NTSC/PAL), 24 pins Connector |
| Power Supply | 12.0V (Typ.) |
| Operating Temperature | 0 ~ 65 °C |
| Storage Temperature | -25 ~ 70 °C |
The Sharp LQ056A3AG01R is ideally suited for applications that require a compact, durable display with direct video input, including:
Industrial HMIs and Control Panels: For displaying system status and control interfaces .
Specialized Industrial Equipment: Such as optical fiber fusion splicers and test instruments.
Video Monitoring Systems: For basic video feed display in industrial or security setups.
Aftermarket and Replacement: Serving as a reliable replacement part for existing industrial machinery and equipment.
