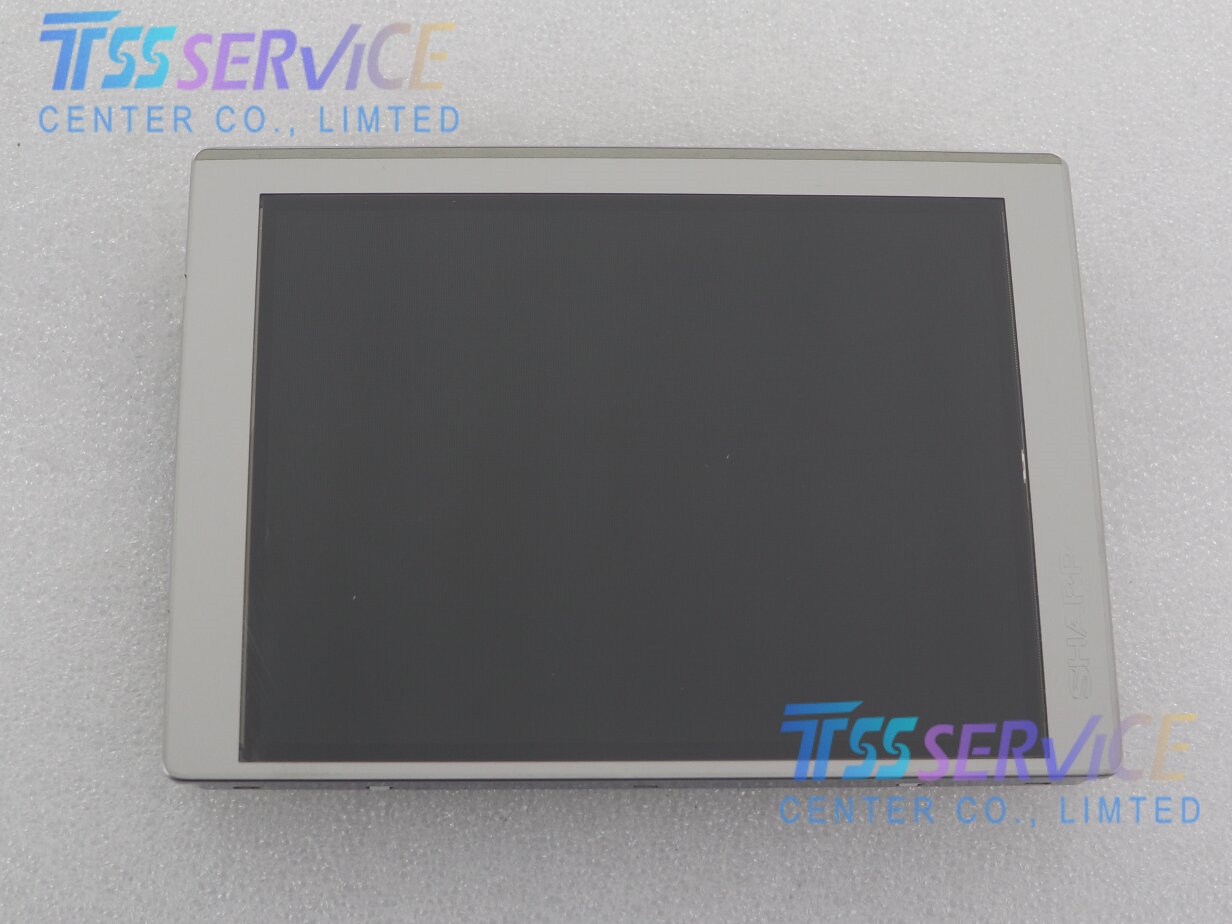

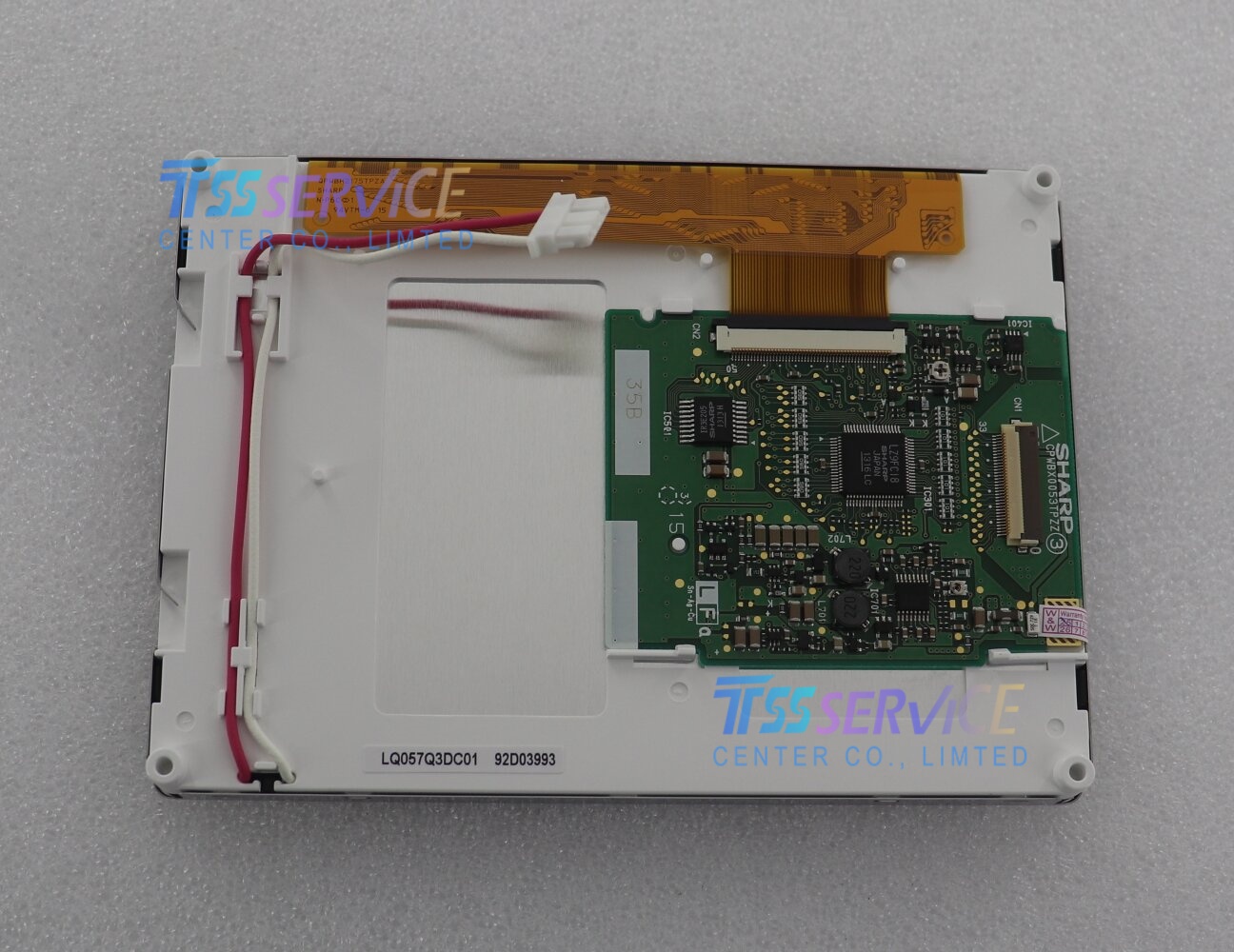

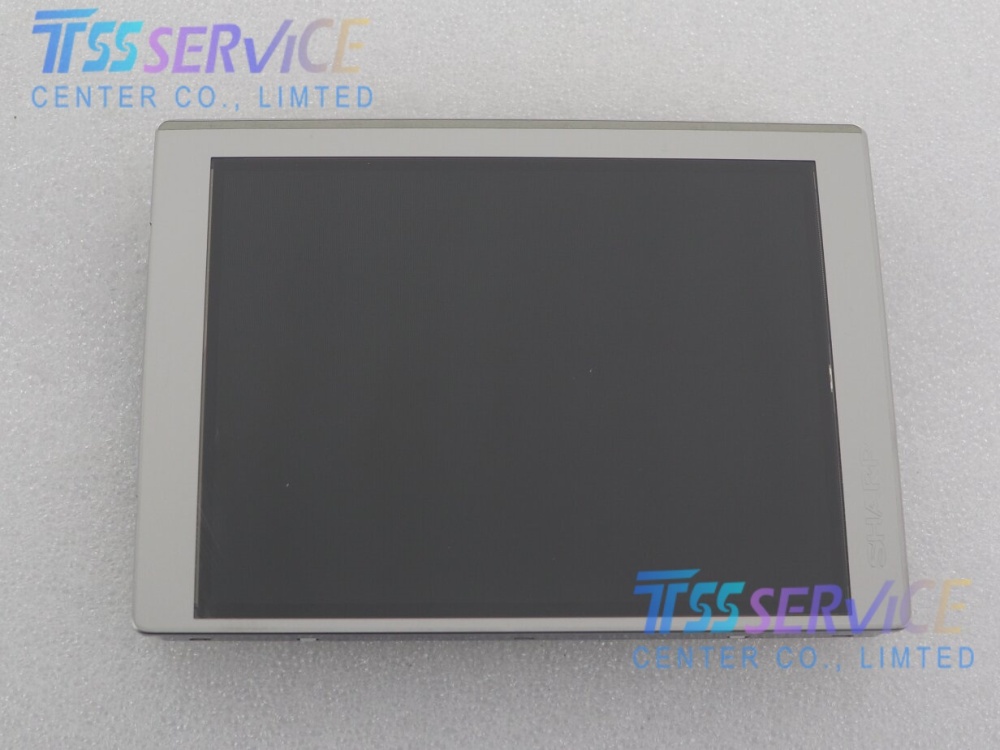

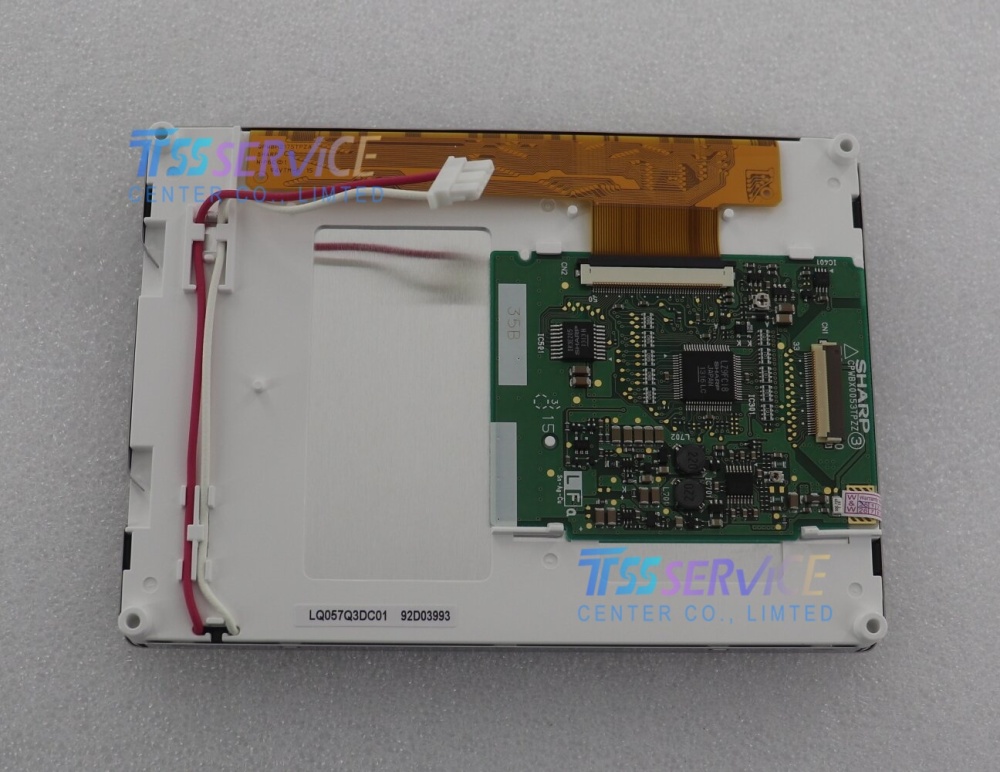

The Sharp LQ057Q3DC01 is a 5.7-inch diagonal a-Si TFT-LCD (amorphous silicon thin-film transistor liquid crystal display) module.
This model utilizes a transmissive display mode, making it suitable for applications requiring backlit operation. While specific optical parameters such as viewing angle, response time, and color support are not detailed in the basic specifications, the module is designed for reliable performance in industrial and embedded systems.
The LQ057Q3DC01 is part of Sharp’s legacy LCD lineup, known for durability and consistent quality in demanding environments.
| Parameter |
Specification |
| Brand |
Sharp |
| Model P/N |
LQ057Q3DC01 |
| Diagonal Size |
5.7" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
320(RGB)×240, QVGA 70PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.2(W)×86.4(H) mm |
Typical Applications
Due to its compact size, QVGA resolution, and transmissive design, the LQ057Q3DC01 is commonly used in:
-
Industrial control equipment – HMI panels, PLC interfaces, and factory automation displays
-
Medical devices – Patient monitoring systems and diagnostic equipment
-
Test and measurement instruments – Portable analyzers and bench-top instruments
-
Navigation systems – Marine and automotive GPS displays
-
Security and surveillance – CCTV monitor panels
-
Point-of-sale (POS) terminals – Customer-facing displays
-
Embedded systems – Custom-built devices requiring a reliable 5.7" display
