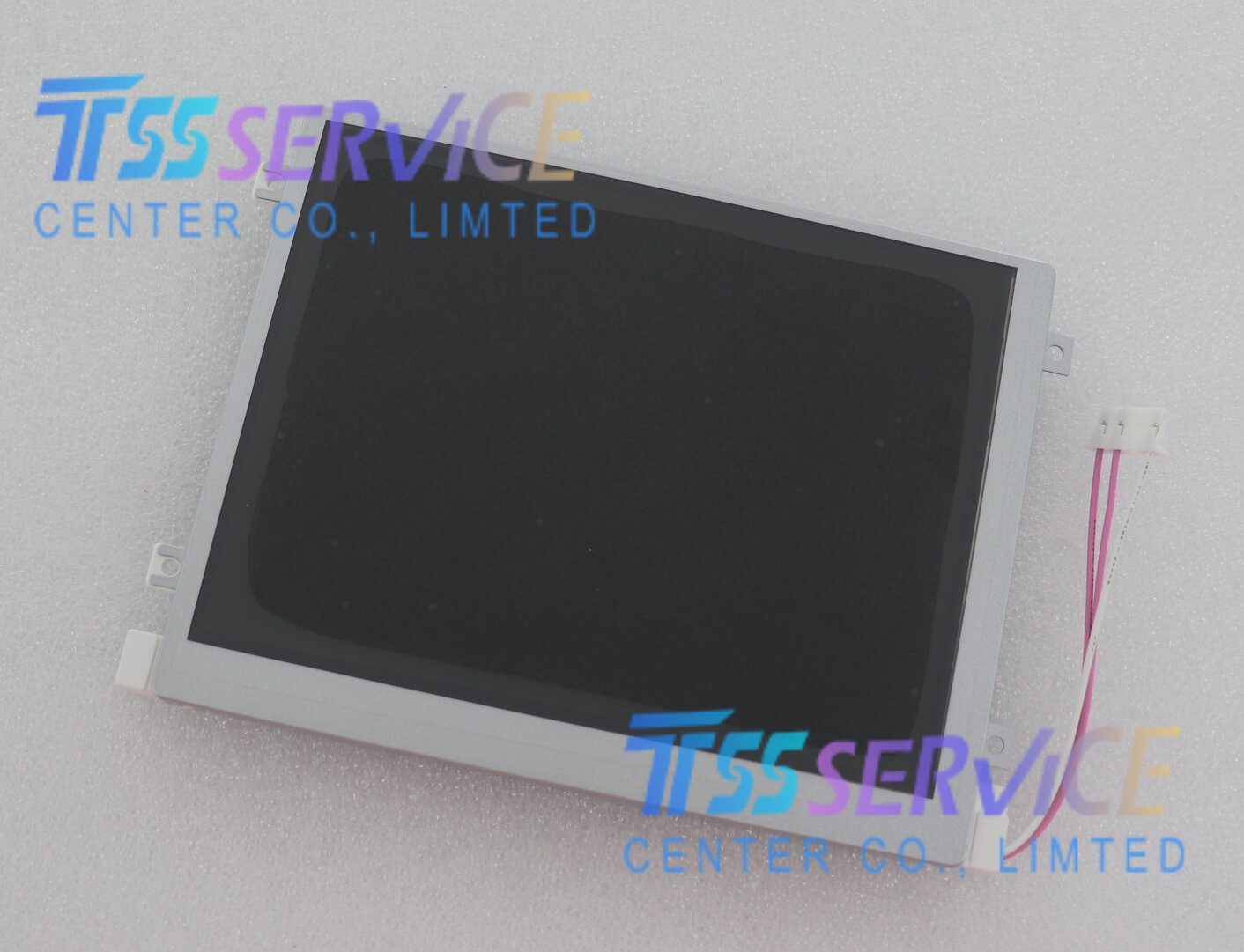

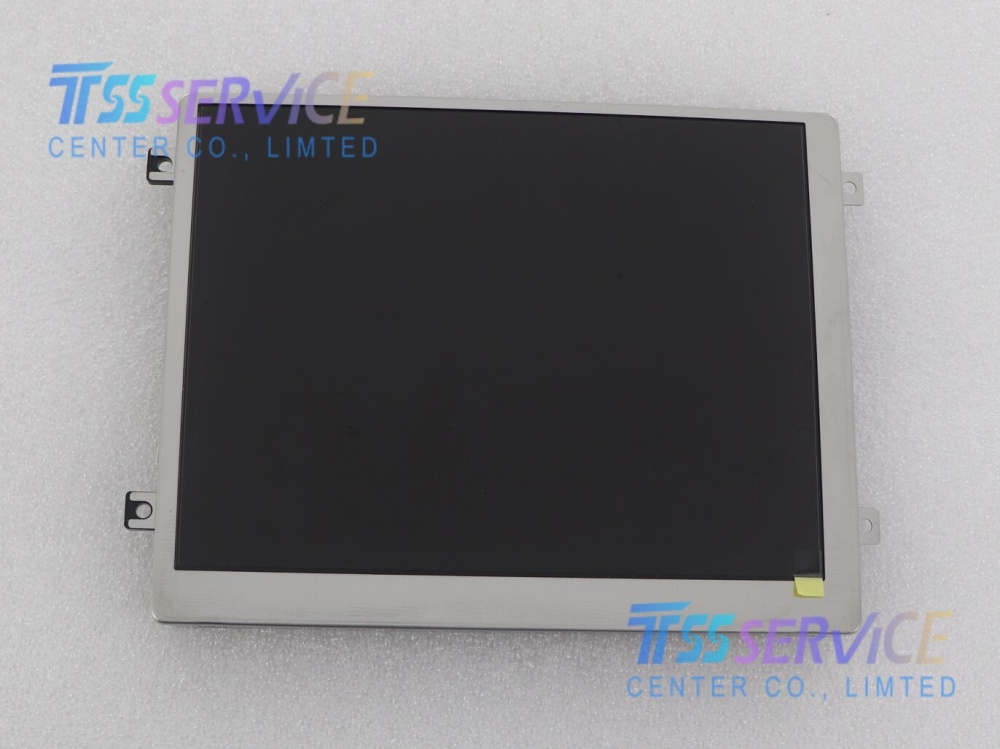

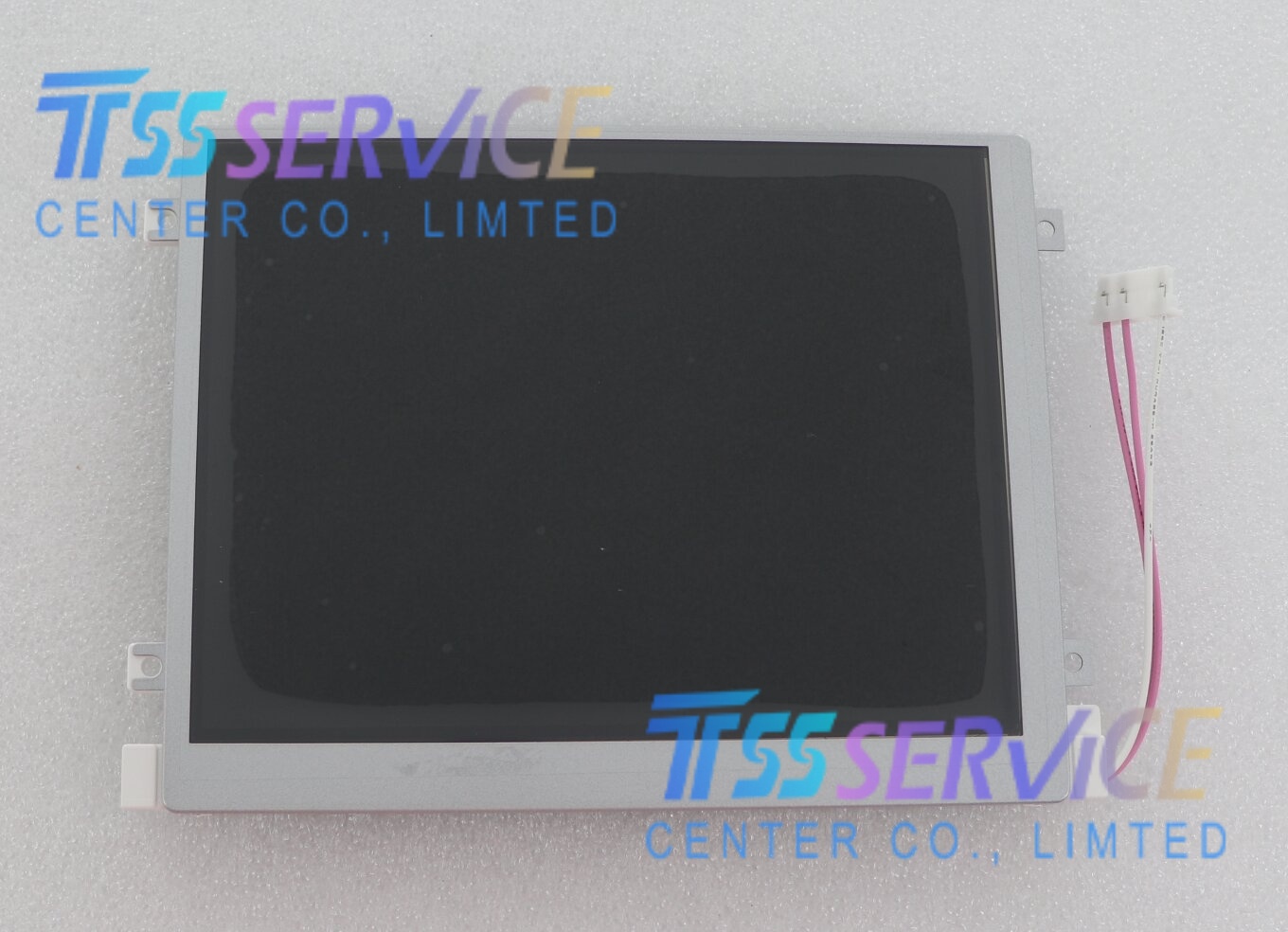

Sharp LQ064V3DG04 6.4" VGA TFT LCD 640×480 LCD Display for Industrial HMI & CNC

Name: Sharp LQ064V3DG04 6.4" VGA TFT LCD 640×480 LCD Display for Industrial HMI & CNC
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ064V3DG04
Price: 145 USD
Availability: InStock

SKU: LQ064V3DG04

Model: LQ064V3DG04
Brand: Sharp
Size: 6.4 inch (Diagonal), 4:3
Display Type: a-Si TFT-LCD, TN, Normally White, Transmissive
Resolution: 640(RGB)×480, VGA, 124 PPI

0.0 (0 Reviews)

0 Sold

~~$150.00~~ $145.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ064V3DG04 6.4" VGA TFT LCD 640×480 LCD Display for Industrial HMI & CNC

Item	Specification
Model	LQ064V3DG04
Brand	Sharp
Size	6.4 inch (Diagonal), 4:3
Display Type	a-Si TFT-LCD, TN, Normally White, Transmissive
Resolution	640(RGB)×480, VGA, 124 PPI
Brightness	290 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.)
Viewing Angle	L/R/U/D: 60°/50°/60°/60° (CR≥5)
Display Colors	262K Colors (6-bit RGB)
Backlight	CCFL (2 lamps), No driver, lifespan 50,000 hours
Interface	Parallel RGB (1 ch, 6-bit), 31-pin connector, TTL
Operating Temperature	-30℃ ~ +80℃
Storage Temperature	-30℃ ~ +80℃
Compliance	RoHS
Active Area	130.56(W) × 97.92(H) mm
Outline Dimension	161.3(W) × 117(H) × 12.5(D) mm
Weight	Approx. 280g (Max.)
Surface Treatment	Anti-glare (AG), matte
Response Time	6/25 ms (Tr/Td, Typ.)
Vibration Resistance	2.0G (19.6 m/s²)
Refresh Rate	60Hz
Best View Direction	3 o’clock

Applications

Industrial HMI & Control Panels: Factory automation, PLC terminals, CNC machinery, industrial PCs (wide temp & vibration resistance).
Marine & Heavy Equipment: Ship instrumentation, construction machinery, forklifts, vehicle-mounted displays (rugged & reliable).
Portable Industrial Devices: Handheld terminals, data collectors, portable test equipment (compact & durable).
Medical Equipment: Diagnostic devices, patient monitors, medical control terminals (stable performance).
Legacy System Replacement: Retrofit for older industrial displays requiring CCFL backlight & TTL interface.
