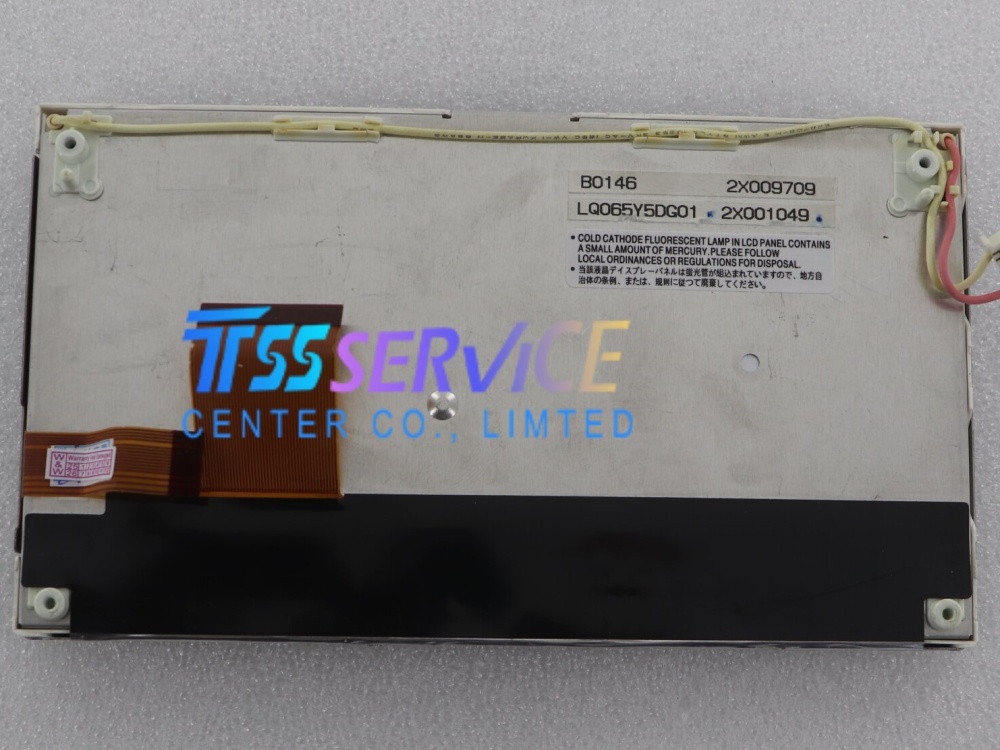

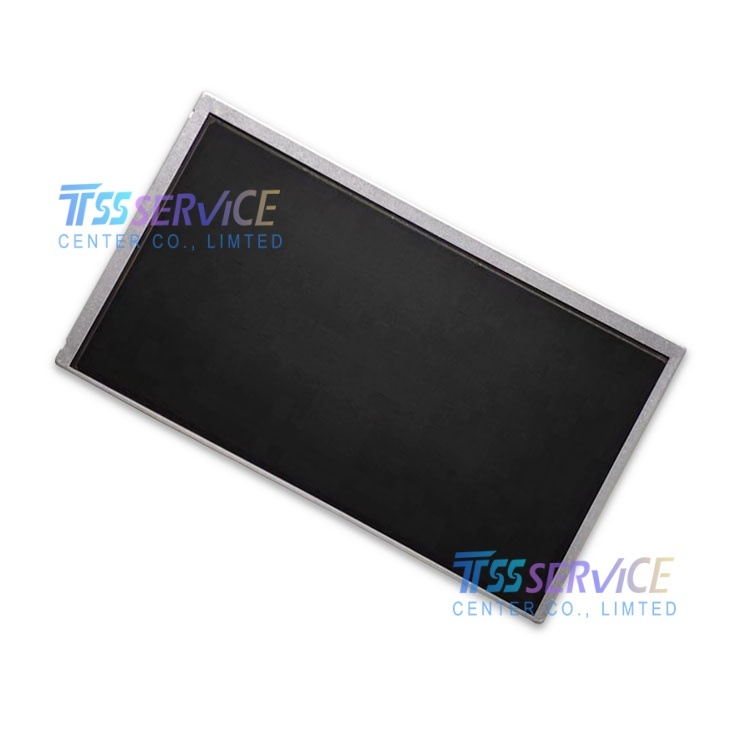

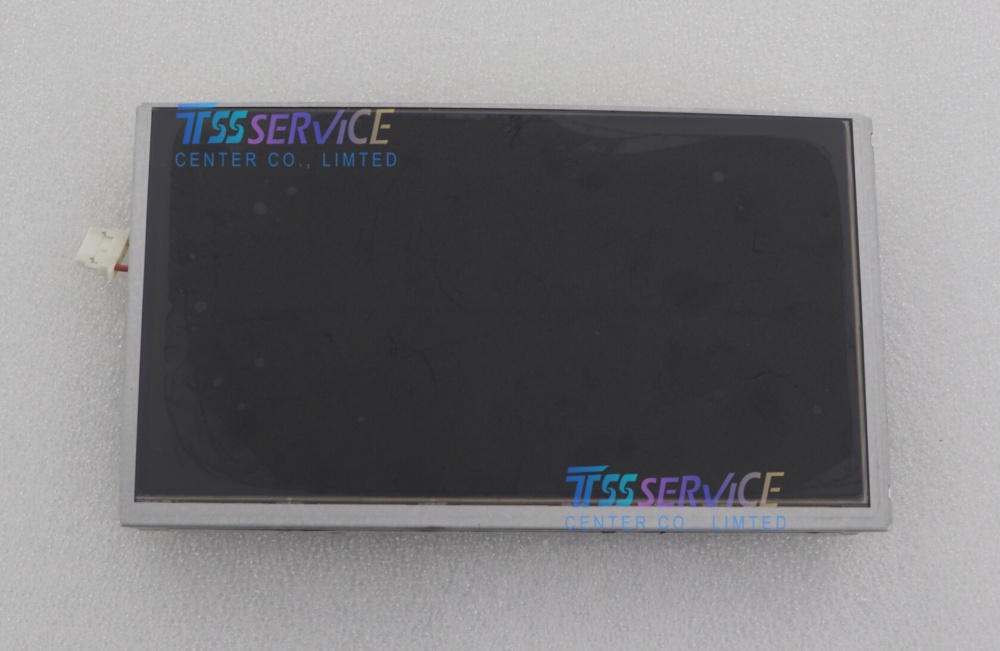

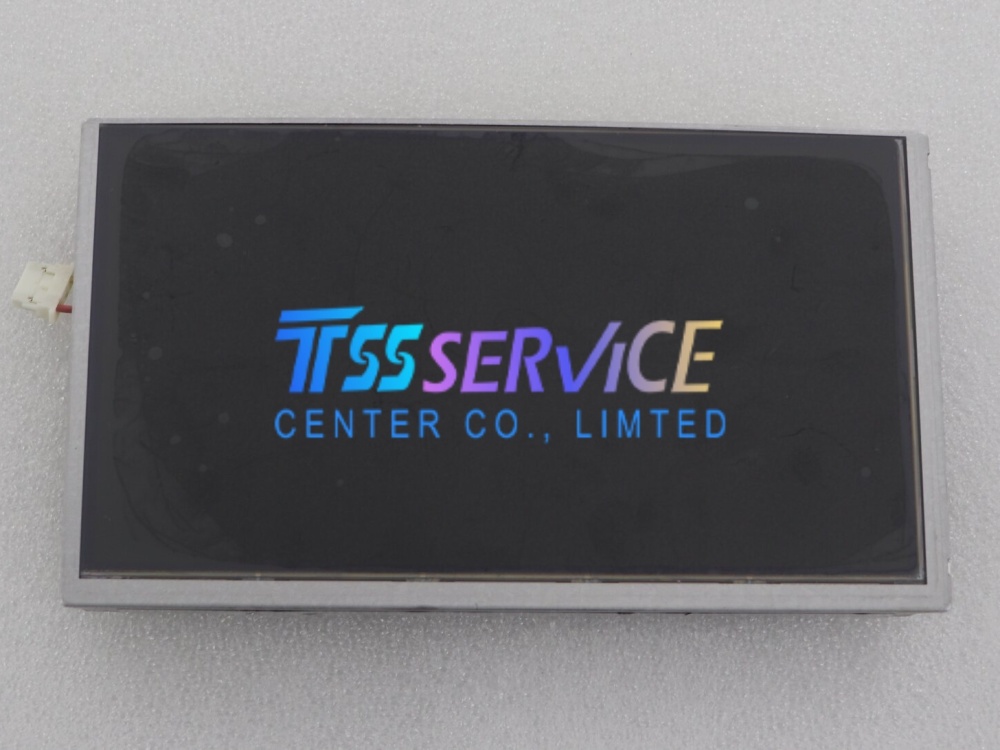

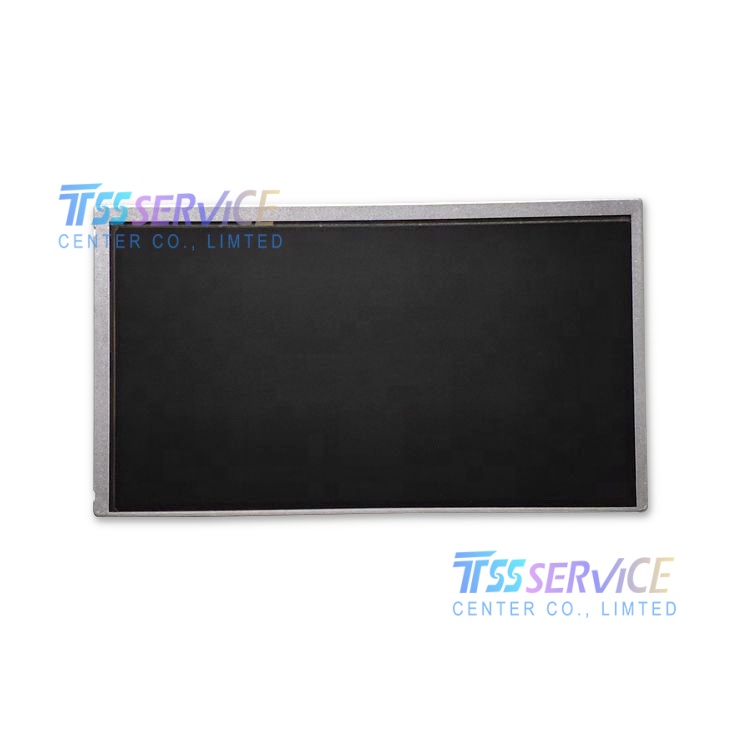

LQ065Y5DG02 | Sharp 6.5" WVGA Ultra-Wide Temp Automotive & Industrial TFT-LCD Module
LQ065Y5DG02 is a 6.5-inch WVGA a-Si TN transmissive TFT LCD module manufactured by Sharp, originally developed for automotive navigation and industrial control terminals. It features 500 cd/m² high brightness, single CCFL backlight, 65-pin 6-bit parallel RGB TTL interface, matte anti-glare surface, ultra-wide temperature range (-30℃ ~ +85℃) and high vibration resistance up to 2.9G. Without built-in touch panel, it supports external resistive touch overlay assembly, widely applied for car navigation host, construction machinery on-board monitors, outdoor portable test equipment, heavy-duty industrial HMI and legacy screen replacement.
| Parameter Item |
Specification Details |
| Full Part Number |
LQ065Y5DG02 |
| Manufacturer |
Sharp Corporation (Japan) |
| Diagonal Size |
6.5 inch, landscape, 16:9 wide ratio |
| Native Resolution |
800(H) × 480(V) pixels (WVGA, 144 PPI) |
| Display Technology |
a-Si TFT-LCD, TN mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Active Area (AA) |
144.0 mm (W) × 78.24 mm (H) |
| Overall Outline Dimension |
160.0 mm (W) × 94.0 mm (H) × 8.5 mm (Thickness) |
| Typical Brightness |
500 cd/m² (high brightness for semi-sunlight readable) |
| Typical Contrast Ratio |
100:1 minimum |
| Viewing Angle (L/R/U/D, CR≥5) |
65° / 65° / 60° / 65°, optimal viewing direction: 6 o'clock |
| Response Time (Tr / Td) |
30 ms / 50 ms typical |
| Display Color Depth |
262K colors (6-bit single channel) |
| Backlight System |

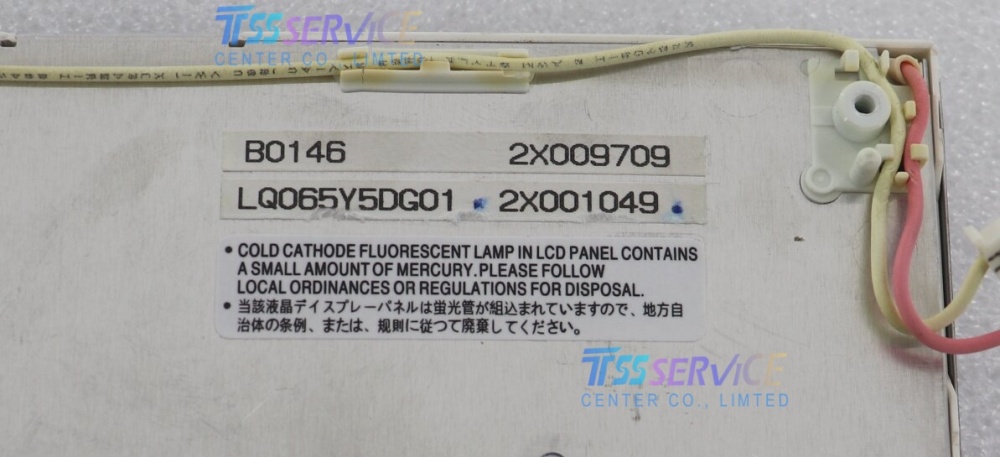

Single edge CCFL lamp, service life ≥10,000 hours, external inverter required |
| Signal Interface |
Single-channel parallel RGB TTL (6-bit), 65-pin FPC connector |
| Standard Power Voltage |
VSHD=3.3V, VSHA=5.3V, VDD=15V, VEE=-12V, VCC=-14.1V |
| Refresh Rate |
60 Hz standard |
| Touch Function |
No integrated touch panel (external resistive touch overlay customizable) |
| Surface Treatment |
Matte anti-glare polarizer, hard scratch-resistant coating |
| Vibration Resistance |
2.9G industrial/automotive high anti-vibration standard |
| Operating Temperature |
-30°C ~ +85°C (ultra-wide extreme temperature tolerance) |
| Storage & Transport Temp |
-40°C ~ +85°C |
| Net Weight |
Max 185 g ultra-lightweight |
| Compliance Standard |
RoHS compliant, automotive reliability certification |
| Production Status |
Discontinued original production, sufficient stock for maintenance replacement & retrofit projects |
