LQ070T3AG02A 7 Inch Sharp 480*234 LCD Screen Industrial TFT Display

Name: LQ070T3AG02A 7 Inch Sharp 480*234 LCD Screen Industrial TFT Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ070T3AG02A
Price: 75 USD
Availability: InStock

SKU: LQ070T3AG02A

Model No.: LQ070T3AG02A
Display Size: 7.0 Inches
Panel Type: a-Si TFT-LCD, LCM, TN Technology
Native Resolution: 480(RGB) × 234, WQVGA Wide Screen
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$78.00~~ $75.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LQ070T3AG02A 7 Inch Sharp 480*234 LCD Screen Industrial TFT Display

Spec Item	Detailed Parameter
Manufacturer	Sharp
Model No.	LQ070T3AG02A
Display Size	7.0 Inches
Panel Type	a-Si TFT-LCD, LCM, TN Technology
Native Resolution	480(RGB) × 234, WQVGA Wide Screen
Dot Layout	RGB Vertical Stripe
Display Mode	Normally White, Transmissive
Brightness	350 cd/m² (Typical)
Contrast Ratio	60:1 (Typ.)
Backlight Source	Single CCFL Lamp, Built-in Inverter, Lifespan 25,000 Hours

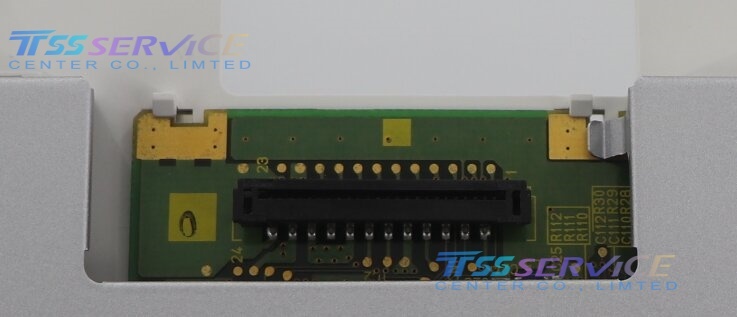

Signal Interface	Analog RGB + Composite Video CVBS (Support NTSC/PAL), 24Pin Terminal Connector
Supply Voltage	12.0V (Typ.)
Touch Screen	Without Touch Digitizer
Operating Temperature	0 ℃ ~ +65 ℃
Storage Temperature	-25 ℃ ~ +70 ℃
Refresh Rate	Standard 60Hz
Surface	Hard Coating Anti-glare Surface
Aspect Ratio	Wide Screen for Vehicle & Industrial Equipment
