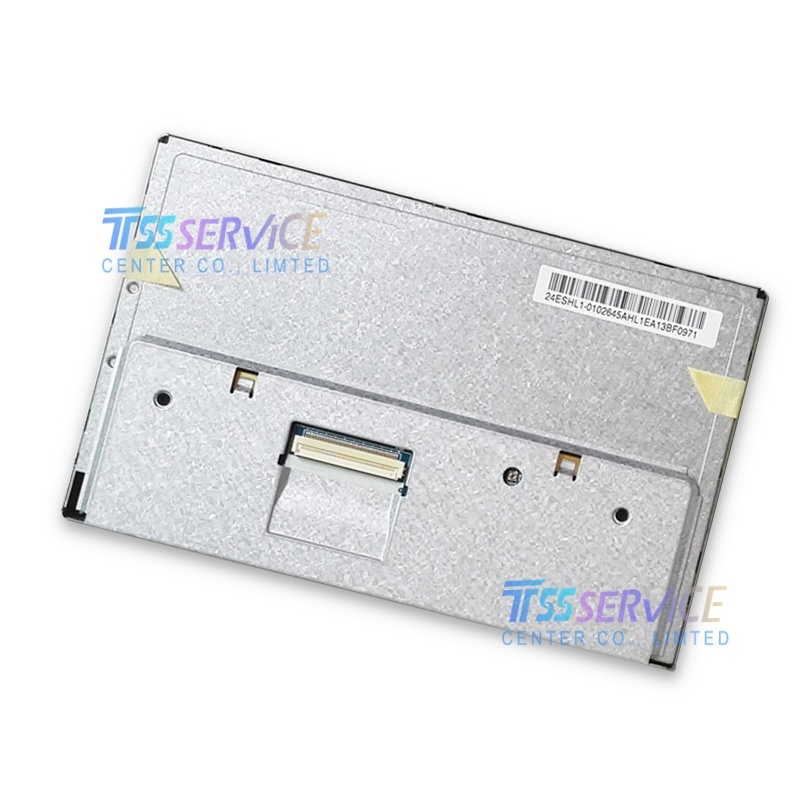

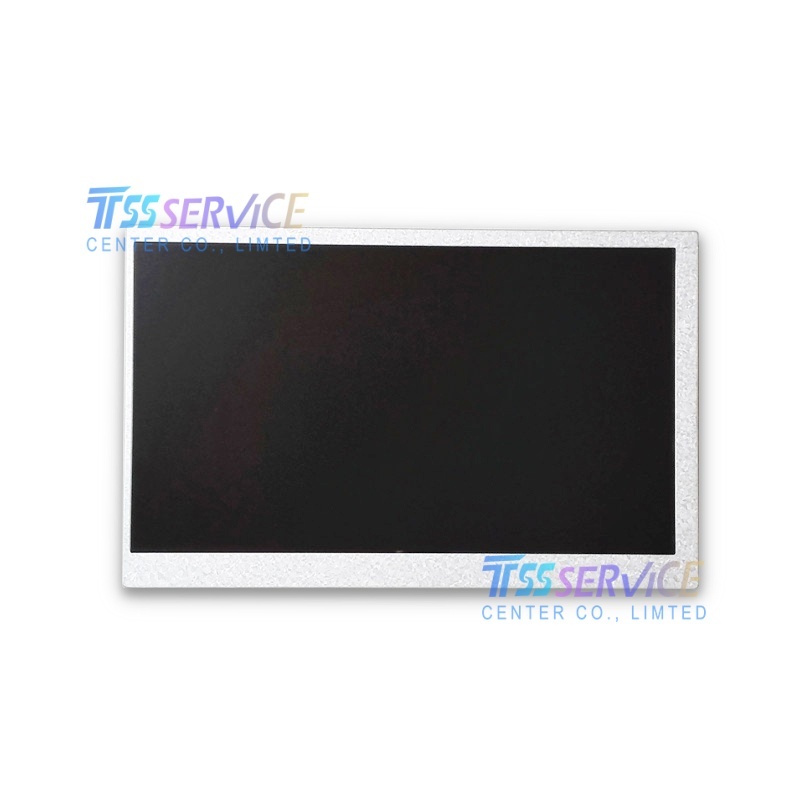

LQ070Y3DG05 7.0 inch 800×480 lcd display panel

SKU: LQ070Y3DG05
Model P/N: LQ070Y3DG05
Diagonal Size:7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA  134PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$65.00 $55.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
1/1
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
  • LQ070Y3DG05 7.0 inch 800(RGB)×480 lcd display panel in stock
  • Description
The LQ070Y3DG05 is a 7.0-inch TFT-LCD panel featuring a widescreen 800(RGB)×480 (WVGA) resolution. Designed for industrial and consumer applications, this display offers a balance of clarity, compact size, and reliable performance, making it suitable for devices that require a modern widescreen interface in a space-efficient form factor.
Parameter Specification
Model LQ070Y3DG05
Screen Size 7.0 inches (diagonal)
Active Area (approx.) 153.6(W)×86.64(H) mm
Resolution 800(RGB) × 480 pixels (WVGA)
Display Type TFT-LCD, Transmissive
Brightness (Typical) ~350–450 cd500 : 1 (Typ.) (TM)  m²
Contrast Ratio ~500:1 – 800:1
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)

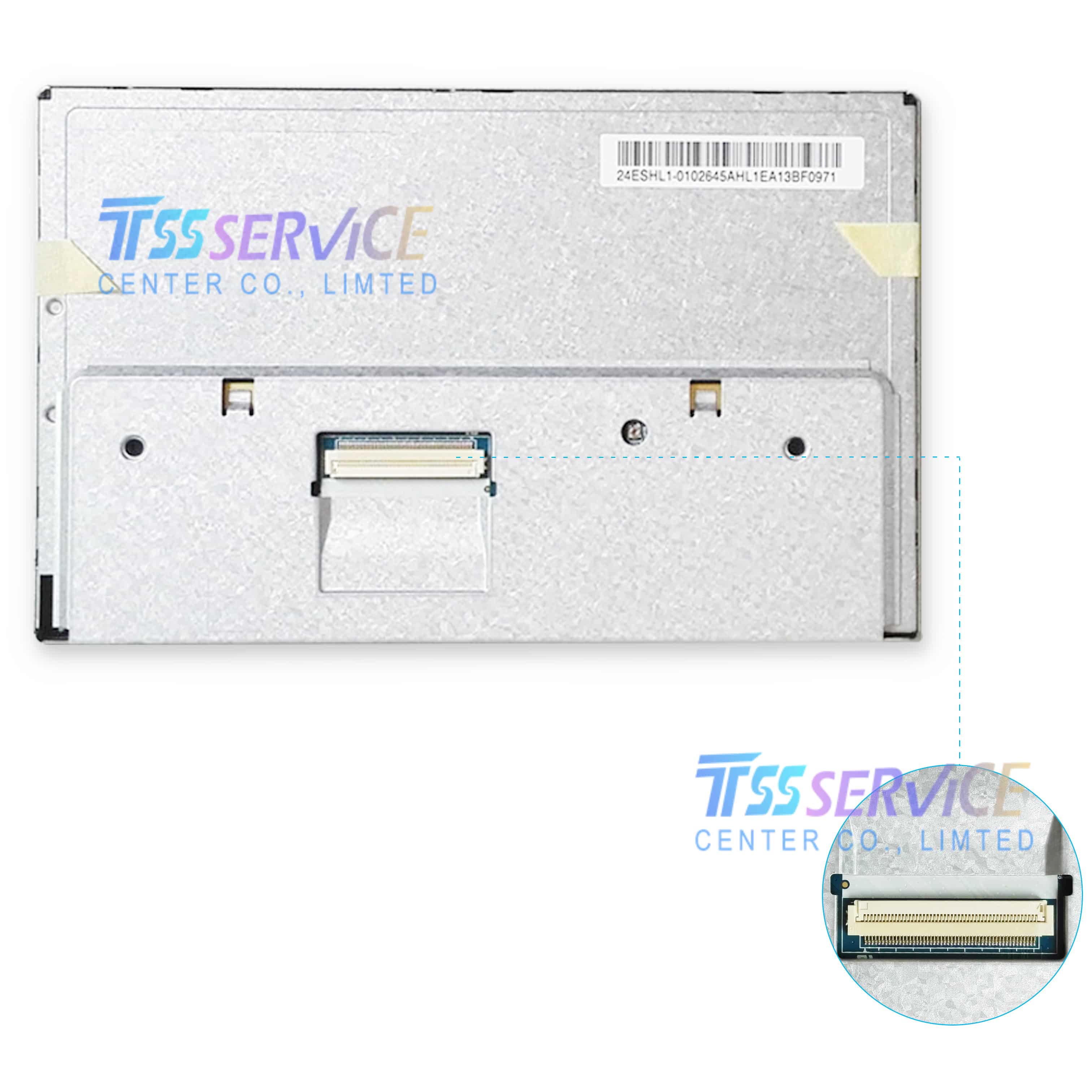

Interface Parallel RGB (1 ch, 8-bit) , 50 pins Connector
Backlight Type LED
Surface Treatment Anti-glare hard coating
Stock Status IN STOCK

Typical Applications

The LQ070Y3DG05 is a versatile solution for high-stakes environments:

  1. Industrial Automation: HMI control panels, factory monitoring systems, and PLC displays.
  2. Medical Technology: Portable diagnostic equipment, nursing station monitors, and laboratory analyzers.
  3. Test & Measurement: High-precision oscilloscopes, spectrum analyzers, and environmental testing tools.
  4. Security & Surveillance: Professional intercom systems and high-end security monitoring hubs.
  5. Smart Kiosks: Self-service terminals and information display points.

Why Choose TSS ?

  • 14 Years of Expertise: We understand the nuances of Sharp’s industrial catalog and provide expert guidance on model selection and compatibility.
  • Authenticity Guaranteed: All LQ070Y3DG05 units are 100% genuine Sharp factory-new stock.
  • Rapid Global Logistics: Our strategic location in Shanghai enables the fastest express shipping (DHL/FedEx/UPS) to your facility worldwide.
  • Comprehensive Supply Support: We carry a wide range of Sharp and NEC industrial panels, supporting your projects from prototype to volume production.
