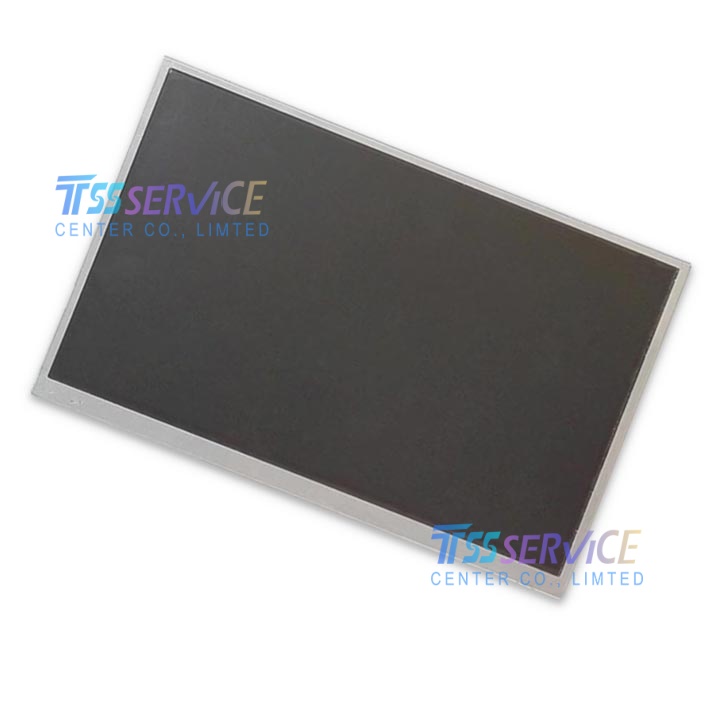

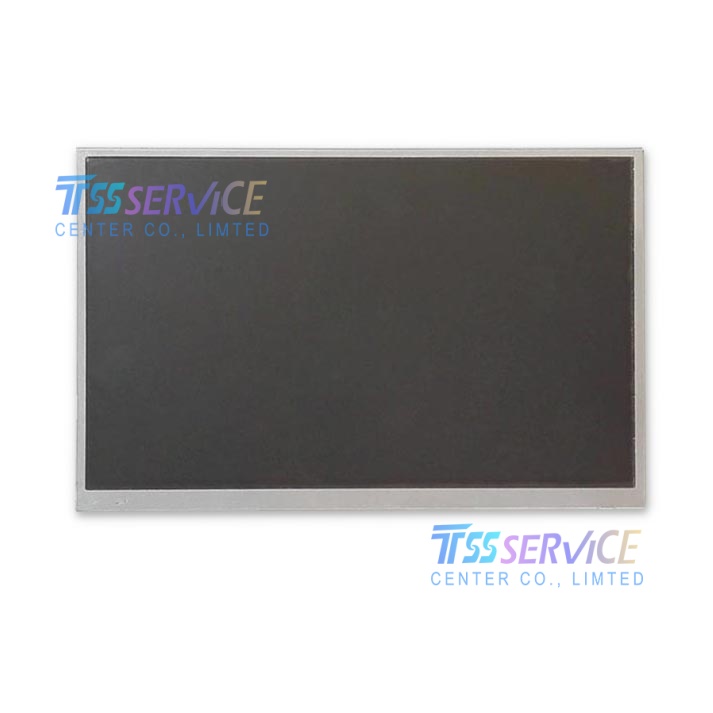

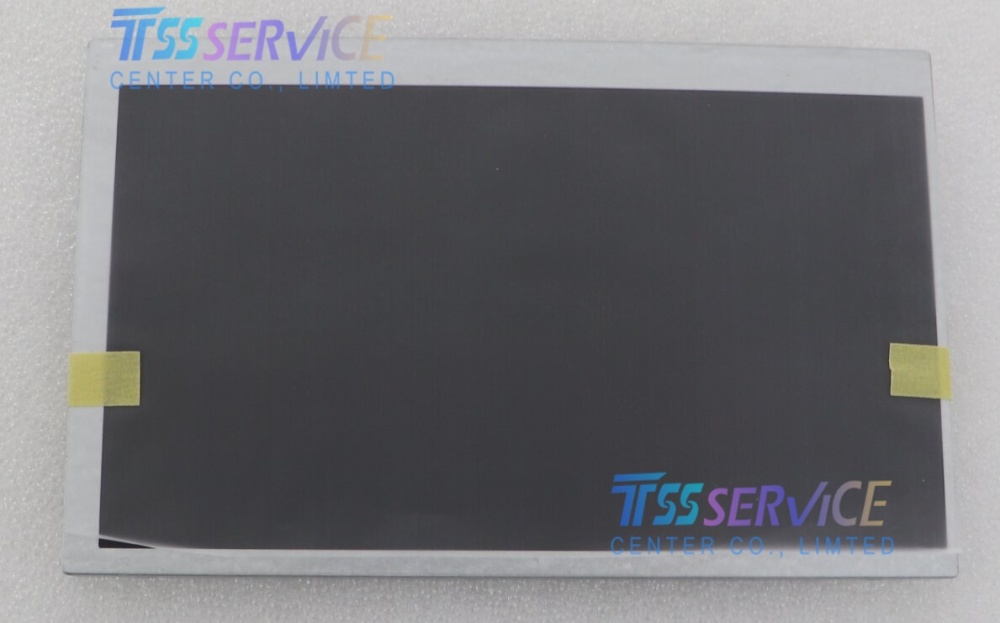

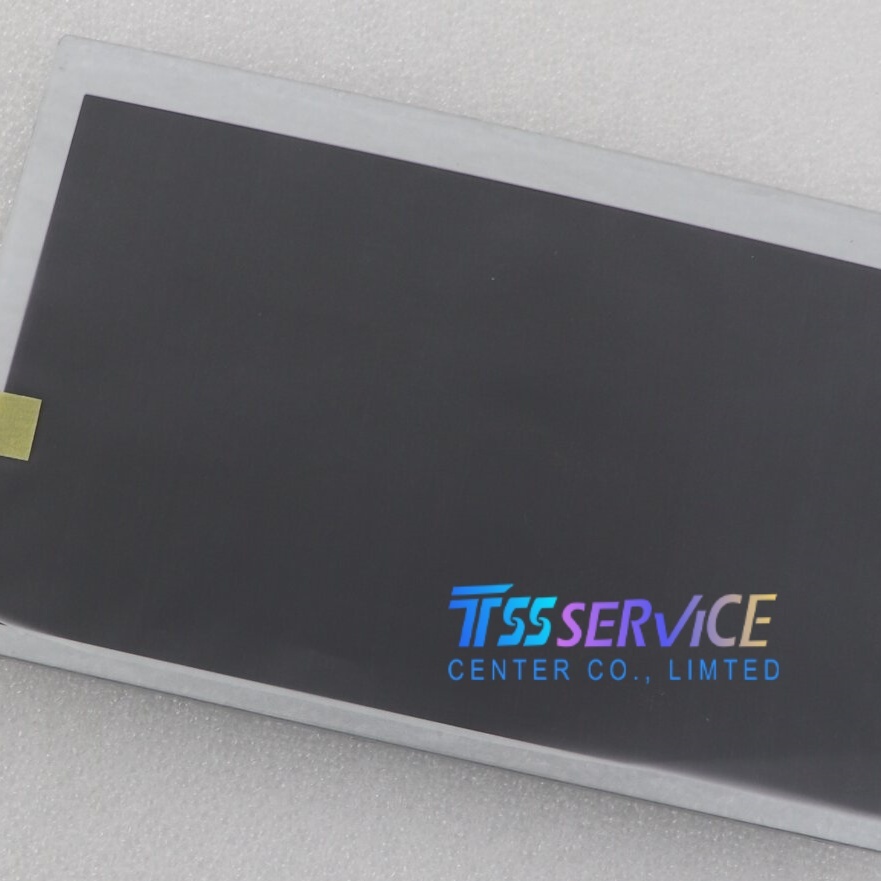

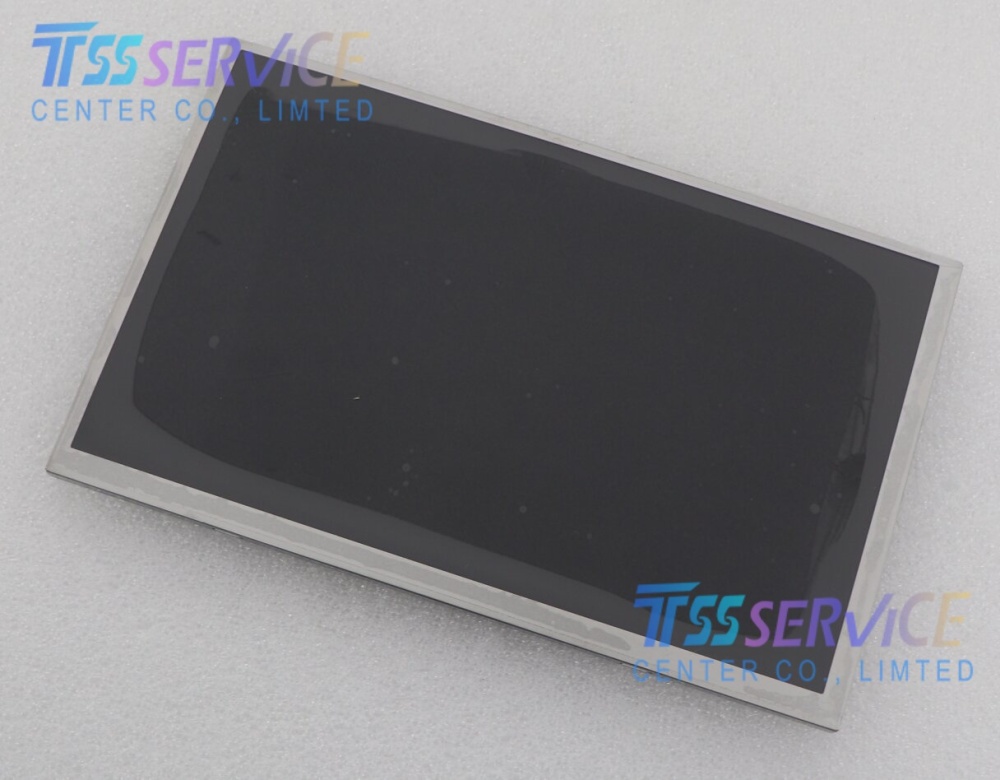

Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial

SKU: LQ070Y3LG02
Model P/N: LQ070Y3LG02
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA  133PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$78.00 $75.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
1/1
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
  • Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
  • Description
Sharp LQ070Y3LG02 7 inch 800×480 LCD Display Screen for Industrial
Parameter Value
Brand Sharp
Diagonal Size 7.0 inch
Resolution 800(RGB) × 480 (WVGA)
Panel Type a-Si TFT-LCD
Display Mode TN, Normally White, Transmissive
Surface Anti-glare (Matte), Hard coating (2H)
Brightness 750 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.)
Display Colors 262K (6-bit)
Response Time 40 ms (Typ.) (Tr+Td)
Viewing Angle 60/60/50/60° (Typ.) (L/R/U/D)
Backlight WLED, Without driver, 50K hrs
Interface LVDS (1 channel, 6-bit)
Active Area 152.4 × 91.44 mm
Outline Dimension 170.8 × 112 × 12.0 mm
Operating Temperature -30°C ~ +80°C
Storage Temperature -40°C ~ +85°C
RoHS Compliant

Typical Applications

  • Industrial control panels & HMI displays (high brightness for factory floors)
  • Automotive infotainment & on-board navigation
  • Outdoor handheld terminals & data collectors
  • Ruggedized vehicle-mounted computers
  • Marine and avionics monitoring equipment
  • Medical diagnostic devices (portable)
  • POS systems & outdoor advertising displays
