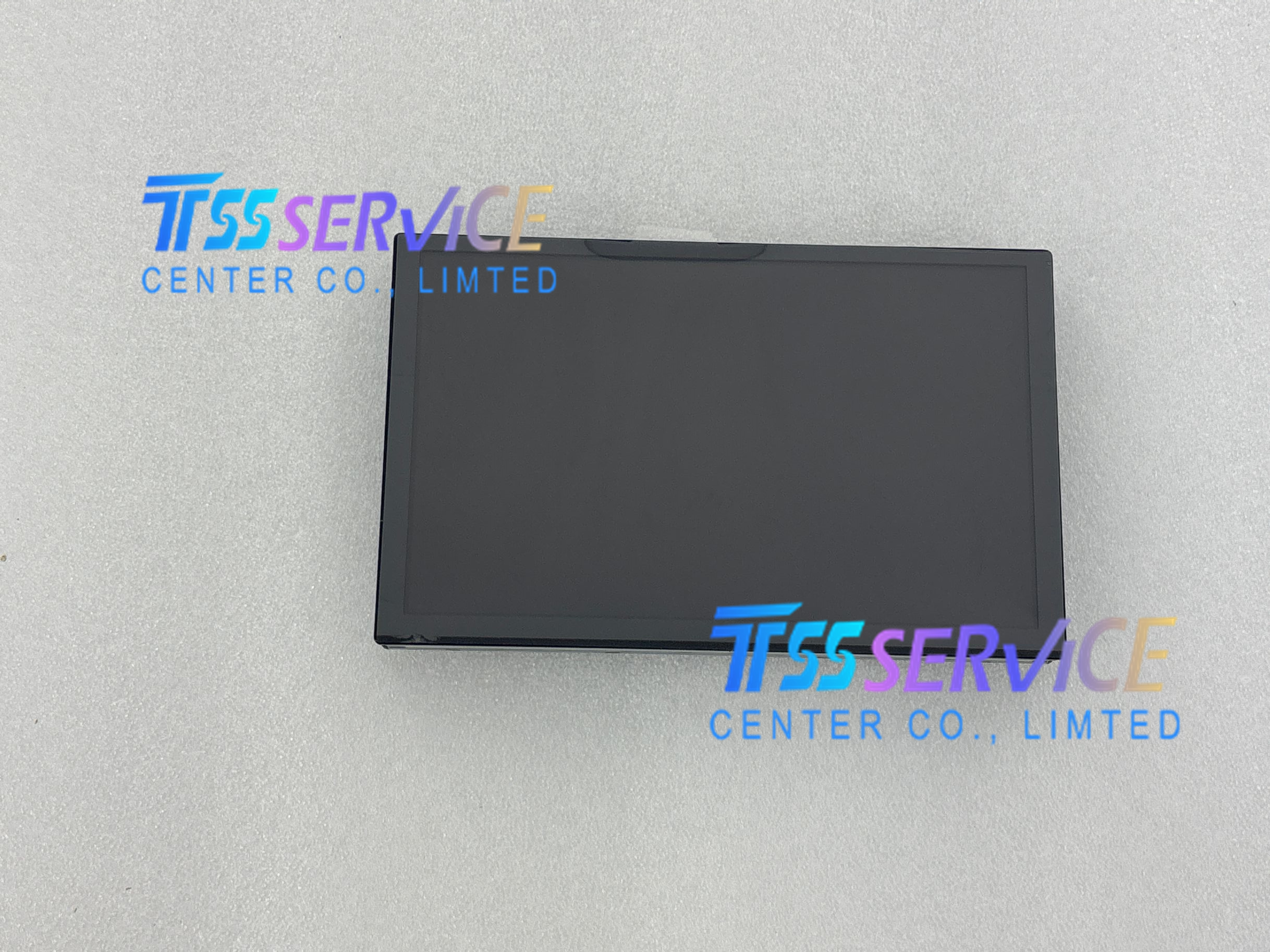

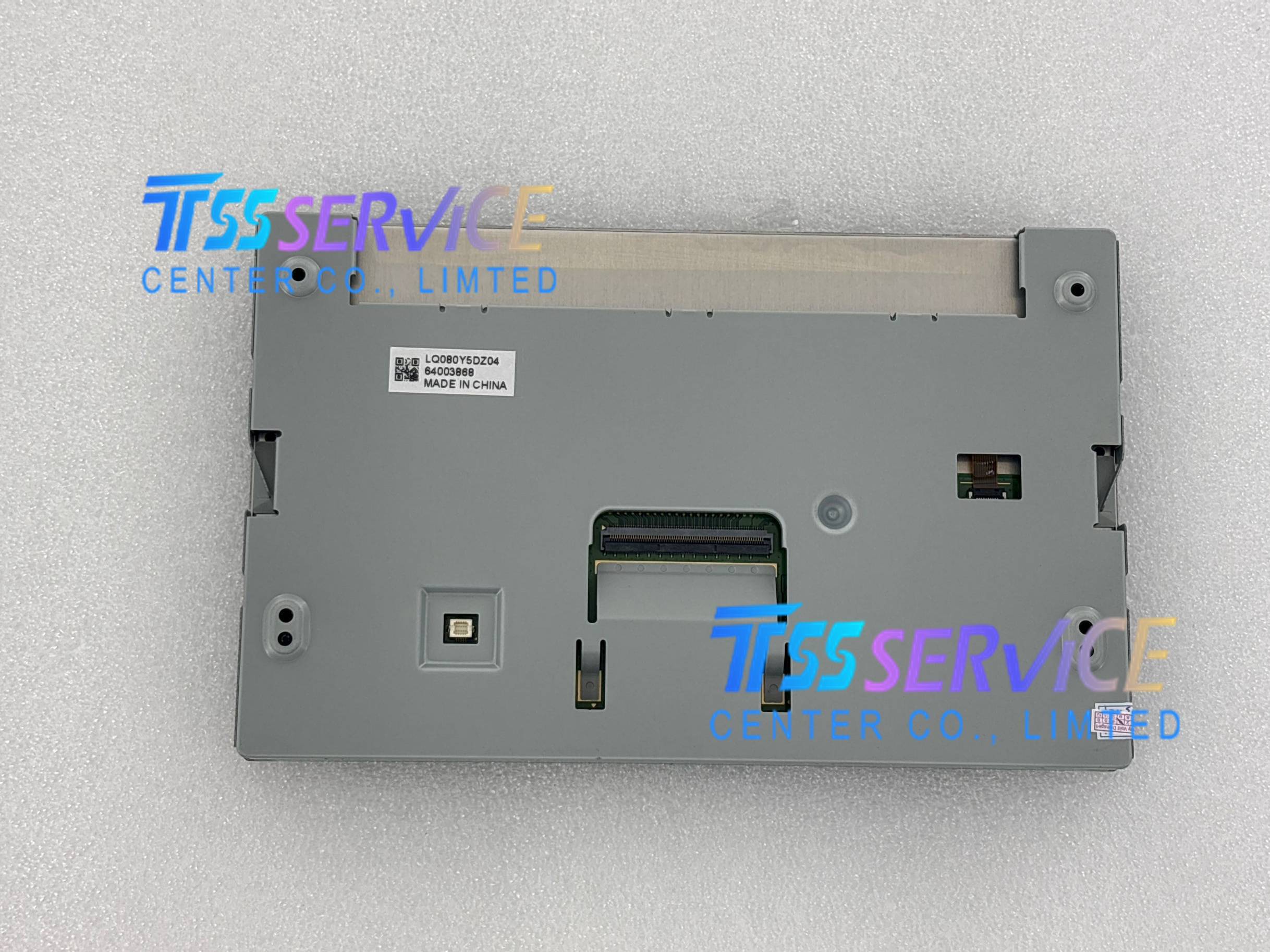

LQ080Y5DZ04 Sharp 8" 800×480 a-Si TFT-LCD Display Panel Screen for Industrial
The LQ080Y5DZ04 is an 8.0-inch high-resolution TFT LCD display module designed for industrial and embedded applications requiring excellent image clarity and reliability. Featuring a WVGA resolution of 800×480, this display delivers sharp visuals with good color reproduction and wide viewing angles. It operates within an extended temperature range of -30°C to 85°C, making it suitable for use in harsh environments. The panel utilizes ASV technology with a normally black transmissive mode and is equipped with a WLED backlight for energy-efficient, long-lasting performance.
| Category |
Parameter |
Value |
| Basic Information |
Manufacturer |
Sharp |
|
Panel Model |
LQ080Y5DZ04 |
|
Panel Size |
8.0 inches |
|
Panel Type |
a-Si TFT-LCD, Transmissive |
|
Application |
Industrial Equipment, HMI |
|
RoHS Compliance |
RoHS compliant |
| Pixel & Resolution |
Resolution |
800 × 480 (WVGA) |
|
Pixel Arrangement |
RGB Vertical Stripe |
|
Pixel Density |
116PPI |
|
Color Depth |
262K 64% NTSC |
| Physical Dimensions |
Active Area |
174(W)×104.4(H) mm |
| Optical Characteristics |
Contrast Ratio |
2000 : 1 (Typ.) (TM) |
|
Viewing Angle (CR≥10) |
85/85/85/85 (Typ.) |
|
Response Time (Tr/Td) |
15/5 (Typ.) ms |
|
Optical Mode |
ASV, Normally Black, Transmissive |
| Backlight System |
Backlight Type |
WLED |
Sharp
Specific Application Scenarios：
The LQ080Y5DZ04 is engineered for stable and durable performance in a wide range of industrial and embedded applications. Its robust design and environmental resilience make it ideal for the following use cases:
-
Human-Machine Interfaces (HMI): Widely used in factory automation systems, control panels, and programmable logic controllers (PLCs), where clear visualization and responsive touch interaction are essential for efficient operation.
-
Industrial Control Panels and Machinery Displays: Integrated into CNC machines, printing equipment, and process control systems due to its wide operating temperature range and resistance to electrical noise and vibration.
-
Medical Monitoring Devices: Employed in patient monitors, diagnostic instruments, and portable medical units where consistent display performance and long-term reliability are critical for accurate data representation.
-
Building Automation and Security Systems: Suitable for access control panels, HVAC interfaces, and surveillance monitoring terminals, benefiting from high visibility and anti-glare surface in various lighting conditions.
-
Retail and Industrial Kiosks: Used in self-service terminals, vending machines, and information kiosks where durability, readability, and long backlight life reduce maintenance and replacement costs.
This display module is particularly well-suited for applications that demand long lifecycle support, industrial-grade stability, and compatibility with standard RGB interfaces, making it a reliable choice for OEMs across industrial, medical, and embedded markets.
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
