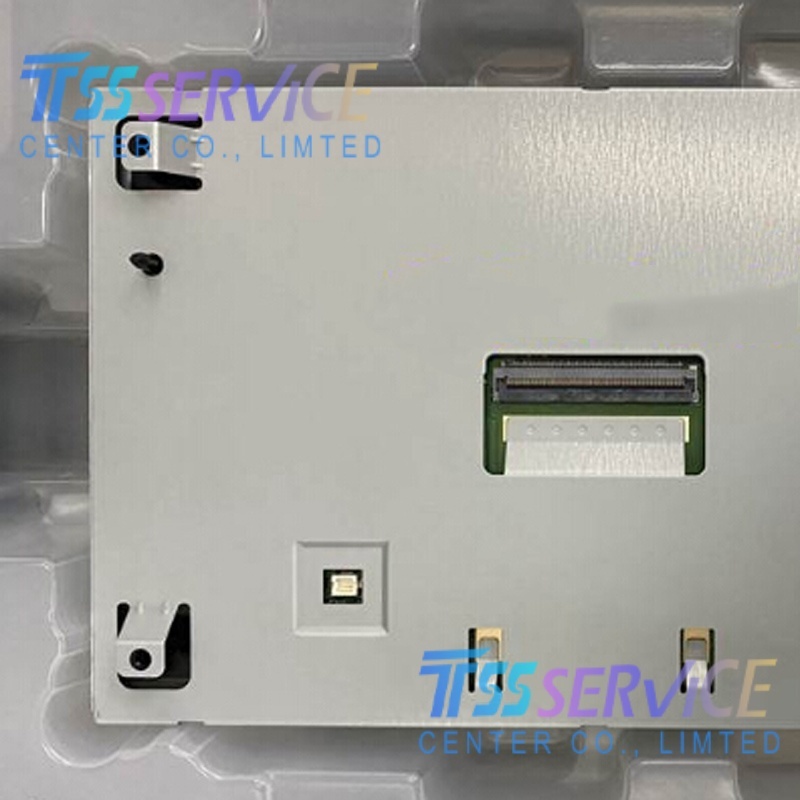

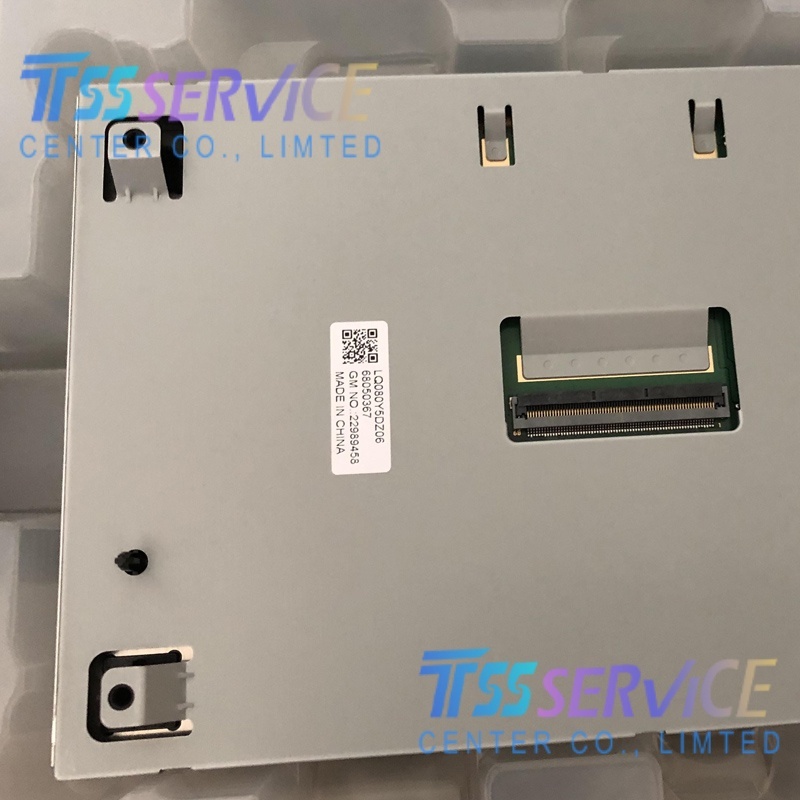

Sharp LQ080Y5DZ06 8 Inch WVGA 800×480 ASV TFT LCD Screen For Industrial
| Specification Item |
Detailed Parameter |
| Manufacturer |
Sharp |
| Model Number |
LQ080Y5DZ06 |
| Diagonal Size |
8.0 inch, 15:9 |
| Resolution |
800(RGB)×480, WVGA, RGB Vertical Stripe |
| Active Area |
174(H) × 104.4(V) mm |
| LCD Technology |
ASV Mode, Normally Black, Transmissive a-Si TFT-LCD |
| Contrast Ratio |
2000:1 (Typical) |
| Viewing Angle |
85/85/85/85 (Typ., CR≥10), Symmetric Full View |
| Response Time |
Tr=15ms / Td=5ms (Typ.) |
| Display Color |
262K Colors |
| Backlight |
WLED Backlight |
| Refresh Rate |
60Hz |
| Touch Panel |
Without Touchscreen |
| Operating Temperature |
-30 ℃ ~ +85 ℃ |
| Storage Temperature |
-40 ℃ ~ +95 ℃ |
Application
1. Industrial Automation HMI & Control Equipment
Industrial PLC operation panel, factory test equipment display, portable industrial detection instrument; its ultra-wide temperature range adapts high/low temperature factory workshop environment, stable continuous operation.
2. Car / Vehicle Onboard Replacement Screen
Car navigation host, truck/engineering vehicle dashboard display, rearview parking monitor, industrial construction machinery onboard display; high contrast ensures clear view under strong sunlight.
3. Outdoor & Special-Purpose Terminal
Outdoor access control display, field measurement instrument, environmental monitoring equipment screen; wide temp design works normally in cold winter & high-temperature outdoor scenes.
4. Medical & Portable Device Repair
Old-version medical portable diagnostic equipment, handheld industrial device original screen refurbishment replacement.
5. Embedded DIY Development
Single-board computer development screen, embedded system prototype, customized small-size industrial equipment modification.
