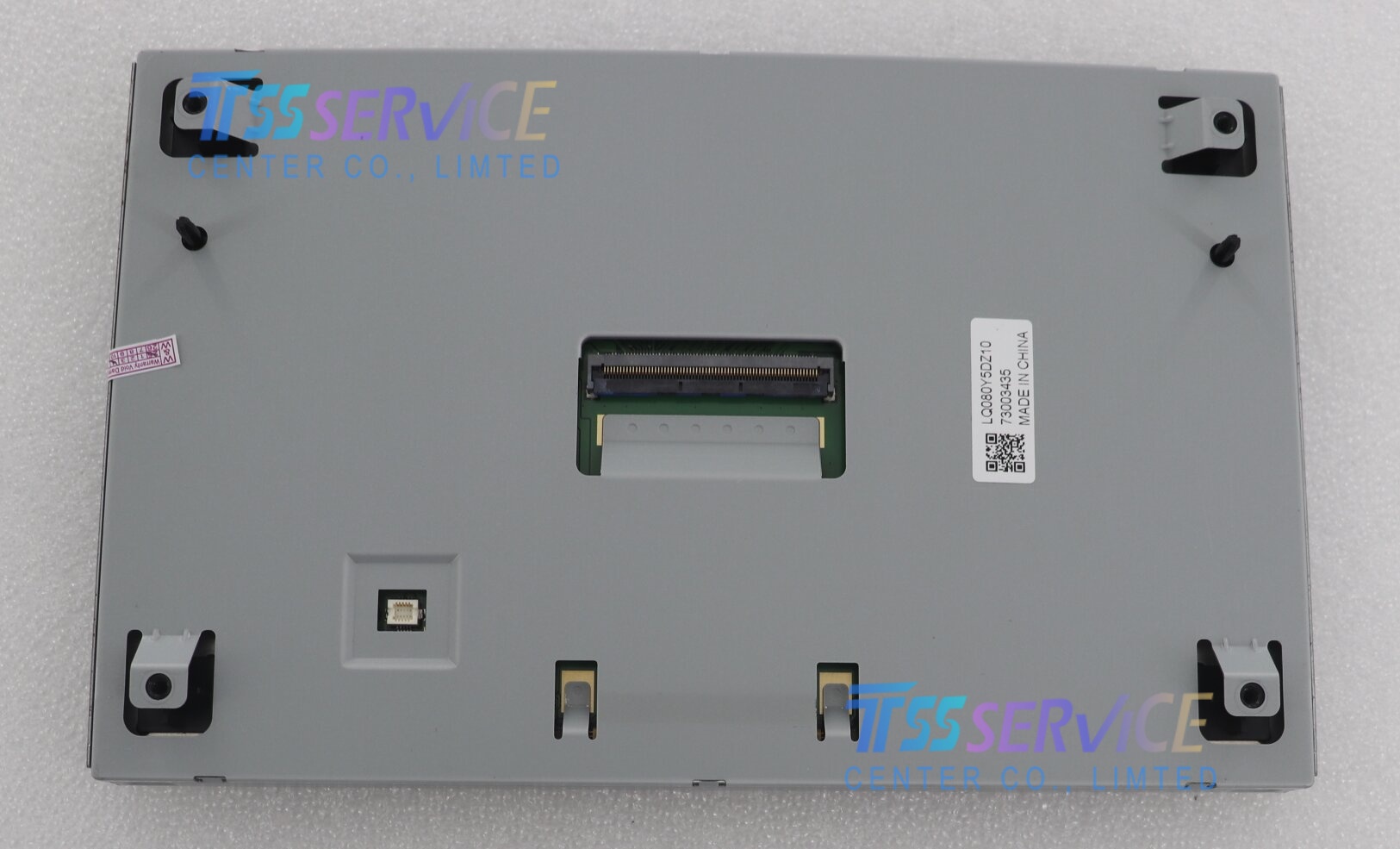

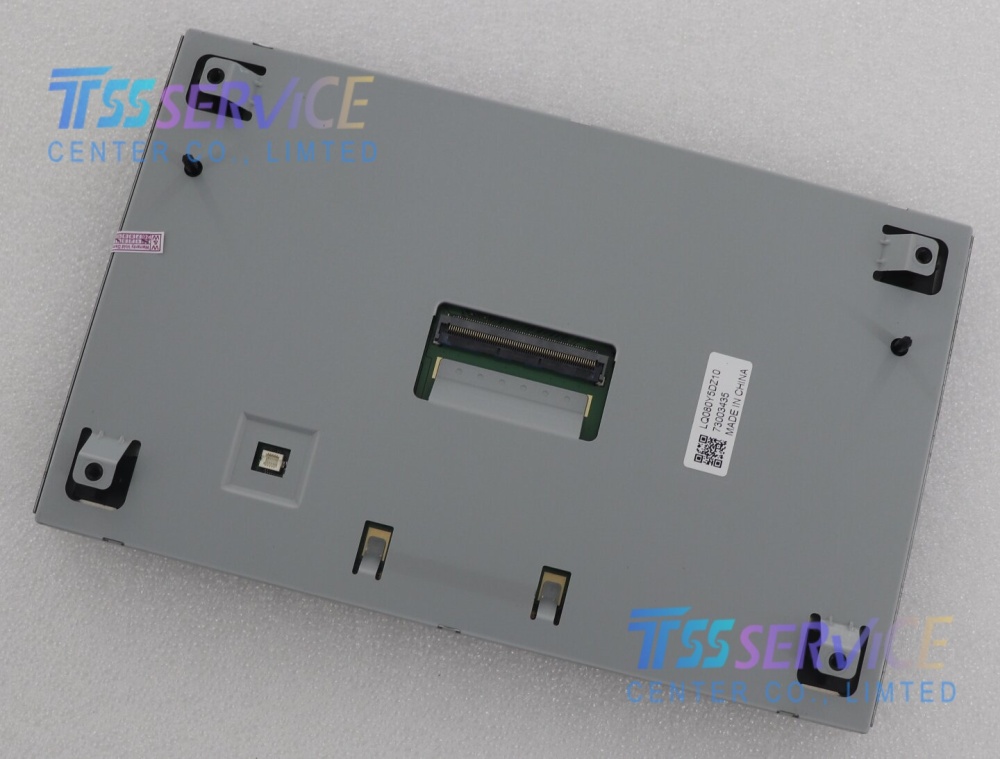

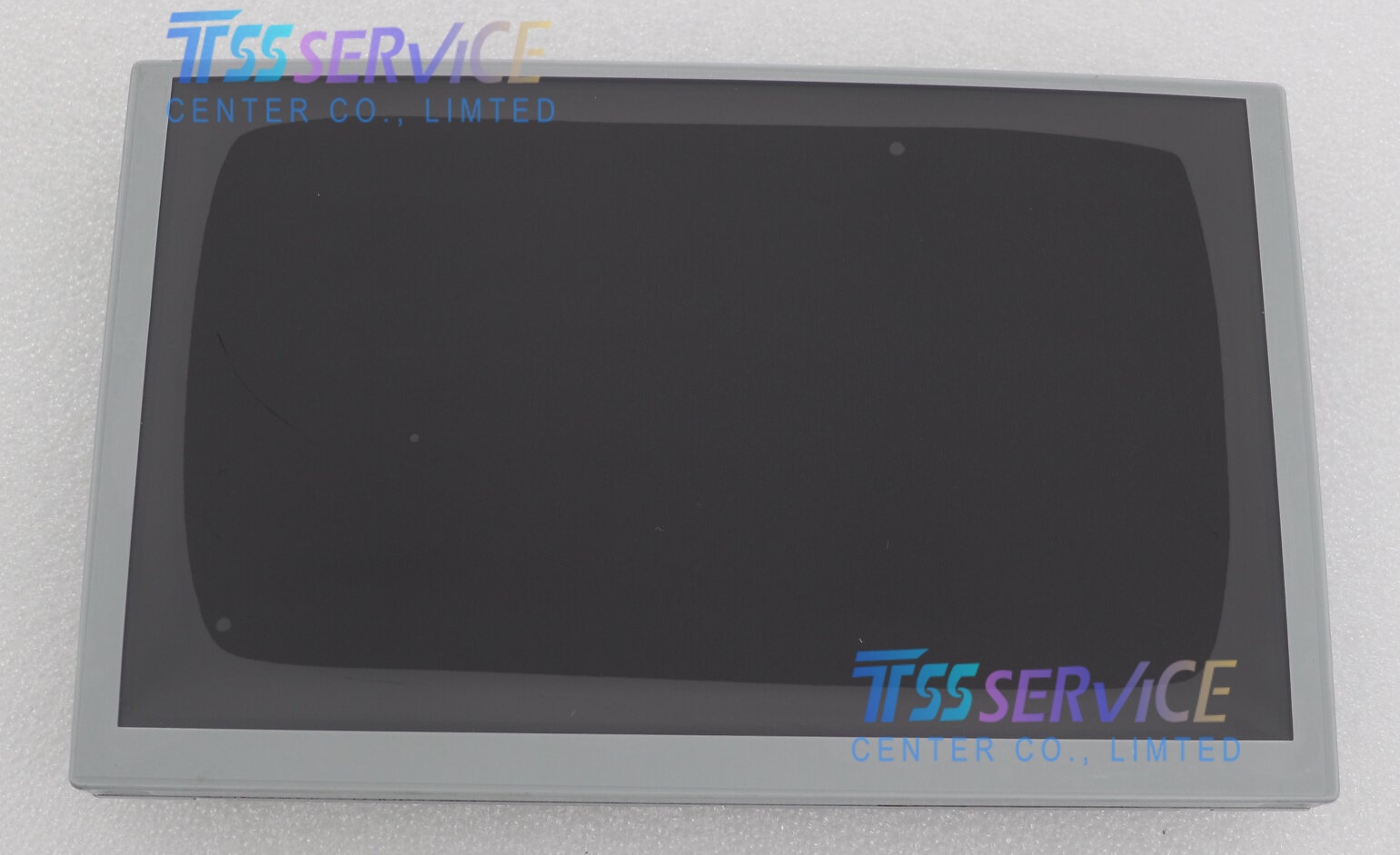

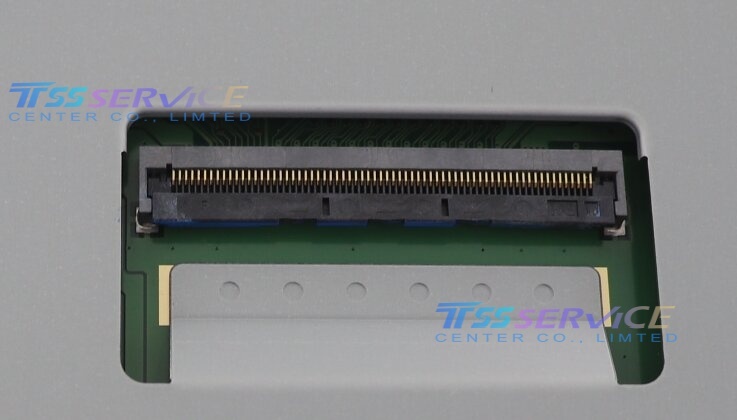

LQ080Y5DZ10 800×480 8 inch LCD Display Screen For Sharp
| Parameter |
Value |
Unit |
| Manufacturer |
Sharp |
- |
| Model |
LQ080Y5DZ10 |
- |
| Display Type |
a-Si TFT-LCD (ASV), Normally Black, Transmissive |
- |
| Diagonal Size |
8.0 |
inch |
| Resolution |
800(RGB) × 480 (WVGA) |
pixels |
| Pixel Density |
116 |
PPI |
| Pixel Configuration |
RGB Vertical Stripe |
- |
| Viewing Area |
174.0(W) × 104.4(H) |
mm |
| Brightness |
640 |
cd/m² (Typ.) |
| Contrast Ratio |
2000:1 |
(Typ.) |
| Response Time |
15 (Tr) / 5 (Td) |
ms (Typ.) |
| Viewing Angle |
85/85/85/85 (L/R/U/D) |
degree (Typ., CR≥10) |
| Color Depth |
262K |
colors |
| Frame Rate |
60 |
Hz |
| Backlight |
White LED (WLED) |
- |
| Interface |
TTL (Parallel) |
- |
| Operating Temperature |
-30 to +85 |
°C |
| Storage Temperature |
-40 to +95 |
°C |
| Touch Panel |
None |
- |
| Production Status |
Discontinued |
- |
LQ080Y5DZ10 is a high-brightness, wide-temperature 8.0-inch WVGA ASV TFT LCD module, widely used in automotive and industrial embedded display scenarios:
- Automotive Electronics
- In-car GPS navigation systems, car infotainment head units, and aftermarket car DVD players (especially for Opel, Chevrolet models).
- Automotive dashboard auxiliary displays and rear-seat entertainment screens.
- Industrial Control & HMI
- Industrial human-machine interfaces (HMI), factory automation control panels, and rugged industrial terminals requiring wide temperature tolerance.
- Marine & Outdoor Equipment
- Marine navigation displays, outdoor measurement instruments, and vehicle-mounted monitoring systems needing high brightness for sunlight readability.
- Specialized Equipment
- Rugged handheld data collectors, outdoor POS terminals, and industrial digital signage with stable display performance.
