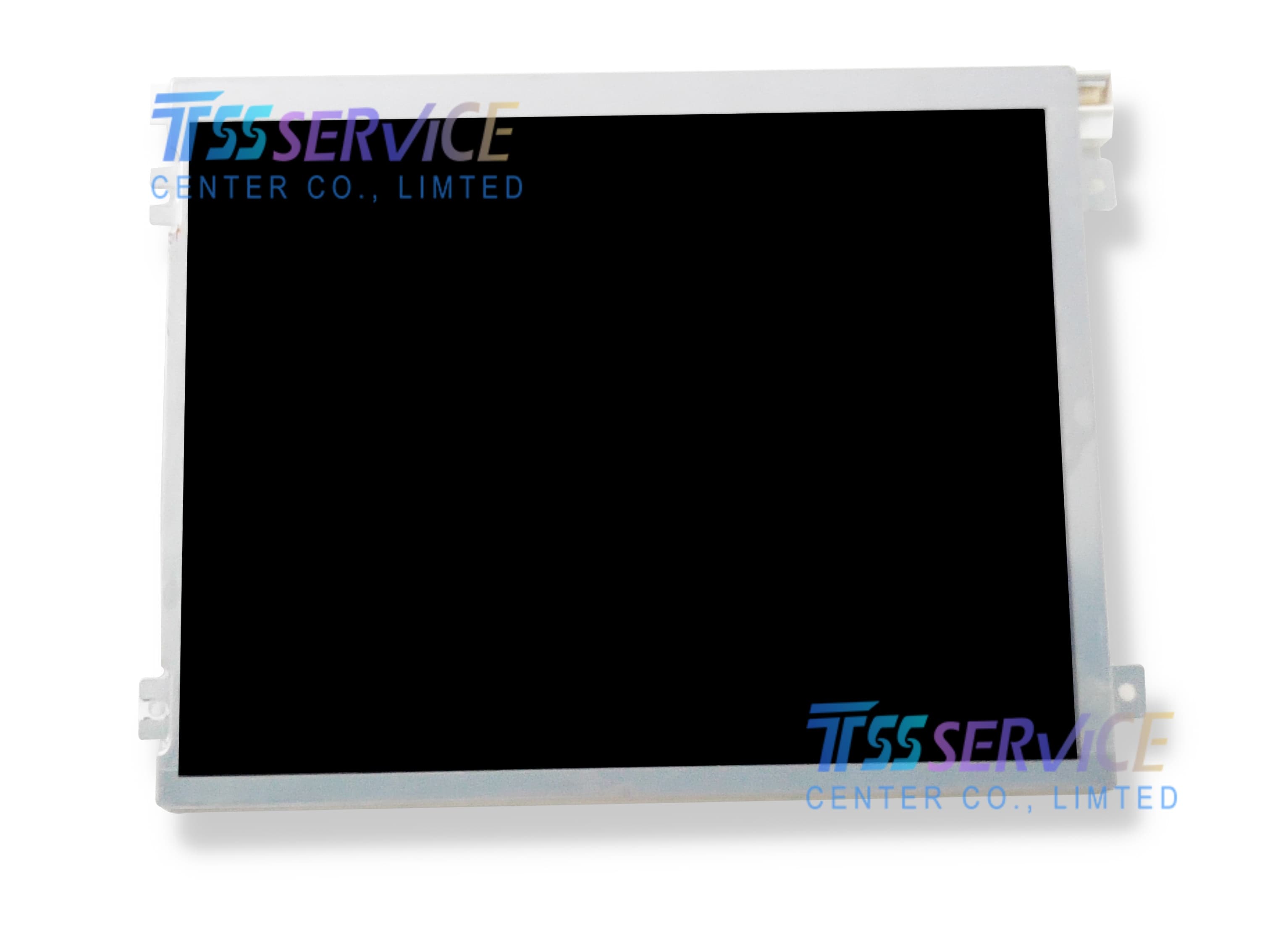

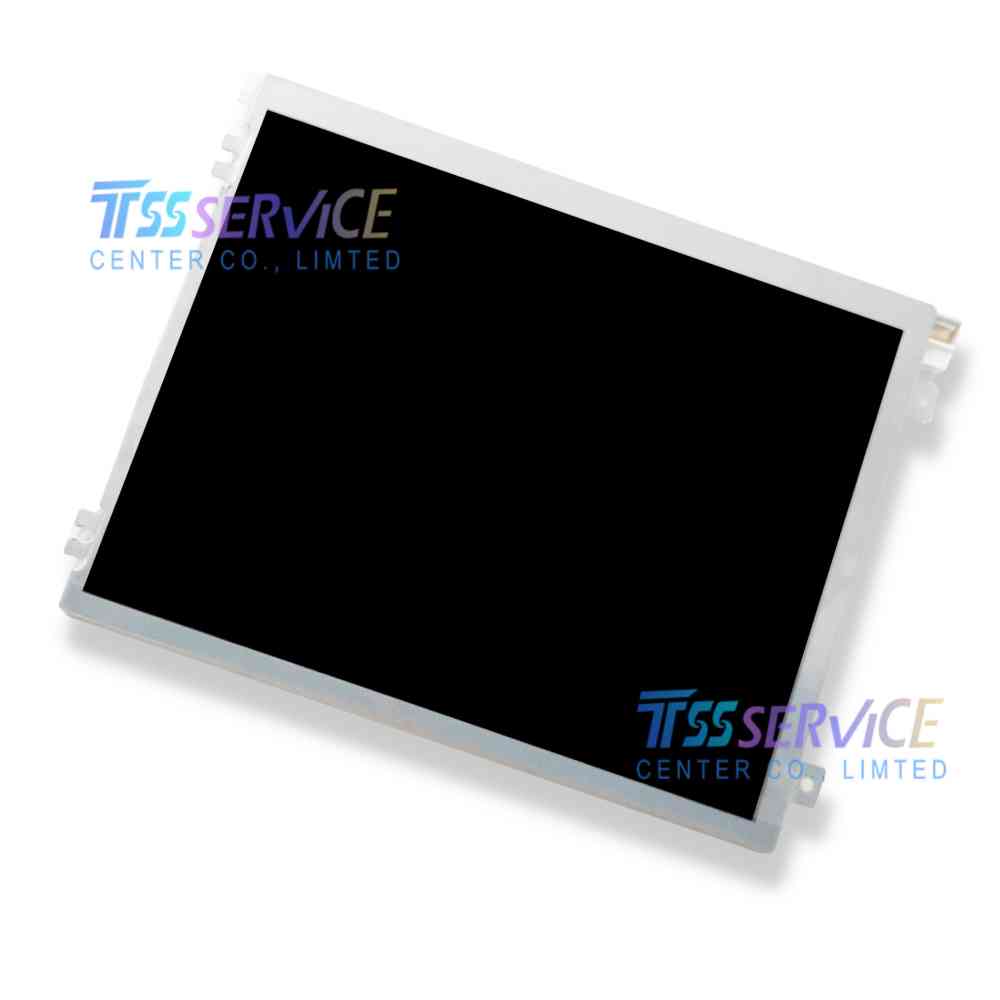

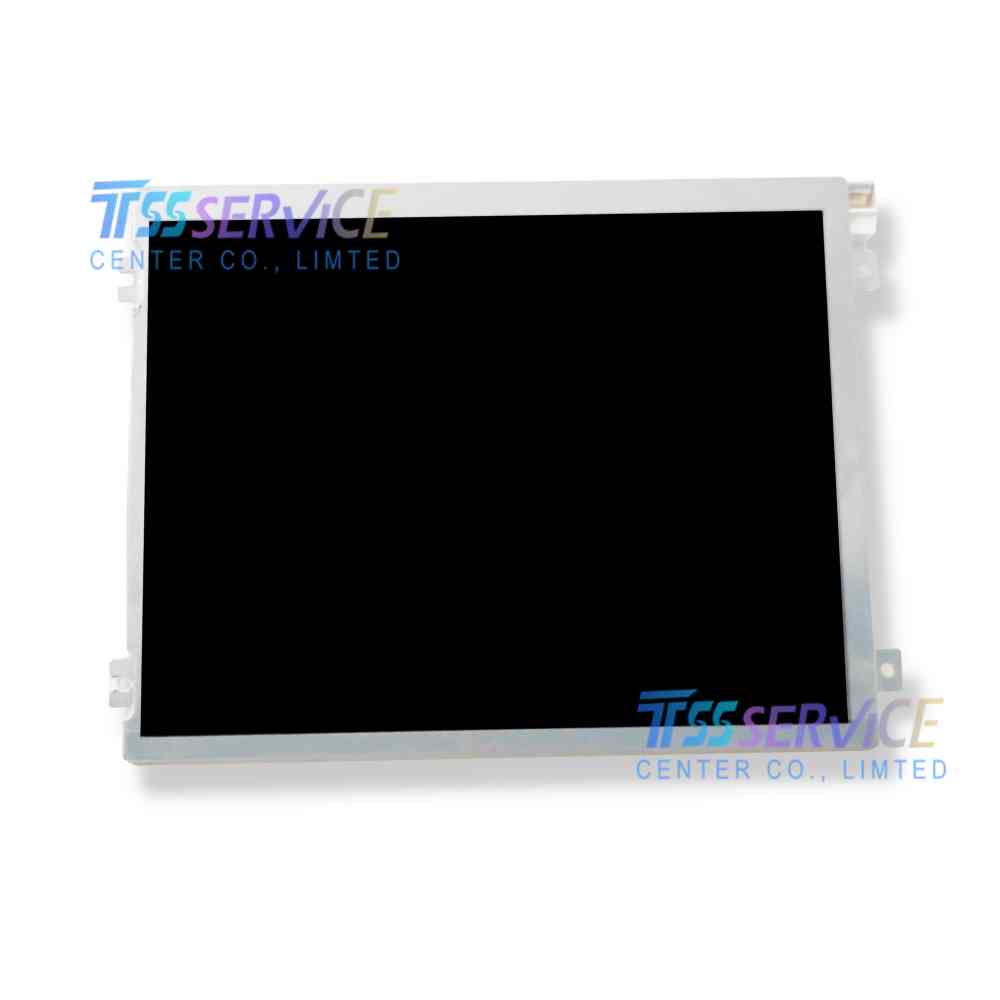

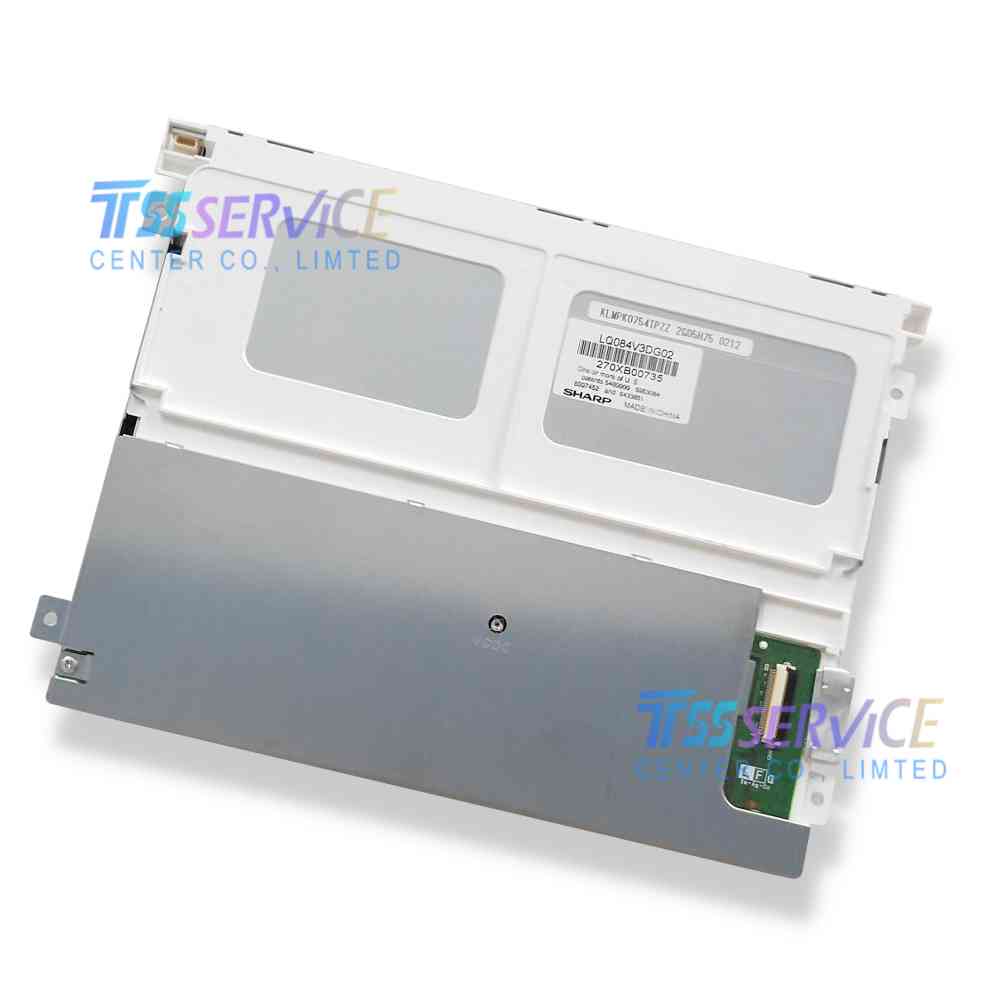

The LQ084V3DG02 is an 8.4-inch a-Si TFT-LCD module manufactured by Sharp, designed for rugged industrial applications requiring reliable performance in extreme environments . This model features VGA resolution of 640×480 pixels with a classic 4:3 aspect ratio and 95 PPI pixel density, delivering clear and stable image quality for professional Human-Machine Interface (HMI) applications .
| Parameter |
Description |
| Brand |
Sharp |
| Model P/N |
LQ084V3DG02 |
| Diagonal Size |
8.4" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
640(RGB)×480, VGA 95PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
170.88(W)×128.16(H) mm |
| Bezel Opening |
175.5(W)×133.0(H) mm |
| Outline Size |
199.5(W)×149.5(H)×12.1(D) mm |
| Surface |
Antiglare |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
600:1 (Typ.) (TM) |
| Viewing Angle |
65/65/55/60 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
6 o'clock |
| Response Time |
5/21 (Typ.)(Tr/Td) |
| Display Colors |
262K |
| Lamp Type |
6S2P WLED, 50K hours, Without Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Weight |
400g (Max.) |
| Signal Interface |

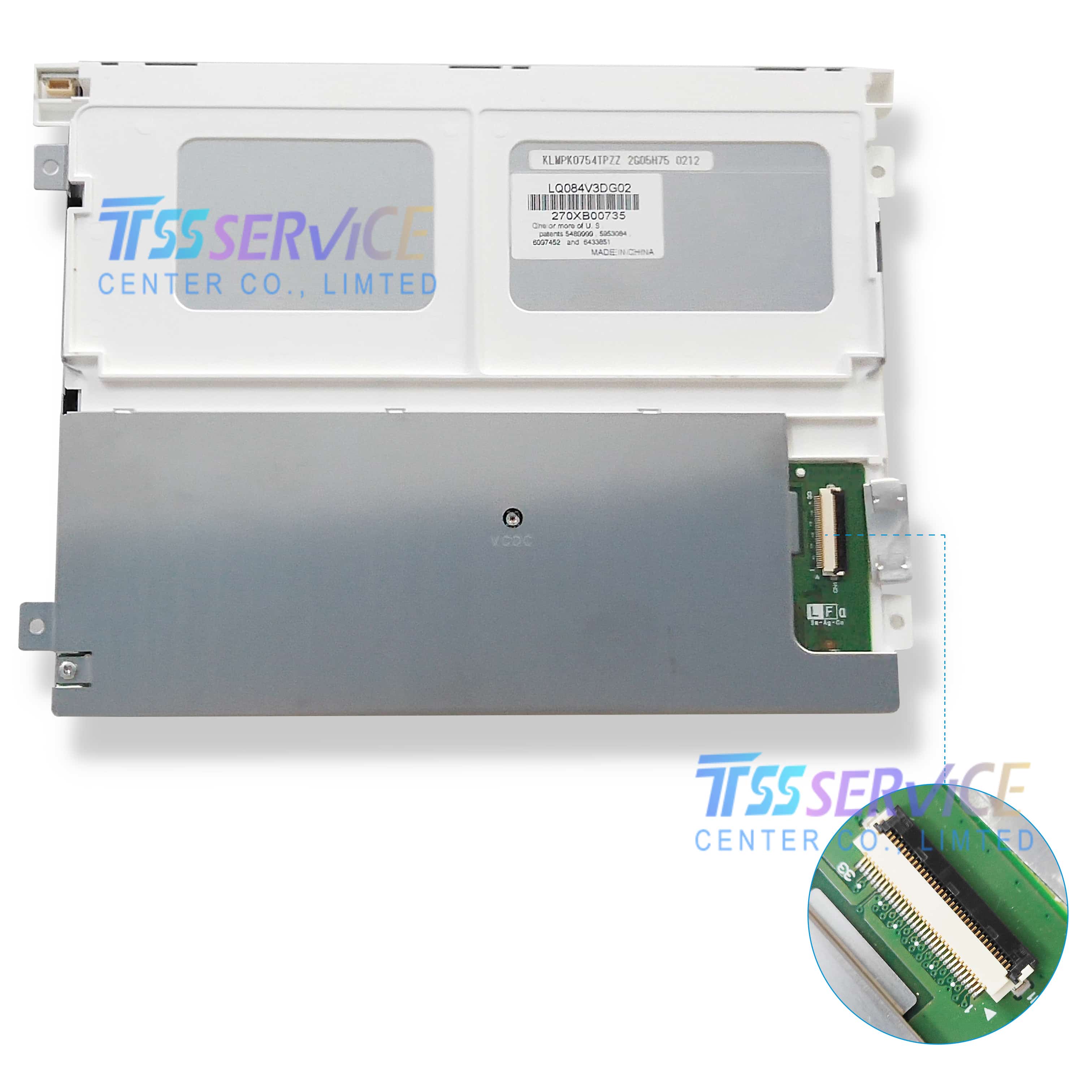

Parallel RGB (1 ch, 6-bit), 33 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Operating Temperature |
-30 ~ 80 °C |
| Storage Temperature |
-30 ~ 80 °C |
| Vibration Level |
2.0G (19.6 m/s²) |
Typical Applications
The Sharp LQ084V3DG02 is specifically designed for industrial and professional applications :
Industrial Automation:
-
Industrial Control Panels: Human-Machine Interface (HMI) terminals for factory automation and process control
-
CNC Machinery Displays: Operator interfaces for numerical control machines and industrial equipment
-
PLC Systems: Display units for programmable logic controller systems
