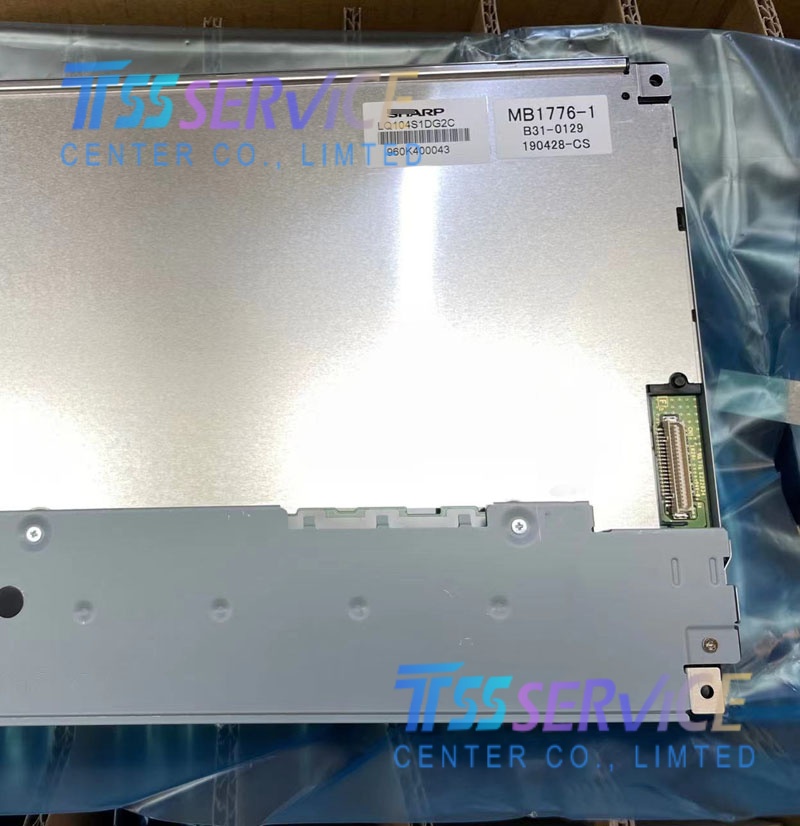

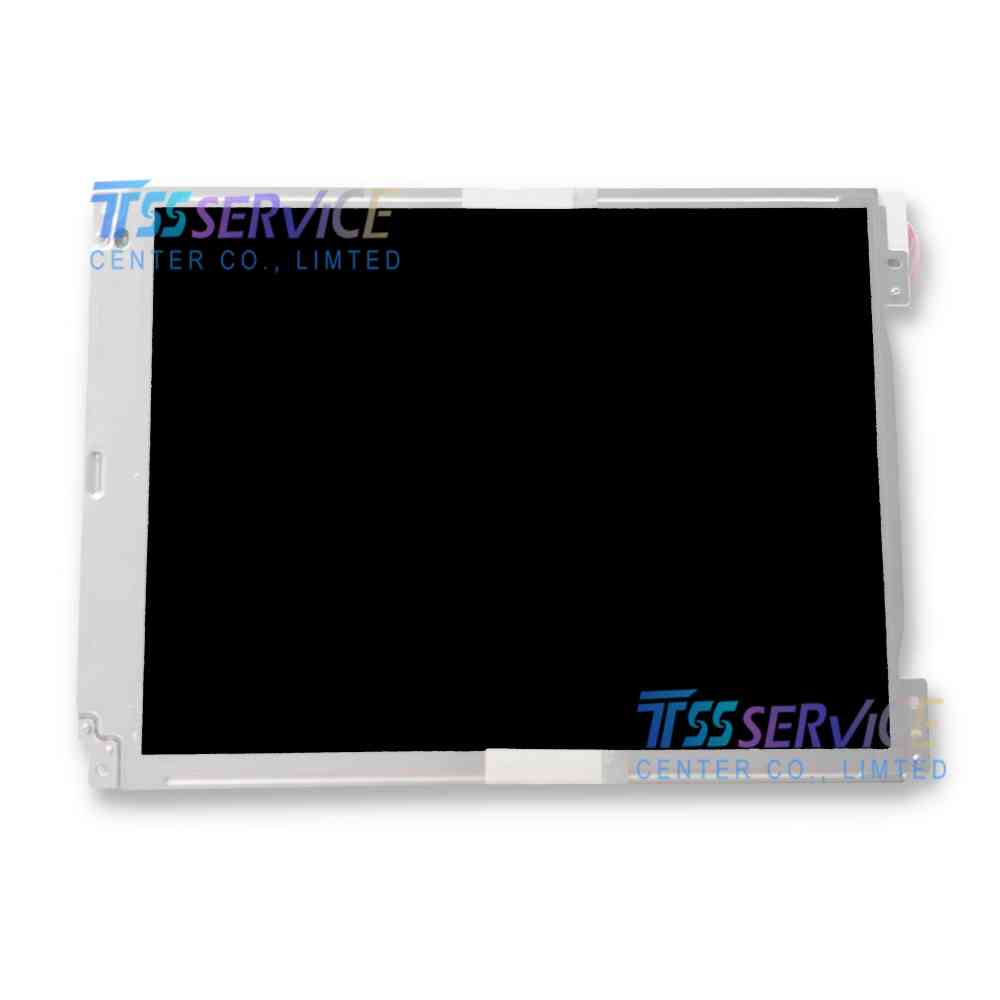

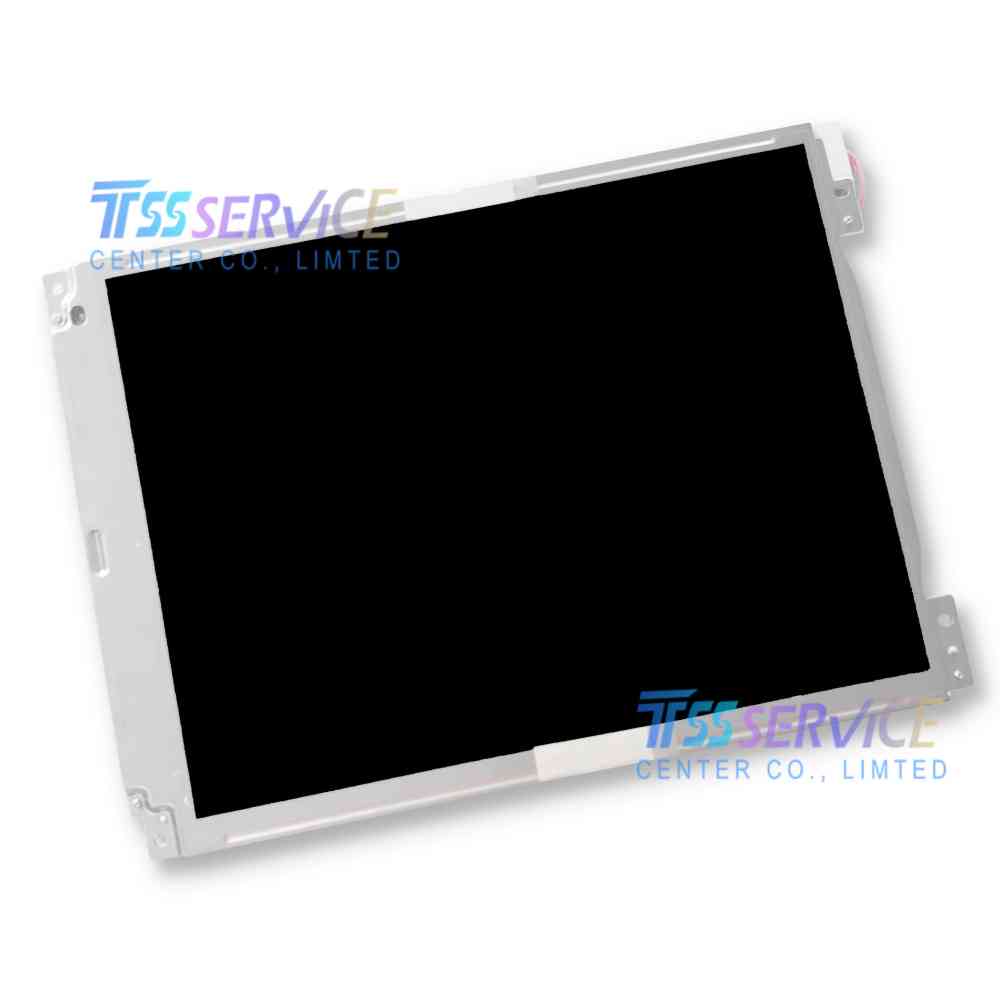

LQ104S1DG2C Sharp 10.4 inch 800×600 Industrial LCD Display Screen
| Parameter |
Specification |
Unit |
| Brand |
Sharp Microelectronics |
– |
| Model |
LQ104S1DG2C |
– |
| Display Size |
10.4 (diagonal) |
inch |
| Panel Type |
a‑Si TFT‑LCD, LCM |
– |
| Resolution |
800 (RGB) × 600 (SVGA), 96PPI |
pixel |
| Active Area |
211.2 (H) × 158.4 (V) |
mm |
| Outline Dimensions |
246.5 (H) × 179.3 (V) × 11 (D) |
mm |
| Pixel Configuration |
RGB Vertical Stripe |
– |
| Brightness |
350 (Typ.) |
cd/m² |
| Contrast Ratio |
500:1 (Typ., TM) |
– |
| Viewing Angle (CR≥10) |
70/70/50/60 (L/R/U/D) |
deg |
| View Direction |
6 o’clock |
– |
| Response Time |
35 (Typ., Tr+Td) |
ms |
| Display Mode |
TN, Normally White, Transmissive |
– |
| Surface Treatment |
Antiglare (Matte), Hard coating (3H) |
– |
| Colors |
262K (6‑bit) |
– |
| Backlight |
WLED, 50,000 hours, with driver |
– |
| Interface |
Parallel RGB (1 ch, 6‑bit), 41‑pin connector |
– |
| Supply Voltage |
+3.3V (Typ.) |
DC |
| Operating Temperature |
−30 ~ +80 |
°C |
| Storage Temperature |
−40 ~ +85 |
°C |
| Weight |
550 (Typ.) |
g |
| Status |
Discontinued (Obsolete) |
– |
Typical applications include:
- Industrial HMI & Control Panels – Factory automation, PLC terminals, and industrial PCs (IPCs).
- Standard Machinery & Equipment – CNC machine tools, packaging machinery, and textile equipment.
- Medical Devices (Non‑Critical) – Patient monitors, lab analyzers, and dental equipment.
- Rugged Transportation – Railway displays, construction vehicle dashboards, and forklift terminals.
- Kiosks & Digital Signage (Indoor) – Information terminals, vending machines, and factory floor displays.
- Test & Measurement Instruments – Oscilloscopes, power supplies, and general laboratory equipment.
