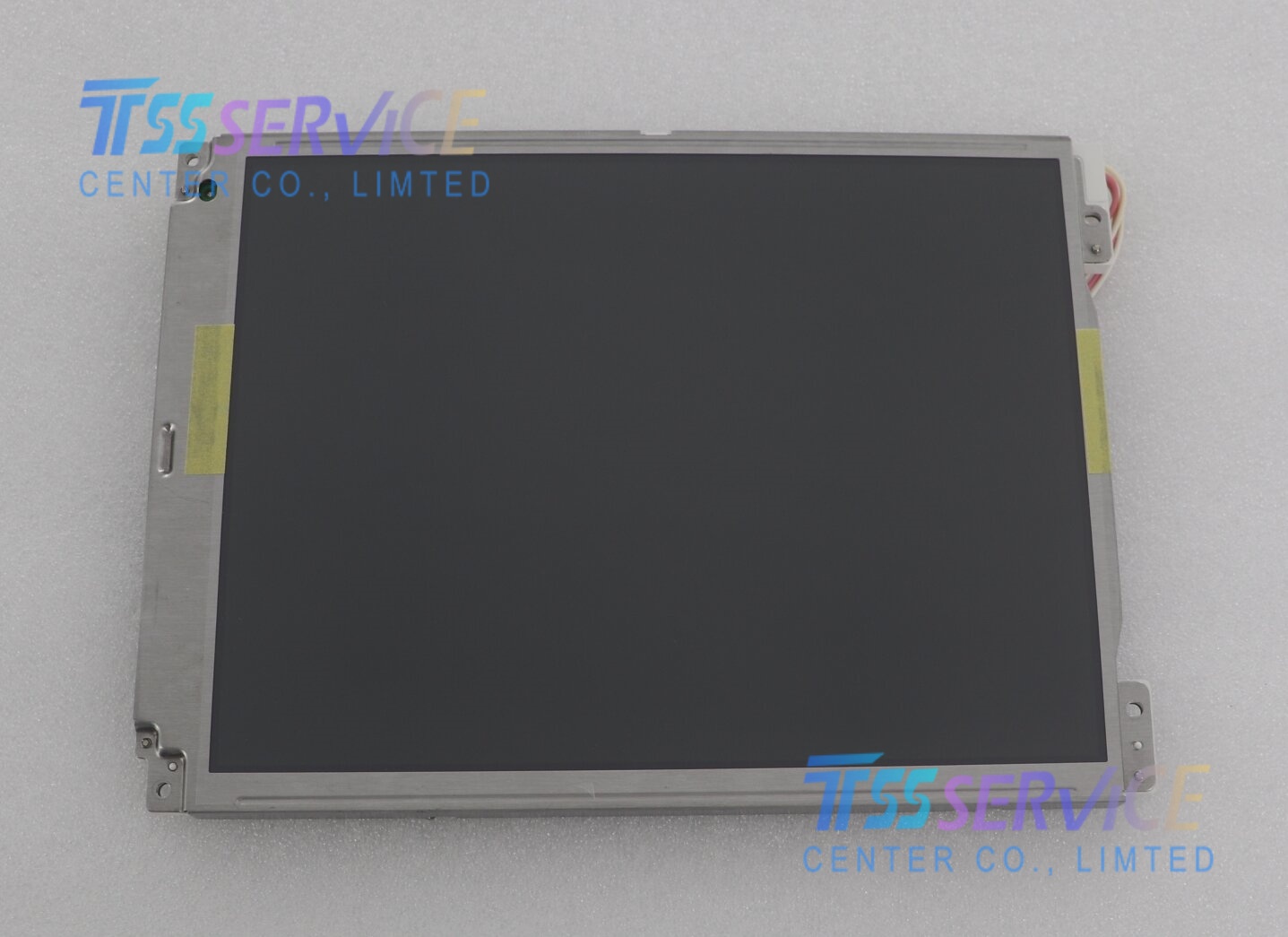

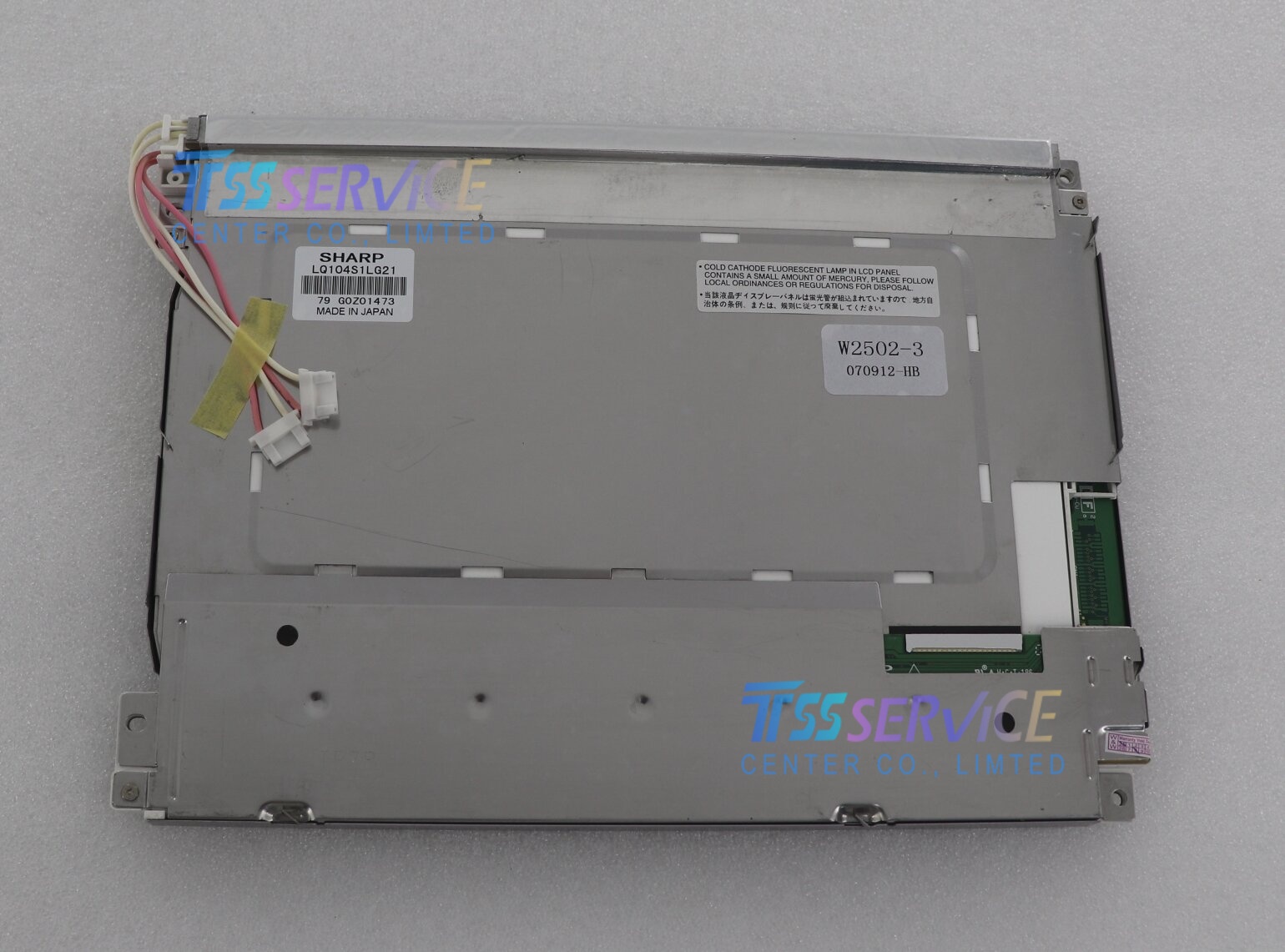

The Sharp LQ104S1LG21 is a 10.4-inch a-Si TFT-LCD module engineered by Sharp Corporation for demanding industrial applications . This model represents a mature and reliable display solution widely used in industrial control systems, factory automation, medical equipment, and other professional environments requiring proven performance and long-term reliability .
| Brand |
Sharp |
| Model P/N |
LQ104S1LG21 |
| Diagonal Size |
10.4" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×600, SVGA 96PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
211.2(W)×158.4(H) mm |
| Bezel Opening |
214.6(W)×162.4(H) mm |
| Outline Dim. |
246.5(H)×179.4(V) ×15.5(D) mm |
| Treatment |
Antiglare, Hard coating (3H) |
| Luminance |
350 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) (TM) |
| View Direction |
6 o'clock |
| Response Time |
10/25 (Typ.)(Tr/Td) |
| Viewing Angle |
70/70/40/70 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
262K |
| Light Source |
CCFL [2 pcs], 50K hours, W/O Driver |
| Weight |
620g (Max.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |

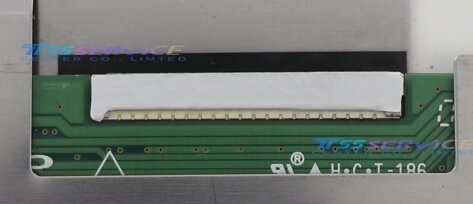

| Interface Type |
LVDS (1 ch, 6-bit), 20 pins Connector |
| Power Supply |
3.3V (Typ.) |
| Environment |
Operating Temperature: -10 ~ 65 °C; Storage Temperature: -30 ~ 70 °C |
