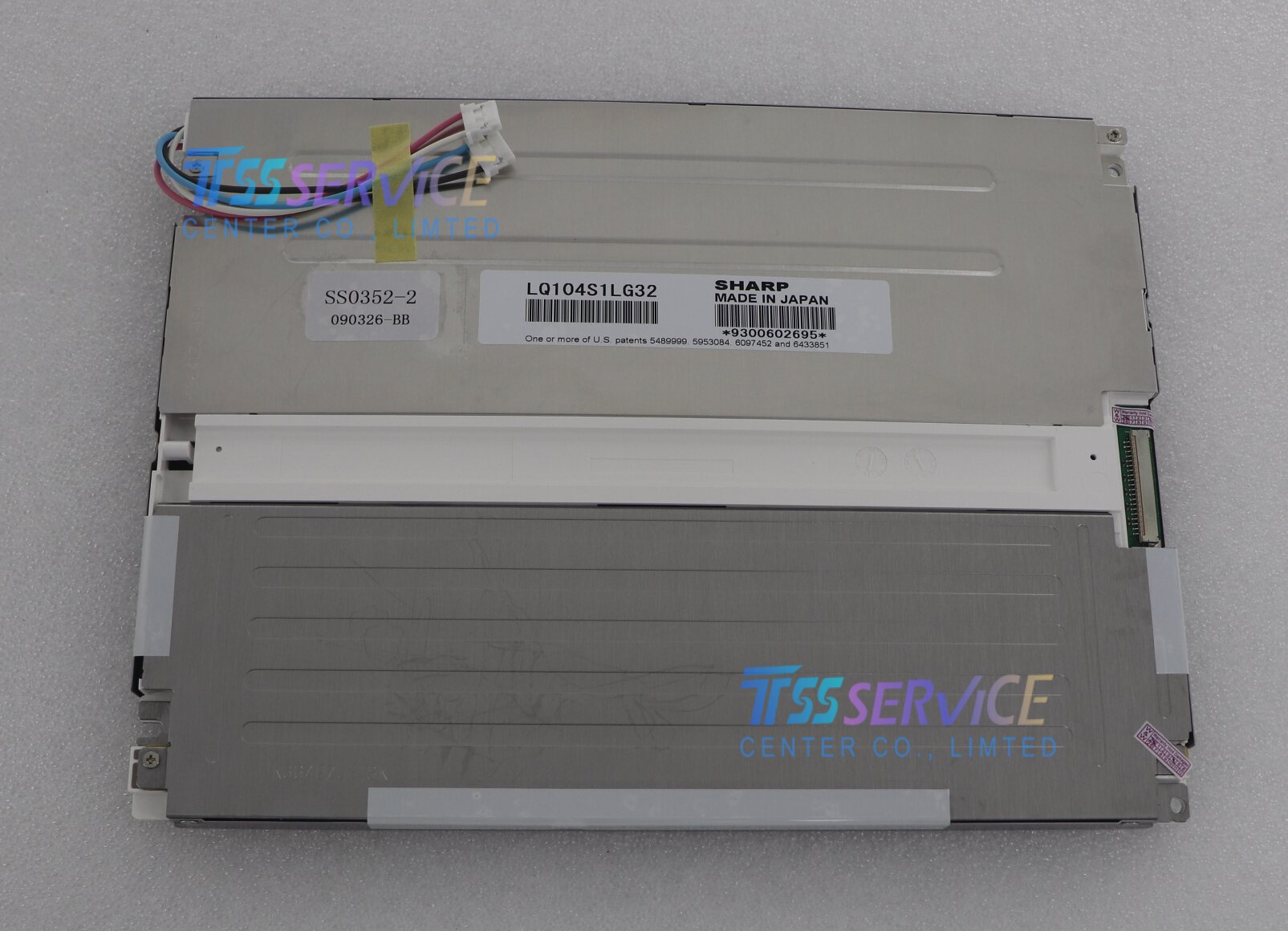

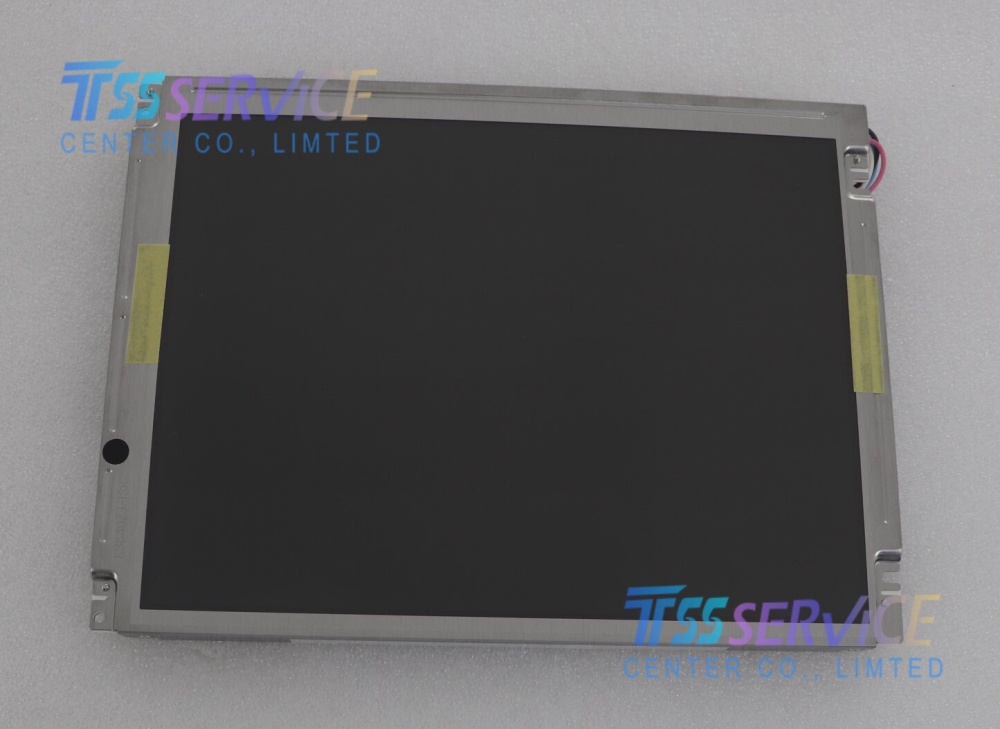

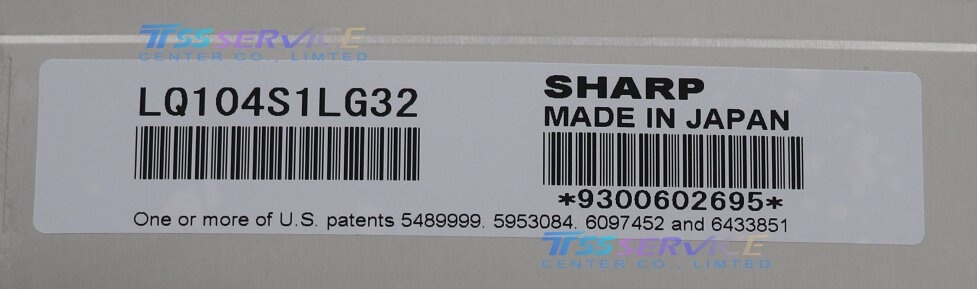

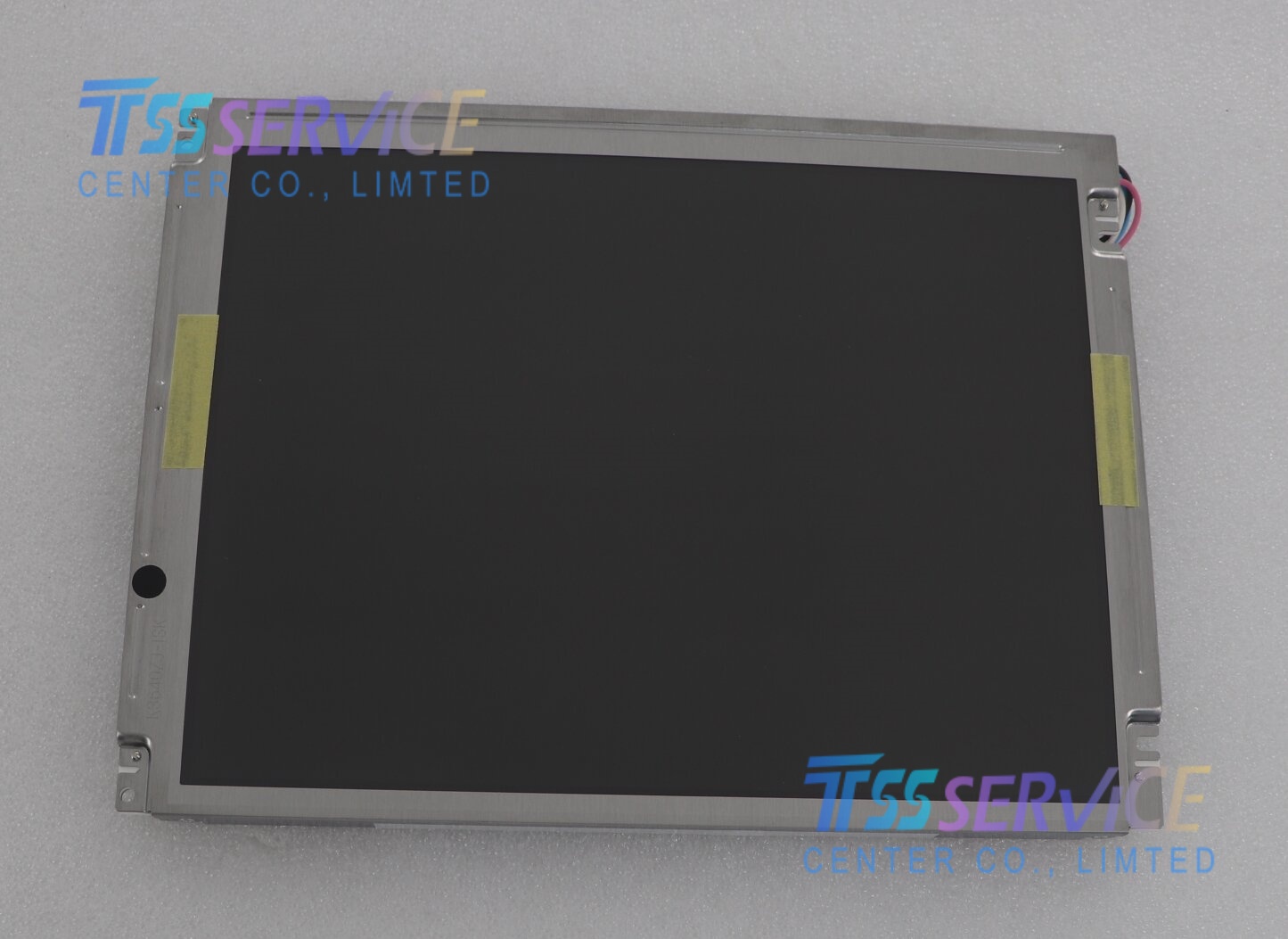

Sharp LQ104S1LG32 10.4 Inch SVGA TFT LCD Industrial Display

Name: Sharp LQ104S1LG32 10.4 Inch SVGA TFT LCD Industrial Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ104S1LG32
Price: 126 USD
Availability: InStock

SKU: LQ104S1LG32

Model: LQ104S1LG32
Brand: Sharp
Size: 10.4 inch (4:3 Aspect Ratio)
Resolution: 800(RGB) × 600 (SVGA), 96 PPI
Panel Type: a-Si TFT-LCD, Transmissive, TN Normally White

0.0 (0 Reviews)

0 Sold

~~$128.00~~ $126.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ104S1LG32 10.4 Inch SVGA TFT LCD Industrial Display

Item	Specification
Model	LQ104S1LG32
Brand	Sharp
Size	10.4 inch (4:3 Aspect Ratio)
Resolution	800(RGB) × 600 (SVGA), 96 PPI
Panel Type	a-Si TFT-LCD, Transmissive, TN Normally White
Brightness	Typical: 200-250 cd/m² (CCFL backlight)
Contrast Ratio	500:1 (Typ.)
View Direction	6 o'clock
Backlight	2 × CCFL Lamps, without driver

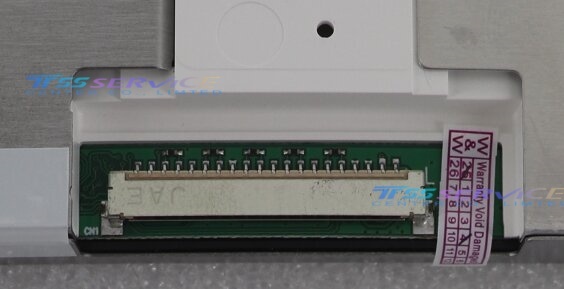

Interface	LVDS (1 ch, 6-bit), 20-pin Connector
Operating Temp	-30°C ~ +80°C
Storage Temp	-30°C ~ +80°C
Active Area	211.2 × 158.4 mm
Outline Dimension	243 × 183.8 mm
Surface	Anti-glare, Hard Coating (3H)
Display Colors	262K (6-bit)
Response Time	10/25 ms (Tr/Td)
Touch Screen	Without
Compliance	RoHS

Applications

Industrial Automation: CNC machines, PLC control panels, factory HMI terminals.
Medical Equipment: Diagnostic and laboratory devices requiring rugged displays.
Marine & Heavy Machinery: Control panels for construction, agricultural, and marine equipment.
Legacy System Replacement: Direct drop-in replacement for older Sharp 10.4" industrial displays.
Embedded Systems: Industrial terminals, POS systems, and process control monitors.
