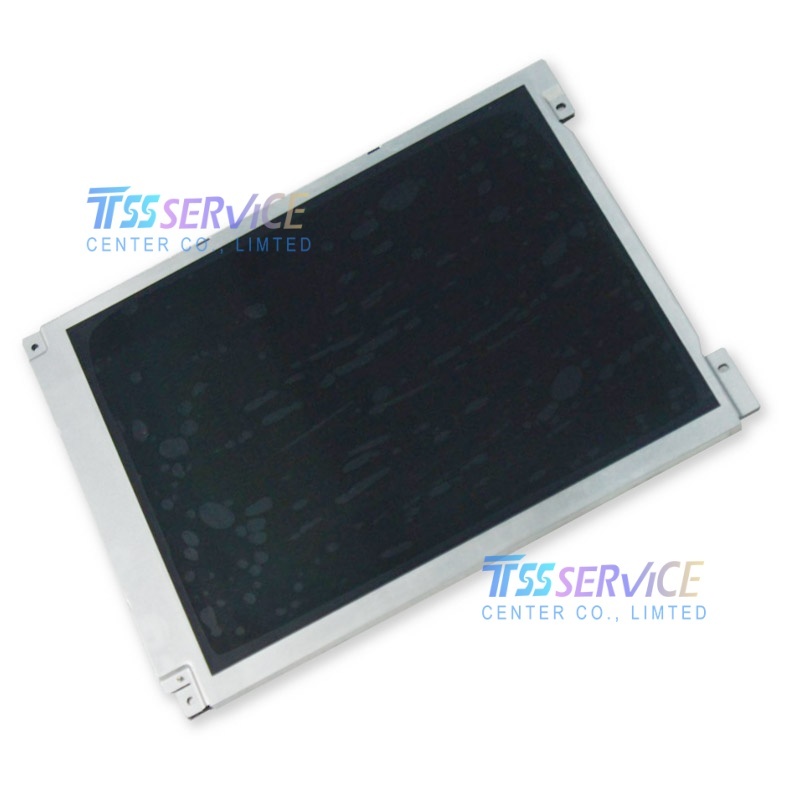

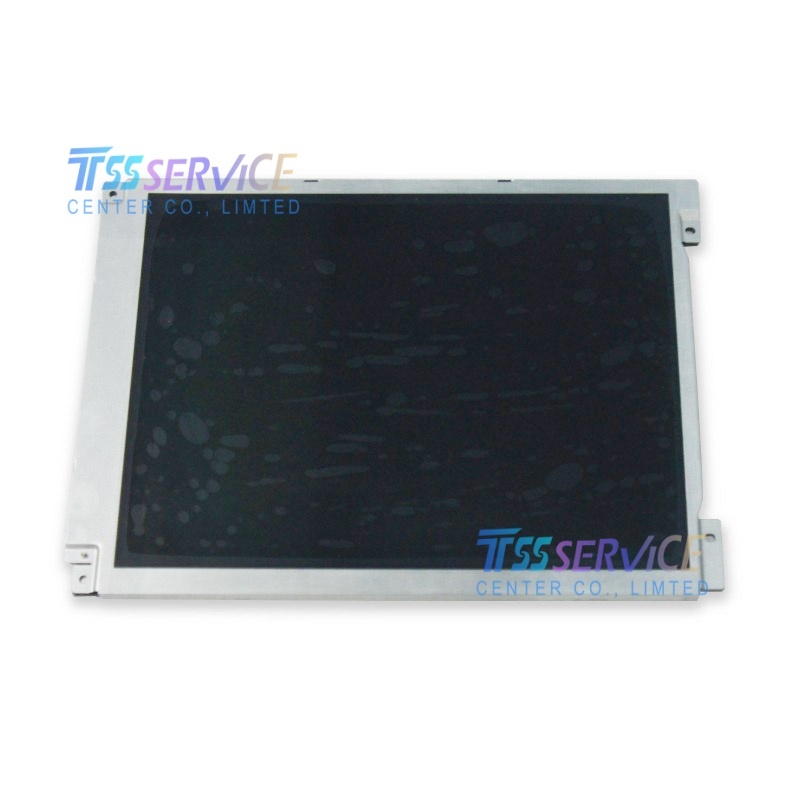

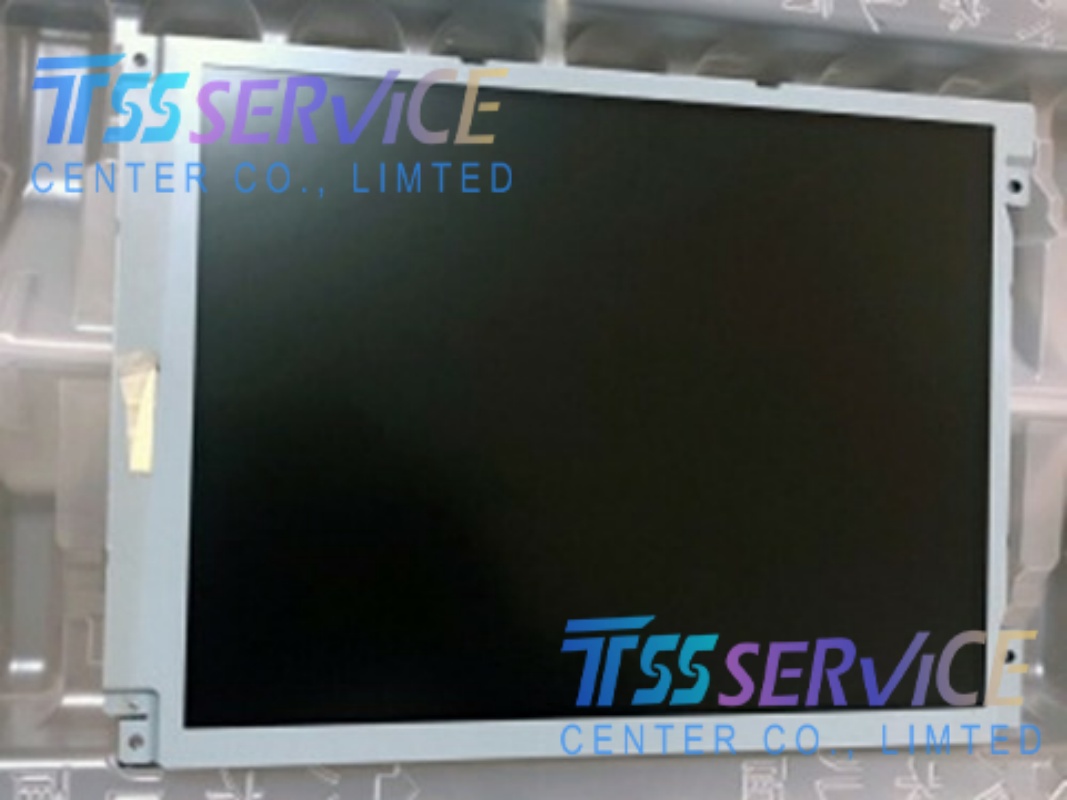

10.4 Inch Sharp LQ104S1LG82 800×600 Industrial TFT LCD Screen Display Panel

Name: 10.4 Inch Sharp LQ104S1LG82 800×600 Industrial TFT LCD Screen Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ104S1LG82
Price: 175 USD
Availability: InStock

SKU: LQ104S1LG82

Model Number: LQ104S1LG82
Brand: Sharp
Diagonal Size: 10.4 Inch
Resolution: 800(RGB) × 600 SVGA, 96 PPI
Aspect Ratio: 4:3
LCD Type: a-Si TFT-LCD

0.0 (0 Reviews)

0 Sold

~~$180.00~~ $175.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

10.4 Inch Sharp LQ104S1LG82 800×600 Industrial TFT LCD Screen Display Panel

Item	Detailed Parameter
Model Number	LQ104S1LG82
Brand	Sharp
Diagonal Size	10.4 Inch
Resolution	800(RGB) × 600 SVGA, 96 PPI
Aspect Ratio	4:3
LCD Type	a-Si TFT-LCD, Normally White Transmissive
Backlight	Edge-lit WLED, No external inverter needed
Brightness	420 cd/m² (Typical)
Contrast Ratio	600:1 (Typical)
Viewing Angle (L/R/U/D)	70° / 70° / 50° / 70° (CR≥10)
Signal Interface	Single Channel LVDS, 6-bit
Refresh Rate	60 Hz
Active Display Area	211.2 (W) × 158.4 (H) mm
Surface Treatment	Standard hard coating, anti-scratch
Touch Function	Without touch panel (Touch glass optional)
Operating Temp	-20℃ ~ +70℃
Storage Temp	-30℃ ~ +80℃
Color Depth	262K Colors
Application Grade	Industrial / Medical / On-board Grade

Application

Industrial HMI & Automation Equipment
CNC machine operation panels, PLC control terminals, factory automation human-machine interfaces, robotic control consoles, packaging machine displays, industrial monitoring stations, injection molding machine screens.
Medical Diagnostic & Monitoring Devices
Patient bedside monitors, portable medical analyzers, electrocardiogram equipment, infusion pump control terminals, medical imaging auxiliary displays, clinical diagnostic instruments.
On-board & Construction Machinery Displays
Forklift monitoring screens, agricultural machinery control panels, construction vehicle dashboards, special engineering equipment displays, coach/heavy truck auxiliary control terminals.
Test & Measuring Instruments
Laboratory precision testers, environmental monitoring controllers, power energy monitoring equipment, portable inspection analyzers, optical testing devices.
Self-service & Commercial Kiosks
Industrial vending machine control screens, factory access control terminals, outdoor industrial handheld equipment, information query kiosk modules.
