Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..
| Brand | Sharp |

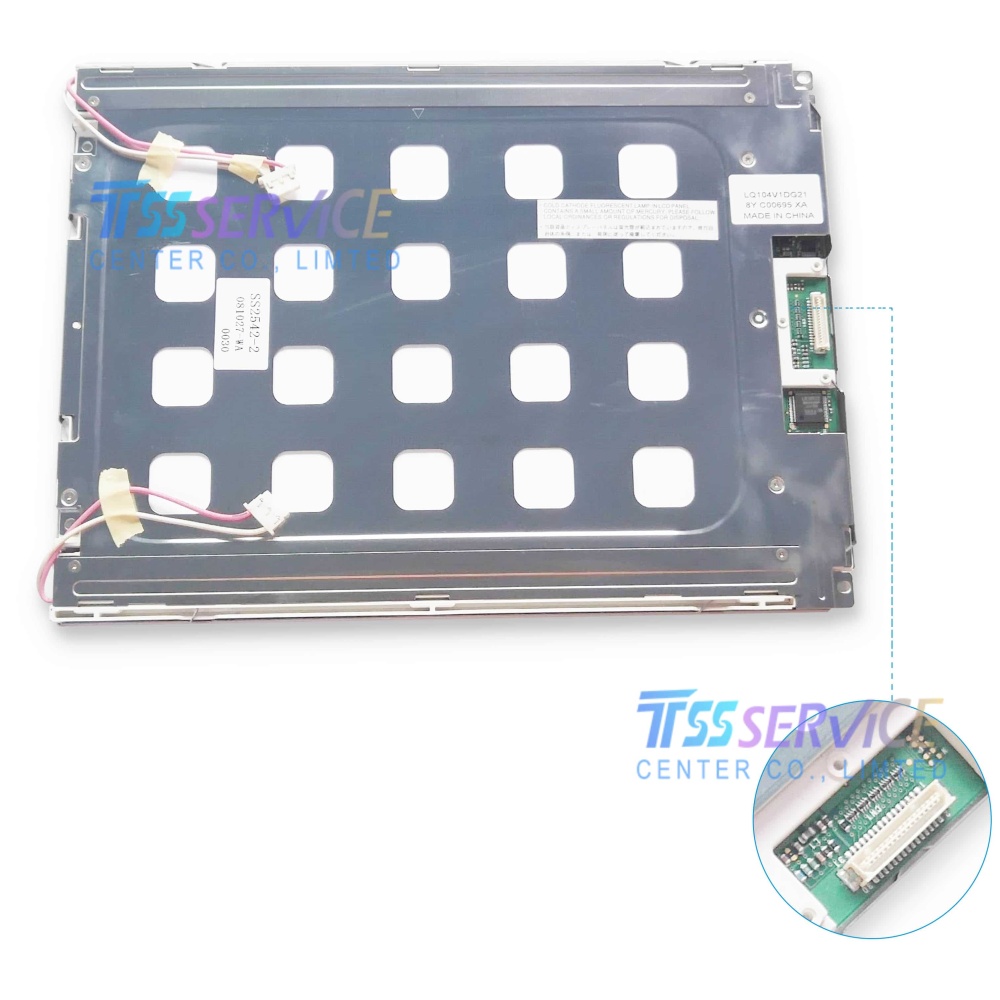

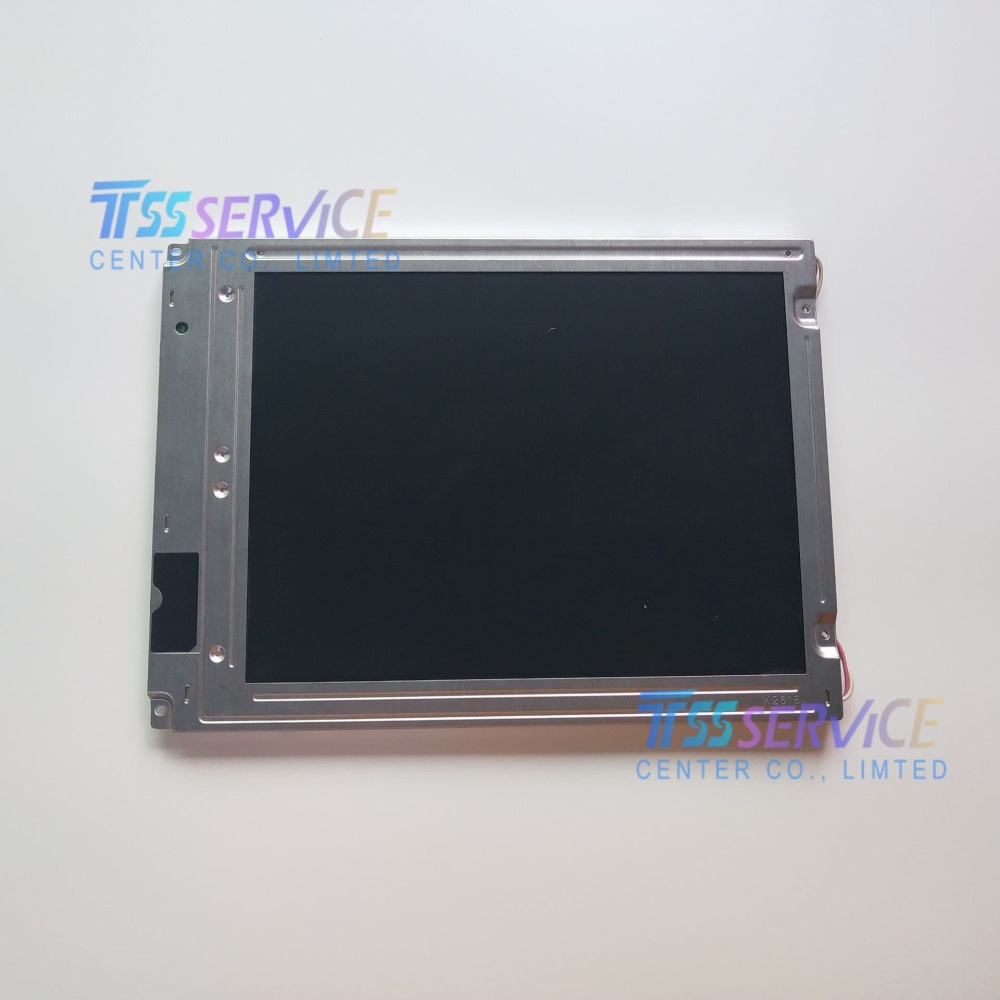

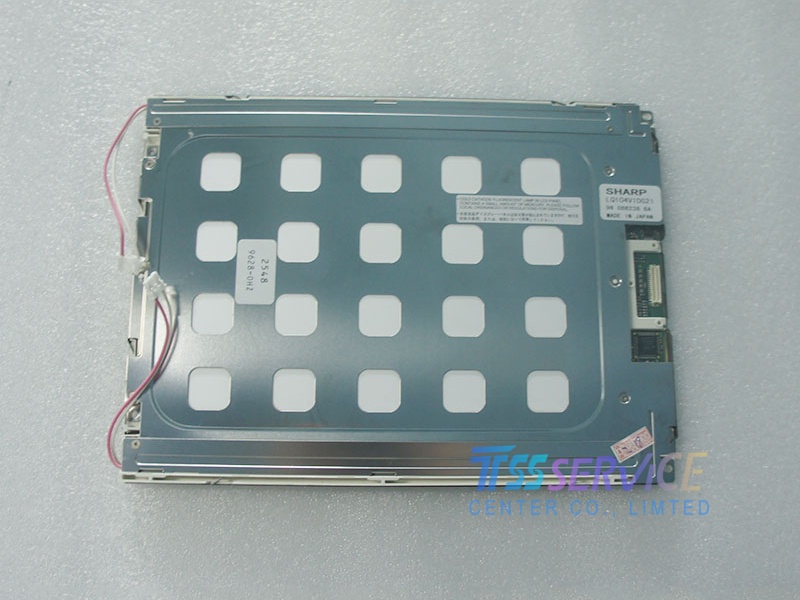

| Model P/N | LQ104V1DG21 3 Compatible |
| Diagonal Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 211.2(W)×158.4(H) mm |
| Bezel Opening | 214.6(W)×162.4(H) mm |
| Outline(mm) | 265(W)×195(H)×11.5(D) |
| Treatment | Antiglare, Hard coating (3H), Antireflection |
| Luminance | 350 (Typ.)(cd/m²) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥10) |
| Work Mode | TN, Normally White, Transmissive |
| Good View at | 6 o'clock |
| Response | 20/40 (Typ.)(Tr/Td) ms |
| Color Depth | 262K |
| Backlight | 2 pcs CCFL, 50K hours, No Driver |
| Mass | 700g (Max.) |
| Used for | Touchscreen |
| Refresh Rate | 60Hz |
| Touchscreen | Without |

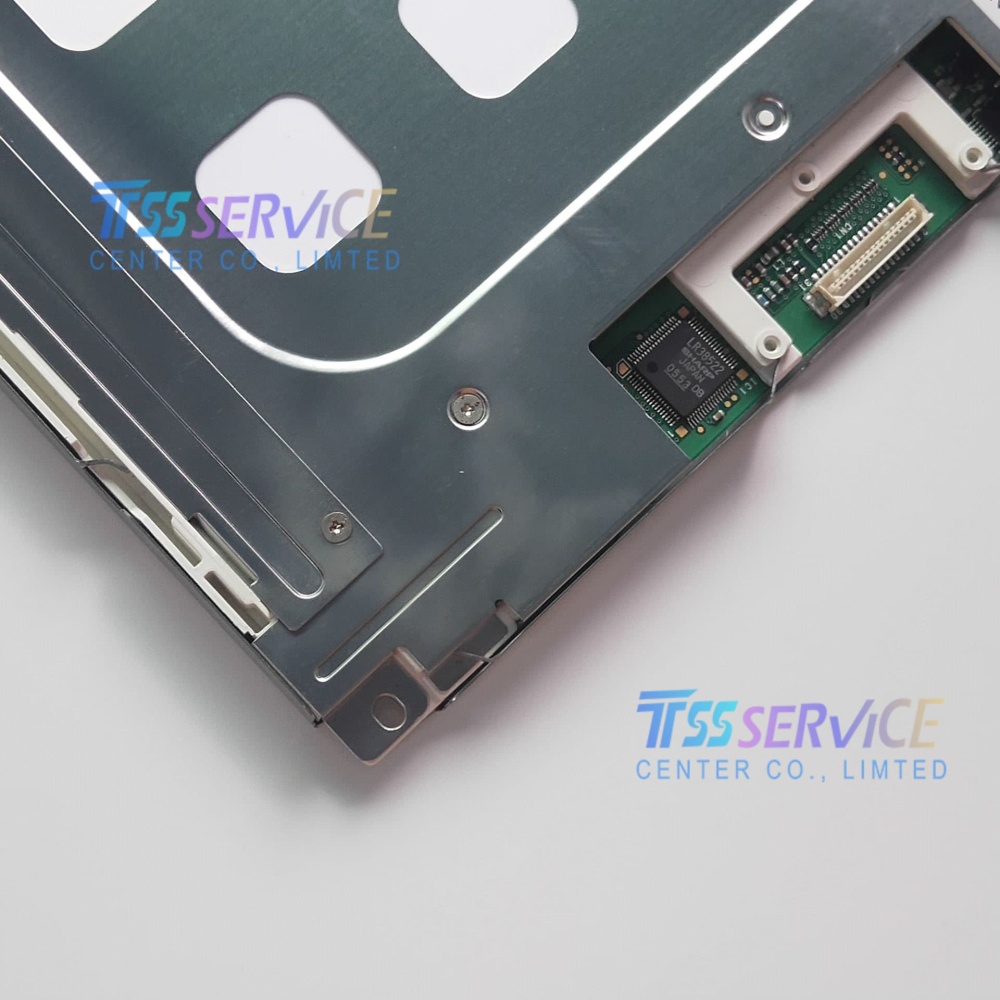

| Signal Type | Parallel RGB (1 ch, 6-bit), 31 pins Connector |
| Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C; Operating Temp.: -10 ~ 65 °C |
This display panel is ideal for:
Industrial control panels and HMI (Human-Machine Interface)
Medical devices and diagnostic equipment
Industrial PCs and automation systems
Kiosks and self-service terminals
Digital signage and information displays
Vending machines and ticketing systems
Test and measurement instruments
Legacy system retrofits and equipment repairs
