| Basic Info |
Panel Model |

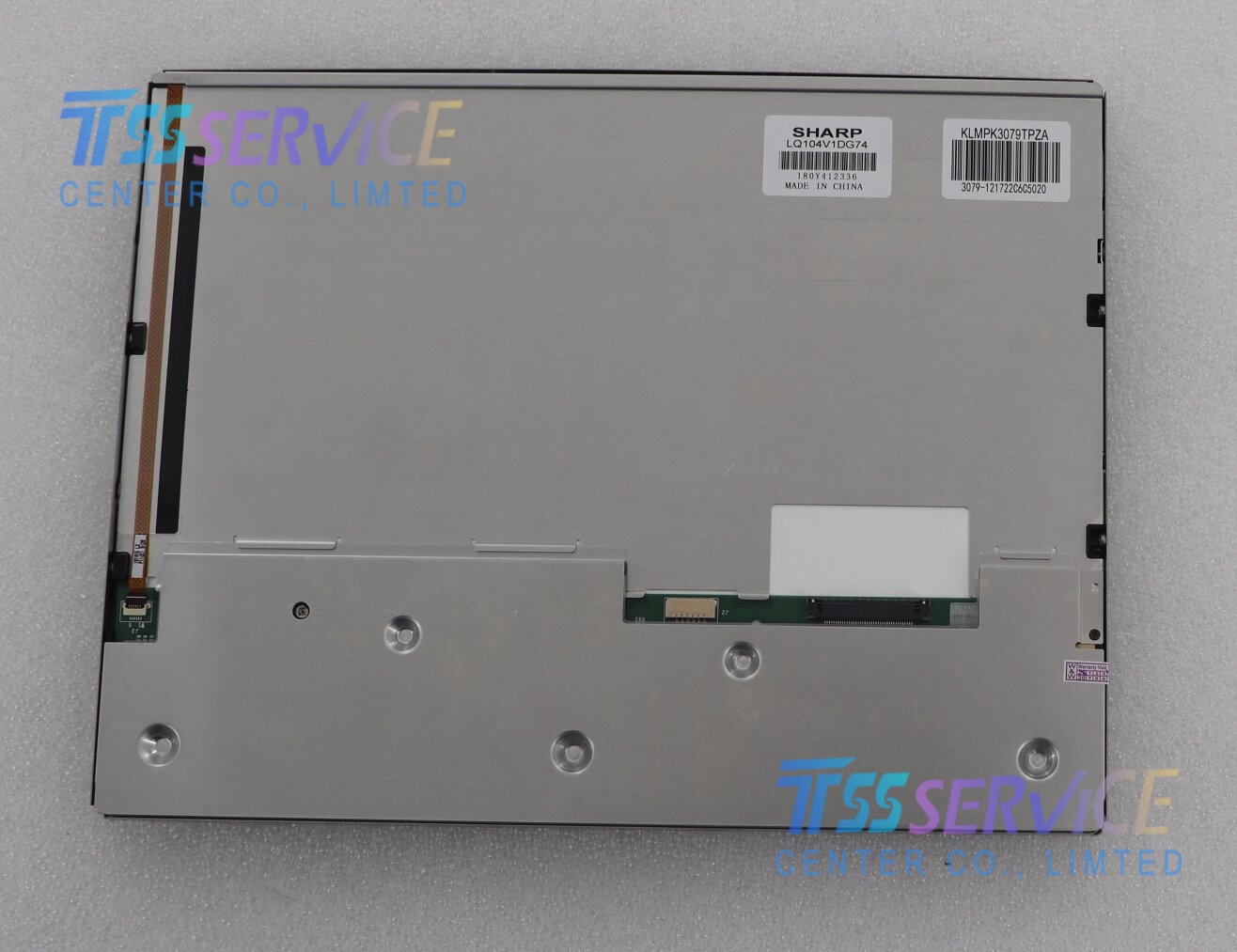

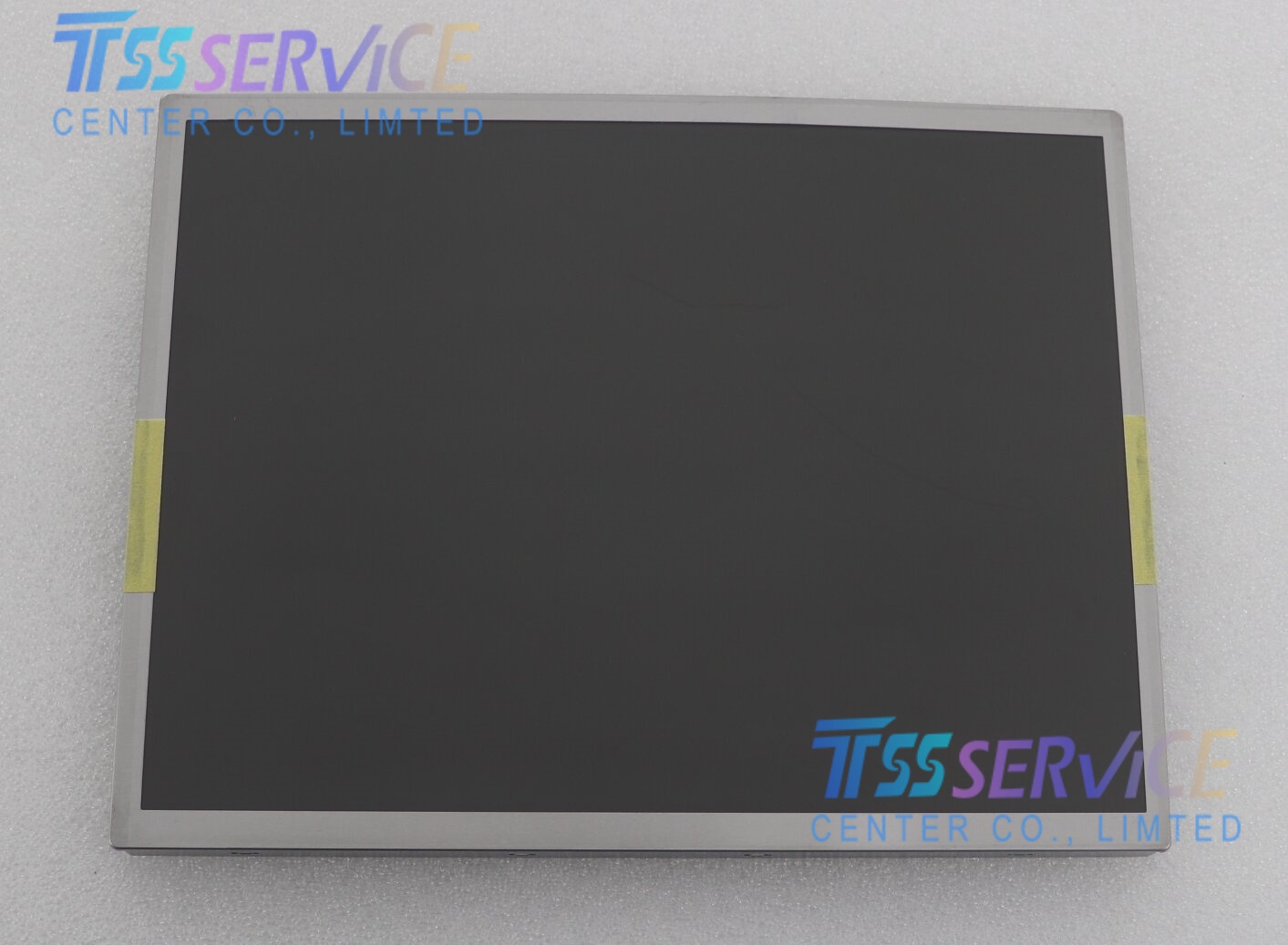

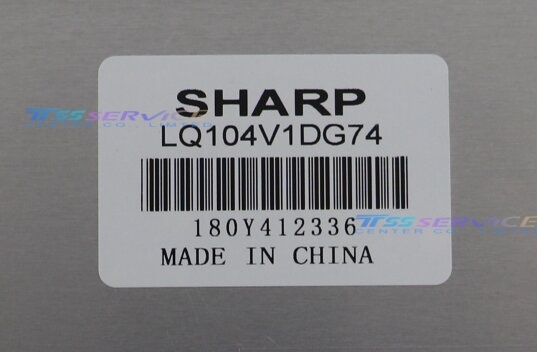

LQ104V1DG74 |
Sharp 10.4" TFT-LCD Module |
|
Panel Type |
a-Si TFT-LCD, LCD Module |
Transmissive type |
|
Size |
10.4 inches (264 mm diagonal) |
Aspect ratio 4:3 |
| Display Performance |
Resolution |
640 (RGB) × 480 (VGA), 76 PPI |
RGB vertical stripe arrangement |
|
Brightness |
370 cd/m² (Typ.) |
WLED backlight |
|
Contrast Ratio |
800:1 (Typ.) |
TN mode |
|
Color Depth |
262K colors |
6-bit RGB drive |
|
Viewing Angle |
80/80/60/80 (Typ.) |
Left/Right/Up/Down, TN mode |
|
Response Time |
35 (Typ.)(Tr+Td) |
Typical for industrial applications |
| Mechanical & Physical |
Active Area |
211.2 (W) × 158.4 (H) mm |
Displayable area |
|
Outline Dimension |
227.3 (W) × 177.5 (H) × 10.5 (D) mm |
Module outer size |
|
Surface Treatment |
Hard Coating (3H), Anti-Glare |
Protects panel surface |
|
Weight |
Approx. 500 g |
Typical module weight |
| Backlight System |
Backlight Type |
WLED |
Integrated LED driver |
|
Backlight Lifetime |
≥ 70K hours |
Typical lifetime |
| Interface & Power |
Interface Type |
CMOS (1 ch, 6-bit), 40-pin Terminal |
TTL signal interface |
|
Supply Voltage |
3.3 V (Typ.) |
Low power consumption |
| Operating Environment |
Operating Temperature |
-30 °C ~ 80 °C |
Wide temperature for industrial use |
|
Storage Temperature |
-30 °C ~ 80 °C |
Robust environmental tolerance |
