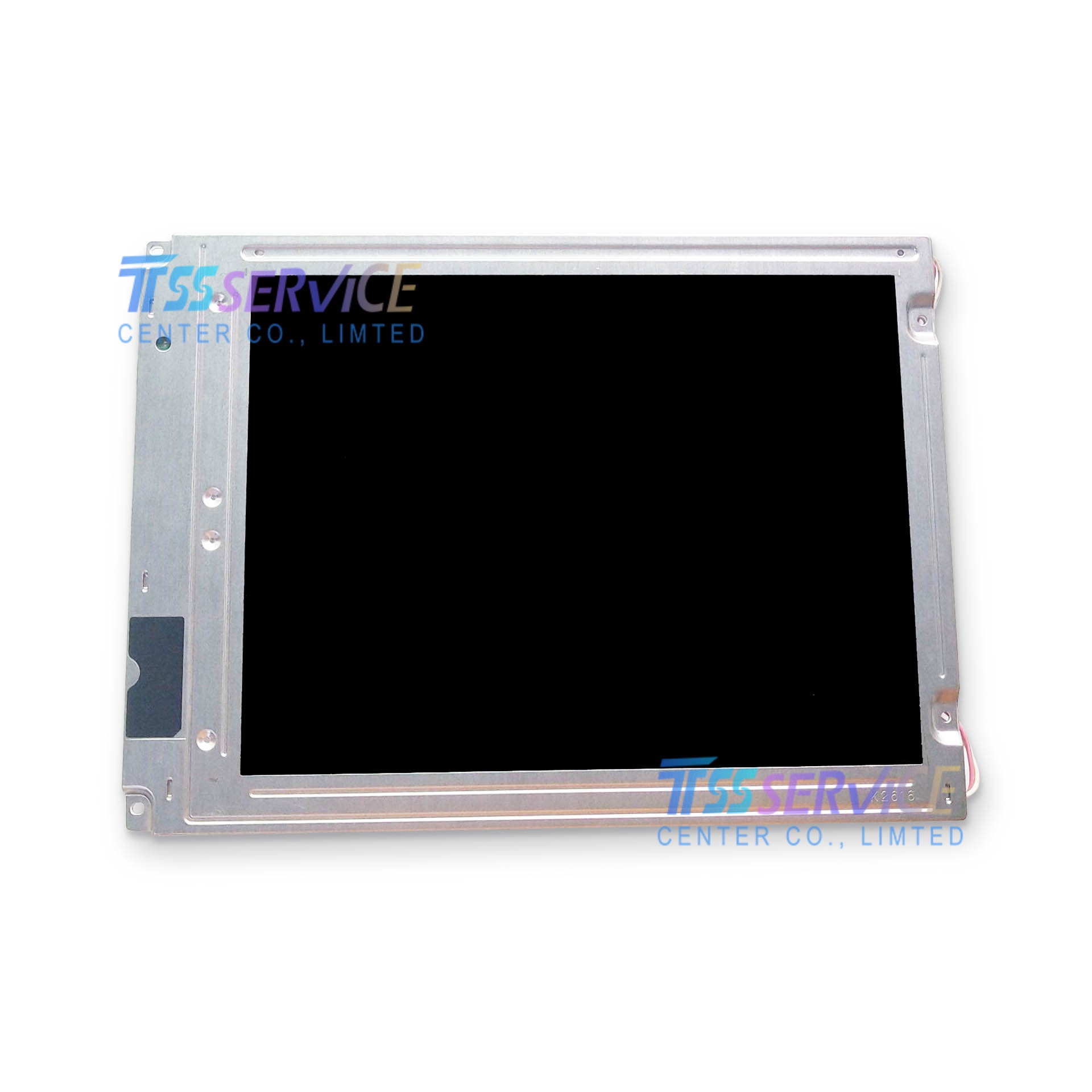

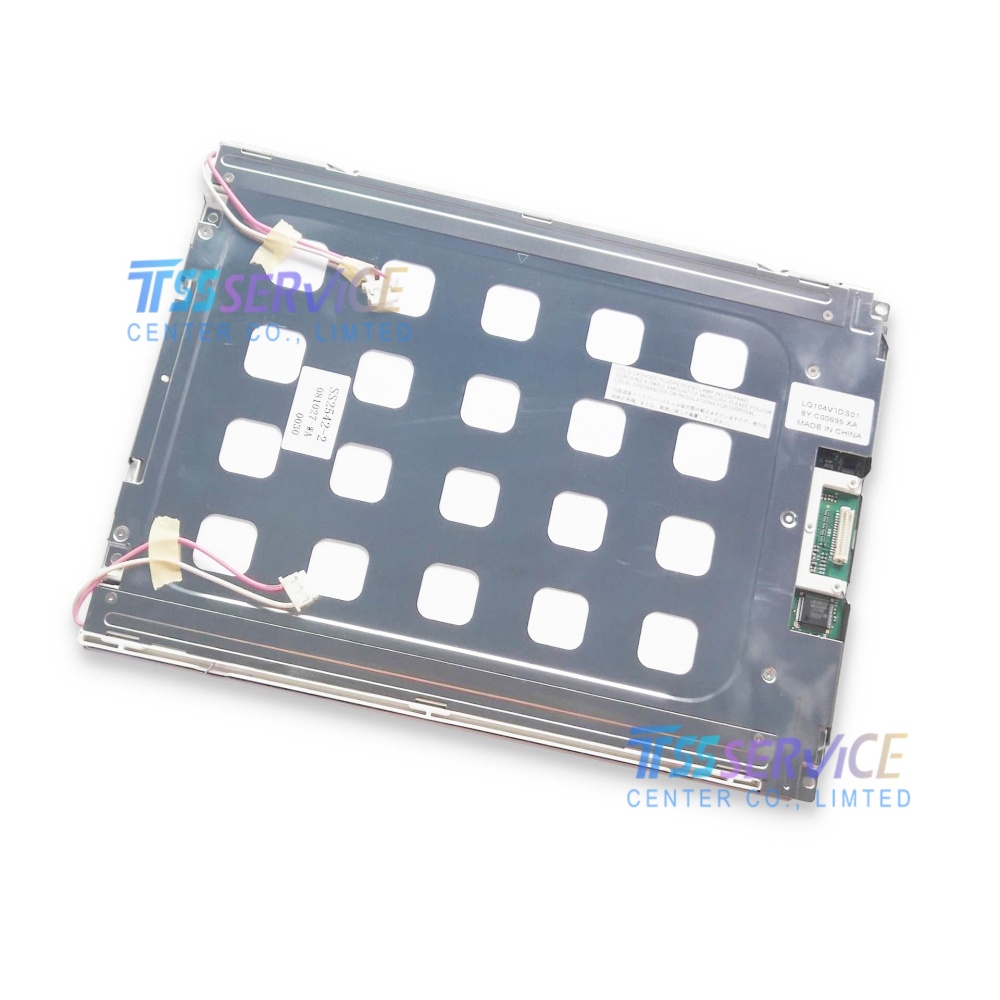

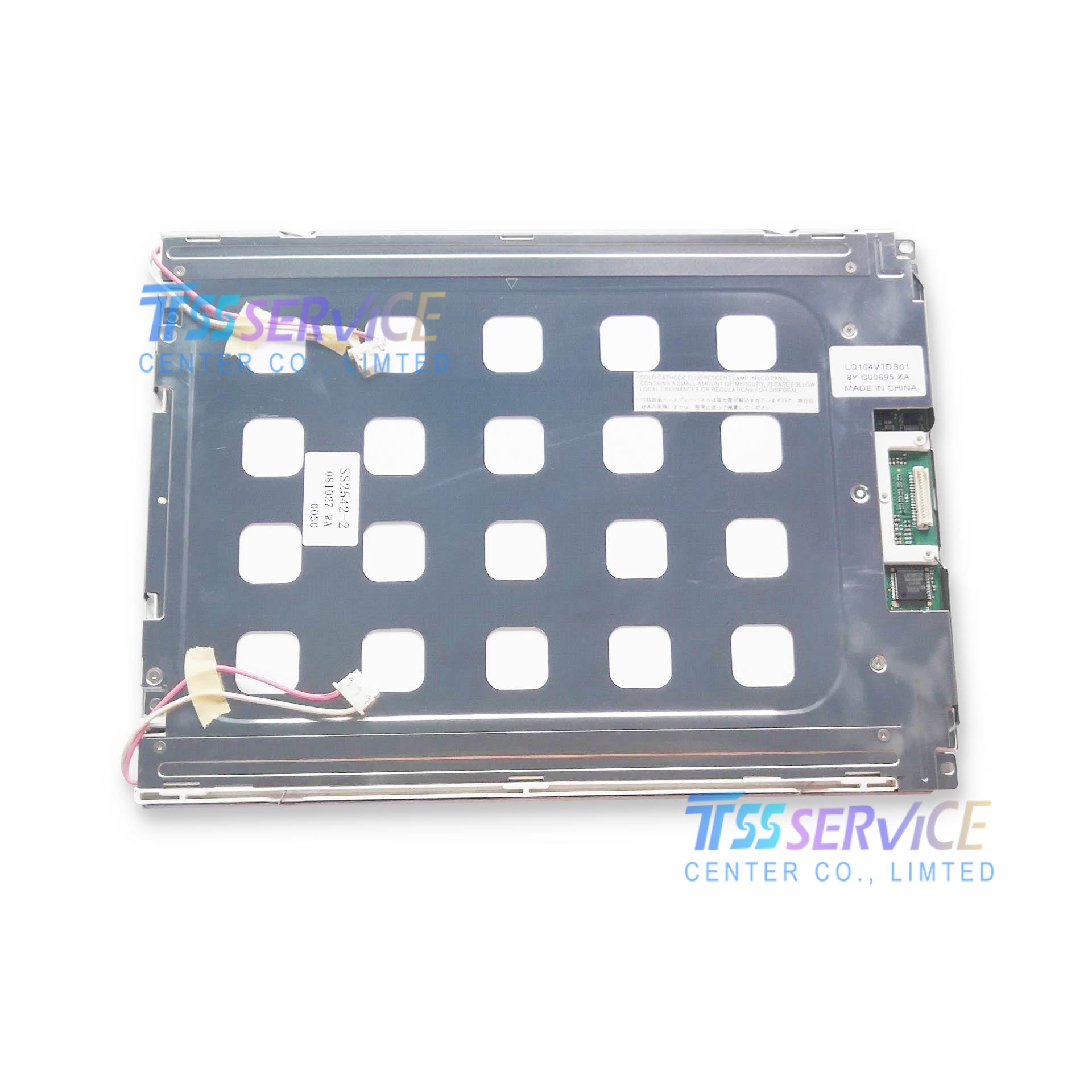

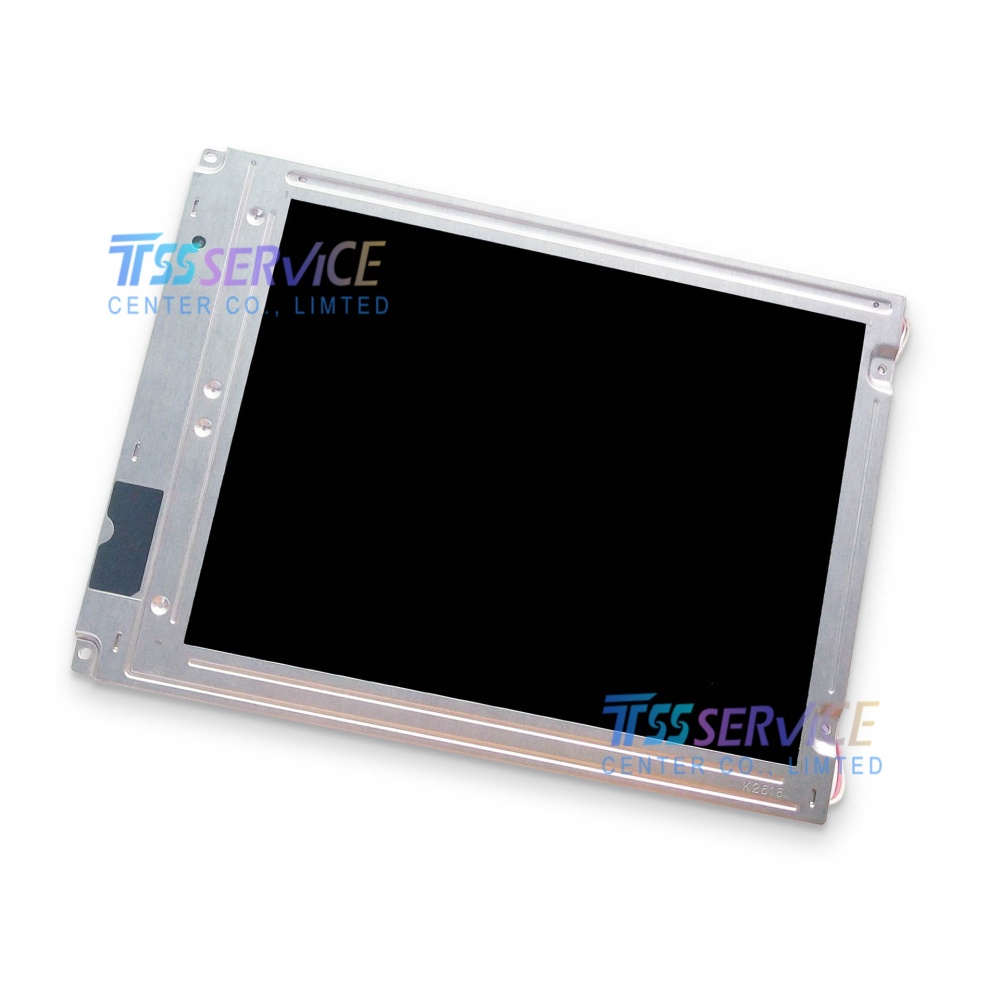

Sharp LQ104V7DS01 10.4 INCH 640×480 TFT LCD CCFL Industrial Display

Name: Sharp LQ104V7DS01 10.4 INCH 640×480 TFT LCD CCFL Industrial Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ104V7DS01
Price: 68 USD
Availability: InStock

SKU: LQ104V7DS01

Model: LQ104V7DS01
Brand: Sharp
Size: 10.4 inch (4:3 Aspect Ratio)
Resolution: 640(RGB) × 480 (VGA), 77 PPI
Panel Type: a-Si TFT-LCD, Transflective, TN Normally White

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $68.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LQ104V7DS01 10.4 INCH 640×480 TFT LCD CCFL Industrial Display

Item	Specification
Model	LQ104V7DS01
Brand	Sharp
Size	10.4 inch (4:3 Aspect Ratio)
Resolution	640(RGB) × 480 (VGA), 77 PPI
Panel Type	a-Si TFT-LCD, Transflective, TN Normally White
Brightness	250 cd/m² (Typ.)
Contrast Ratio	250:1 (Typ.) (TM) / 4.5:1 (Typ.) (RF)
Viewing Angle	45/45/45/45° (Typ.) (CR≥5)
View Direction	6 o'clock
Backlight	2 × CCFL Lamps, 50,000 hrs lifespan, without driver

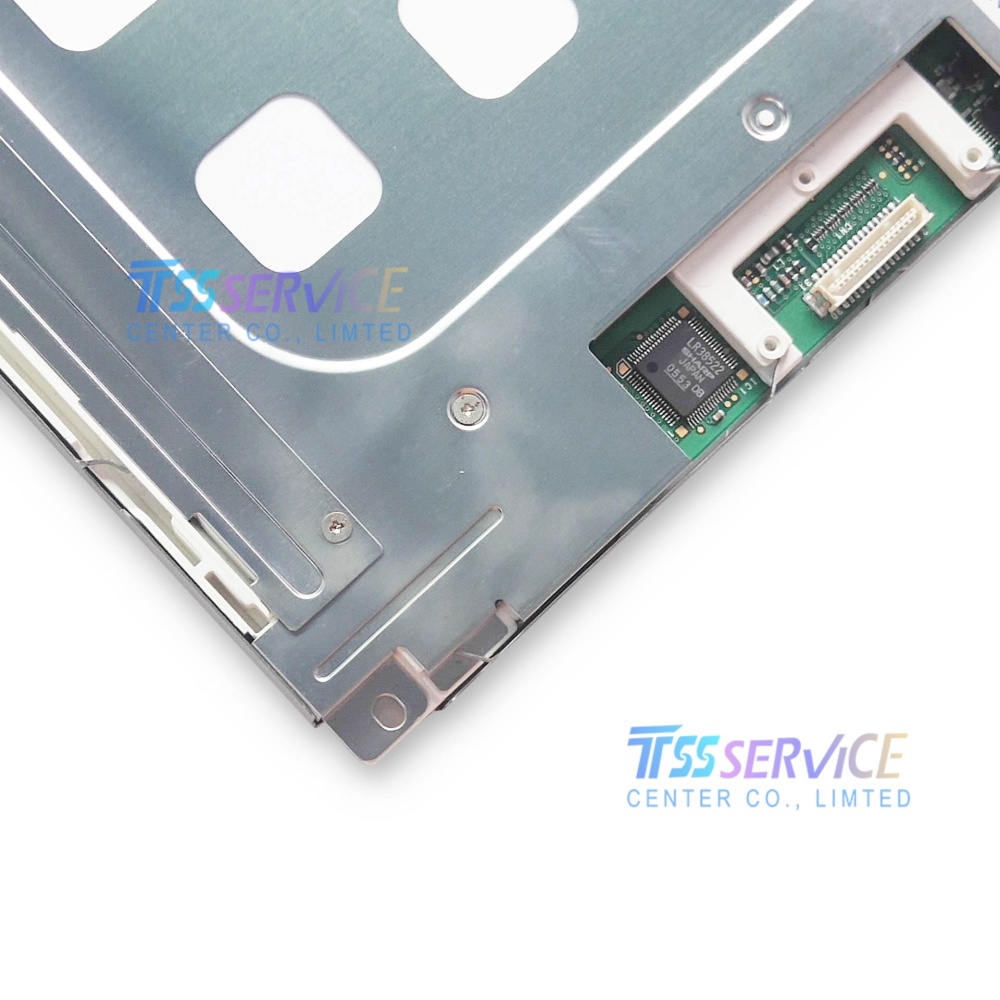

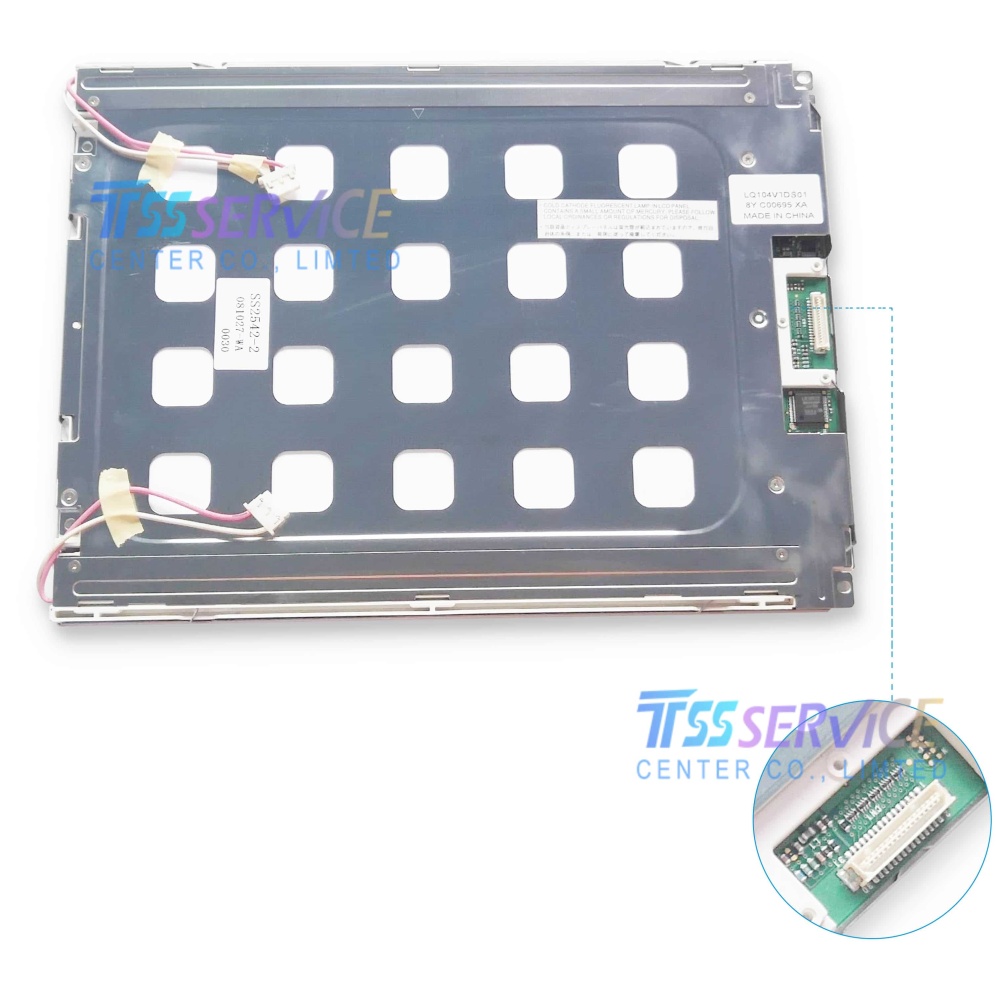

Interface	Parallel RGB (1 ch, 6-bit), 31-pin Connector
Operating Voltage	3.3V / 5.0V (Typ.) (VCC)
Operating Temp	-20°C ~ +70°C (Typical industrial range for this model)
Storage Temp	-30°C ~ +80°C (Typical)
Active Area	211.2 × 158.4 mm
Outline Dimension	245(W) × 195(H) × 11.9(D) mm
Panel Weight	700g (Typ.)
Surface	Anti-glare, Hard coating, Antireflection
Display Colors	262K (6-bit)
Response Time	20/40 ms (Tr/Td)
Touch Screen	Without
Pixel Format	RGB Vertical Stripe

Applications

Industrial HMI & Control Panels: CNC machines, PLC interfaces, factory automation terminals.
Outdoor & Mobile Equipment: Construction machinery dashboards, agricultural vehicles, marine displays.
Legacy System Replacement: Direct drop-in replacement for older Sharp 10.4" VGA industrial displays.
Medical & Laboratory Devices: Diagnostic equipment requiring transflective readability.
Embedded Systems: Industrial terminals, POS systems, and process control monitors.
