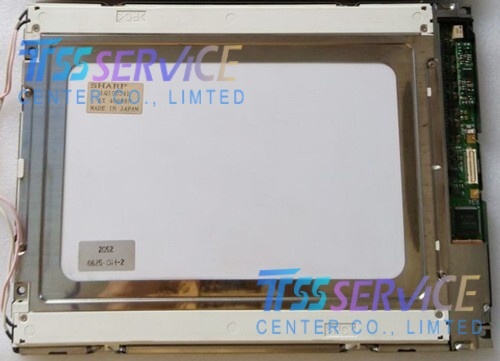

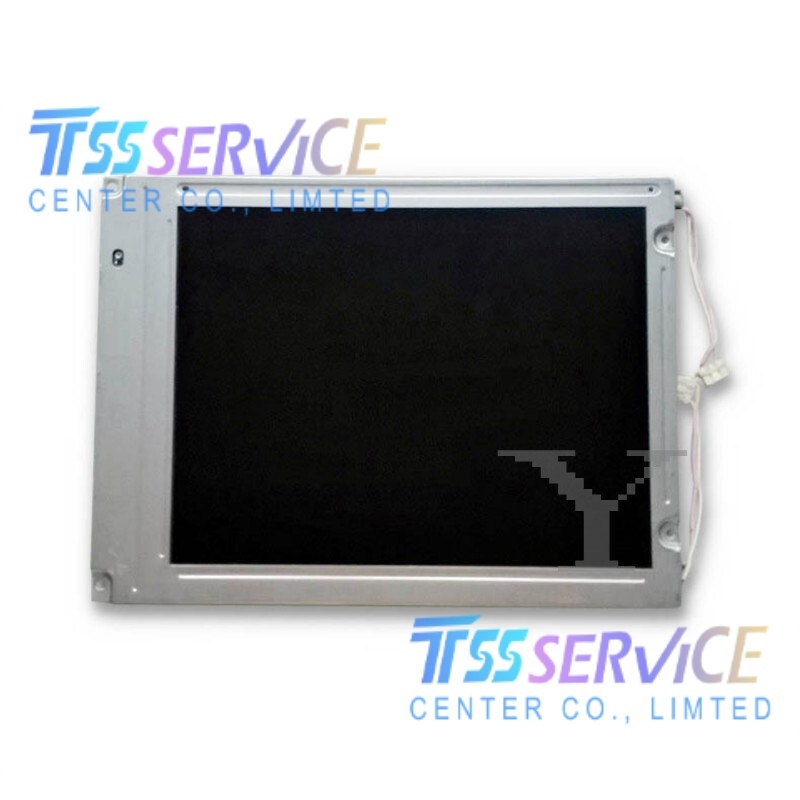

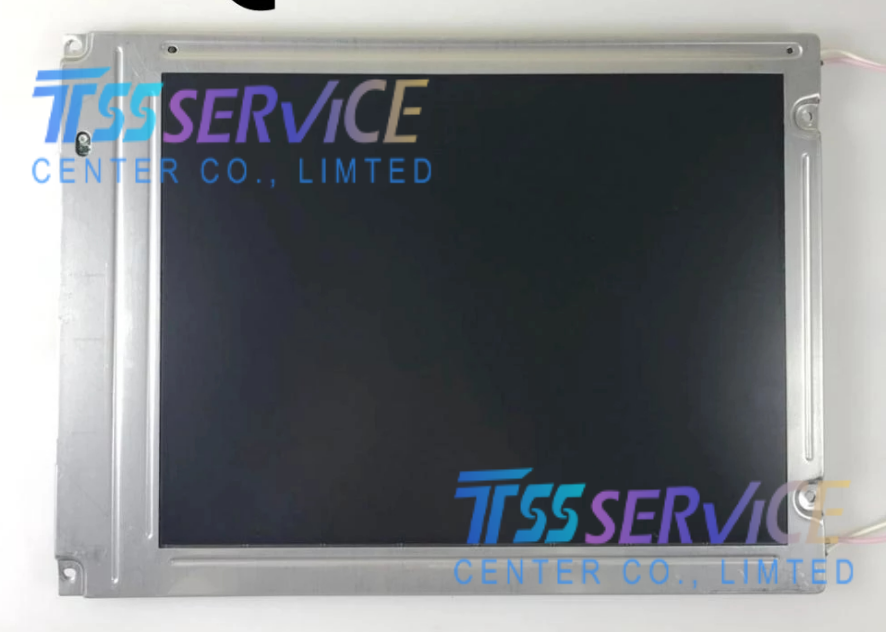

SHARP 10.4 inch 640(RGB)×480 (VGA) LCD Panel LQ10D343 For Industrial

Name: SHARP 10.4 inch 640(RGB)×480 (VGA) LCD Panel LQ10D343 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ10D343
Price: 55 USD
Availability: InStock

SKU: LQ10D343

Model: LQ10D343
Diagonal Size: 10.4 inch
Resolution: 640(RGB)×480 (VGA), 76 PPI
Display Mode: TN, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $55.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

SHARP 10.4 inch 640(RGB)×480 (VGA) LCD Panel LQ10D343 For Industrial

Parameter	Specification
Brand	SHARP
Model	LQ10D343
Diagonal Size	10.4 inch
Resolution	640(RGB)×480 (VGA), 76 PPI
Display Mode	TN, Normally White, Transmissive
Active Area	211.2 (W) × 158.4 (H) mm
Outline Dimension	245 (W) × 185 (H) × 12 (D) mm
Pixel Pitch	0.330 × 0.330 mm
Luminance	300 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.)
Response Time	30 ms (Typ., Tr+Td)
Viewing Angle	45°/45°/30°/40° (L/R/U/D, CR≥10)
Color Depth	262K colors (18-bit RGB, 6-bit/color)
Backlight	CCFL (included, requires inverter)
Interface	18-bit RGB (parallel), 31-pin connector
Input Voltage	5.0V (Typ.)
Surface Treatment	Standard, hard coating (2H)
Operating Temp.	0 ~ +50 °C
Storage Temp.	-20 ~ +60 °C
MTBF	≥50,000 hours
RoHS	Compliant

Applications

Industrial HMI: Factory control panels, PLC interfaces, and machine displays.
Medical Equipment: Patient monitors, diagnostic devices, and lab instruments.
Embedded Systems: Industrial PCs, POS terminals, and self-service kiosks.
Test & Measurement: Oscilloscopes, data loggers, and analytical instruments.
Legacy Upgrades: Replacement for older 10.4” VGA displays in automation systems.
