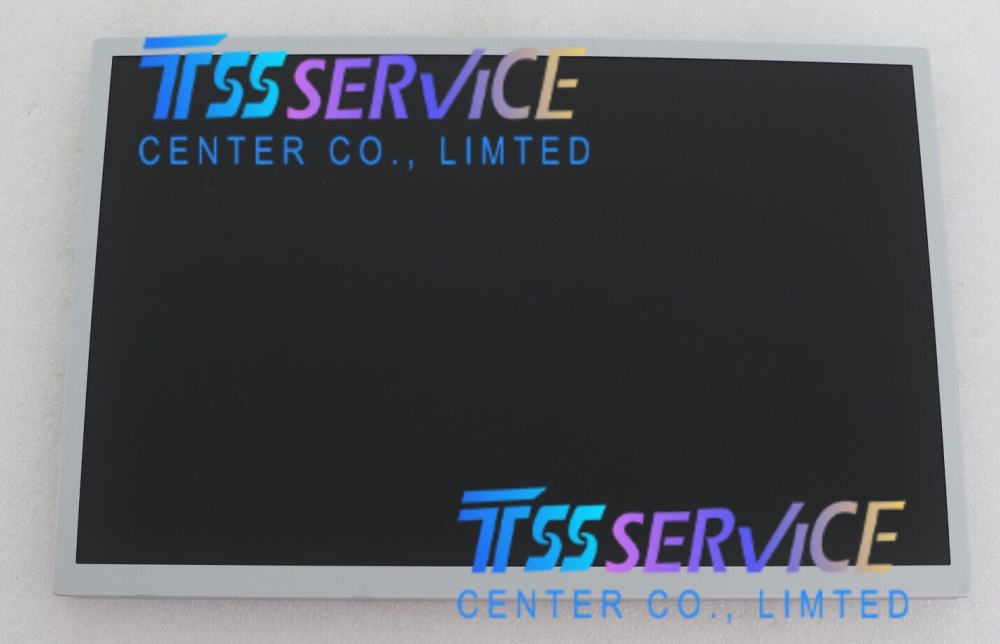

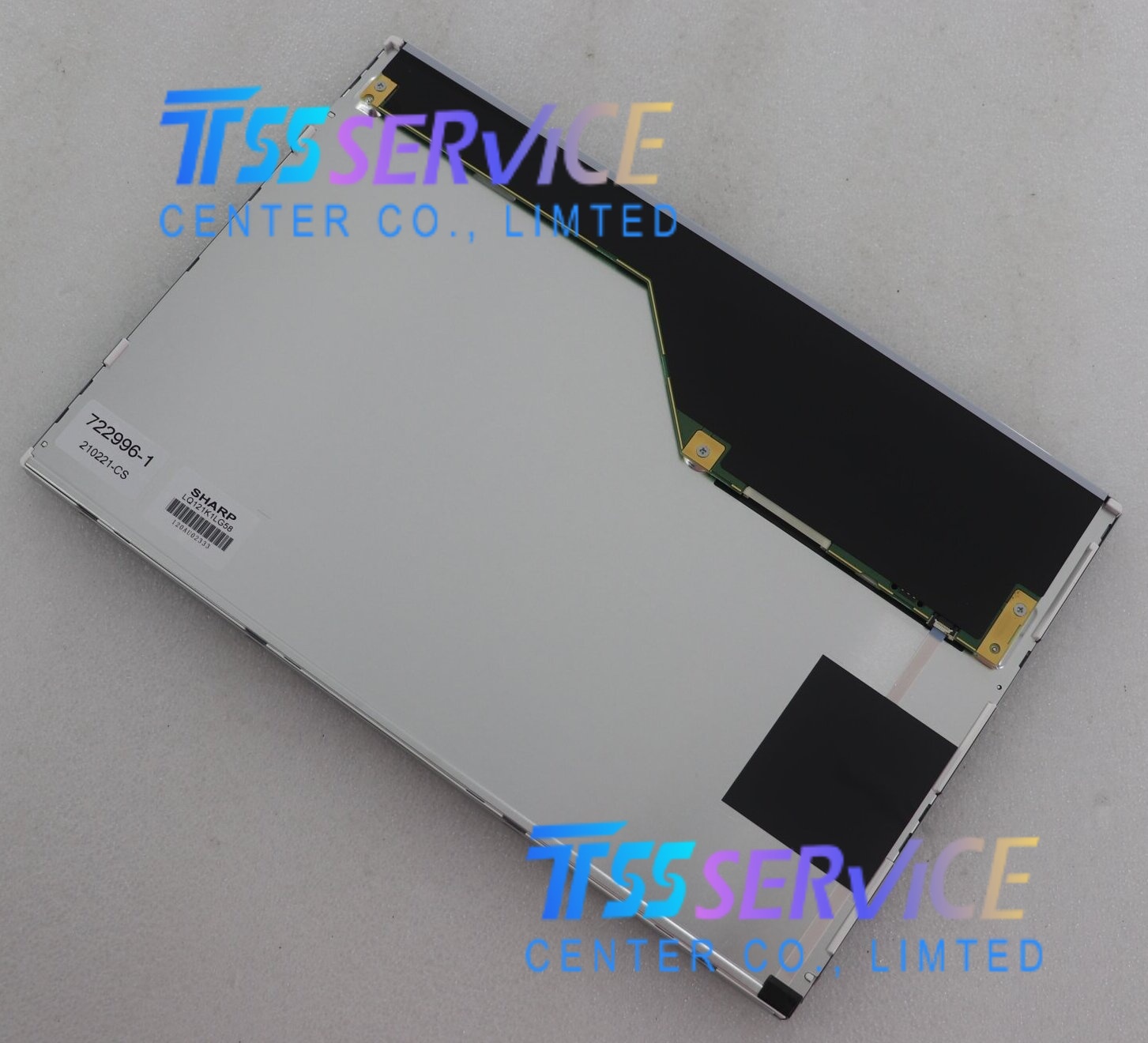

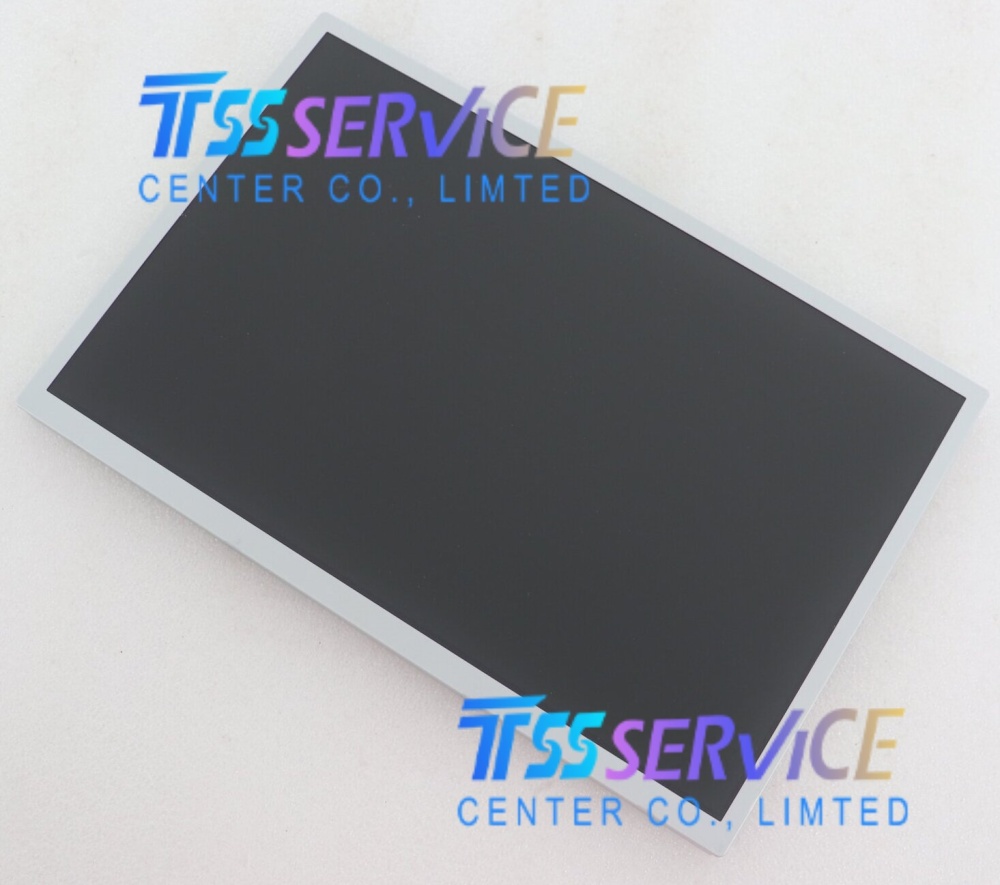

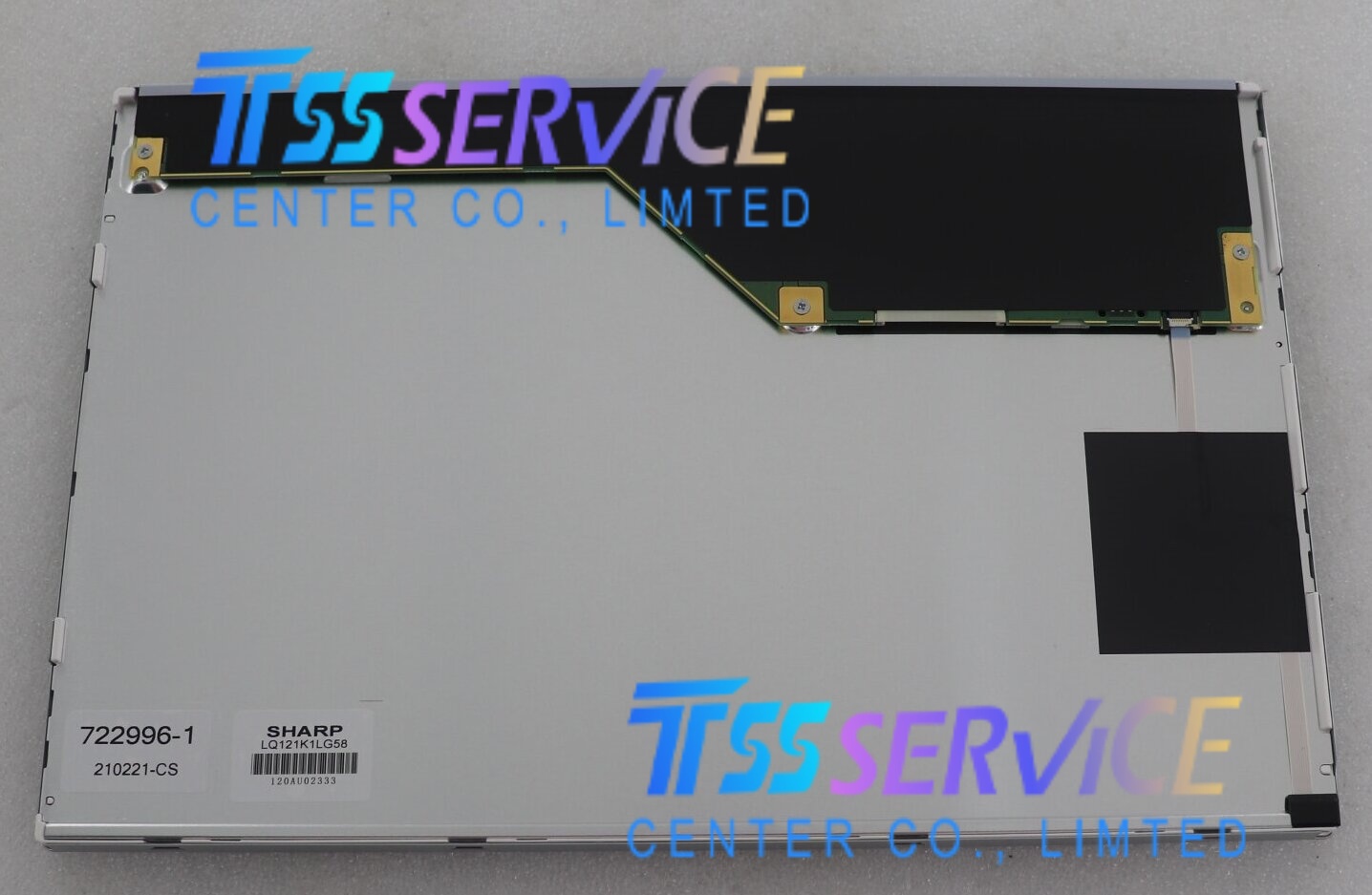

SHARP 12.1 inch LCD Display Panel LQ121K1LG58 for Industrial NEW
The LQ121K1LG58, with its higher 1280x800 resolution and widescreen format, is specifically suited for applications requiring more screen real estate and detailed visualization compared to standard SVGA panels. Its key applications include:
-
Advanced Medical Instrumentation:
- Patient Monitors with Waveforms: The extra vertical resolution (800 vs 600) allows for better display of multiple physiological waveforms (ECG, SpO2, IBP) simultaneously without scrolling.
- Ultrasound & Portable Imaging: Used in cart-based and handheld ultrasound systems where detailed grayscale imaging and menu navigation require higher pixel density.
- Infusion Pumps & Anesthesia Machines: Provides clear, high-contrast displays for drug dosage calculations and safety alarms.
-
Industrial Automation & HMI:
- Complex SCADA Systems: Enables operators to view larger schematics, trend graphs, and multiple data fields on a single screen in factory control rooms.
- CNC Machine Interfaces: Displays detailed G-code, 3D tool path simulations, and multi-axis coordinates with greater clarity.
- Robotics Teach Pendants: Offers a widescreen layout for programming sequences, viewing camera feeds, and monitoring robot status simultaneously.
-
Transportation & Marine Systems:
- Railway Passenger Information Displays (PID): Used inside train cars or driver cabins for showing route maps, station lists, and real-time diagnostics.
- Marine Chart Plotters: The 16:10 aspect ratio is ideal for displaying nautical charts with extended horizontal views for route planning.
- Avionics & Cockpit Displays: Integrated into general aviation aircraft for engine monitoring and navigation maps.
-
Test & Measurement Equipment:
- Portable Oscilloscopes & Analyzers: The higher resolution allows for clearer visualization of signal details, zoomed-in waveforms, and complex measurement setups.
- Environmental Test Chambers: Displays detailed logs of temperature, humidity, and pressure curves over time.
-
Gaming & Entertainment (Legacy/Rugged):
- Handheld Gaming Consoles: Historically used in ruggedized or industrial-grade handheld gaming devices due to its sharp image and wide viewing angles.
- Slot Machines & VLTs: Used in video lottery terminals and casino gaming machines requiring reliable, bright, and high-resolution displays.
| Parameter |
Specification |

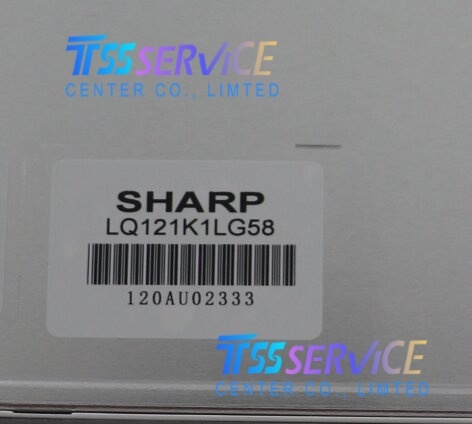

| Model Number |
LQ121K1LG58 |
| Manufacturer |
Sharp Corporation (Japan) |
| Panel Type |
a-Si TFT-LCD, Active Matrix |
| Screen Size |
12.1 inches (Diagonal) |
| Resolution |
1280 (RGB) × 800 pixels (WXGA) |
| Aspect Ratio |
16:10 (Widescreen) |
| Pixel Pitch |
0.192 mm (H) × 0.192 mm (V) (Approx.) |
| Display Mode |
TN (Twisted Nematic) or IPS (Depending on sub-version), Normally White, Transmissive |
| Brightness |
400 ~ 500 cd/m² (Typical, High Brightness Option Available) |
| Contrast Ratio |
700:1 to 800:1 (Typical) |
| Viewing Angle |
80/80/60/80 (L/R/U/D) (Typical, CR≥10) |
| Backlight Type |
WLED (White LED) or CCFL (Check specific batch; WLED preferred) |
| Backlight Driver |
Integrated LED Driver (if WLED) or External Inverter (if CCFL) |

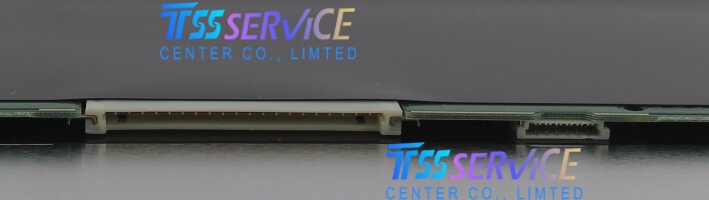

| Interface |
LVDS (Low Voltage Differential Signaling), 2-channel, 8-bit |
| Color Support |
16.7M colors (8-bit) or 262K (6-bit + FRC) |
| Surface Treatment |
Anti-glare (Haze ~25%), Hard Coating (3H) |
| Operating Temperature |
-20°C to +70°C (Wide Temperature Range) |
| Storage Temperature |
-30°C to +80°C |
| Dimensions (Approx.) |
276.0 mm × 185.0 mm × 10.5 mm (Varies slightly by bezel) |
| Active Area |
261.1 mm × 163.2 mm |
| Weight |
Approx. 600g - 650g |
| Special Features |
WXGA Resolution, Wide Temp, High Brightness, Industrial Reliability, RoHS Compliant |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
