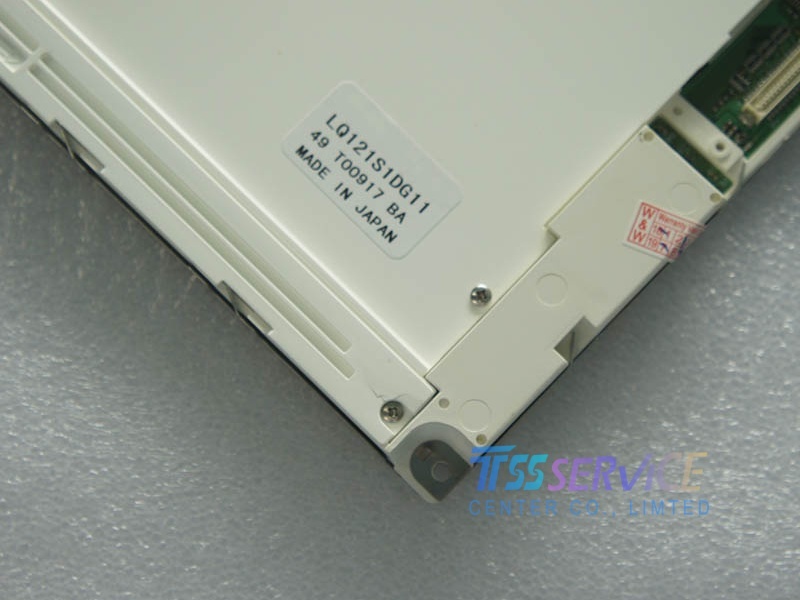

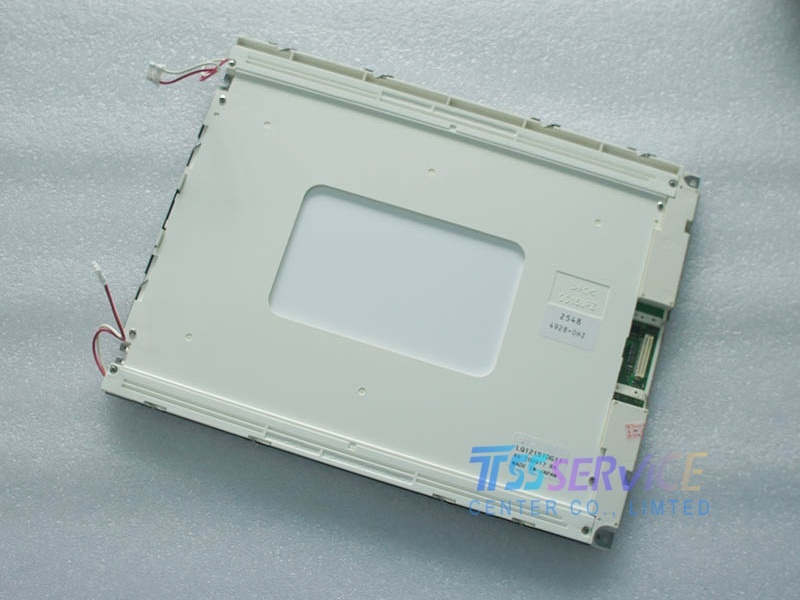

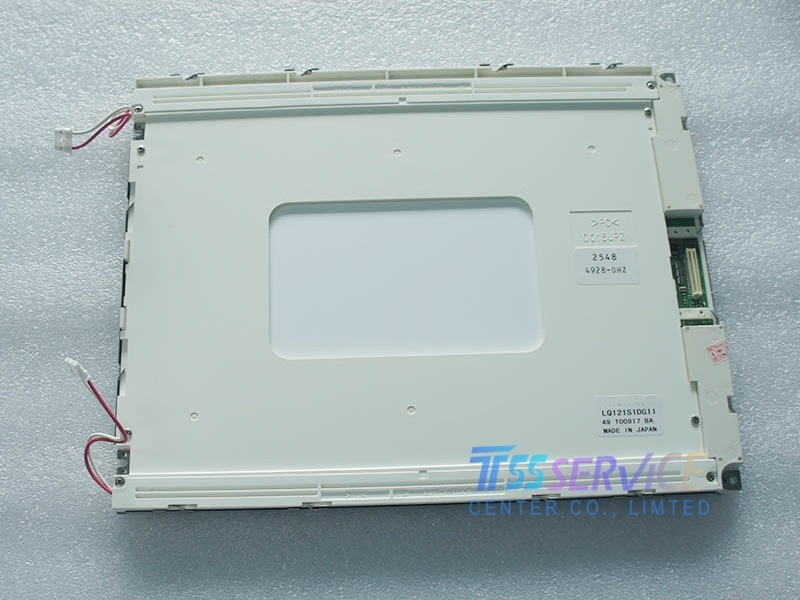

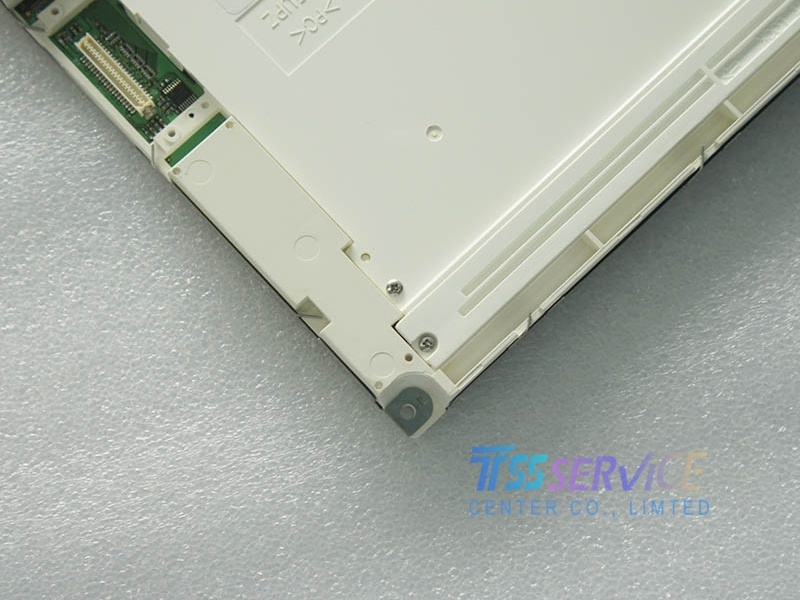

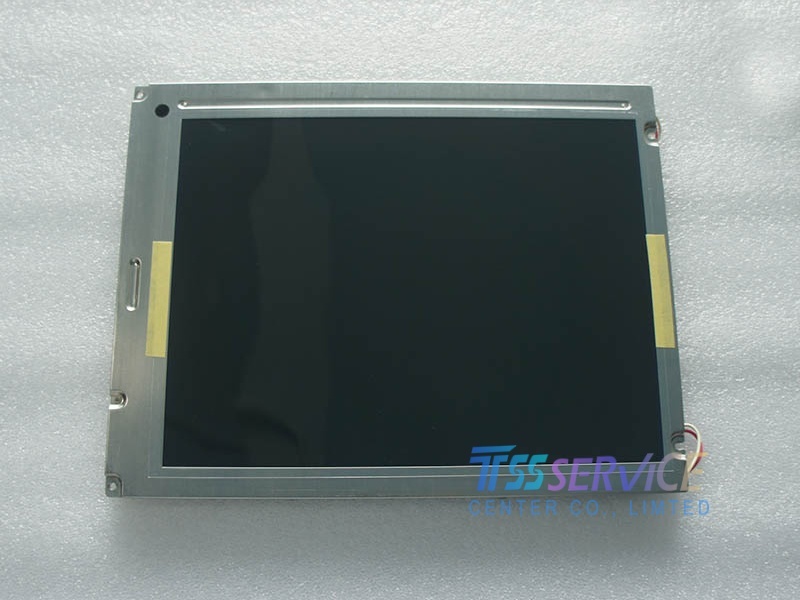

LQ121S1DG11 12.1inch 800x600 Lcd Display Panel for Sharp

SKU: LQ121S1DG11

Condition: New and orignal , Grade A

Warranty : 1 year

Lead time : 1-3 working days

Shipping : DHL , FEDEX ,  EMS , UPS ..

0.0 (0 Reviews)
0 Sold
$69.00 $68.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
1/1
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • LQ121S1DG11 12.1inch  800*600 industrial Lcd Display Panel for Sharp
  • Description

LQ121S1DG11 | Sharp 12.1" 800×600 Industrial LCD Display Panel

The LQ121S1DG11 is a 12.1-inch a-Si TFT-LCD module from Sharp, featuring SVGA resolution (800×600) and optimized for industrial and embedded applications. With a durable antiglare hard coating, reliable CCFL backlight, and stable performance in controlled environments, this non-touch display is a reliable choice for legacy industrial systems and equipment replacement.

Brand Sharp
Model P/N LQ121S1DG11
Diagonal Size 12.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 82PPI
Pixel Format RGB Vertical Stripe
Active Area 246(W)×184.5(H) mm
Bezel Opening 249.0(W)×187.5(H) mm
Outline(mm) 290×225×13.7 (H×V×D)
Treatment Antiglare (Haze 28%), Hard coating (3H)
Luminance 250 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 60/60/45/55 (Typ.)(CR≥10)
Response 15/30 (Typ.)(Tr/Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K
Backlight 2 pcs CCFL, 50K hours, No Driver
Mass 830g (Typ.)
Used for Industrial Control HMI, Legacy Equipment Replacement, Embedded Terminals, Test & Measurement Instruments
Touchscreen Without
Signal Type Parallel RGB (1 ch, 6-bit), 41 pins Connector
Voltage Supply 3.3/5.0V (Typ.)(VCC)
Max. Ratings Storage Temp.: -25 ~ 60 °C ; Operating Temp.: 0 ~ 50 °C

Application Focus

The LQ121S1DG11 is optimized for industrial and legacy system applications, including:
  • Industrial control panels (PLCs, CNC machines, factory automation)
  • Legacy equipment replacement for aging industrial and medical devices
  • Embedded test and measurement instruments
  • Applications requiring stable performance in controlled-temperature environments
