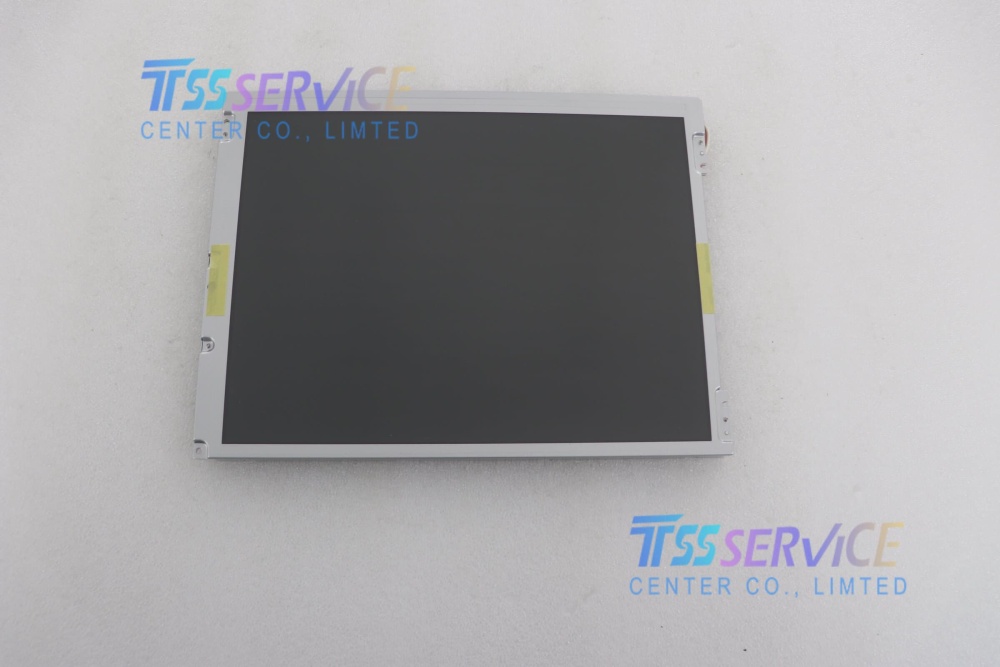

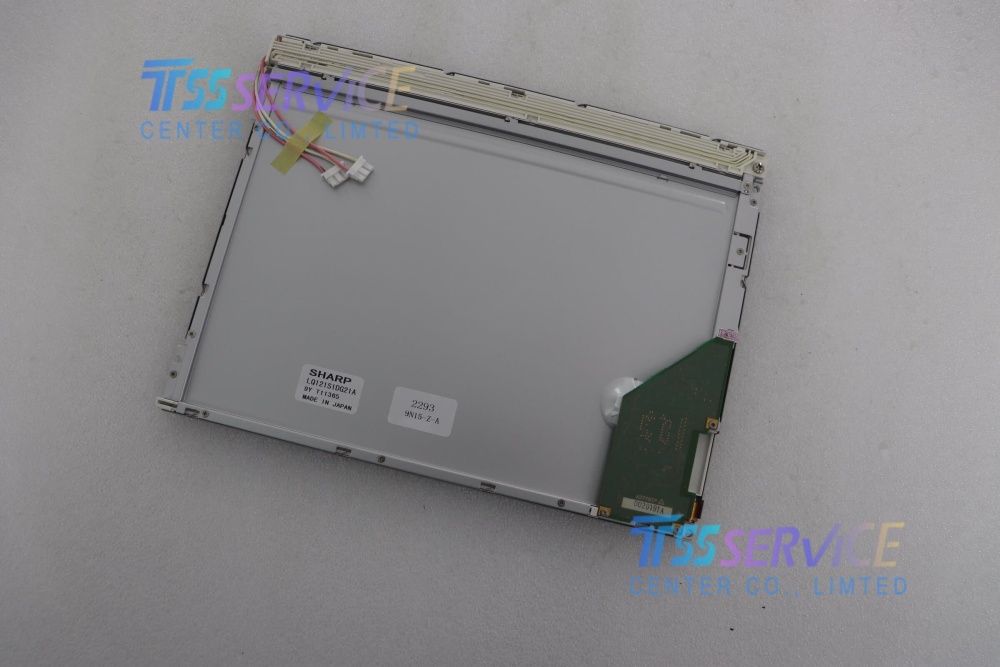

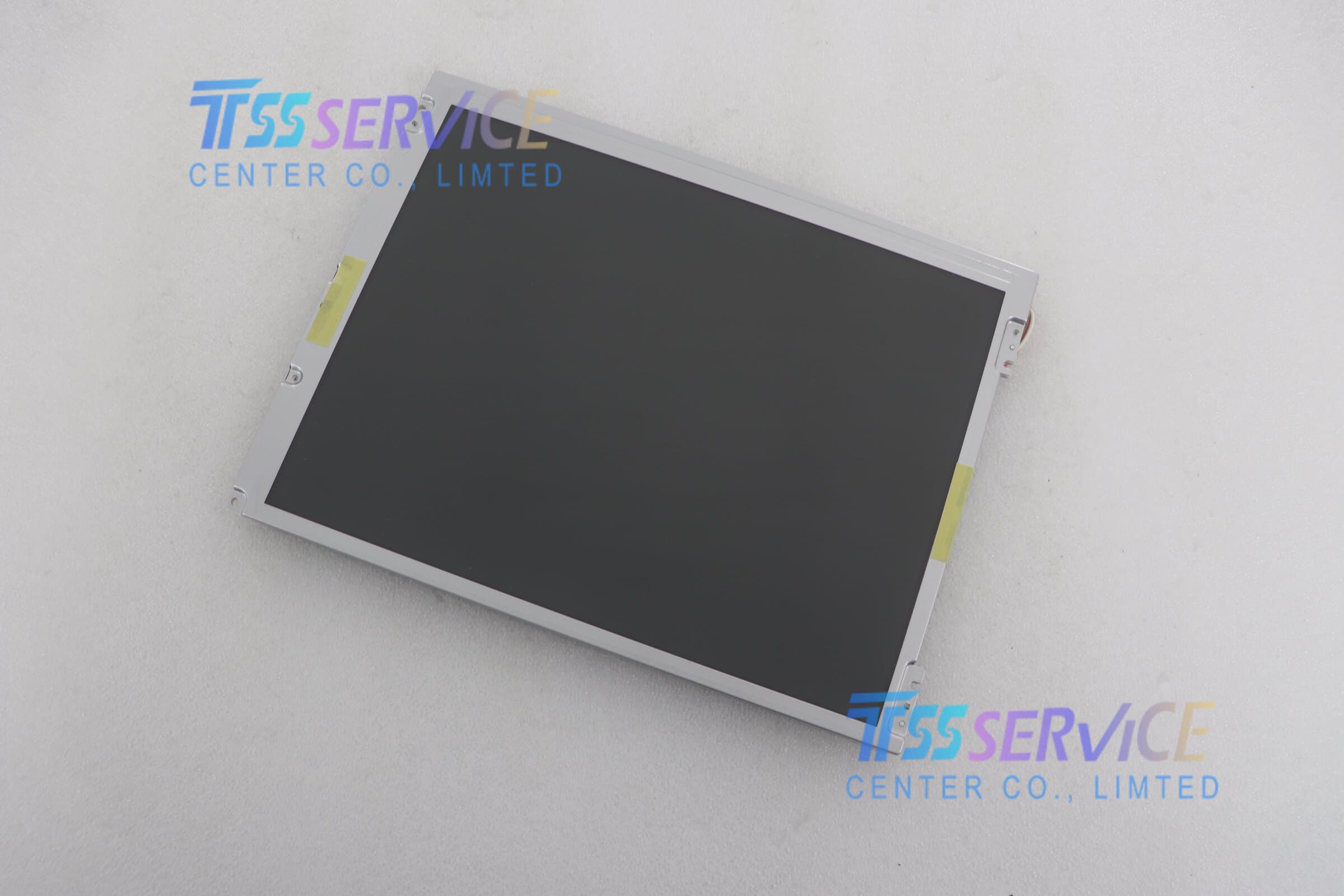

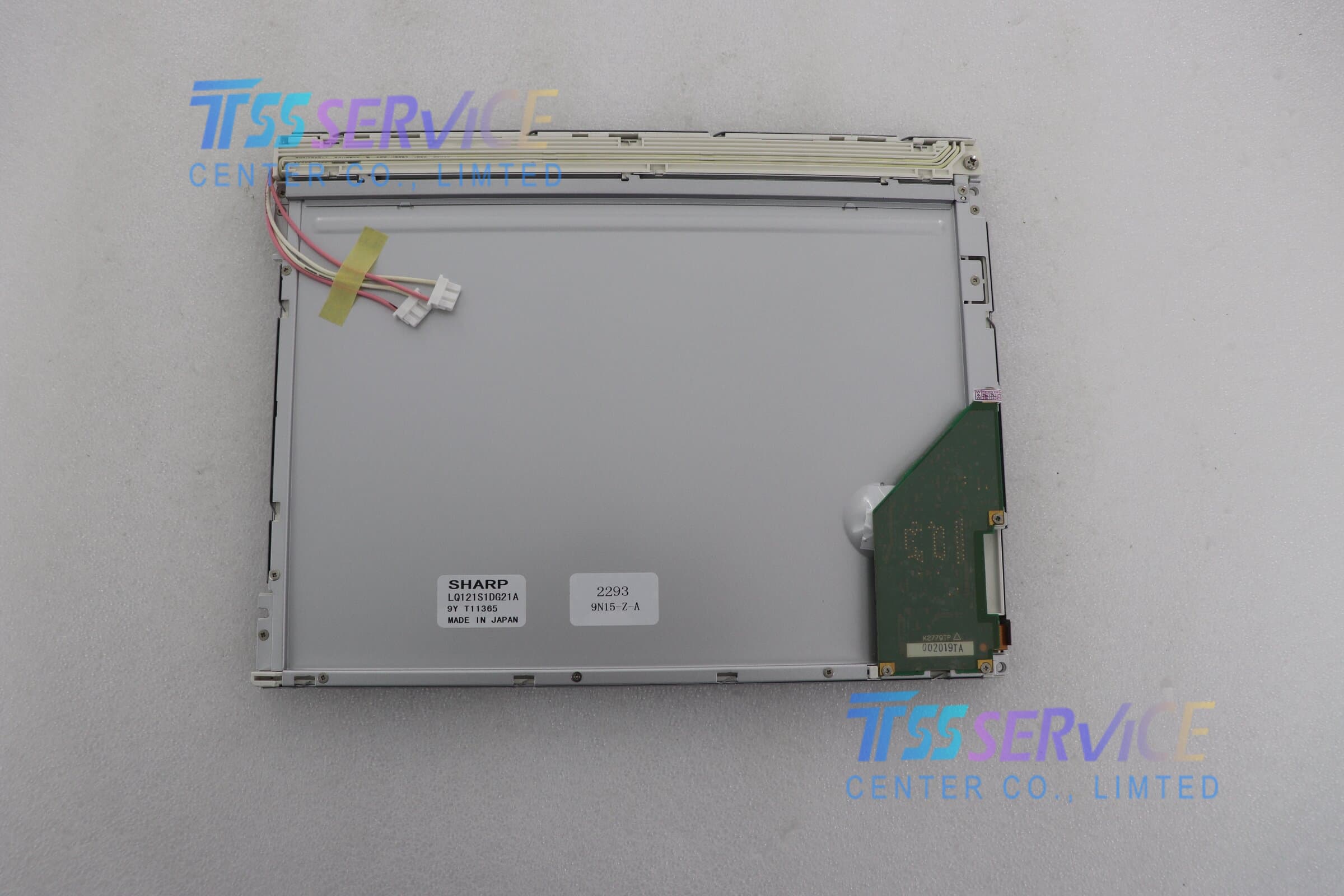

LQ121S1DG21A Sharp 12.1 inch 800×600 LCD Display Screen For Industrial
| Parameter |
Specification |
Unit |
| Brand |
Sharp |
– |
| Model |
LQ121S1DG21A |
– |
| Display Size |
12.1 (diagonal) |
inch |
| Panel Type |
a‑Si TFT‑LCD, LCM |
– |
| Resolution |
800 (RGB) × 600 (SVGA) |
pixel |
| Active Area |
246.0 (H) × 184.5 (V) |
mm |
| Outline Dimensions |
276 (H) × 209 (V) × 14 (D) |
mm |
| Bezel Area |
249.0 (H) × 187.5 (V) |
mm |
| Pixel Configuration |
RGB Vertical Stripe |
– |
| Brightness (Luminance) |
300 (Typ.) |
cd/m² |
| Contrast Ratio |
300:1 (Typ., TM) |
– |
| Viewing Angle (CR≥10) |
60/60/45/55 (L/R/U/D) |
deg |
| View Direction |
6 o’clock |
– |
| Response Time |
15/30 (Typ., Tr/Td) |
ms |
| Display Mode |
TN, Normally White, Transmissive |
– |
| Surface Treatment |
Antiglare (Haze 28%), Hard coating (3H) |
– |
| Colors |
262K (6‑bit) |
– |
| Backlight |
2 × CCFL, 50,000 hours, w/o driver |
– |

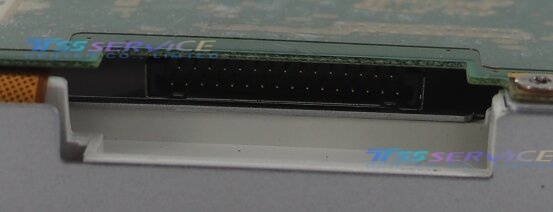

| Interface |
31‑pin Parallel RGB (1 ch, 6‑bit) |
– |
| Supply Voltage |
+3.3V (logic) / +5.0V (panel) |
DC |
| Operating Temperature |
0 ~ +50 |
°C |
| Storage Temperature |
−25 ~ +60 |
°C |
| Weight |
750 (Typ.) |
g |
Typical applications include:
- Industrial Control Panels – Factory automation, PLC HMIs, and machine‑vision terminals.
- POS & Banking Terminals – Retail checkout systems, ATMs, and self‑service kiosks.
- Medical Equipment – Patient monitors, diagnostic devices, and lab instrumentation (non‑critical care).
- Gaming & Amusement – Arcade machines, casino consoles, and simulation systems.
- Marine & Transportation – Ship navigation displays, onboard vehicle monitors, and ruggedized dashboards.
- General‑Purpose Industrial Displays – Any application requiring a durable, moderate‑brightness SVGA display with wide viewing angles and antiglare surface.
