Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..
| Brand | Sharp |

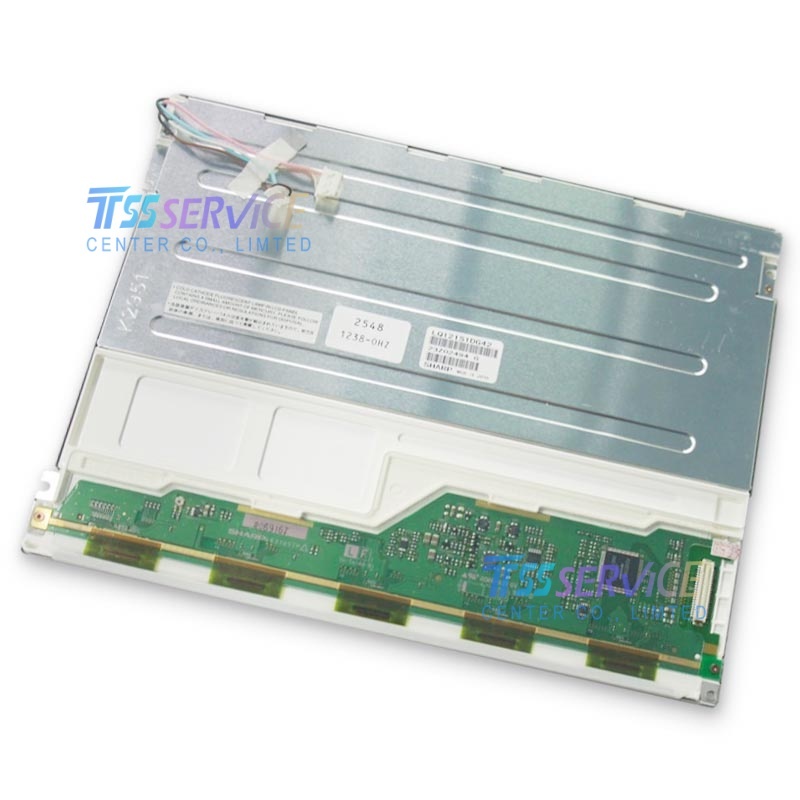

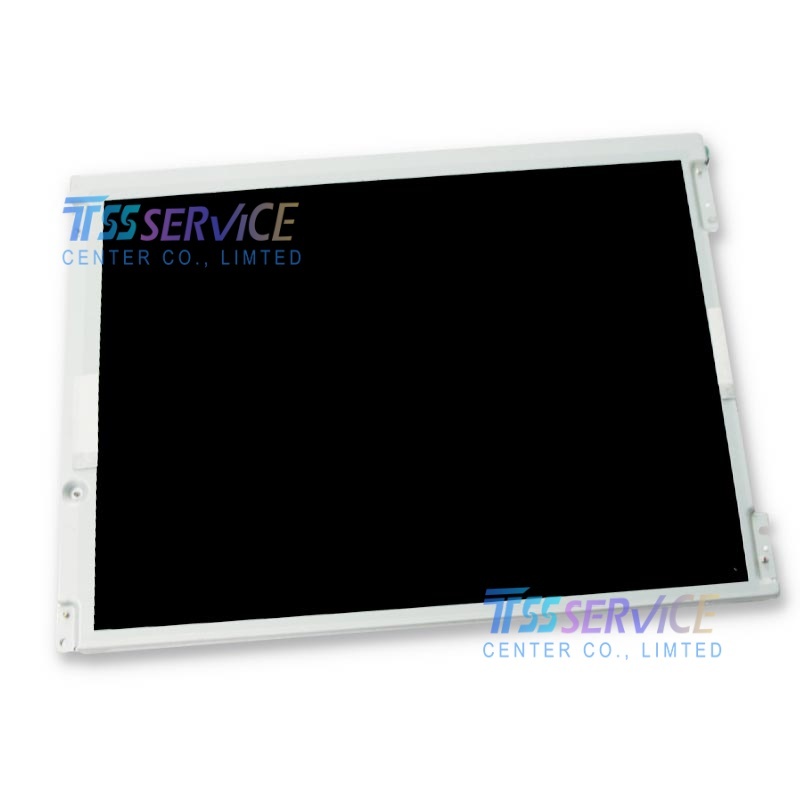

| Model P/N | LQ121S1DG42 |
| Diagonal Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA 82PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 246(W)×184.5(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Dim. | 276(H)×209(V)×11(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 370 cd/m² (Typ.) |
| Contrast Ratio | 450:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 50% NTSC |
| Light Source | CCFL [2 pcs], 50K hours, W/O Driver |
| Weight | 660g (Max.) |
| Designed For | Industrial HMI, CNC Controllers, Test Equipment, Embedded Terminals |
| Touch Panel | Without |

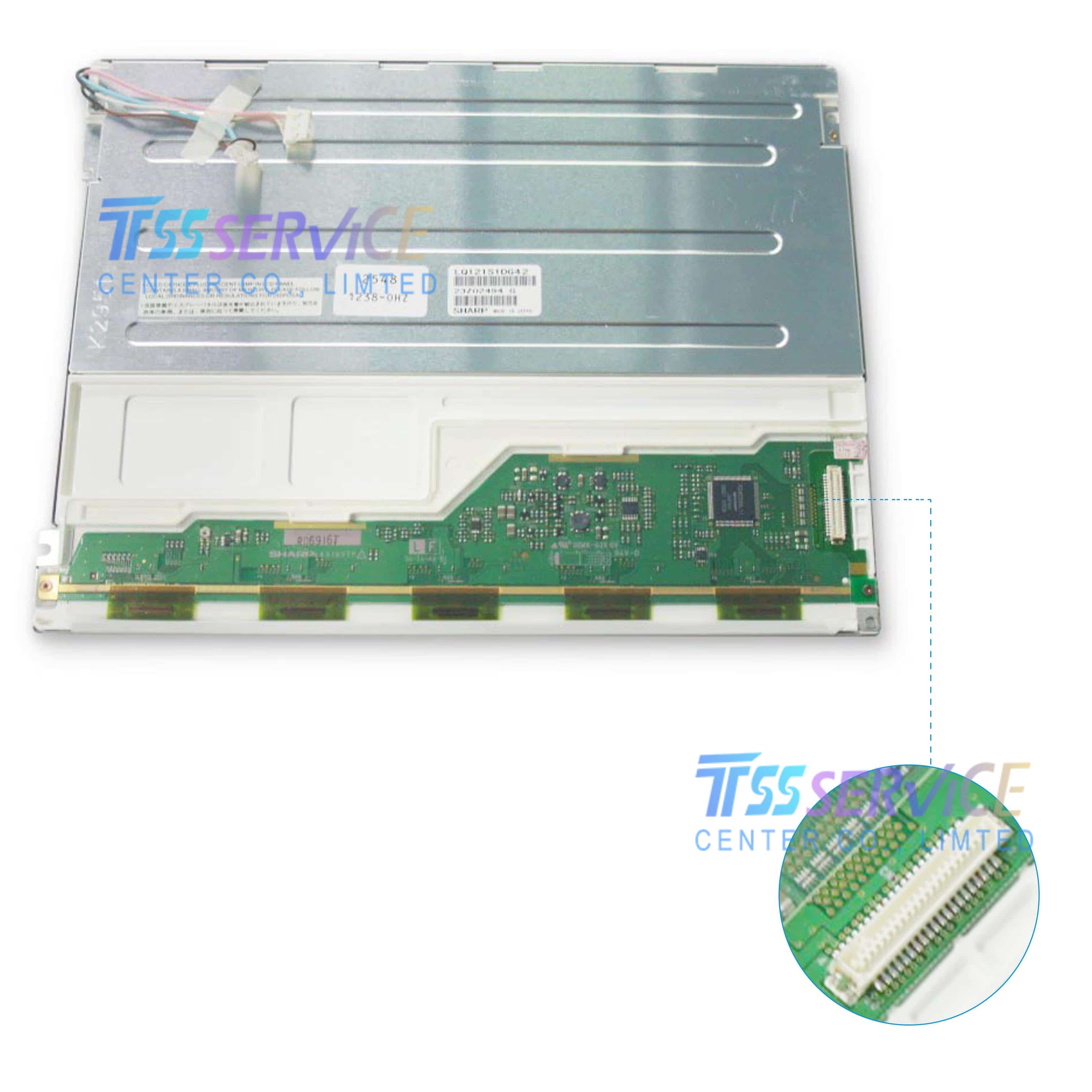

| Interface Type | Parallel RGB (1 ch, 6-bit), 41 pins Connector |
| Power Supply | 3.3/5.0V (Typ.)(VCC) |
| Environment | Operating Temperature: -10 ~ 65 °C ; Storage Temperature: -30 ~ 70 °C |
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
