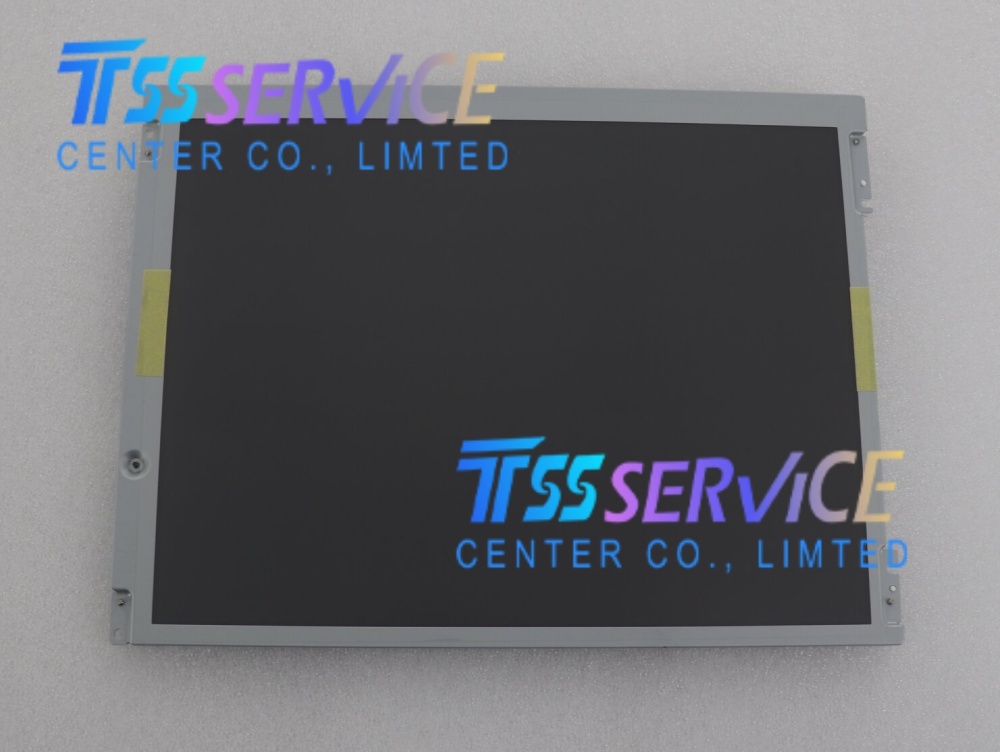

SHARP 12.1 inch LCD Display Panel LQ121S1LG51 for Industrial NEW
The LQ121S1LG51 is widely utilized in sectors that demand robust, long-lifecycle displays with standard resolutions. Its specific applications include:
-
Industrial Automation & Control:
- CNC Machines: Used as the primary interface for numerical control systems in lathes, milling machines, and routers.
- Injection Molding Machines: Displays process parameters, temperature curves, and cycle counts.
- Textile & Printing Machinery: Provides operator controls and status monitoring for weaving looms and industrial printers.
-
Medical Equipment:
- Patient Monitors: Displays vital signs (ECG, SpO2, blood pressure) in hospitals and ambulances due to its reliable visibility and stability.
- Diagnostic Devices: Used in older generations of ultrasound or analysis equipment where high resolution (HD/4K) is not yet mandatory.
-
Transportation & Marine:
- Vehicle Terminals: Installed in buses, trains, and specialized vehicles (e.g., fire trucks) for route display and system diagnostics.
- Marine Navigation: Used in shipboard control panels and navigation aids where ruggedness is key.
-
Banking & Financial Terminals:
- ATMs (Automated Teller Machines): Serves as the user interface screen for transaction inputs and display in legacy ATM models.
- POS Systems: Point-of-sale terminals in retail and hospitality environments.
-
Military & Defense:
- Field Equipment: Used in ruggedized handheld devices, communication consoles, and vehicle-mounted control systems where operating temperature ranges and vibration resistance are critical.
| Parameter |
Specification |
| Model Number |

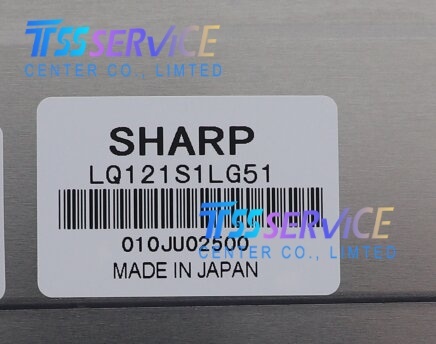

LQ121S1LG51 (Alias: LQ0DZA0126) |
| Manufacturer |
Sharp (Japan) |
| Panel Type |
a-Si TFT-LCD, Liquid Crystal Module |
| Screen Size |
12.1 inches (Diagonal) |
| Resolution |
800 (RGB) × 600 pixels (SVGA) |
| Display Mode |
TN (Twisted Nematic), Normally White, Transmissive |
| Brightness |
350 cd/m² (Typical) |
| Contrast Ratio |
400:1 (Typical, Transmissive) |
| Viewing Angle |
6 o'clock direction (Optimal viewing from bottom) |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp) |
| Backlight Driver |
Not included (External driver required) |
| Touch Screen |
None |
| Surface Treatment |
Anti-glare (Haze ~25-30%), Hard Coating (3H) |
| Color Support |
262K colors (6-bit) or 16.7M (with FRC depending on controller) |
| Interface |
TTL (Parallel RGB), typically 18-bit or 24-bit |
| Operating Temperature |
0°C to +70°C |
| Storage Temperature |
-30°C to +75°C |
| Vibration Resistance |
1.0G (9.8 m/s²) |
| Backlight Life |
> 50,000 hours |
| Special Features |
Backlight easily replaceable, 180-degree rotation support |
| Dimensions (Approx.) |
~276 mm × 209 mm × 11 mm (Varies slightly by bezel) |
| Weight |
Approx. 660g |
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
