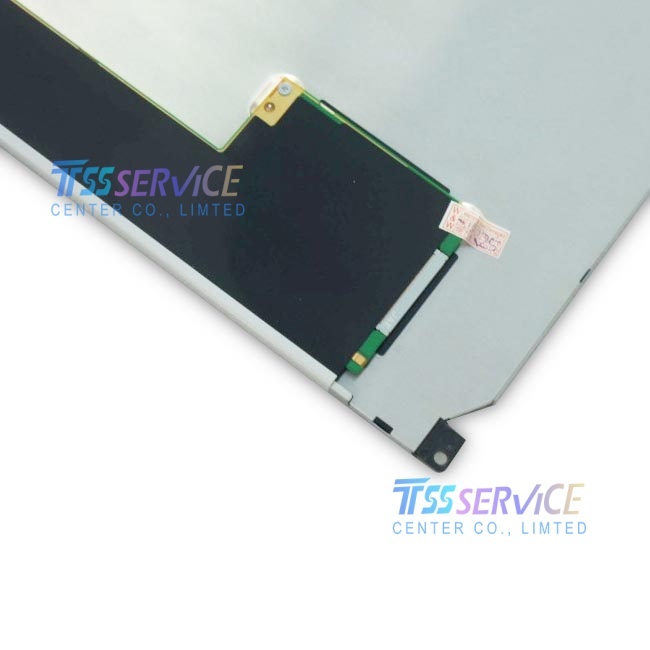

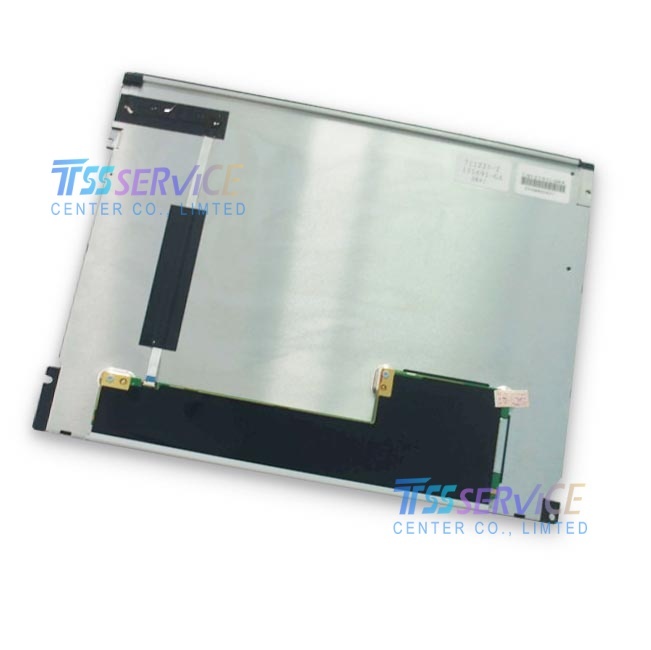

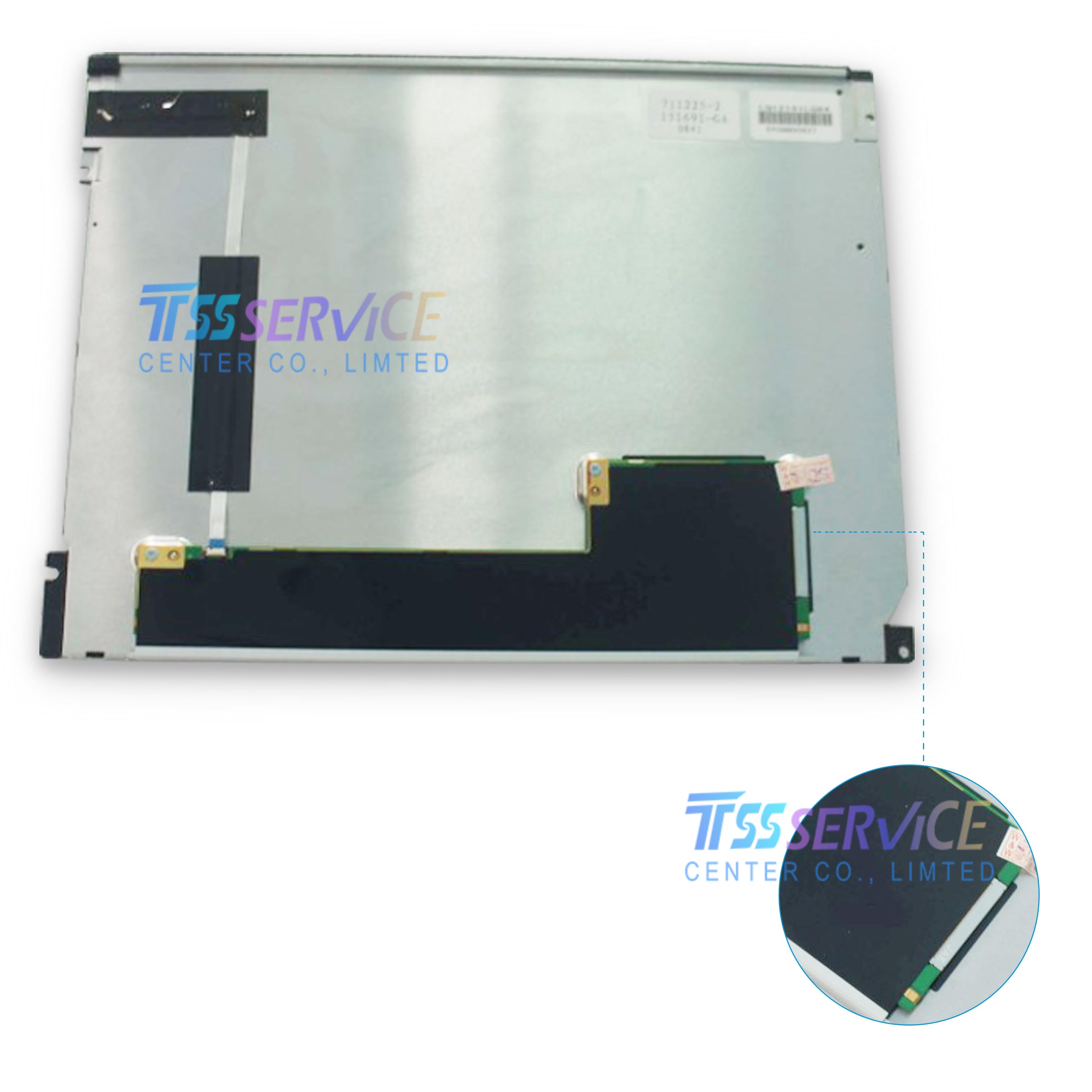

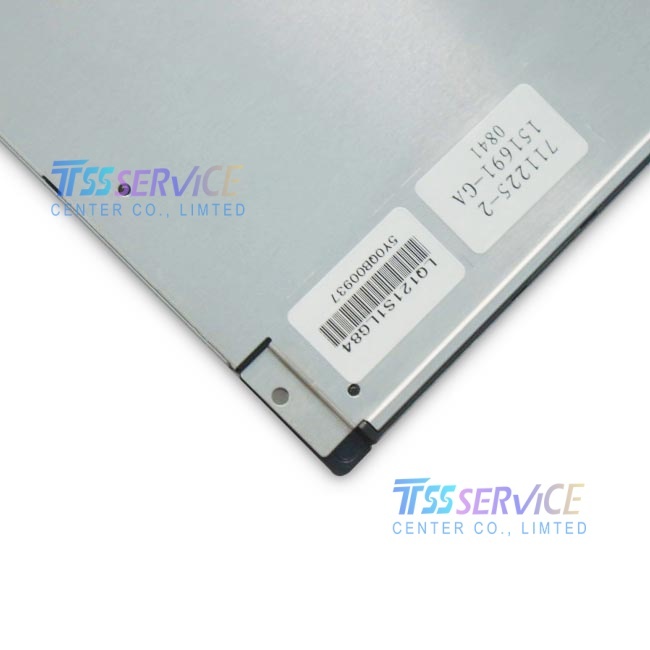

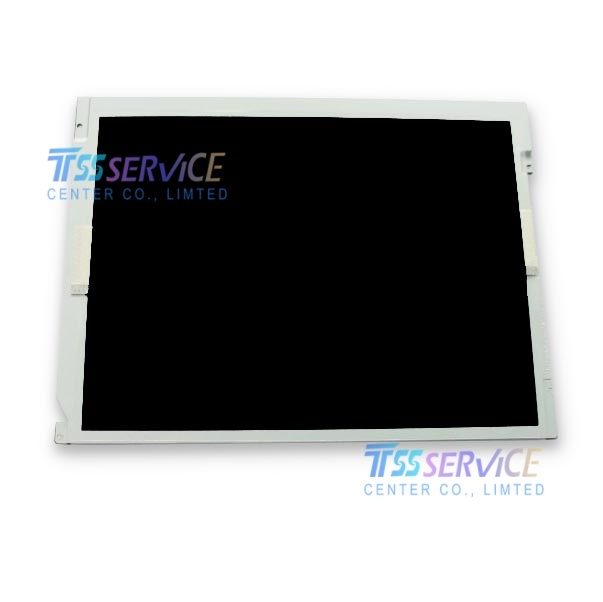

Sharp LQ121S1LG84 12.1inch 800×600 TFT-LCD Display

SKU: LQ121S1LG84

Condition: New and orignal , Grade A

Warranty : 1 year

Lead time : 1-3 working days

Shipping : DHL , FEDEX ,  EMS , UPS ..

0.0 (0 Reviews)
0 Sold
$112.00 $110.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
1/1
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • LQ121S1LG84 12.1inch 800×600 industrial Lcd Display Panel for Sharp
  • Description
The LQ121S1LG84 is a 12.1-inch a-Si TFT-LCD module (LCM) from Sharp, optimized for industrial and embedded applications. It features SVGA resolution (800×600), a high-brightness 450 cd/m² WLED backlight, and a wide operating temperature range of -30°C to 80°C, making it ideal for harsh industrial environments, vehicle-mounted systems, and outdoor equipment.

Brand Sharp
Model P/N LQ121S1LG84
Diagonal Size 12.1"
Panel Type a-Si TFT-LCD, LCM
Resolution 800(RGB)×600, SVGA 82PPI
Pixel Format RGB Vertical Stripe
Active Area 246(W)×184.5(H) mm
Bezel Opening 249.0(W)×187.5(H) mm
Outline (mm) 276×209×9.6 (H×V×D)
Treatment Antiglare, Hard coating (3H)
Luminance 450 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10)
Response 30 (Typ.)(Tr+Td) ms
Good View at 6 o'clock
Work Mode TN, Normally White, Transmissive
Color Depth 262K 50% NTSC
Backlight WLED, 50K hours, With LED Driver
Mass 600g (Max.)
Used for Industrial Control HMI, Vehicle-Mounted Displays, Outdoor Equipment, Embedded Terminals
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (1 ch, 6-bit), Connector 20 pins
Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C ; Operating Temp.: -30 ~ 80 °C

Applications

The LQ121S1LG84 is suitable for a variety of professional and industrial applications, including:

  • Industrial control panels and Human-Machine Interfaces (HMI)

  • Factory automation equipment

  • Test and measurement instruments
