LQ123M5NZ01 Sharp 12.3 inch 1920×720 LCD Panel TX16D18VM2CAB For Industrial

Name: LQ123M5NZ01 Sharp 12.3 inch 1920×720 LCD Panel TX16D18VM2CAB For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ123M5NZ01
Price: 125 USD
Availability: InStock

SKU: LQ123M5NZ01

Model: LQ123M5NZ01
Diagonal Size: 12.3 inch
Type: Oxide TFT-LCD, LCM
Pixel Number: 1920(RGB)×720, 8:3
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$130.00~~ $125.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

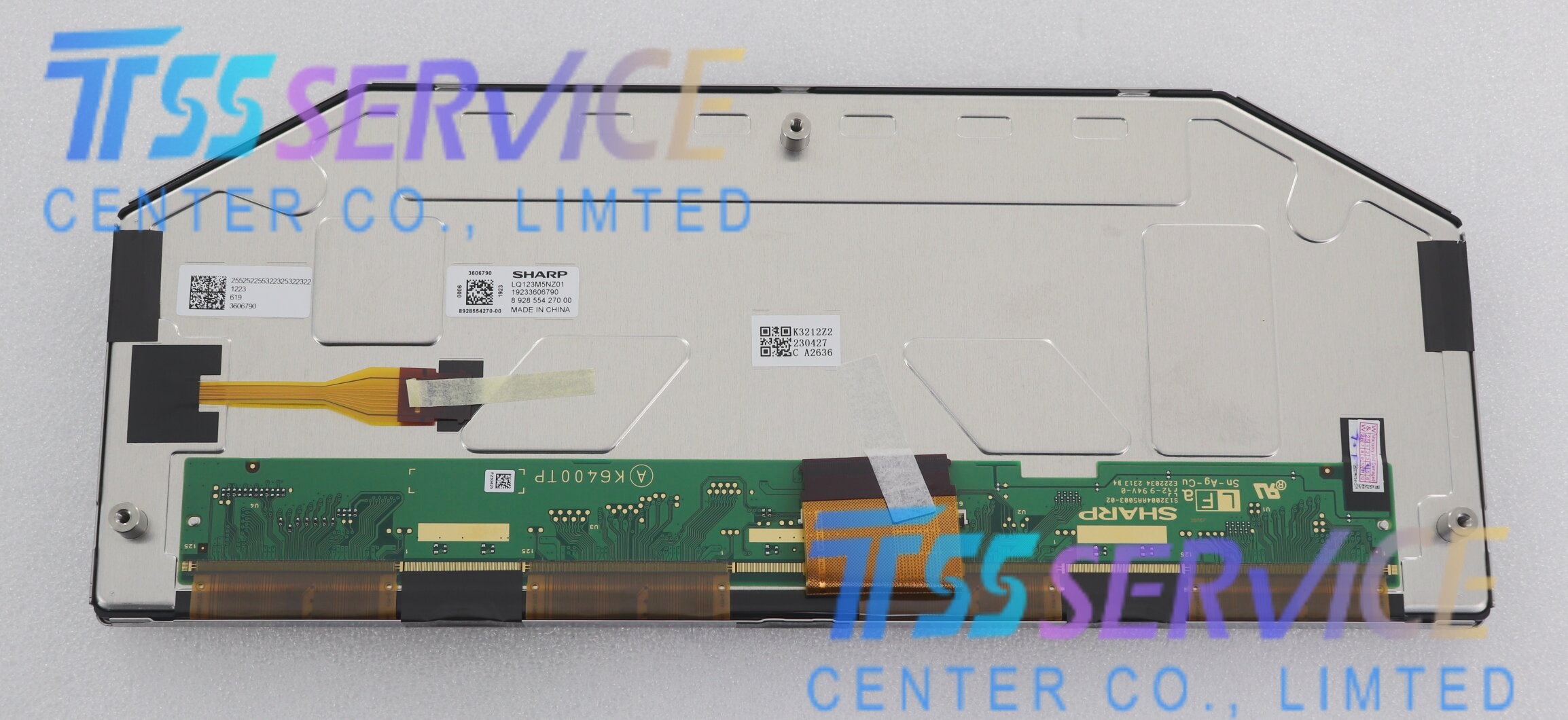

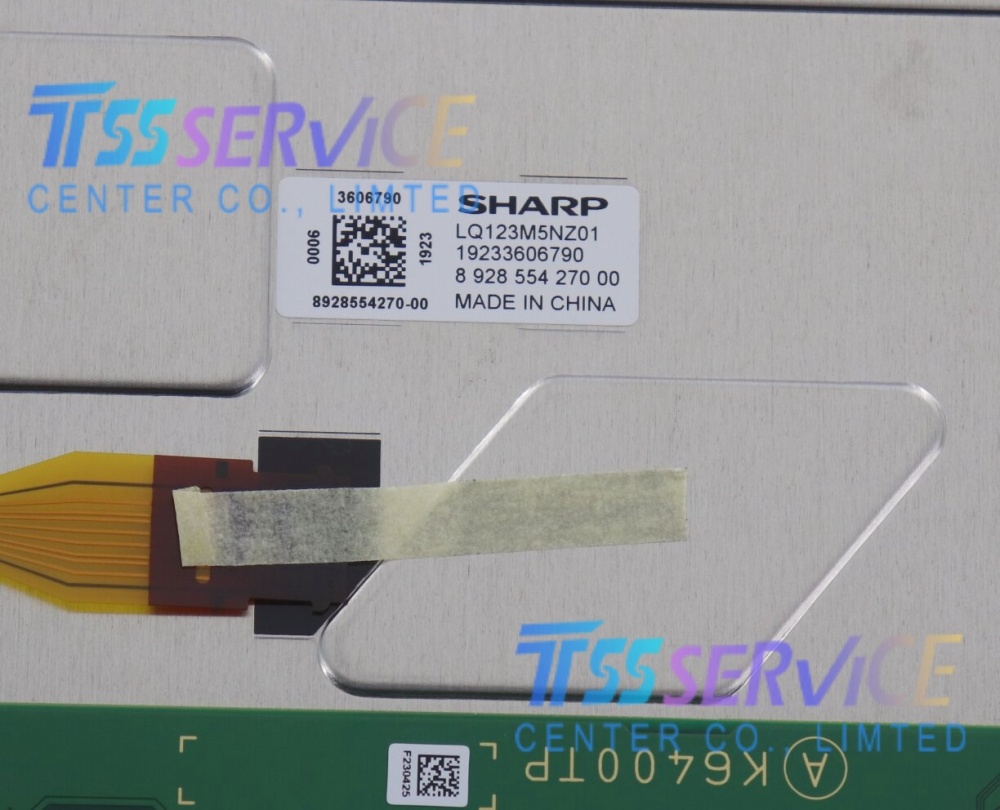

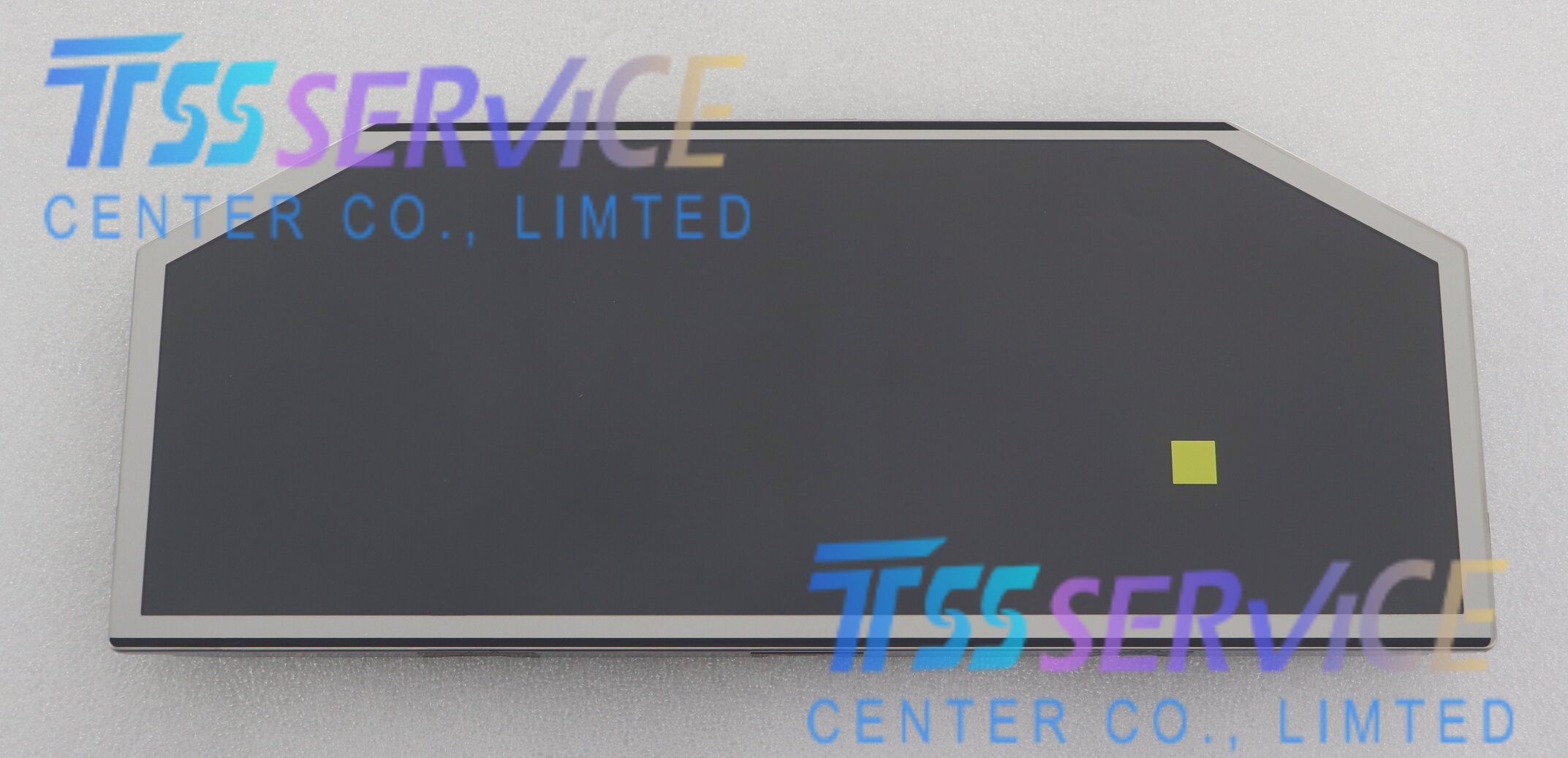

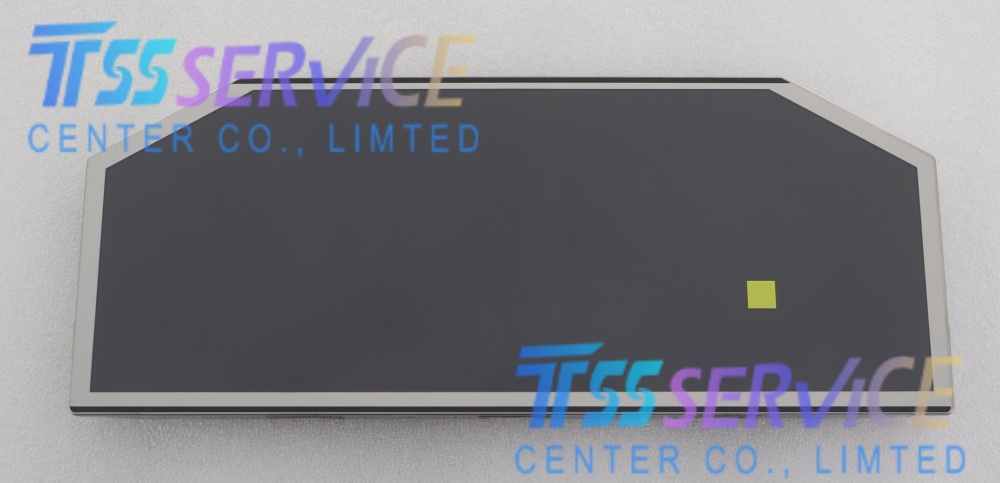

LQ123M5NZ01 Sharp 12.3 inch 1920×720 LCD Panel TX16D18VM2CAB For Industrial

Parameter	Details
Manufacturer	Sharp
Model	LQ123M5NZ01
Diagonal Size	12.3 inches
Resolution	1920 (RGB) × 720, 167 PPI
Display Type	a‑Si IPS TFT‑LCD, Normally Black, Transmissive, Anti‑glare surface
Active Area	292.032 (W) × 109.512 (H) mm
Outline Dimension	309.7 (W) × 126 (H) × 9.2 / 16.8 (Typ./Max.) mm
Brightness	1400 cd/m² (Typ.)
Contrast Ratio	1400:1 (Typ.)
Viewing Angle	85°/85°/85°/85° (L/R/U/D, IPS full viewing)
Response Time	25 ms (Typ.)
Color Gamut	16.7M colors, 75% NTSC
Backlight	12S4P WLED, 100,000 hrs lifespan (no driver)
Interface	Mini LVDS, 64‑pin FPC connector
Operating Voltage	3.3V (logic), 13V/24V (backlight)
Operating Temperature	−40°C ~ +95°C
Storage Temperature	−40°C ~ +95°C
Weight	~500 g
RoHS Compliance	Yes

Typical Applications

Automotive — Full LCD instrument clusters, center consoles, co‑driver displays (e.g., Audi Q7/Q8/A6/A4)
Industrial Control — High‑end HMIs, factory automation panels, outdoor industrial terminals, marine/ship instrumentation
Outdoor & Commercial — Outdoor digital signage, ATM/kiosks, gas station/charging station displays
Specialty Equipment — Construction machinery, rail transport, avionics displays (wide temp + vibration resistance)
