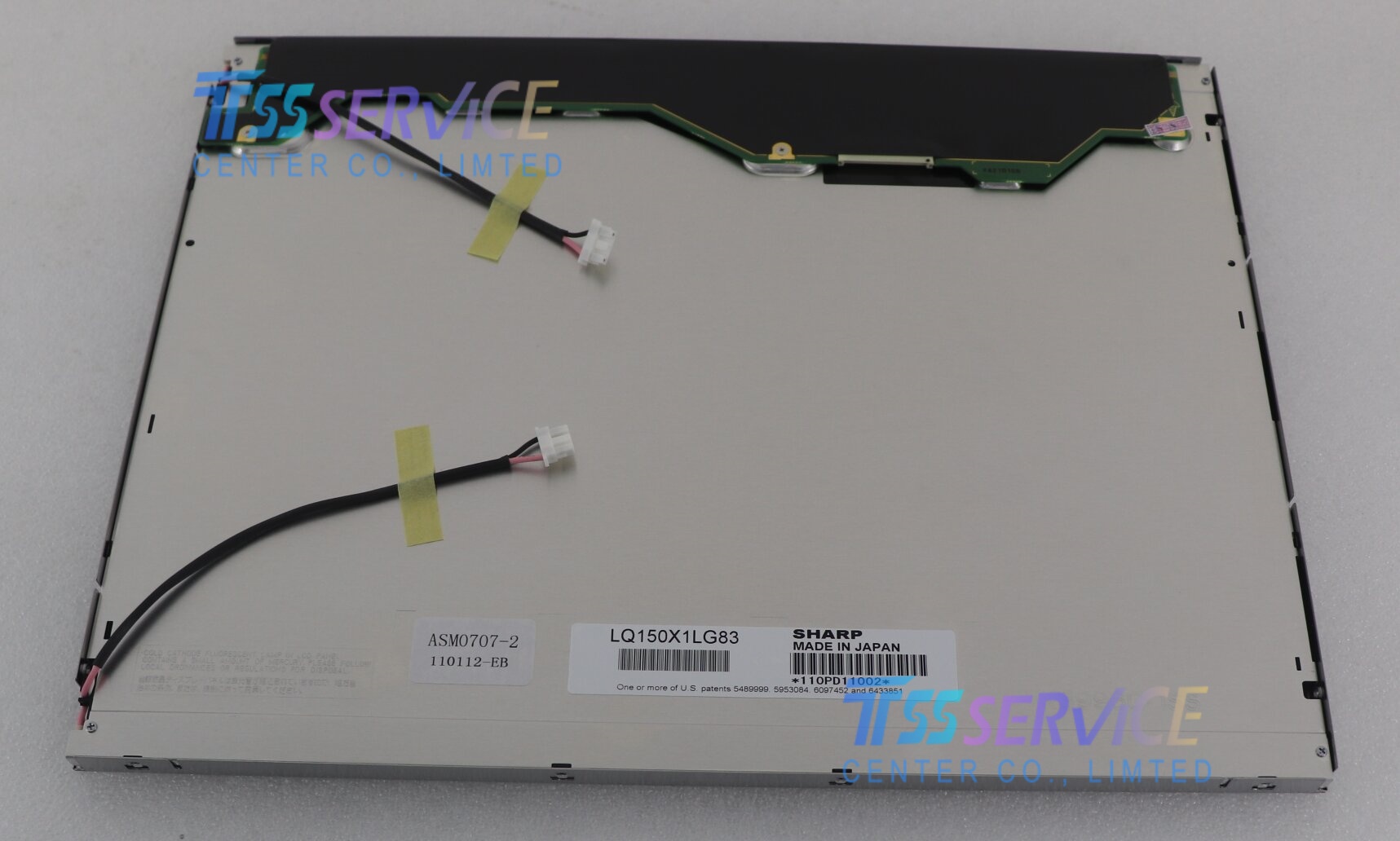

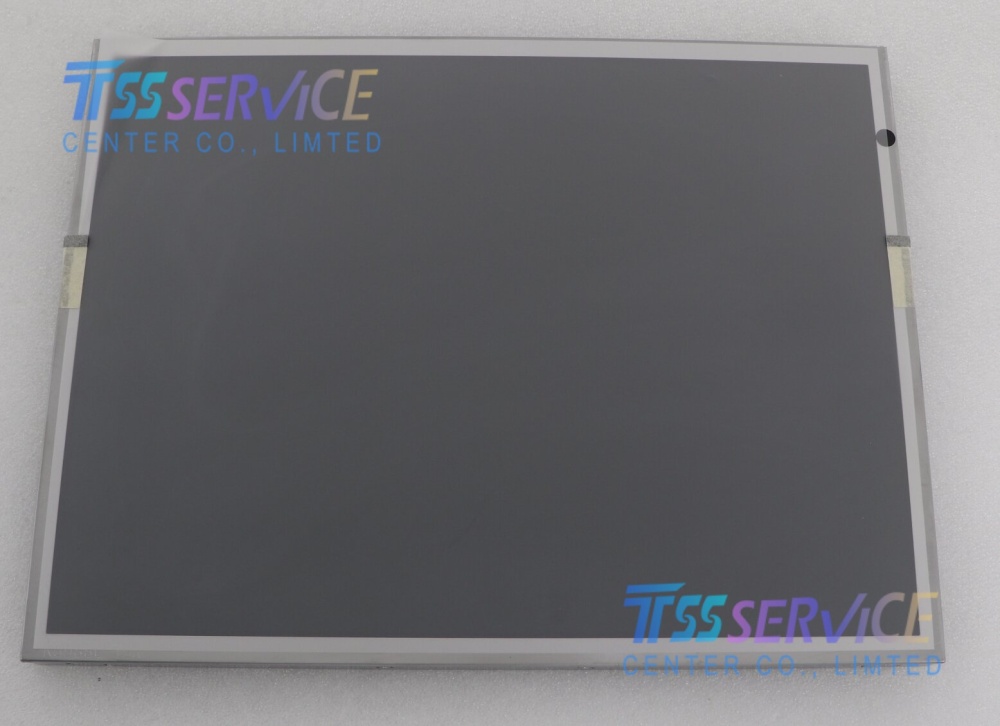

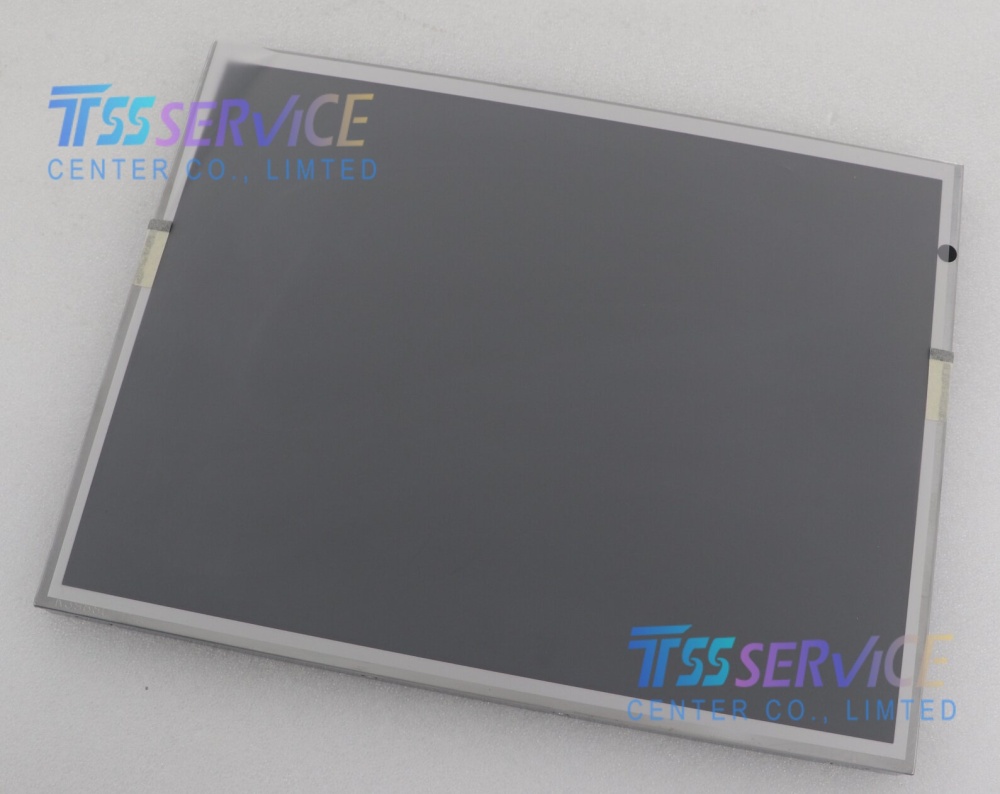

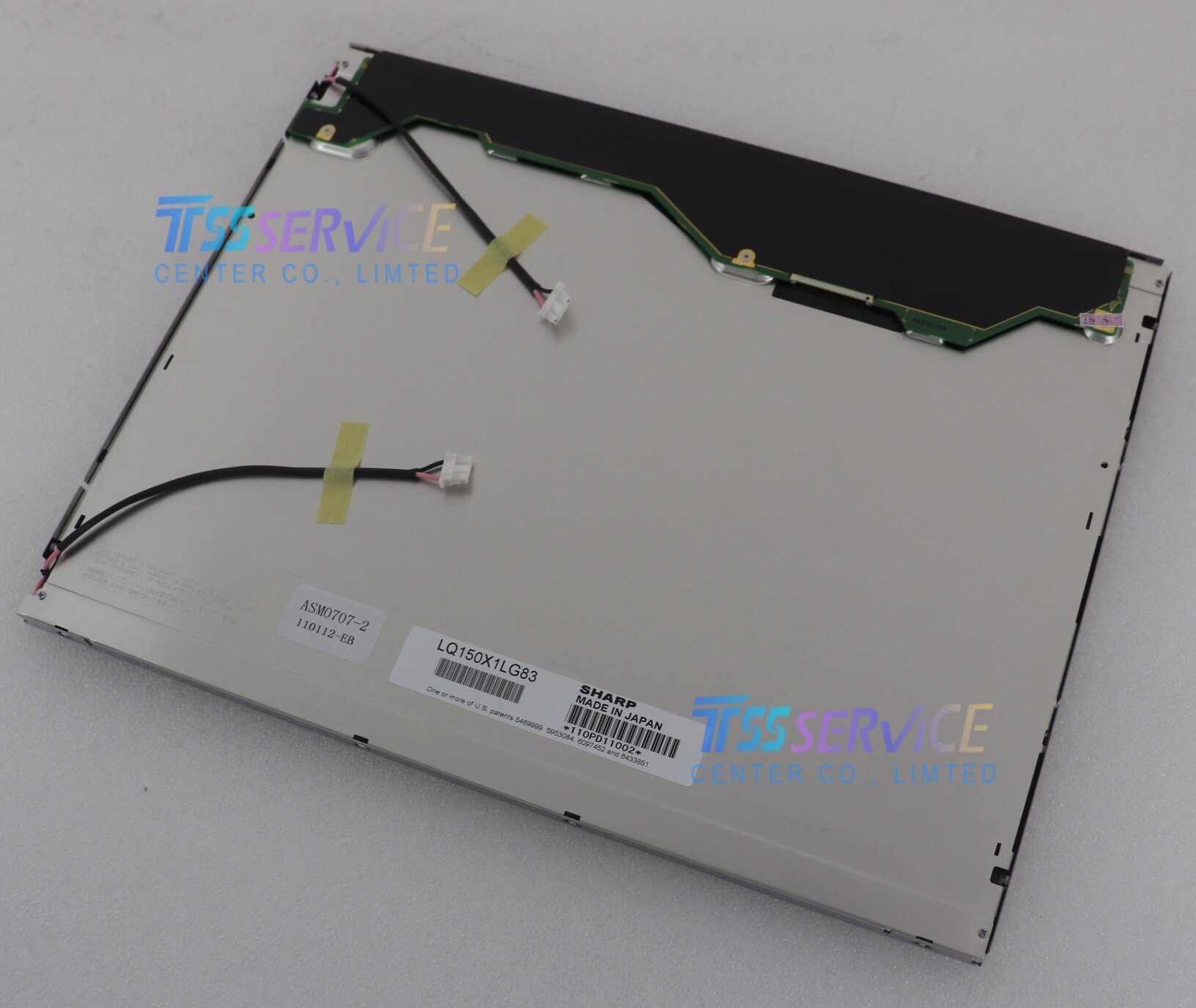

Sharp LQ150X1LG83 15.0inch a-Si TFT-LCD Panel in stock

Name: Sharp LQ150X1LG83 15.0inch a-Si TFT-LCD Panel in stock
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ150X1LG83
Price: 88 USD
Availability: InStock

SKU: LQ150X1LG83

1，Condition: New，Grade A

2，Description: LQ150X1LG83 15.0inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $88.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Sharp LQ150X1LG83 is a 15.0-inch a-Si TFT-LCD module engineered for industrial applications that demand reliable visual performance and clear data presentation. With its proven XGA resolution and robust construction, this display is an ideal solution for system integrators maintaining legacy equipment or developing new human-machine interfaces (HMIs) for industrial environments .

Parameter	Value
Manufacturer	Sharp
Model No.	LQ150X1LG83
Screen Size	15.0 inch
Screen Type	a-Si TFT-LCD, LCM
Number of Dots	1024(RGB)×768, 4:3, XGA
Pixel Format	RGB Vertical Stripe
Active Area	304.128×228.096 mm (H×V)
Outline Area	326×252 mm (H×V)
Surface Feature	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	550:1 (Typ.) (TM)
Viewing Angle	60/60/45/55 (Typ.)(CR≥10)
Good View at	6 o'clock
Response (ms)	2/6 (Typ.)(Tr/Td)
Display Type	TN, Normally White, Transmissive
Display Colors	16.2M
Used for	Backlight
Touchscreen	Without
Refresh Rate	60Hz
Signal Type	LVDS (1 ch, 8-bit), 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 60 °C

Typical Industrial Applications

Industrial Human-Machine Interfaces (HMIs) – Factory automation control panels and monitoring systems
Test & Measurement Equipment – Reliable visual output for precision instruments
Medical Diagnostic Devices – Clear display for patient monitoring equipment
Process Control Systems – Industrial controllers requiring durable 4:3 format displays
Legacy System Replacement – Direct drop-in replacement for existing equipment using LQ150X1LG83 or compatible models

Availability Status

✔ In Stock – Ready for immediate shipment. Contact us for current pricing and lead times.
