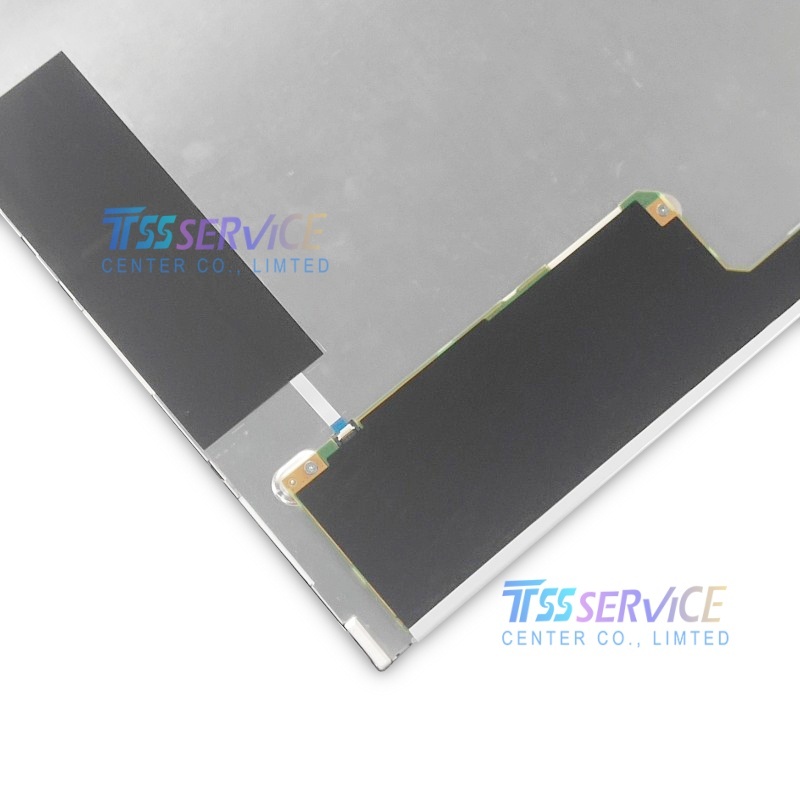

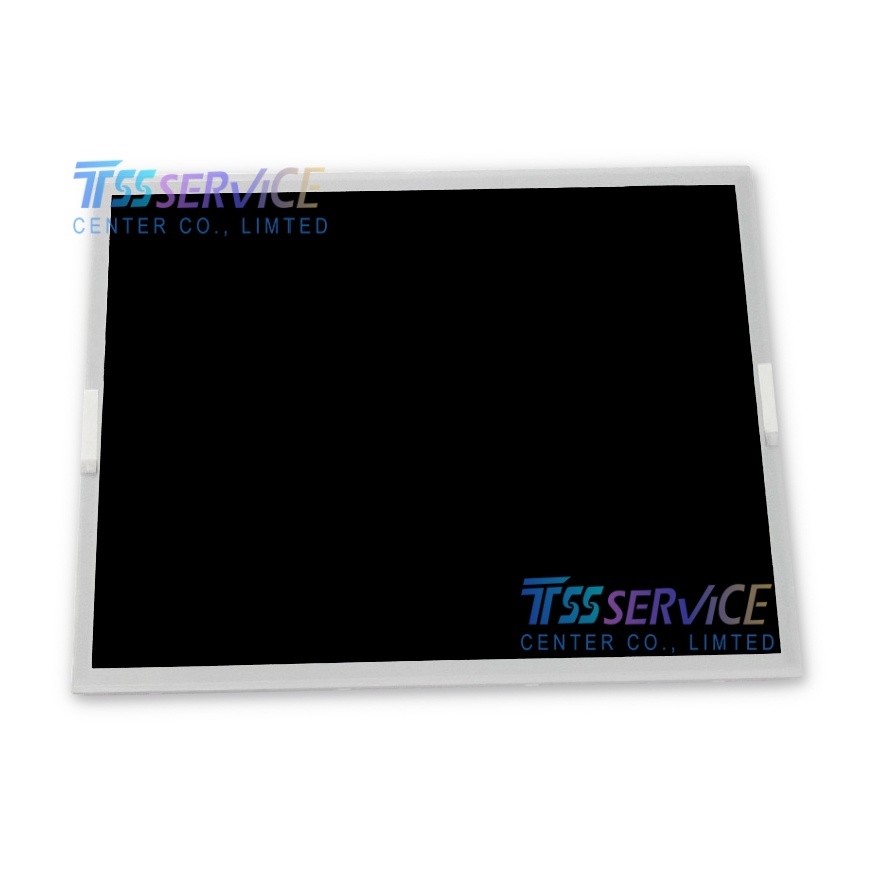

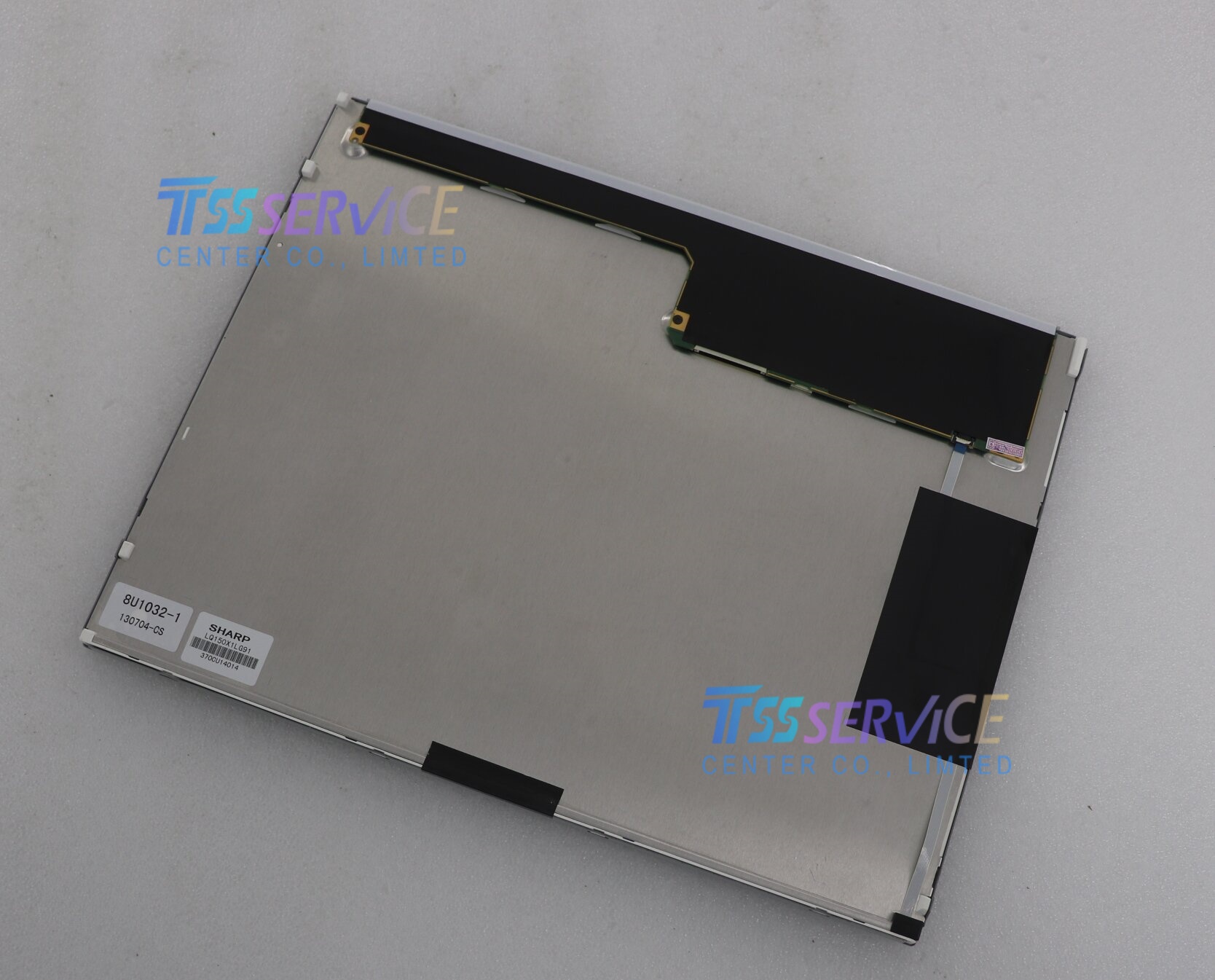

The Sharp LQ150X1LG91 is a 15.0-inch a-Si TFT-LCD display module from Sharp, specifically engineered to deliver reliable, high-quality display performance for demanding industrial applications . Designed as a True Industrial-rated solution, this XGA-resolution panel combines a long-life LED backlight with robust optical characteristics, making it a trusted choice for industrial automation, human-machine interfaces (HMIs), medical equipment, and embedded systems .
This module features a modern LCD architecture with an integrated white LED backlight and driver, providing clear and accurate visual output with enhanced durability for continuous operation.
| Parameter |
Value |
| Brand |
Sharp |
| Model P/N |
LQ150X1LG91 |
| Diagonal Size |
15.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1024(RGB)×768, XGA 85PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
304.128(W)×228.096(H) mm |
| Bezel Opening |
307.1(W)×231.1(H) mm |
| Outline (H×V×D) |
326.5 × 253.5 × 10.1 mm |
| Treatment |
Antiglare, Hard coating (3H) |
| Luminance |
350 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) (TM) |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
| Response |
30 (Typ.)(Tr+Td) ms |
| Work Mode |
TN, Normally White, Transmissive |
| Color Depth |
262K/16.2M 49% NTSC |
| Backlight |
WLED, 50K hours, With LED Driver |
| Mass |
950g (Max.) |
| Refresh Rate |
60Hz |
| Touchscreen |
Without |
| Signal Type |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Voltage Supply |
3.3V (Typ.) |
| Storage Temperature |
-30 ~ 70 °C |
| Operating Temperature |
-20 ~ 70 °C |
Applications
The Sharp LQ150X1LG91 is ideally suited for applications that require a reliable, high-quality display with stable performance in industrial environments :
-
Industrial Automation: HMIs, control panels, and factory floor equipment .
-
Medical Instrumentation: Patient monitors and diagnostic devices requiring high reliability .
-
Commercial Information Systems: Kiosks, information terminals, and ticketing machines
-
Test and Measurement Equipment: For displaying waveforms and data in laboratory and field applications
-
Embedded Visual Interfaces: For automation equipment and specialized industrial systems .
