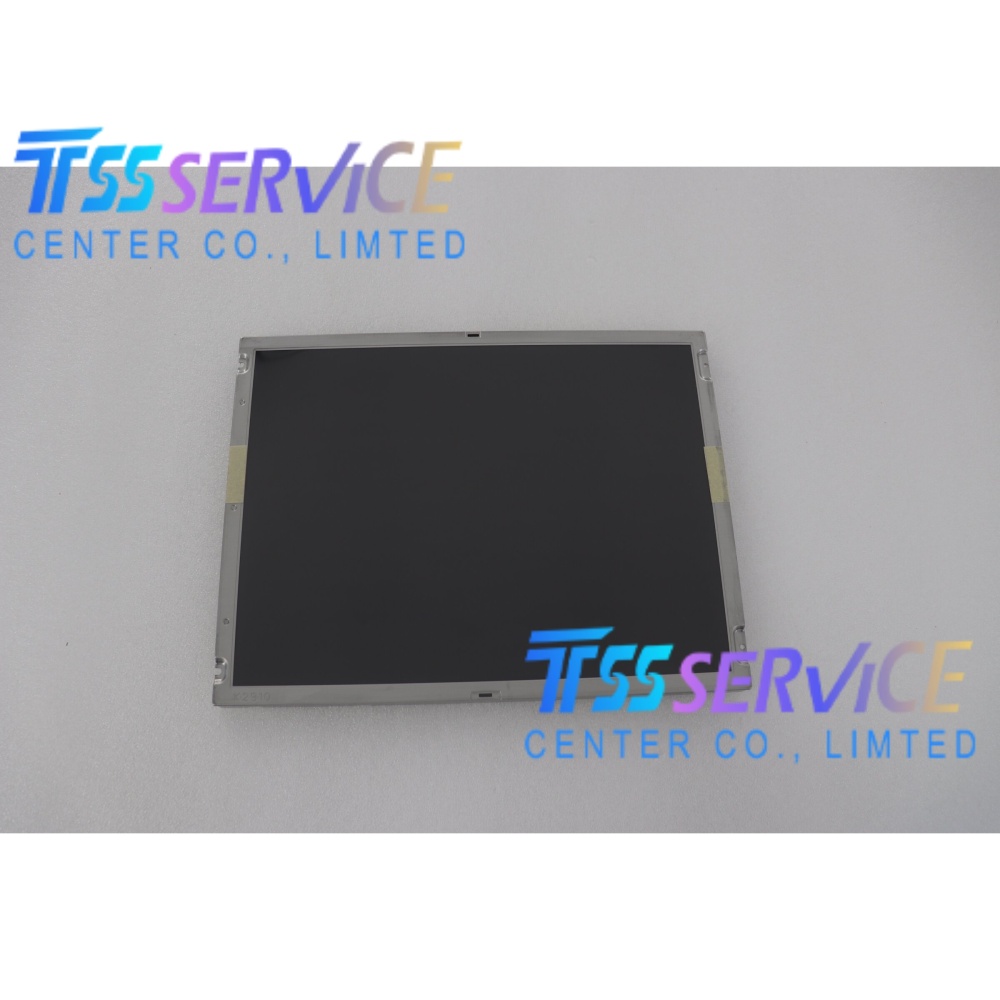

SHARP NEW 15.0 inch LCD Display Panel LQ150X1LGN2E for Industrial
| Specification |
Parameter / Value |
| Brand |
SHARP |
| Model |
LQ150X1LGN2E |
| Panel Type |
a-Si TFT-LCD, Module |
| Diagonal Size |
15.0 inch |
| Resolution |
1024(RGB)×768 (XGA) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Aspect Ratio |
4:3 |
| Active Area (WxH) |
304.1 × 228.1 mm |
| Outline Dimension |
326.0 × 252.0 × 11.5 mm |
| Display Color |
16.2M colors |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
350:1 (Typ.) |
| Viewing Angle |
R/L/U/D 60/60/45/55 (CR≥10) |
| Response Time |
25 ms (Typ.)(Tr+Td) |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp), 2 pcs |
| Signal Interface |
LVDS (1 ch, 8-bit), 20 pins |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temp. |
0°C to +60°C |
| Storage Temp. |
-25°C to +60°C |
| Touch Panel |
None |
- Industrial Automation & Control Systems:
Commonly integrated into Human-Machine Interfaces (HMI), Programmable Logic Controller (PLC) panels, and factory automation equipment for real-time monitoring and control.
- Medical Equipment:
Used in legacy medical devices such as patient monitors, diagnostic imaging workstations, and ultrasound machines where stable 4:3 aspect ratio displays are required.
- Transportation & Marine:
Suitable for onboard display systems in trains, ships, and aviation for navigation, engine status monitoring, and passenger information systems due to its wide operating temperature range.
- Test & Measurement Instruments:
Applied in oscilloscopes, spectrum analyzers, and other laboratory testing equipment that requires precise and clear data visualization.
- Legacy System Replacement:
Frequently used as a direct replacement part for repairing or upgrading older industrial computers, POS (Point of Sale) terminals, and kiosks that originally utilized 15-inch XGA screens.
