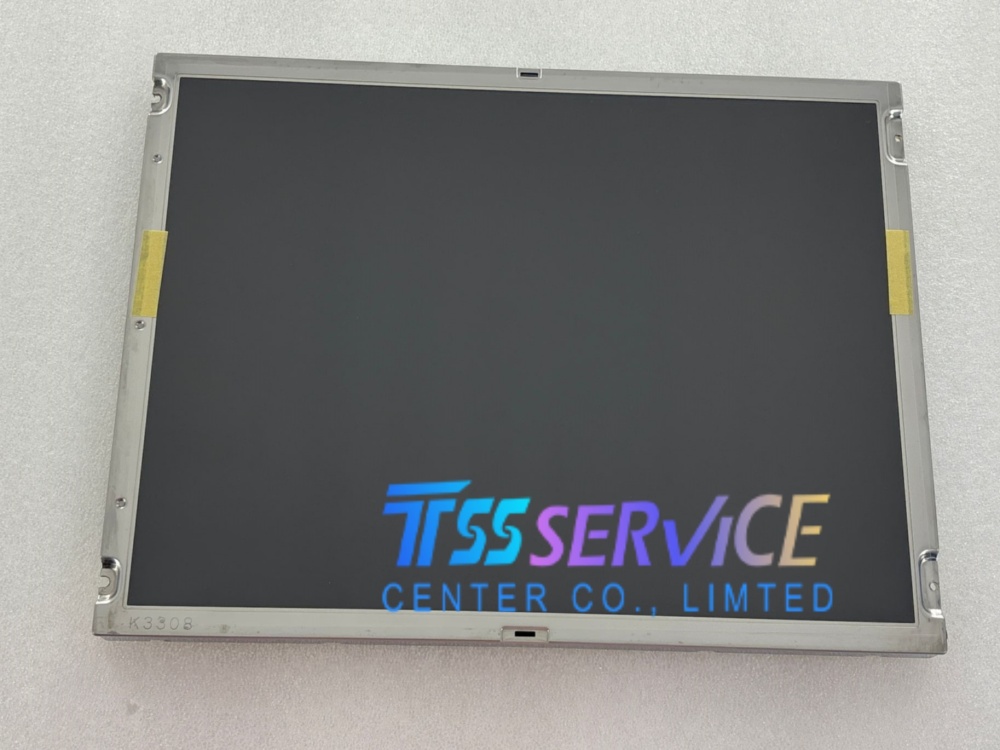

SHARP NEW 15.0 inch LCD Display Panel LQ150X1LW72 for Industrial
| Specification |
Parameter / Value |
| Brand |
SHARP |
| Model |
LQ150X1LW72 |
| Panel Type |
a-Si TFT-LCD, ASV Technology |
| Diagonal Size |
15.0 inch |
| Resolution |
1024(RGB)×768 (XGA) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Aspect Ratio |
4:3 |
| Active Area (WxH) |
304.128 × 228.096 mm |
| Outline Dimension |
331.6 × 254.76 × 13.0 mm |
| Display Color |
16.2M colors (6-bit + FRC) |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
600:1 (Typ.) |
| Viewing Angle |
85°/85°/85°/85° (Typ.)(CR≥10) |
| Response Time |
25 ms (Typ.)(Tr+Td) |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp), 4 pcs |
| Signal Interface |
LVDS (1 ch, 8-bit), 20 pins |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temp. |
0°C to 60°C |
| Storage Temp. |
-25°C to 60°C |
| Touch Panel |
None |
- Industrial Automation & Control Systems:
Commonly integrated into Human-Machine Interfaces (HMI), Programmable Logic Controller (PLC) panels, and factory automation equipment for real-time monitoring and control.
- Medical Equipment:
Used in legacy medical devices such as patient monitors, diagnostic imaging workstations, and ultrasound machines where stable 4:3 aspect ratio displays are required.
- Transportation & Marine:
Suitable for onboard display systems in trains, ships, and aviation for navigation, engine status monitoring, and passenger information systems due to its wide operating temperature range.
- Test & Measurement Instruments:
Applied in oscilloscopes, spectrum analyzers, and other laboratory testing equipment that requires precise and clear data visualization.
- Legacy System Replacement:
Frequently used as a direct replacement part for repairing or upgrading older industrial computers, POS (Point of Sale) terminals, and kiosks that originally utilized 15-inch XGA screens.
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
