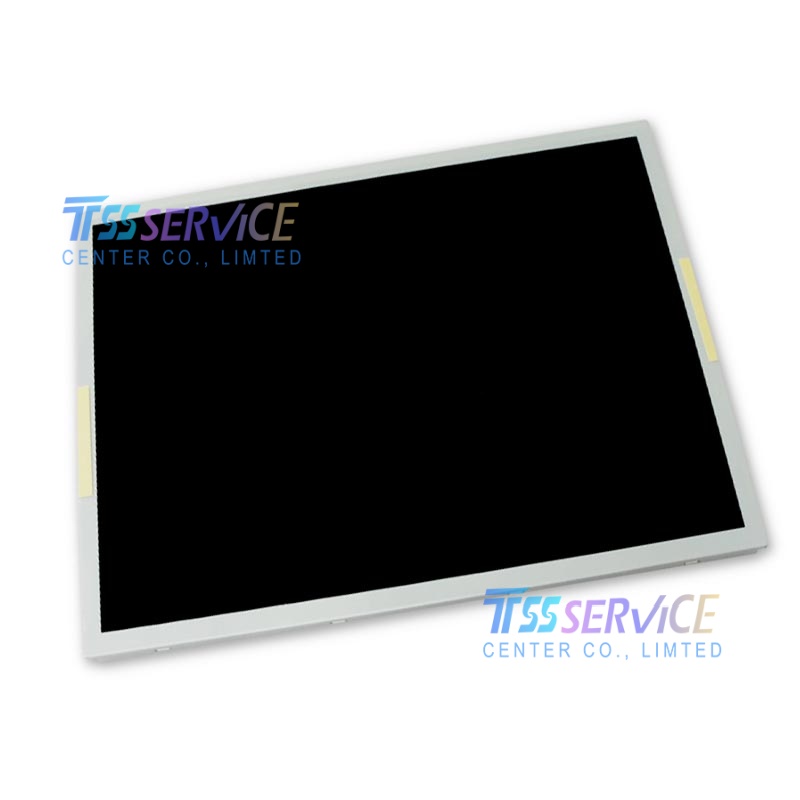

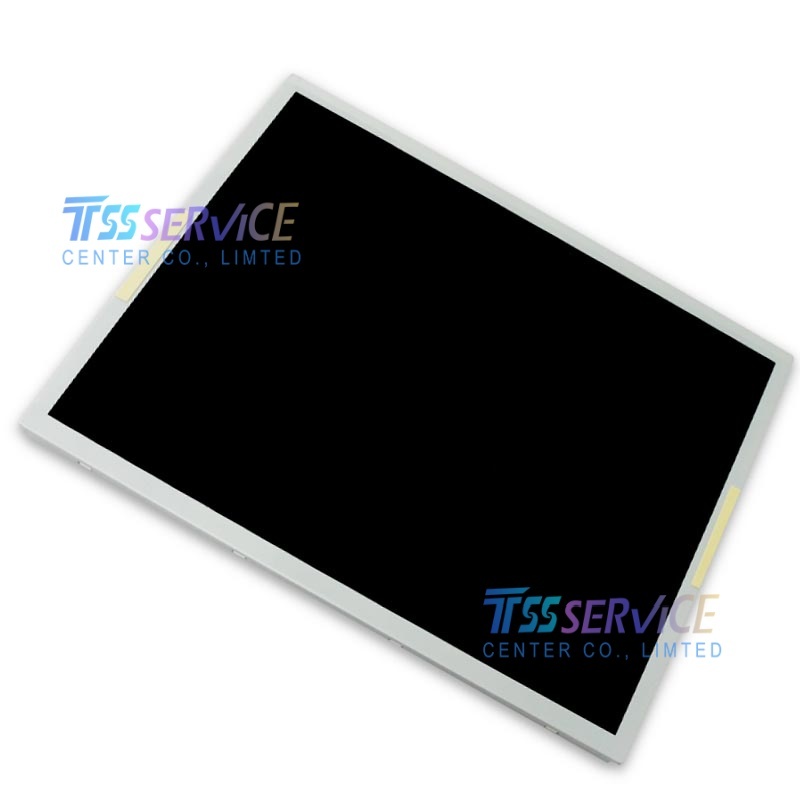

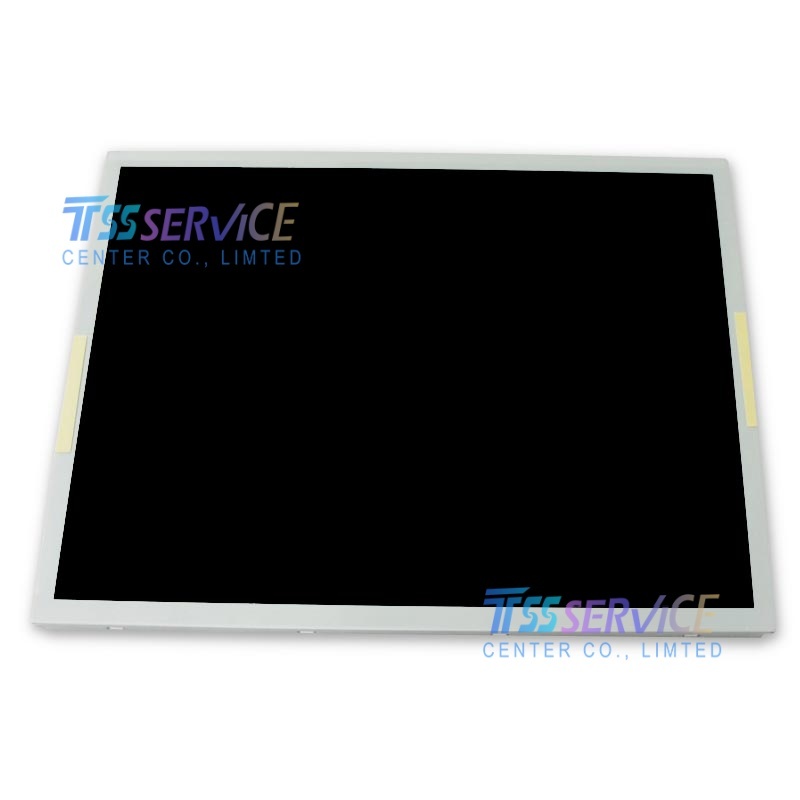

Sharp 15 inch 1024×768 LCD Panel LQ150X1LX83 For Industrial

Name: Sharp 15 inch 1024×768 LCD Panel LQ150X1LX83 For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ150X1LX83
Price: 115.92 USD
Availability: InStock

SKU: LQ150X1LX83

Model: LQ150X1LX83
Display Type: a-Si TFT‑LCD, LCM (LCD Module)
Diagonal Size: 15.0 inches
Resolution:1024 × 768 (XGA), 85 PPI
Aspect Ratio: 4:3

0.0 (0 Reviews)

0 Sold

~~$118.92~~ $115.92

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp 15 inch 1024×768 LCD Panel LQ150X1LX83 For Industrial

Parameter	Details
Brand / Model	Sharp LQ150X1LX83
Display Type	a-Si TFT‑LCD, LCM (LCD Module)
Diagonal Size	15.0 inches
Resolution	1024 × 768 (XGA), 85 PPI
Aspect Ratio	4:3
Brightness	350 cd/m² (typ.)
Contrast Ratio	1500:1 (typ.)
Viewing Angle	85°/85°/85°/85° (L/R/U/D, CR≥10)
Color Depth	262K / 16.2M colors (6/8‑bit)
Backlight	WLED (White LED), with LED driver
Interface	LVDS, 20 pins, 60 Hz
Active Area (W×H)	304.128 × 228.096 mm
Outline Dimension (W×H×D)	326.5 × 253.5 × 10.1 mm
Weight	Approx. 1.0 kg
Surface Treatment	AG3 (Anti‑Glare)
Operating Temperature	−20 °C ~ +70 °C
Storage Temperature	−25 °C ~ +70 °C
Vibration Resistance	1.0 G (9.8 m/s²)
RoHS Compliant	Yes

Applications

Industrial Control Panels: Factory automation, PLC/HMI, CNC machinery, production line monitors.
Medical Equipment: Diagnostic devices, patient monitors, medical imaging peripherals (non‑invasive).
Retail & Kiosks: POS terminals, self‑service kiosks, vending machines, digital signage.
Marine & Transportation: Shipborne displays, vehicle‑mounted terminals, public transit information screens.
General Industrial Displays: Outdoor/harsh‑environment monitors, test & measurement instruments, aerospace ground support equipment.
