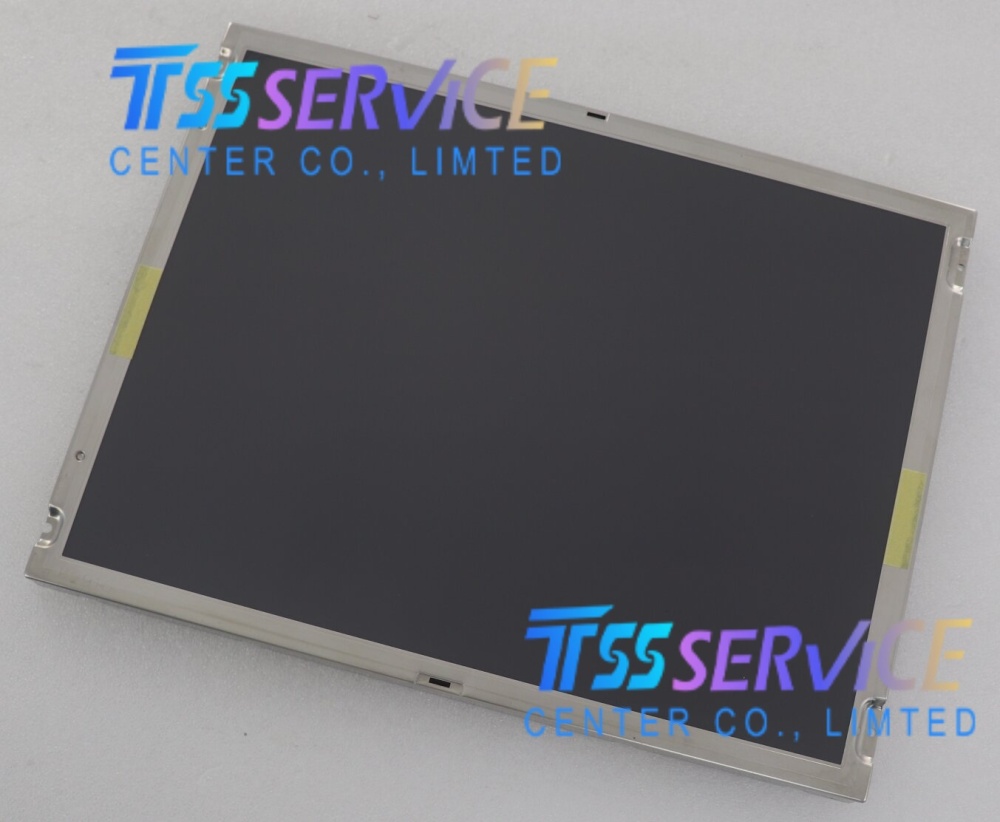

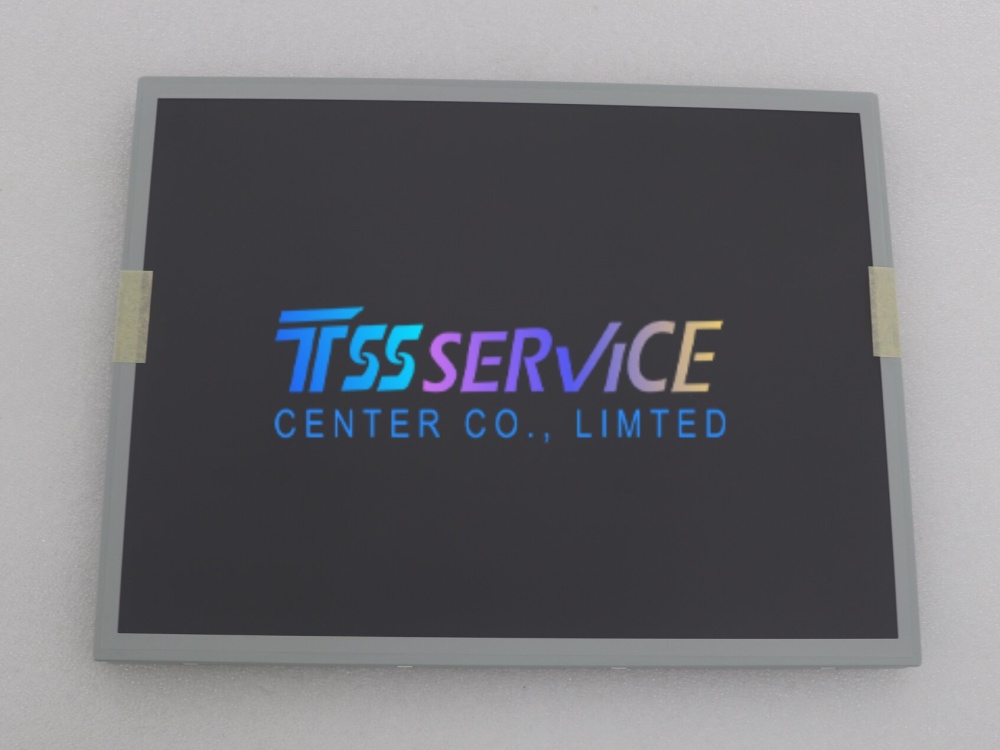

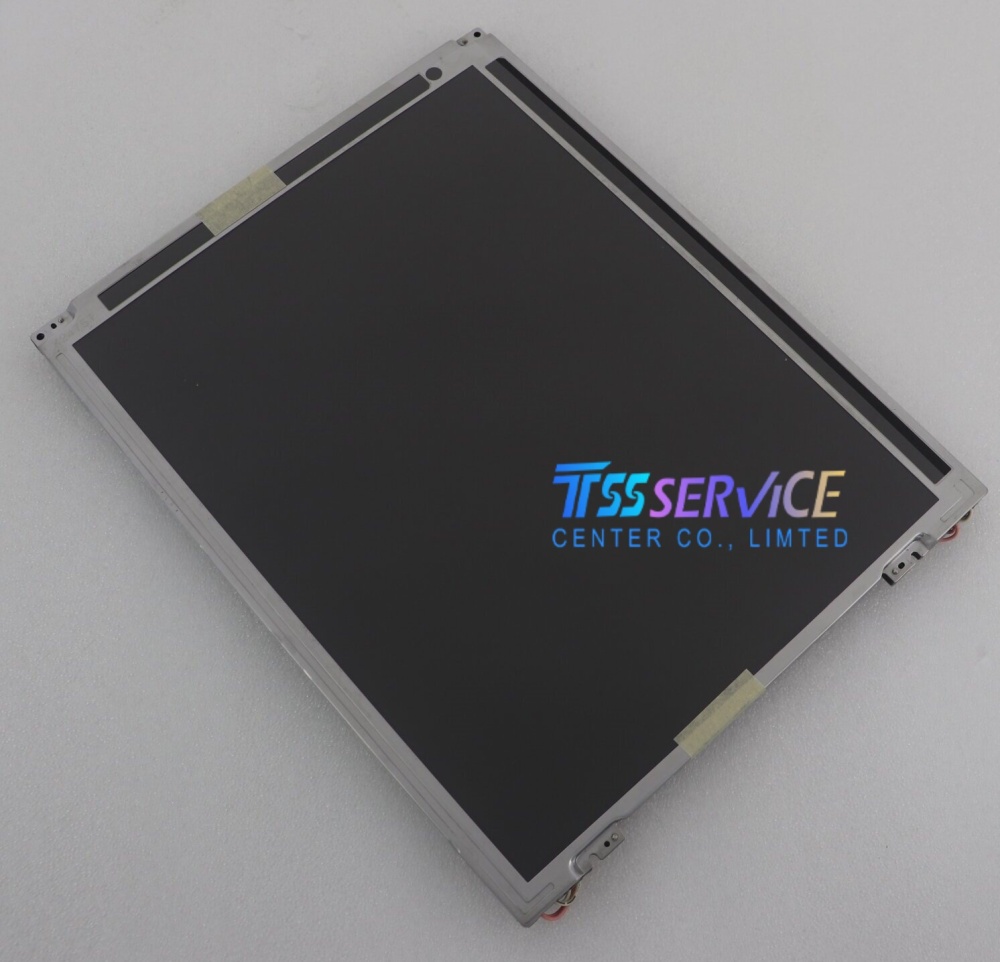

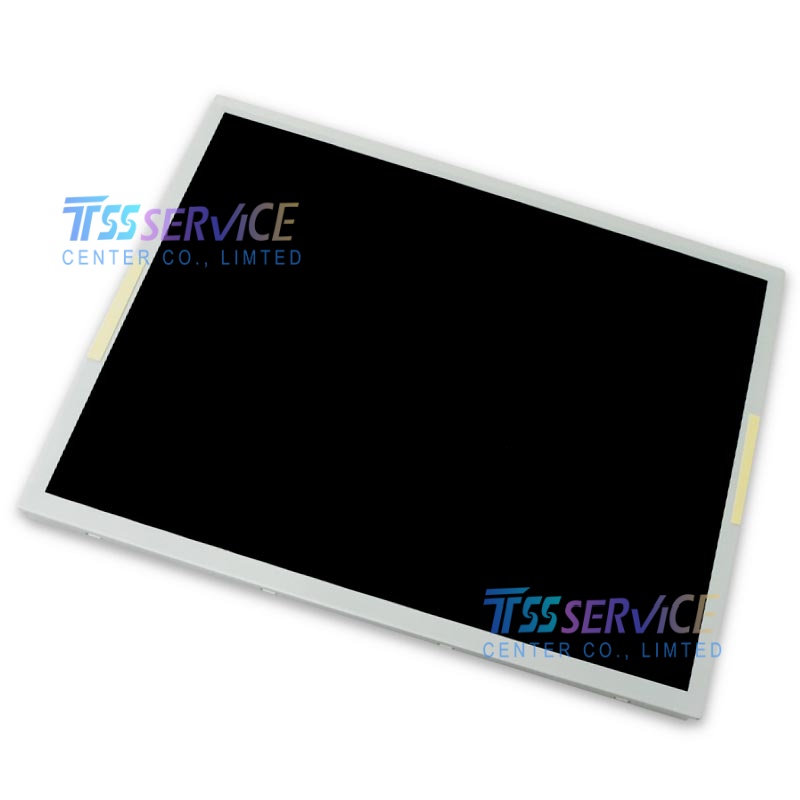

SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial

SKU: LQ150X1LX88
    Model Name: LQ150X1LX88
    Display Size: 15.0 inch
    Panel Type: a-Si TFT-LCD, LCM
    Resolution: 1024(RGB)×768, 4:3, XGA
    Pixel Structure: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$128.92 $115.92
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
1/1
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
  • SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
  • Description
SHARP 15 inch 1024(RGB)×768 LCD Panel Screen LQ150X1LX88 For Industrial
Parameter Specification
Model LQ150X1LX88
Brand SHARP
Screen Size 15.0 Inch
Display Type Industrial TFT LCD Panel
Resolution 1024×768 XGA
Aspect Ratio 4:3
Brightness 350 cd/m² (Typ)
Contrast Ratio 1500:1
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Backlight WLED Backlight
Interface Single Channel LVDS
Color Depth 16.7M
Operating Temperature -20℃ ~ +70℃
Storage Temperature -25℃ ~ +75℃
Surface Anti-glare Coating
Structure Standard industrial embedded size

Typical Applications

  1. Industrial HMI control panel and automation equipment
  2. CNC machine tool and mechanical equipment display screen
  3. Medical equipment monitoring display terminal
  4. Vehicle-mounted industrial control display
  5. Outdoor industrial monitoring equipment
  6. Intelligent self-service terminal and embedded display
  7. Precision testing instrument display panel
