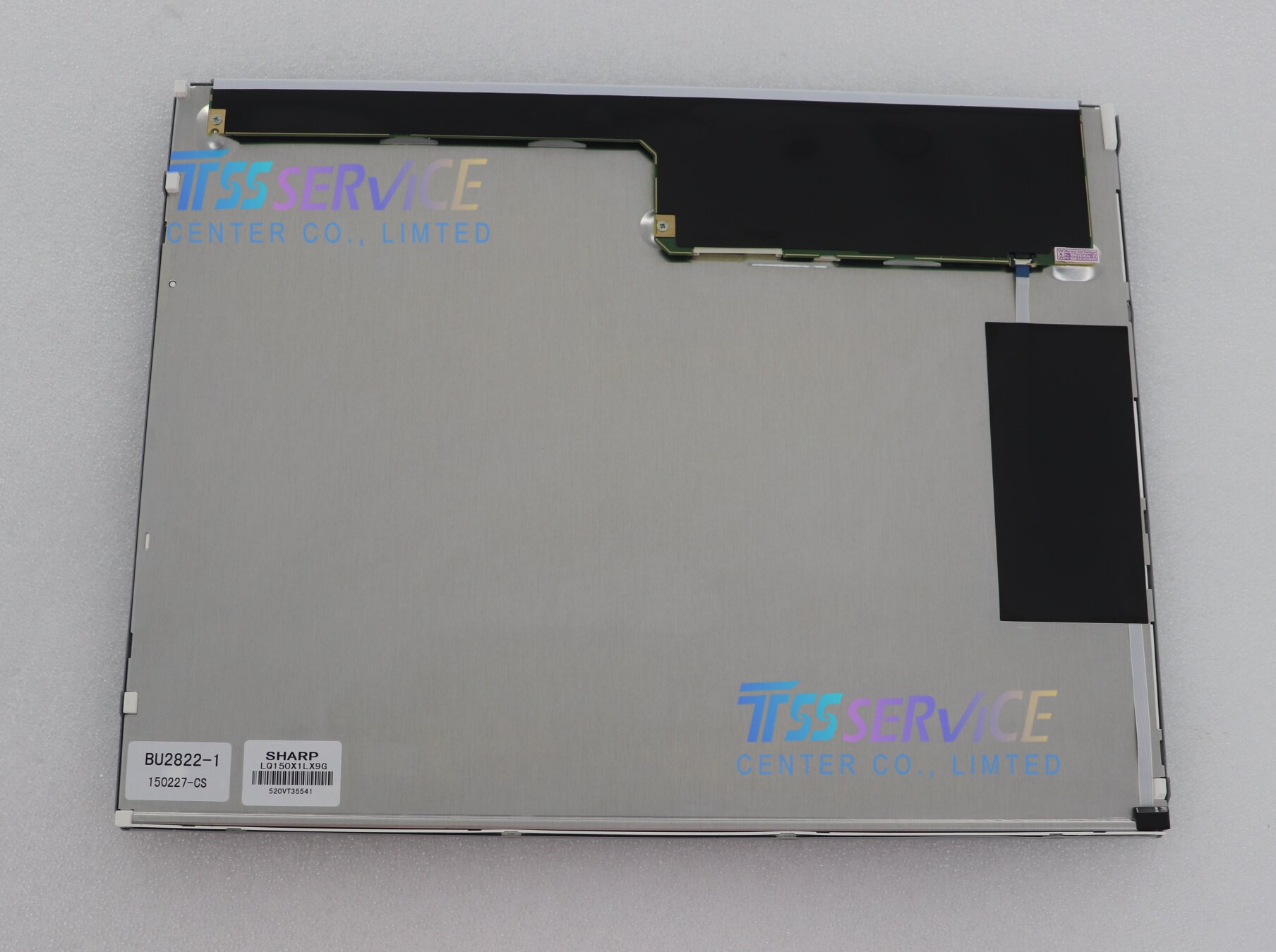

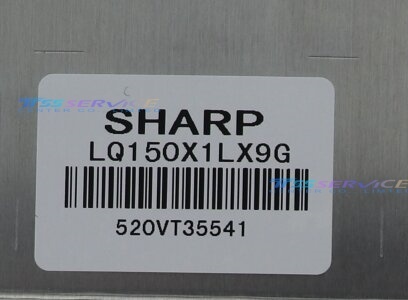

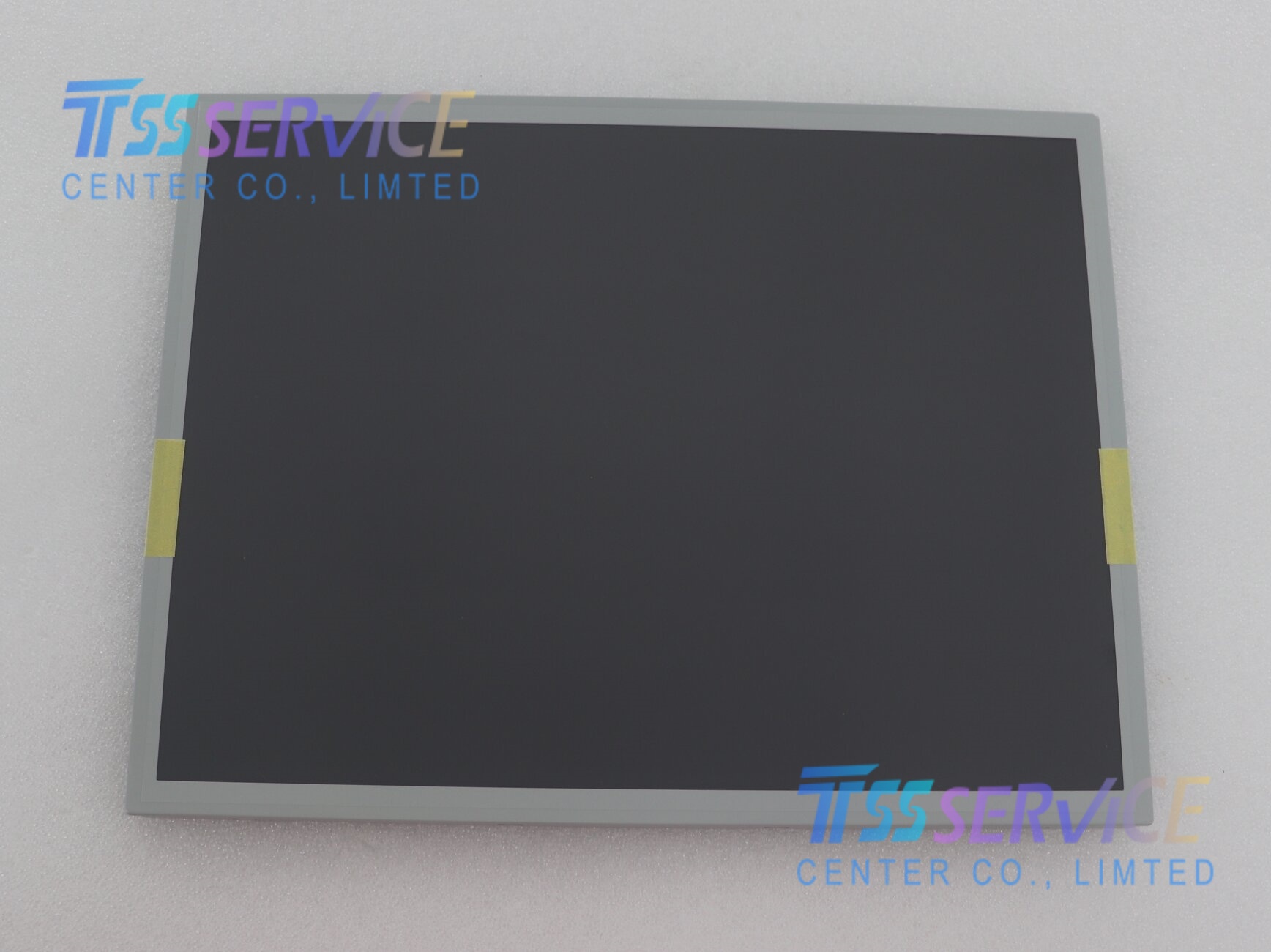

Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial

SKU: LQ150X1LX9G
Brand & Model: Sharp LQ150X1LX9G
Screen Size: 15.0 inch
Resolution: 1024 × 768 (XGA)
Aspect Ratio: 4:3
Display Technology: a-Si TFT-LCD
0.0 (0 Reviews)
0 Sold
$165.00 $163.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
1/1
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
  • Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
  • Description
Sharp 15 inch 1024×768 LCD Panel LQ150X1LX9G For Industrial
Parameter Specification
Brand & Model Sharp LQ150X1LX9G
Screen Size 15.0 inch
Resolution 1024 × 768 (XGA)
Aspect Ratio 4:3
Display Technology a-Si TFT-LCD
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.)
Viewing Angle 85° / 85° / 85° / 85° (L/R/U/D)
Color Depth 16.2M Colors (8-bit)
Backlight WLED, No Inverter Needed
Interface Single Channel LVDS
Refresh Rate 60Hz
Operating Temperature 0°C ~ +50°C
Storage Temperature -20°C ~ +60°C
Surface Anti-Glare (AG)
Application Grade Industrial Grade

Applications

  1. Industrial HMI & automation control panels for factory production lines, PLC and CNC machine tools.
  2. POS payment terminals, supermarket cashier displays and retail self-service kiosks.
  3. Medical auxiliary equipment, laboratory testing and analytical instrument displays.
  4. Transportation onboard terminals, industrial monitoring and security surveillance display screens.
  5. Commercial embedded display equipment, industrial all-in-one computers and automation cabinet monitors
