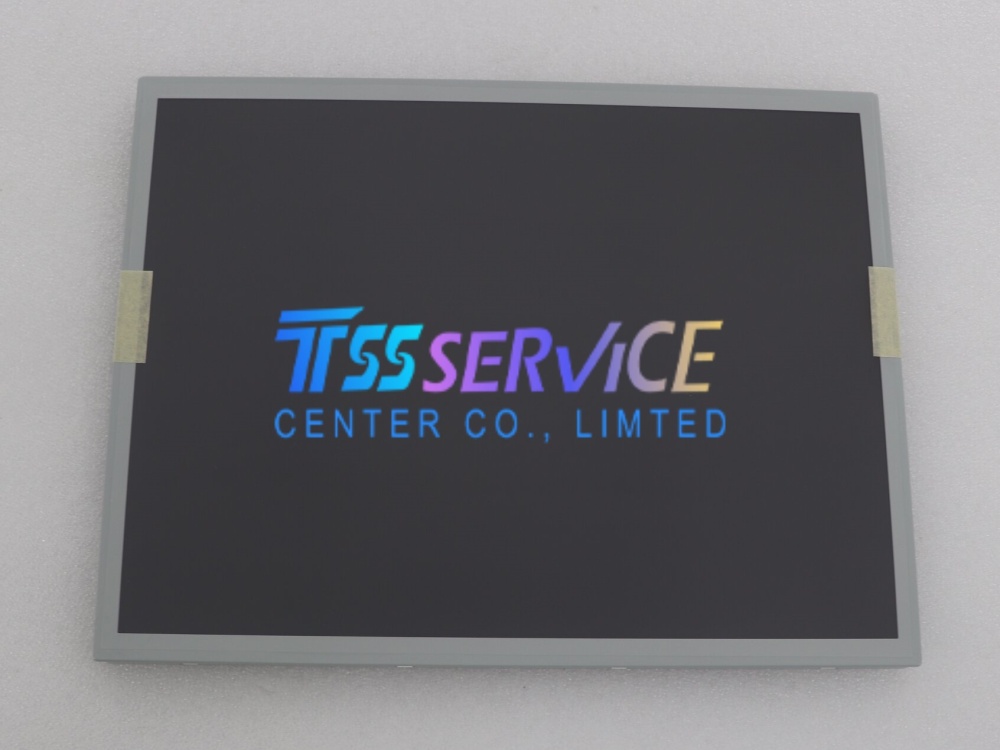

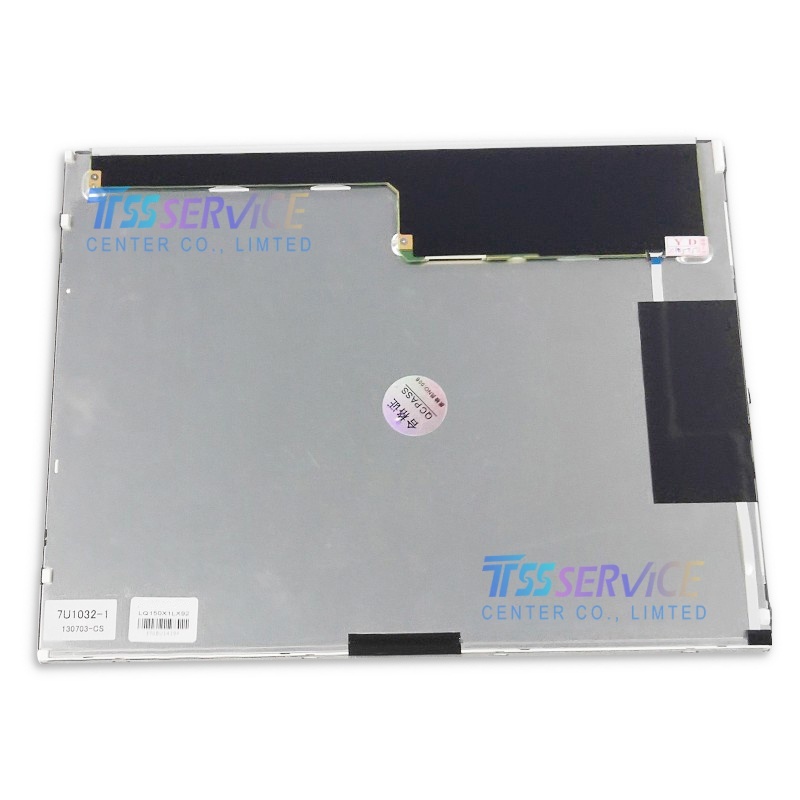

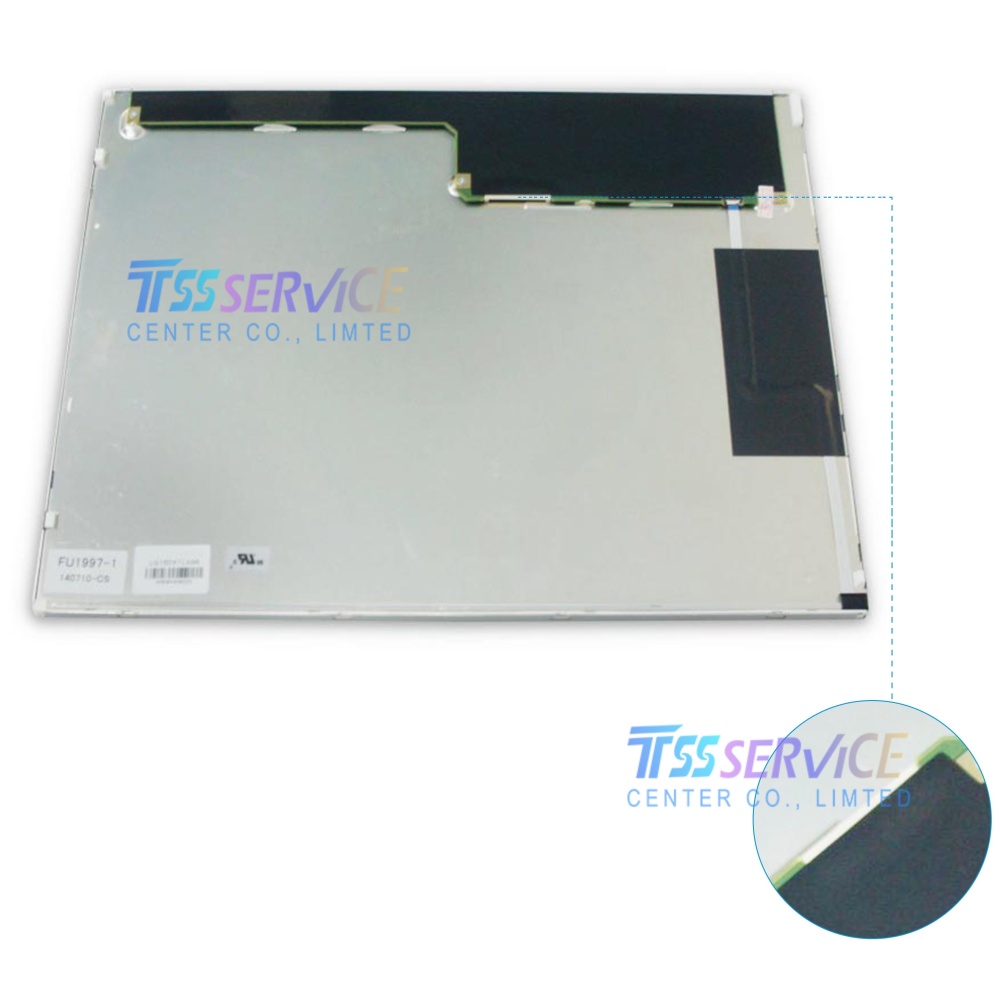

LQ150X1LX9K 15.0" 1024×768 Industrial LCD Panel for Sharp

Name: LQ150X1LX9K 15.0" 1024×768 Industrial LCD Panel for Sharp
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ150X1LX9K
Price: 85 USD
Availability: InStock

SKU: LQ150X1LX9K

1，Condition: New，Grade A

2，Description: LQ150X1LX9K 15.0 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $85.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Sharp LQ150X1LX9K is a high-performance 15.0-inch industrial TFT-LCD module engineered for applications demanding excellent image quality, wide viewing angles, and robust environmental tolerance. With XGA resolution and advanced ASV (Advanced Super View) technology, this panel delivers superior visual performance for professional and industrial use.

Parameter	Value
Manufacturer	Sharp
Screen Size	15.0 inch
Number of Dots	1024(RGB)×768, XGA, 4:3
Active Area	304.128×228.096 mm (H×V)
Weight	950g (Max.)
Luminance	400 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Good View at	Symmetry
Display Colors	262K/16.2M, 70% NTSC
Power Cons.	10.0W (Typ.)
Refresh Rate	60Hz
Signal Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Voltage Supply	3.3V (Typ.)
Storage Temp.	-25 ~ 70 °C
Operating Temp.	-20 ~ 70 °C
Model No.	LQ150X1LX9K
Screen Type	a-Si TFT-LCD, LCM
Dot Layout	RGB Vertical Stripe
Outline Area	326.5×253.5×10.1 mm (H×V×D)
Surface Feature	Glare (Haze 0%), Hard coating
Contrast Ratio	1500:1 (Typ.) (TM)
Response (ms)	35 (Typ.)(Tr+Td)
Display Type	ASV, Normally Black, Transmissive
Backlight	WLED, 50K hrs, With LED Driver
Touchscreen	Without

Applications:

Industrial control panels and HMIs
Medical diagnostic displays
Professional broadcast monitors
Test and measurement equipment
Embedded systems requiring high contrast and wide viewing angles
