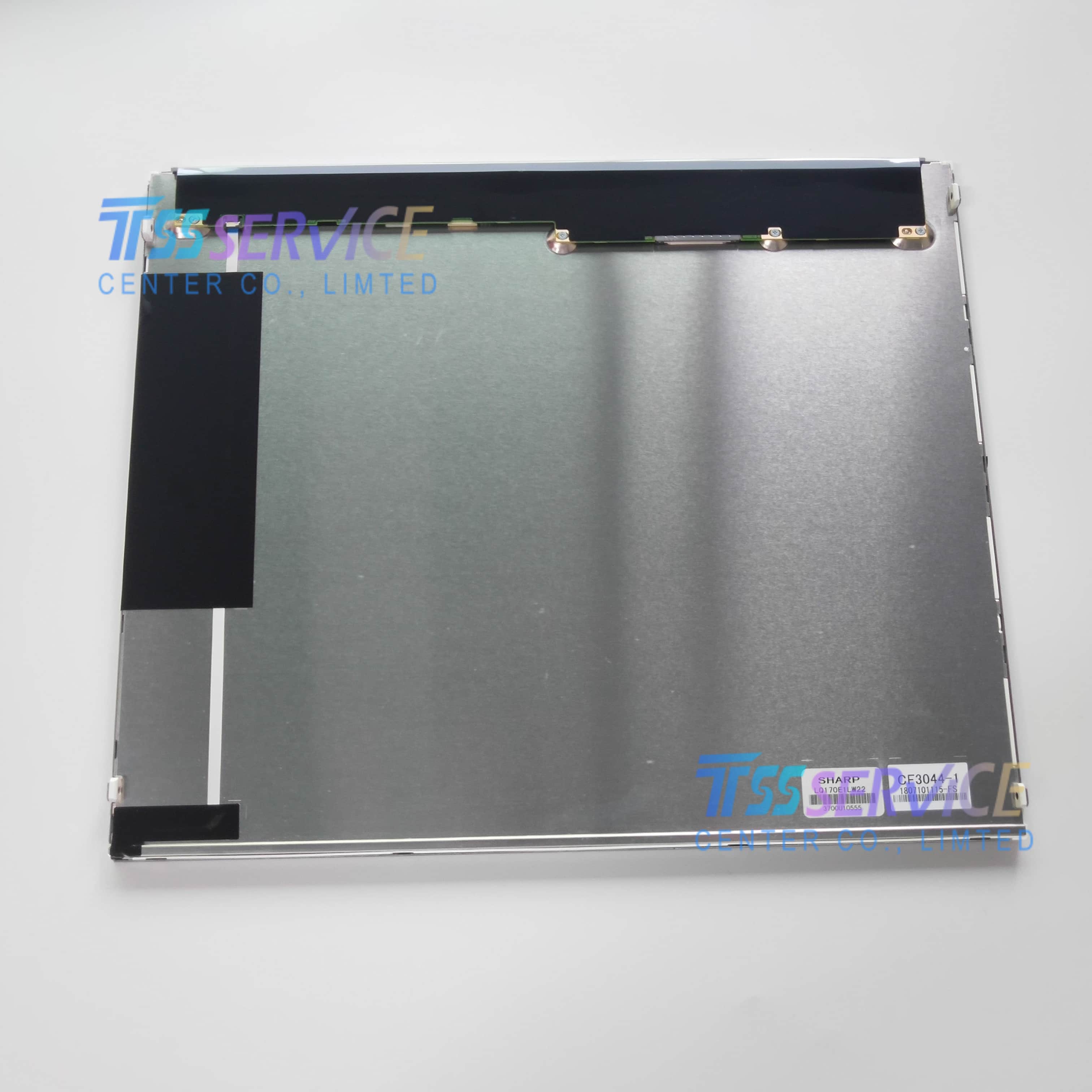

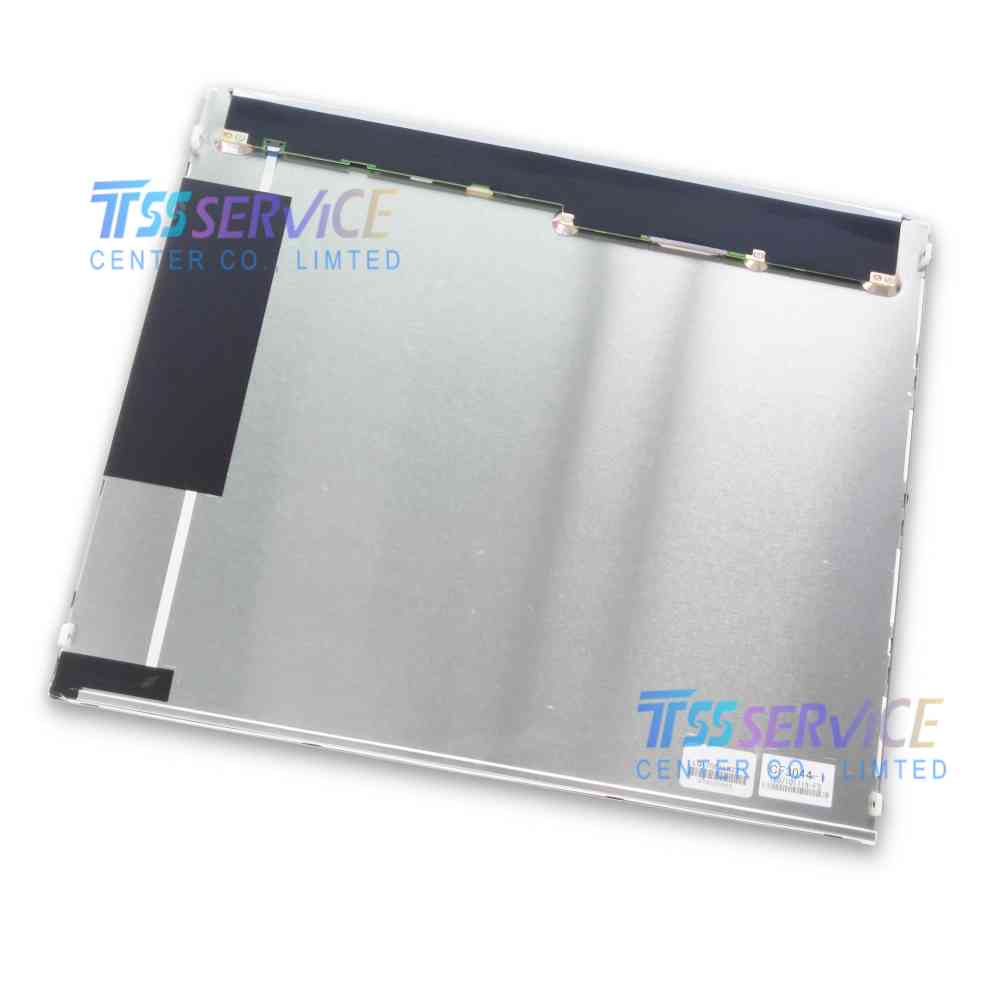

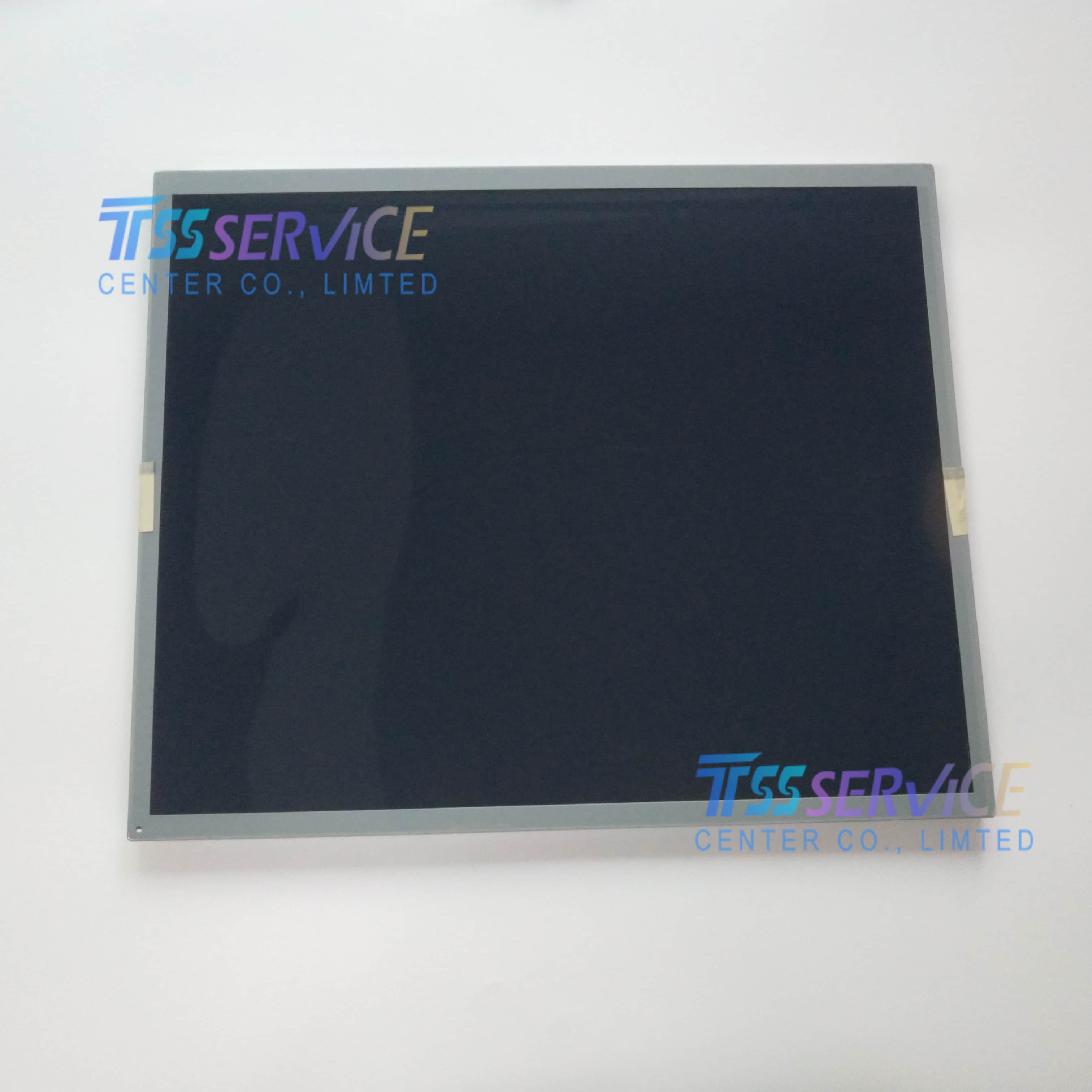

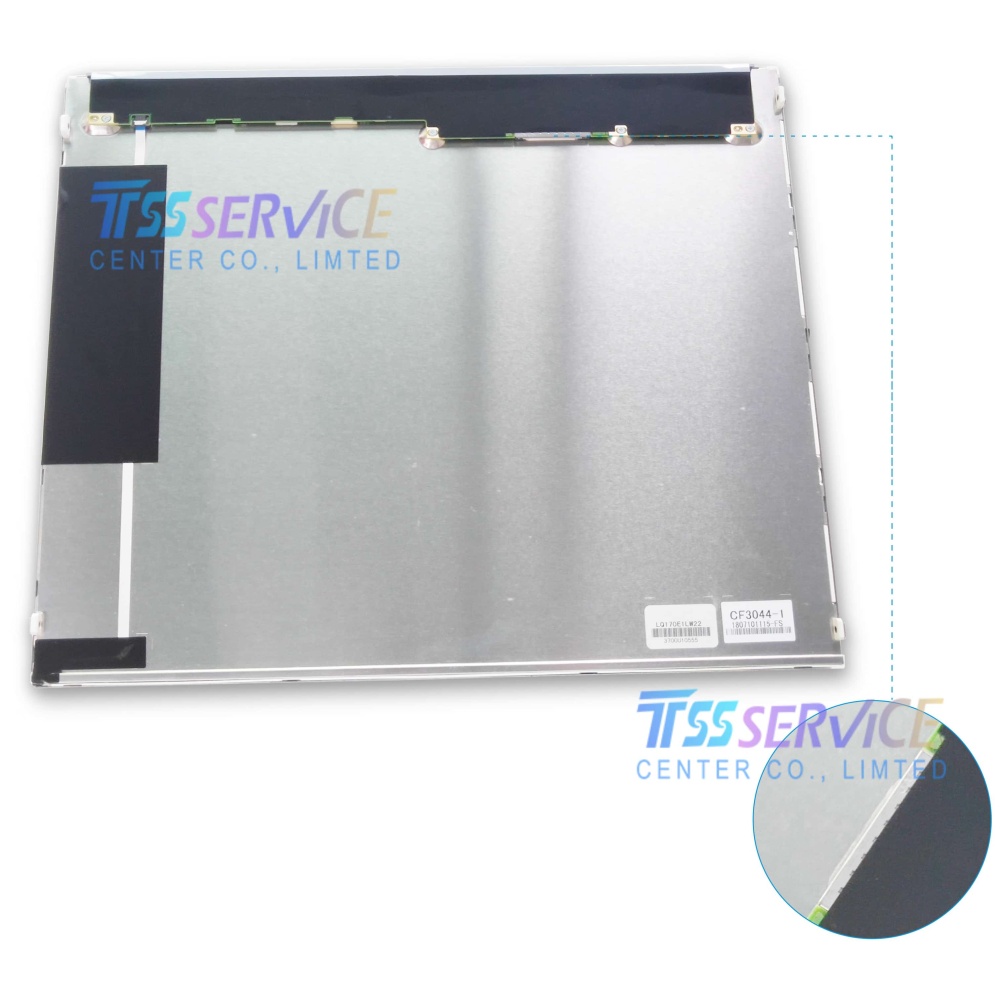

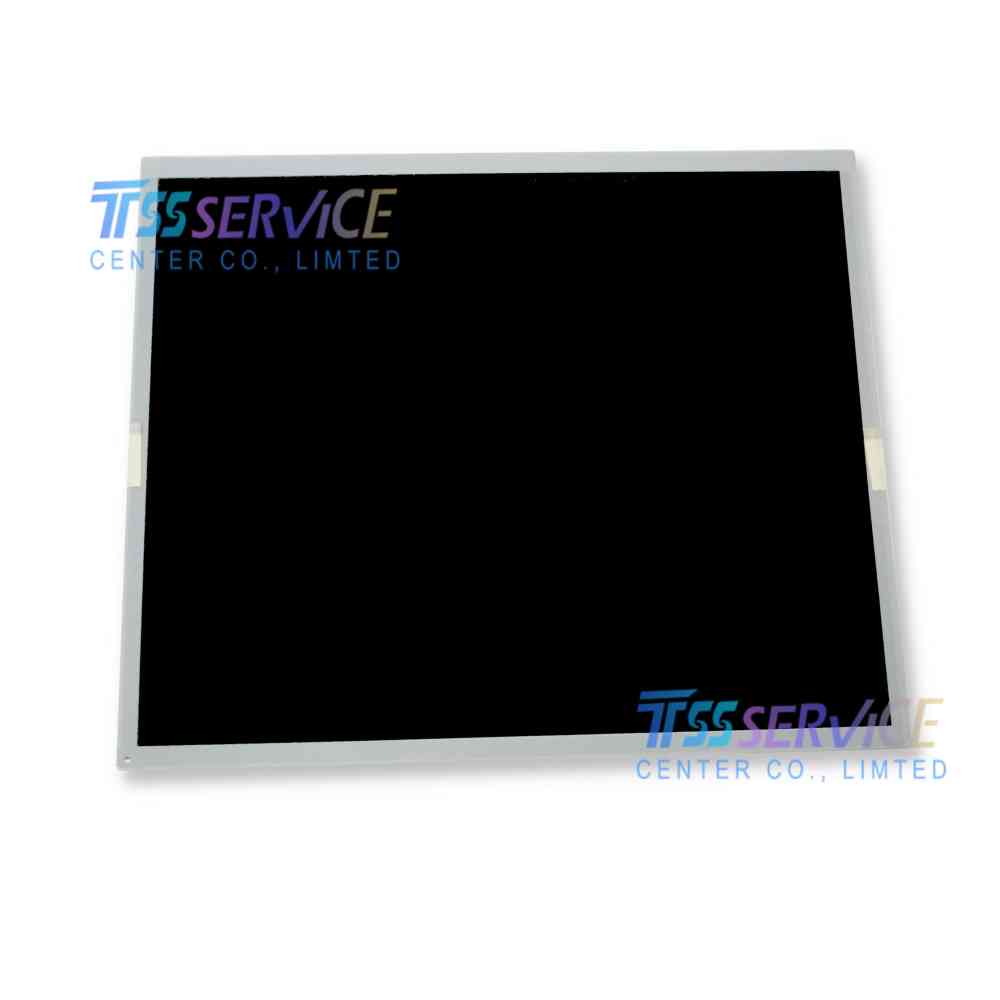

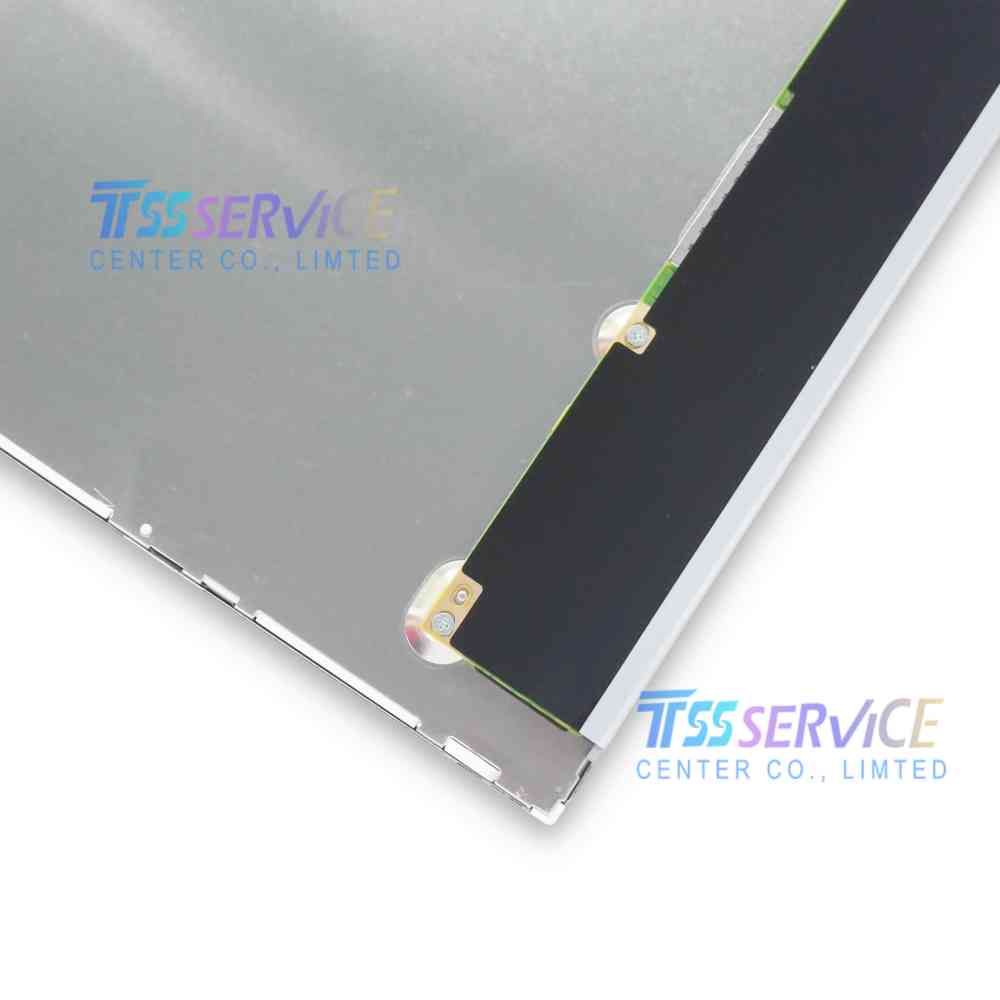

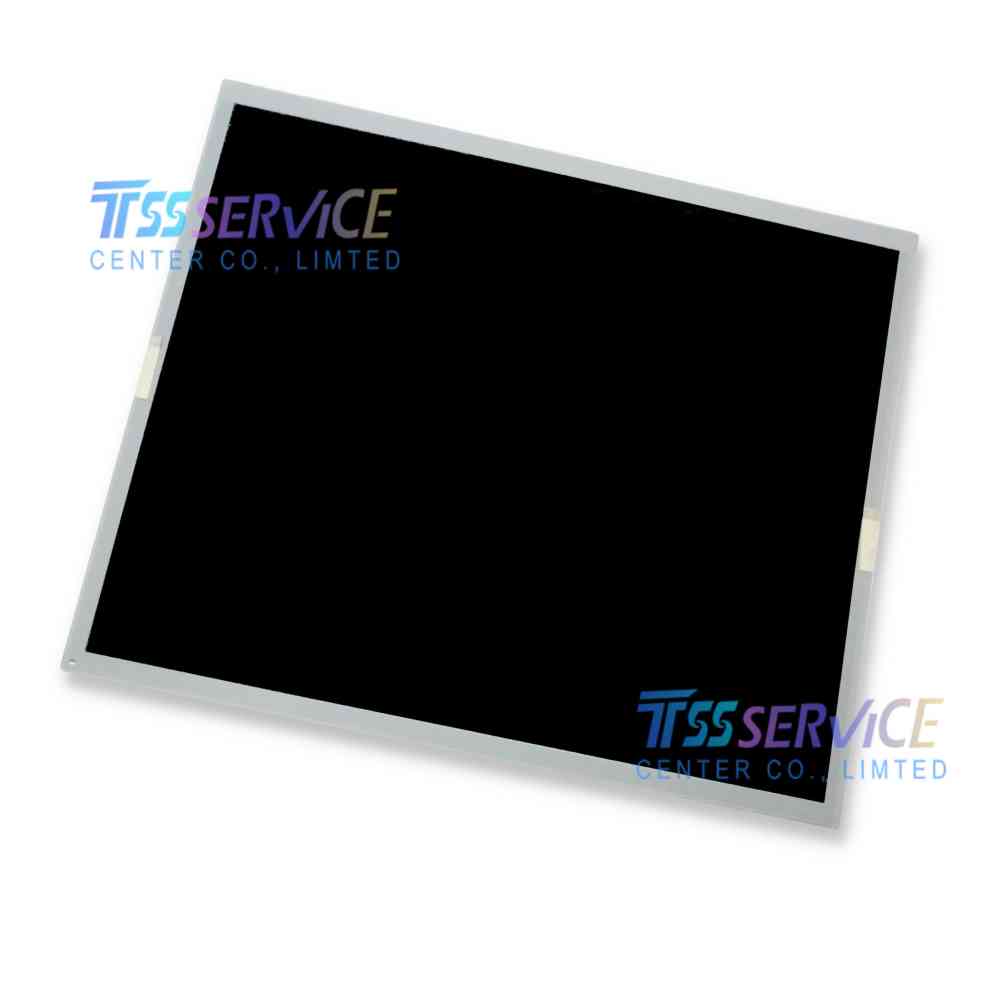

LQ170E1LW22 Sharp 17 Inch 1280×1024 LCD Display Screen For Industrial
| Parameter |
Specification |
| Manufacturer |
Sharp Corporation |
| Panel Type |
a-Si TFT-LCD, ASV (Advanced Super View), Transmissive, Normally Black |
| Diagonal Size |
17.0 inches (431.8 mm) |
| Resolution |
1280 (H) × 1024 (V) pixels (SXGA, 4:3 Aspect Ratio) |
| Pixel Format |
RGB Vertical Stripe, 8-bit per channel (16.7M colors) |
| Pixel Pitch |
0.264 × 0.264 mm (96 PPI) |
| Active Area |
337.92 (W) × 270.336 (V) mm |
| Outline Dimensions |
358.5 (W) × 296.5 (H) × 13.4 (D) mm |
| Surface Treatment |
Antiglare, Hard coating (3H) |
| Brightness |
400 cd/m² (Typical) |
| Contrast Ratio |
1000:1 (Typical, Transmissive) |
| Viewing Angle |
88°/88°/88°/88° (L/R/U/D, CR≥10, Typical) |
| Response Time |
30 ms (Typical, Tr+Td) |
| Color Gamut |
90% NTSC (CIE1931, Typical) |
| Backlight |
WLED (White LED), Edge-lit, with built-in LED Driver |
| Backlight Lifetime |
70,000 hours (Typical) |
| Interface |
LVDS (2 channels, 8-bit), 30-pin connector |
| Supply Voltage |
5.0 V (Typical) |
| Operating Temperature |
0°C to +80°C |
| Storage Temperature |
-30°C to +80°C |
| Weight |
Approx. 1.20 kg (Max.) |
| Touch Panel |
None |
| RoHS Compliance |
Yes |
LQ170E1LW22 is a 17-inch industrial-grade ASV LCD panel with wide viewing angles, stable color performance, and a robust temperature range, making it ideal for professional and industrial environments. Its key applications include:
Industrial Control & Factory Automation
- HMI & Operator Panels: Integrated into industrial control systems, PLC interfaces, and machine operation panels for real-time monitoring of production lines, equipment status, and process parameters.
- Industrial PCs & Workstations: Used in industrial computers and dedicated workstations for factory automation, data acquisition, and industrial software operation.
- Factory Monitoring & Control Rooms: Deployed in control centers for multi-screen monitoring of manufacturing processes, safety systems, and energy management.
Gaming & Arcade Equipment
- Arcade Game Machines: Widely used in commercial arcade cabinets and gaming consoles, providing clear, wide-angle visuals for gaming interfaces and gameplay.
- Gaming Kiosks & Amusement Devices: Integrated into amusement park kiosks, slot machines, and interactive gaming terminals.
Medical & Healthcare Equipment
- Medical Device Interfaces: Used in non-critical medical equipment such as patient monitors, diagnostic devices, and dental equipment, offering stable color reproduction and reliable performance.
- Laboratory & Testing Equipment: Applied in scientific instruments, laboratory analyzers, and testing machines for data display and operation interfaces.
Transportation & Marine
- Vehicle Mounted Displays: Used in commercial vehicles, buses, and ships for navigation systems, passenger information displays, and on-board monitoring.
- Traffic Control & Logistics Terminals: Deployed in traffic management centers, logistics hubs, and port operations for real-time data visualization and control.
Retail & Commercial Displays
- POS & Self-Service Kiosks: Integrated into point-of-sale systems, self-checkout machines, and information kiosks in retail stores, airports, and stations.
- Digital Signage & Information Displays: Used in shopping malls, banks, and public buildings for advertising, product promotion, and public information release.
Professional AV & Office Equipment
- Desktop Monitors: Suitable for office desktop displays, especially in multi-monitor setups for office automation and data processing.
- Security Monitoring Displays: Applied in security control rooms for CCTV monitoring and video wall displays.
