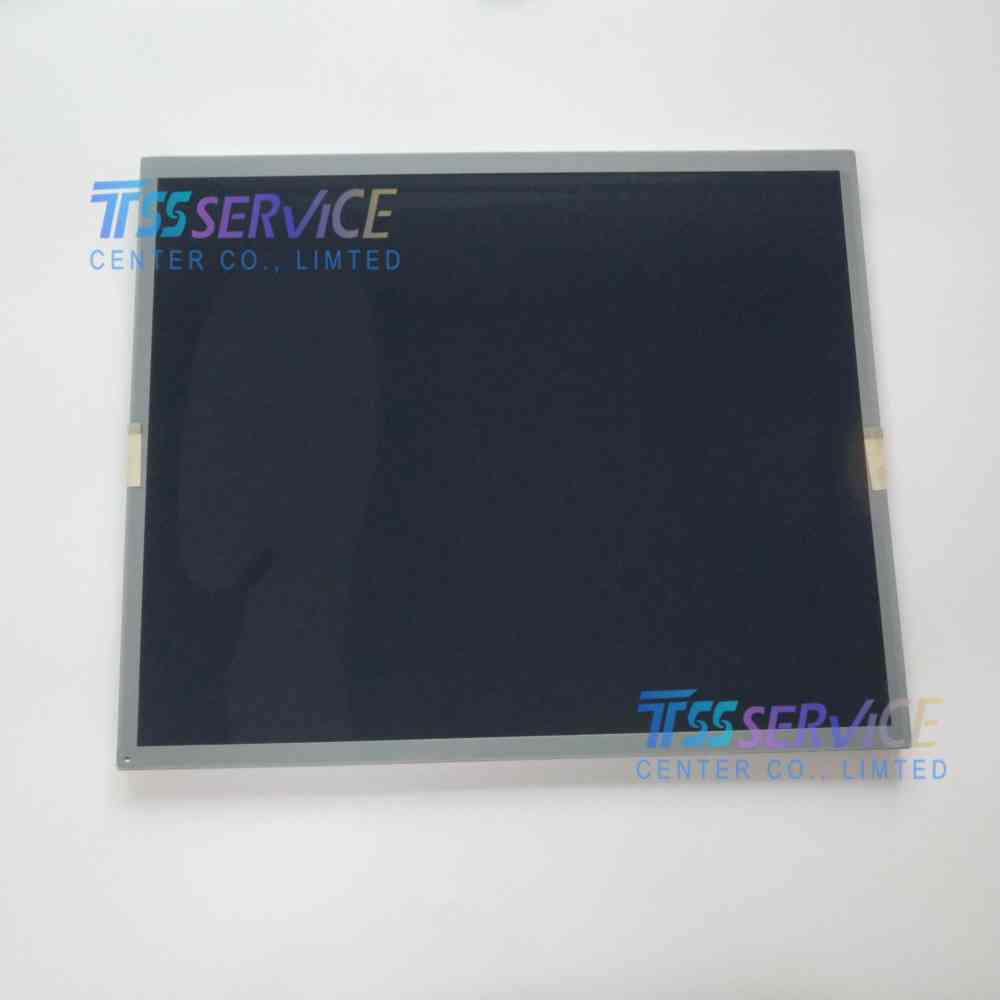

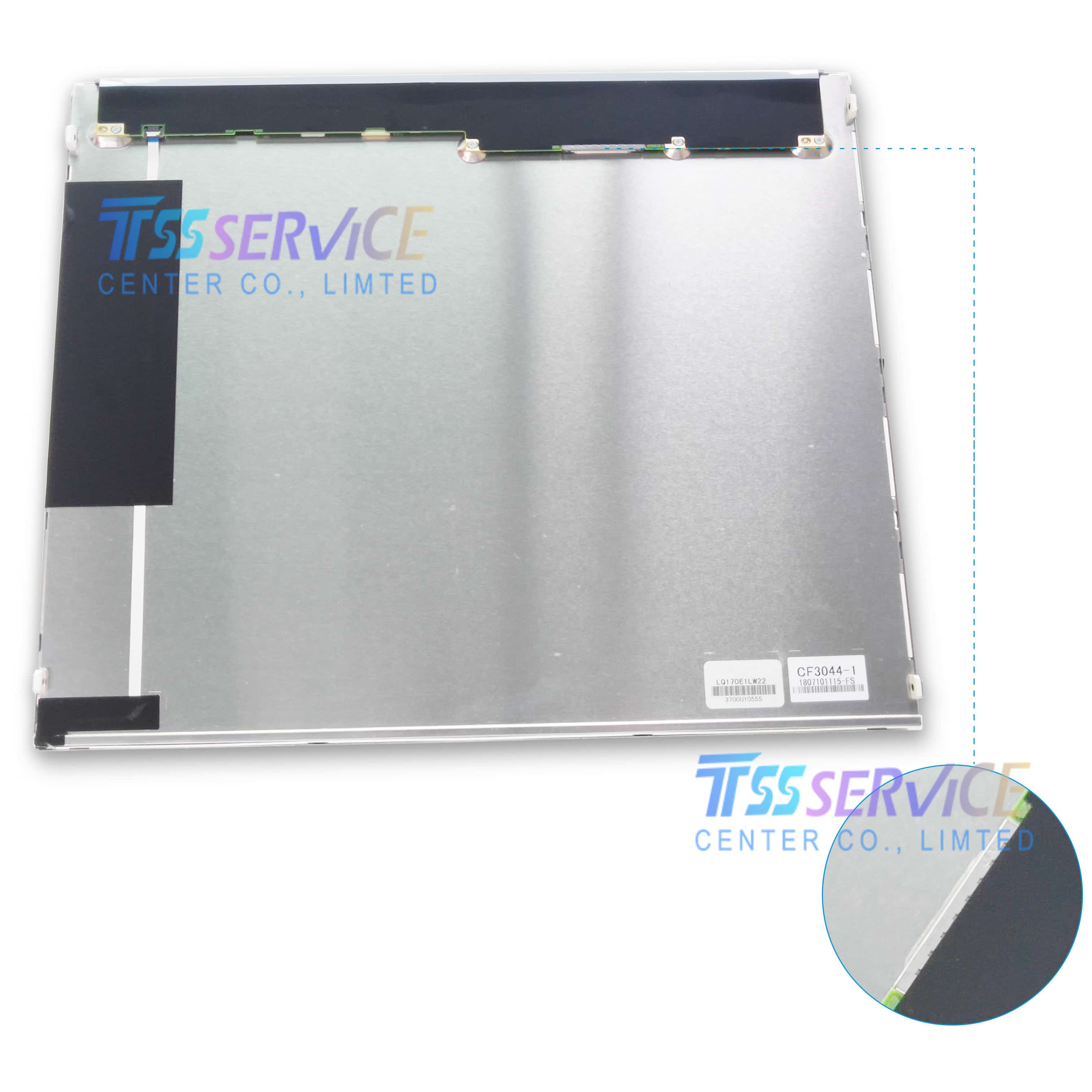

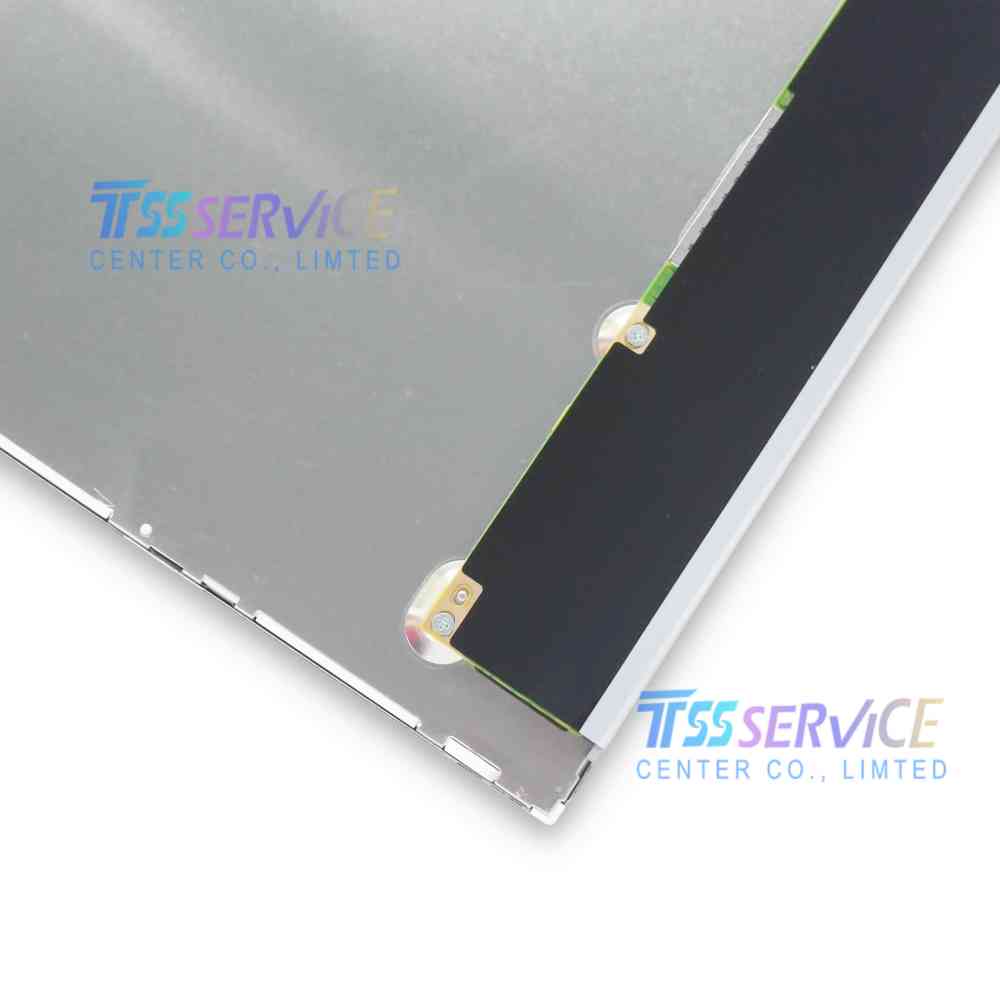

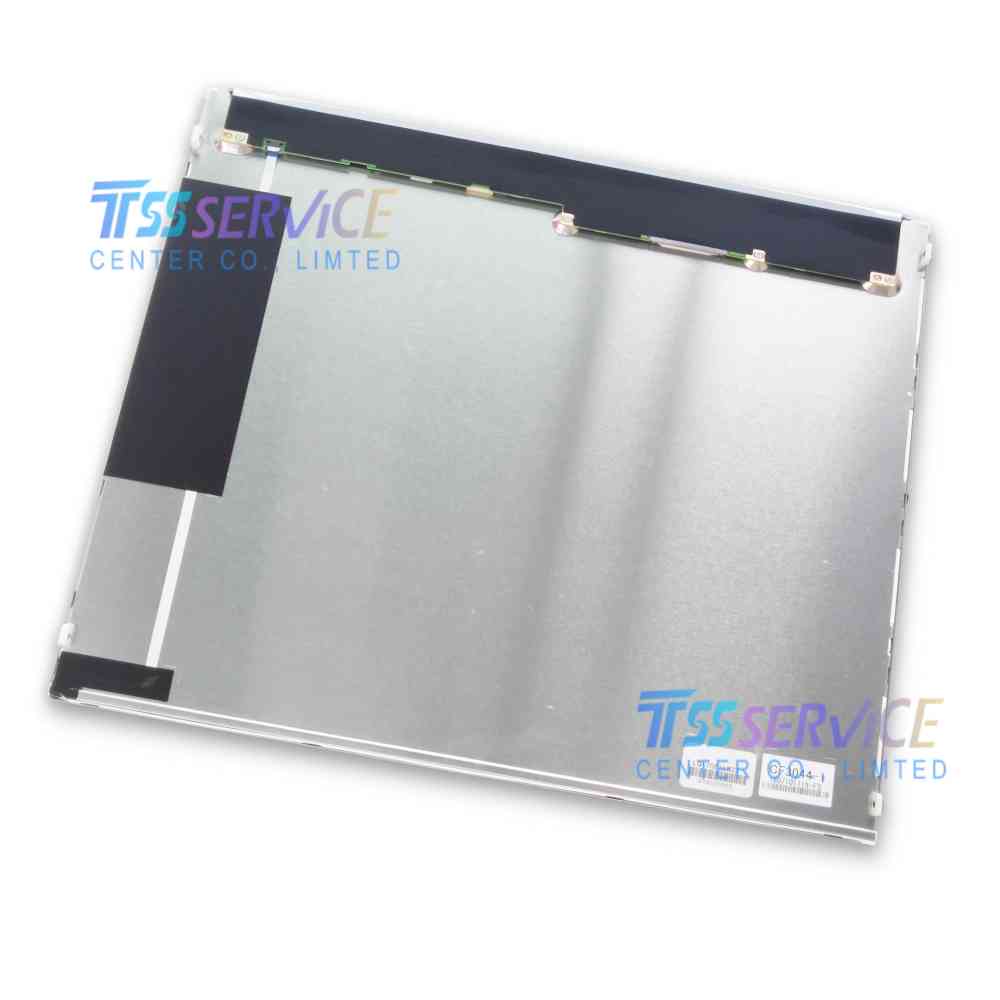

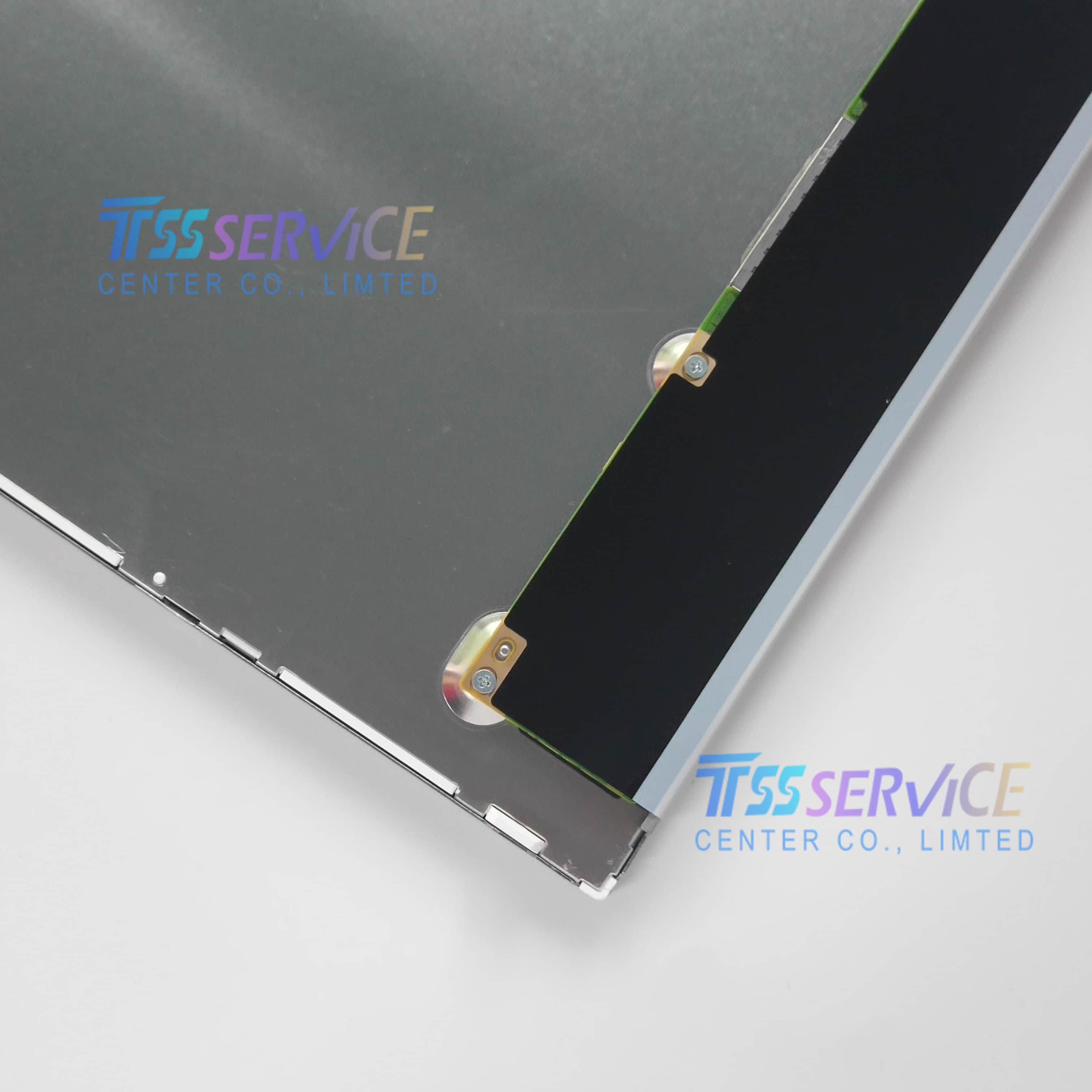

The Sharp LQ170E1LW22 is a 17.0-inch diagonal a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module designed for industrial and gaming applications . Featuring SXGA (1280×1024) resolution with an RGB vertical stripe pixel arrangement, this display utilizes Sharp’s proprietary ASV (Advanced Super View) technology to deliver exceptional image quality with wide viewing angles, high brightness, and superior color performance . Please note that this model has been discontinued, though new original stock remains available through distributors .
| Parameter |
Specification |
| Brand |
Sharp |
| Model P/N |
LQ170E1LW22 |
| Diagonal Size |
17.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1280(RGB)×1024, SXGA 96PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
337.92(W)×270.336(H) mm |
| Outline Dim. |
358.5(H)×296.5(V)×13.4(D) mm |
| Treatment |
Antiglare, Hard coating (3H) |
| Luminance |
400 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| View Direction |
Symmetry |
| Response Time |
30 (Typ.)(Tr+Td) |
| Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) |
| Operating Mode |
ASV, Normally Black, Transmissive |
| Support Color |
16.7M 90% NTSC |
| Light Source |
WLED, 70K hours, With LED Driver |
| Weight |
1.20Kgs (Max.) |
| Touch Panel |
Without |
| Interface Type |
LVDS (2 ch, 8-bit), 30 pins Connector |
| Power Supply |
5.0V (Typ.) |
| Operating Temperature |
0 ~ 80 °C |
| Storage Temperature |
-30 ~ 80 °C |
