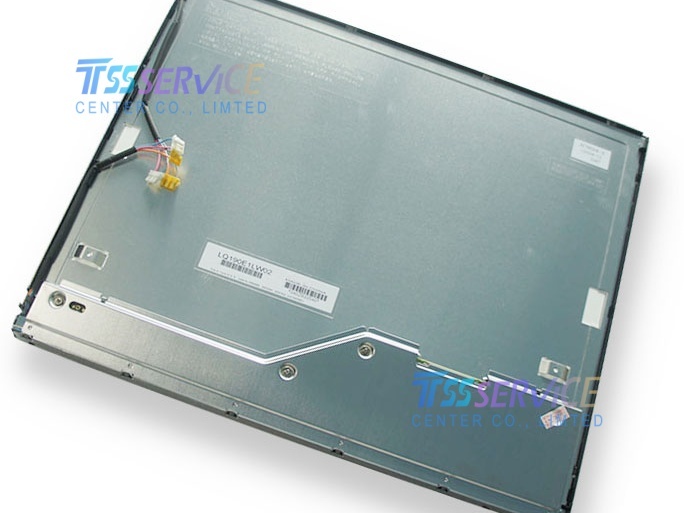

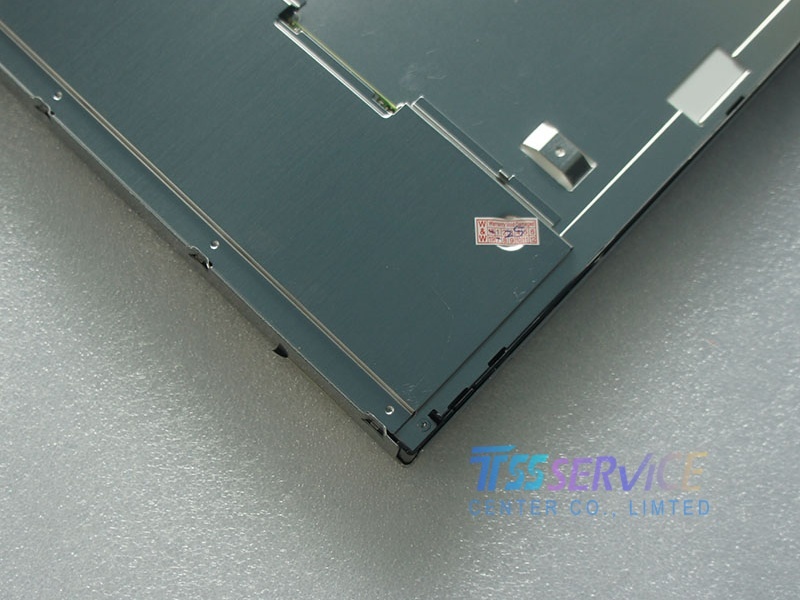

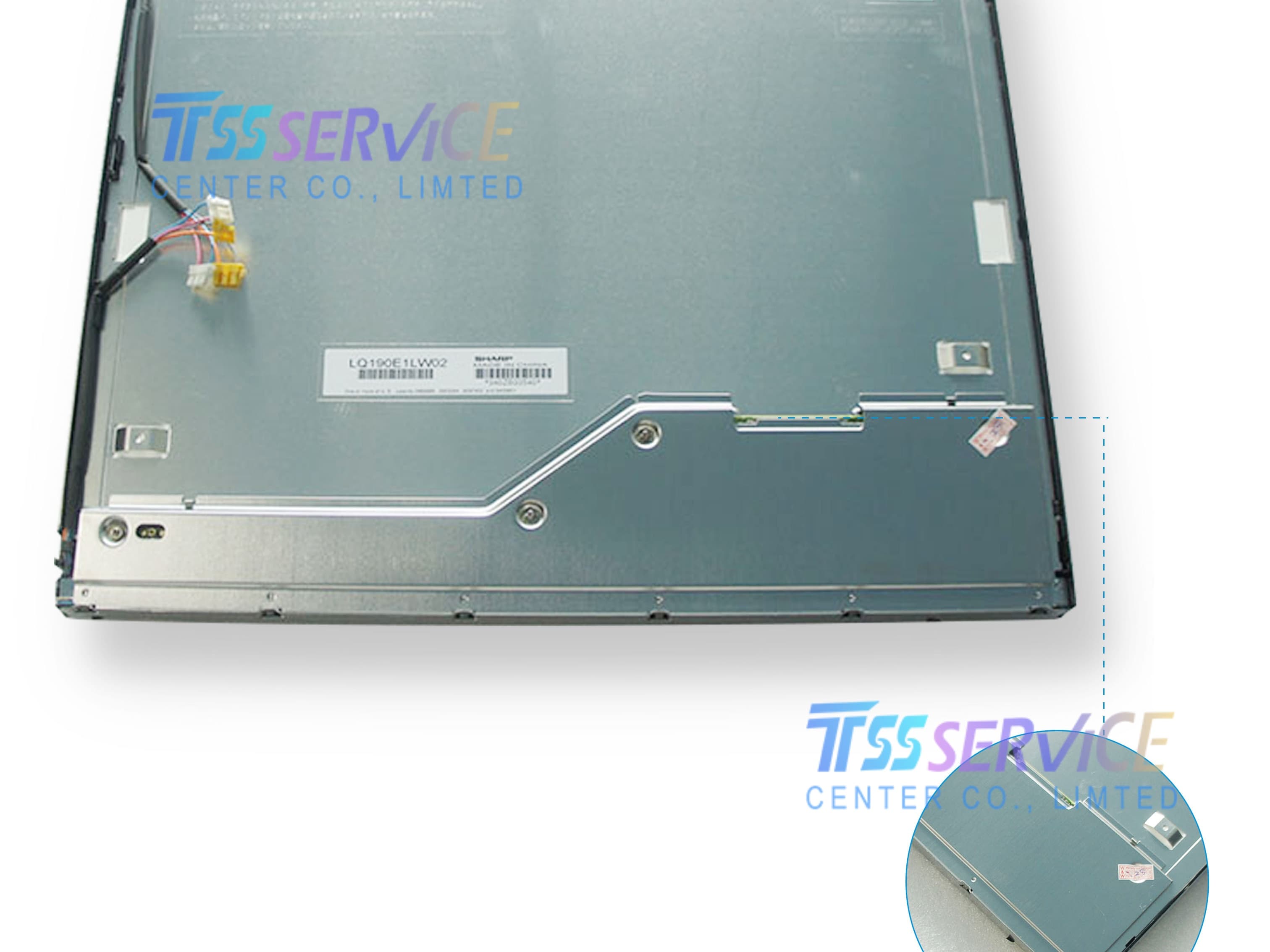

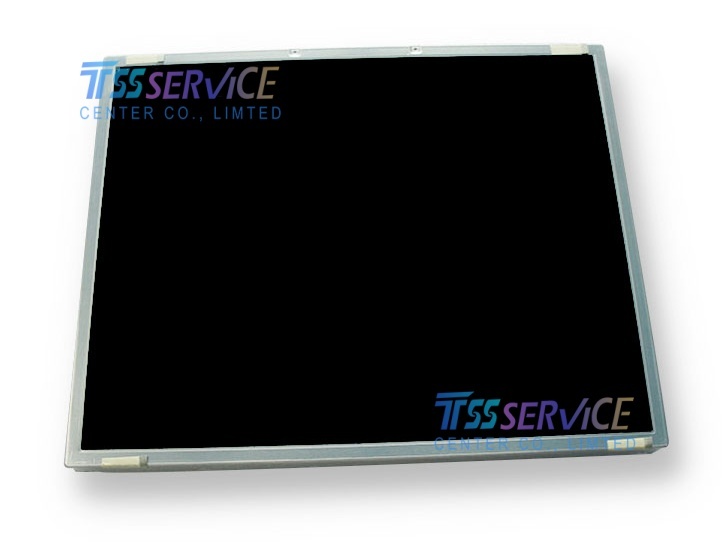

The LQ190E1LW02 is a 19.0-inch diagonal amorphous silicon (a-Si) TFT-LCD module engineered by Sharp for demanding industrial applications . Released around 2007-2008, this module incorporates Sharp's advanced ASV (Advanced Super View) technology to deliver exceptional image quality with wide viewing angles and high contrast .
Designed as a high-reliability display solution for industrial environments, the LQ190E1LW02 features a 4:3 aspect ratio SXGA resolution and is mechanically and electrically compatible with other models in Sharp's 19-inch industrial LCD family .
| Brand |
Sharp |
| Model P/N |
LQ190E1LW02 |
| Diagonal Size |
19.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1280(RGB)×1024, SXGA 86PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
376.32(W)×301.056(H) mm |
| Bezel Opening |
382.32(W)×307.06(H) mm |
| Outline Size |
404.2(W)×330(H)×20.5(D) mm |
| Surface |
Antiglare (Haze 40%), Hard coating (2H) |
| Brightness |
300 cd/m² (Typ.) |
| Contrast Ratio |
900:1 (Typ.) (TM) |
| Viewing Angle |
85/85/85/85 (Min.)(CR≥10) |
| Display Mode |
ASV, Normally Black, Transmissive |
| Best View on |
Symmetry |
| Response Time |
12 (Typ.)(Tr+Ts) |
| Display Colors |
16.7M 72% NTSC |
| Lamp Type |
4 pcs CCFL, 50K hours, Without Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Weight |
2.80Kgs (Max.) |
| Signal Interface |
LVDS (2 ch, 8-bit), 30 pins Connector |
| Input Voltage |
5.0V (Typ.) |
| Environment |
Operating Temp.: 0 ~ 60 °C; Storage Temp.: -25 ~ 60 °C; Vibration Level: 2.0G (19.6 m/s²) |
Target Applications
This industrial-grade LCD module is well-suited for:
-
Factory automation and industrial HMIs
-
Medical monitoring equipment
-
Public information kiosks and POS terminals
-
Test and measurement instruments
-
Security and surveillance systems
