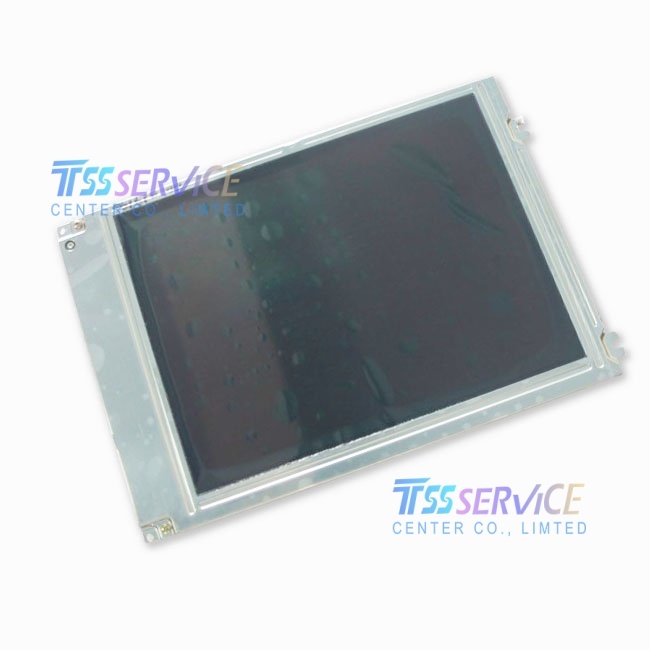

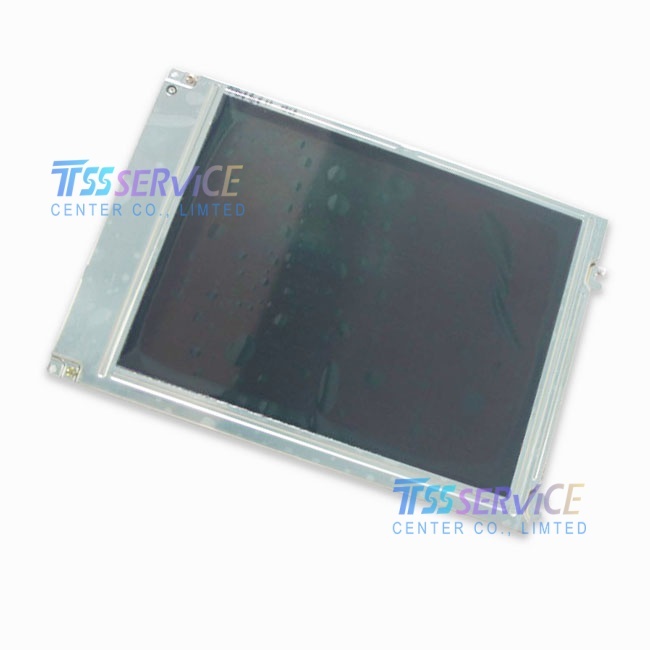

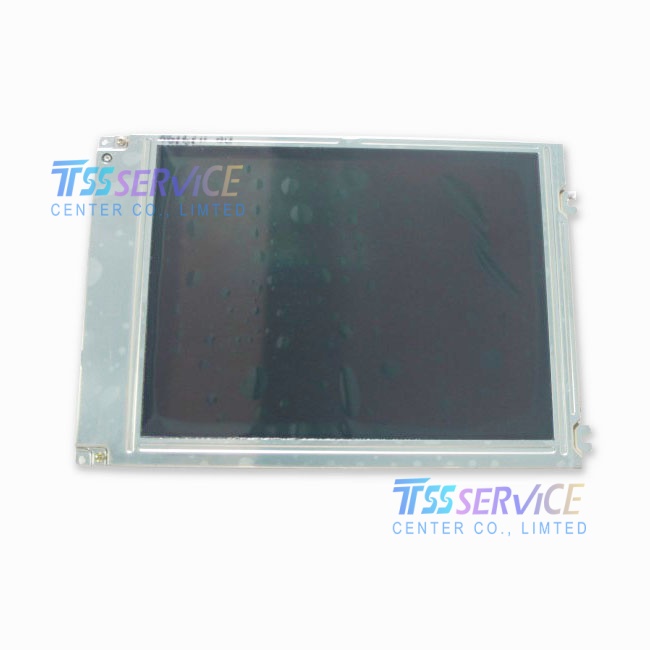

LQ9D168K | Sharp 8.4” VGA TFT-LCD Panel
LQ9D168K is an 8.4-inch VGA (640×480) a-Si TFT-LCD panel manufactured by Sharp, optimized for industrial control, CNC machinery, and legacy HMI applications. It features CCFL backlight, TTL interface, compact design, and stable performance for 24/7 operation in harsh industrial environments.
| Parameter Item |
Specification Details |
| Part Number |
LQ9D168K |
| Manufacturer |
Sharp |
| Display Size |
8.4 inch, landscape |
| Native Resolution |
640(RGB) × 480 pixels (VGA) |
| Display Technology |
a-Si TFT-LCD, TN, normally white, transmissive |
| Active Area |
170.88 mm (W) × 129.6 mm (H) |
| Outline Dimension |
216.0 mm (W) × 152.4 mm (H) × 7.3 mm (D) |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
300:1 (Typ.) |
| Viewing Angle |
45°/45°/30°/40° (L/R/U/D, CR≥10) |
| Response Time |
25 ms (Typ.) |
| Display Colors |
262K (18-bit RGB) |
| Backlight |
1×CCFL lamp, no onboard driver |
| Interface |
TTL (1 ch, 6-bit), 30 pins connector |
| Supply Voltage |
5.0 V (Typ.) |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
–20°C ~ +60°C |
| Surface Treatment |
Matte (anti-glare) |
| Weight |
Approx. 330 g |
| Certifications |
RoHS compliant |
