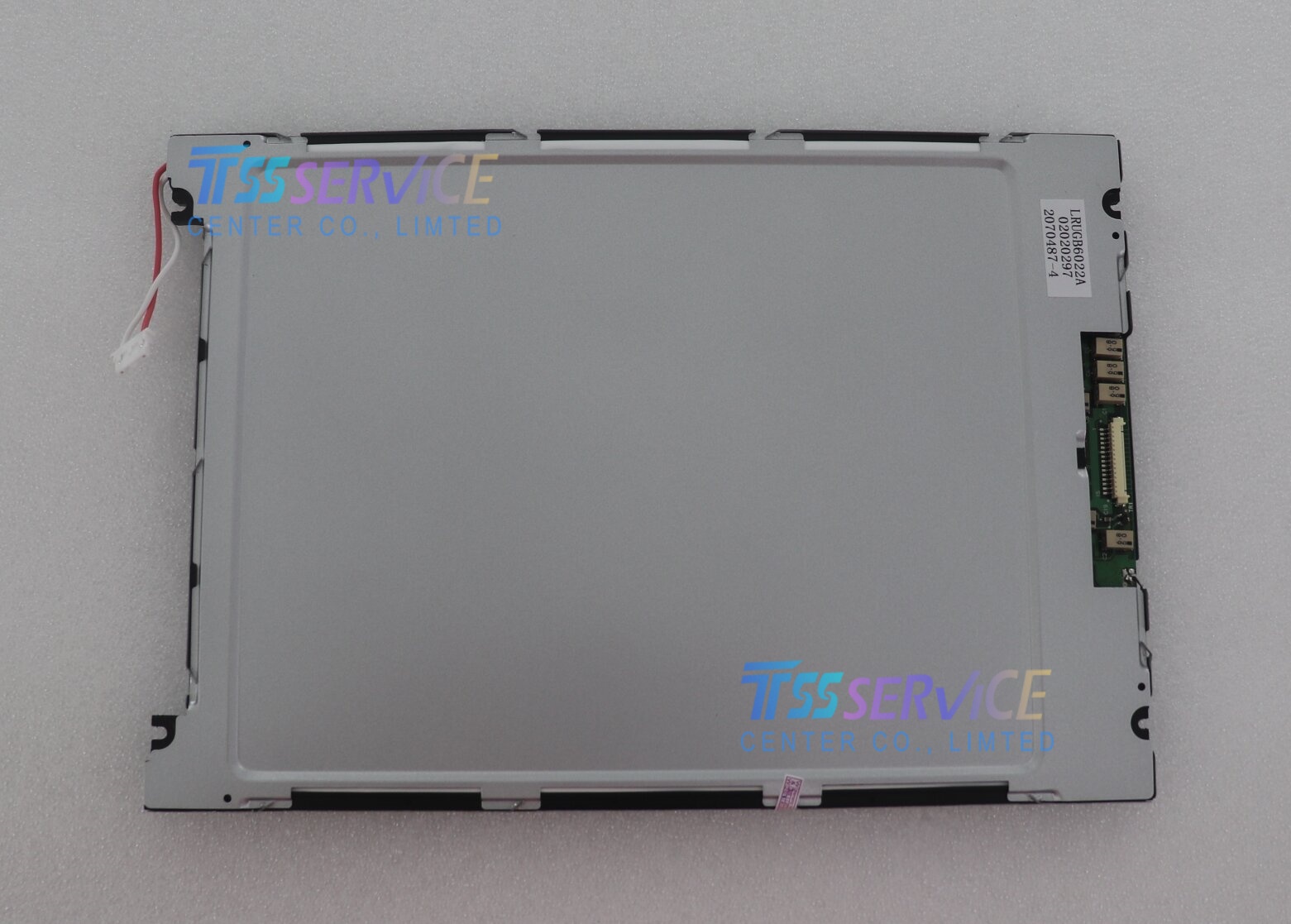

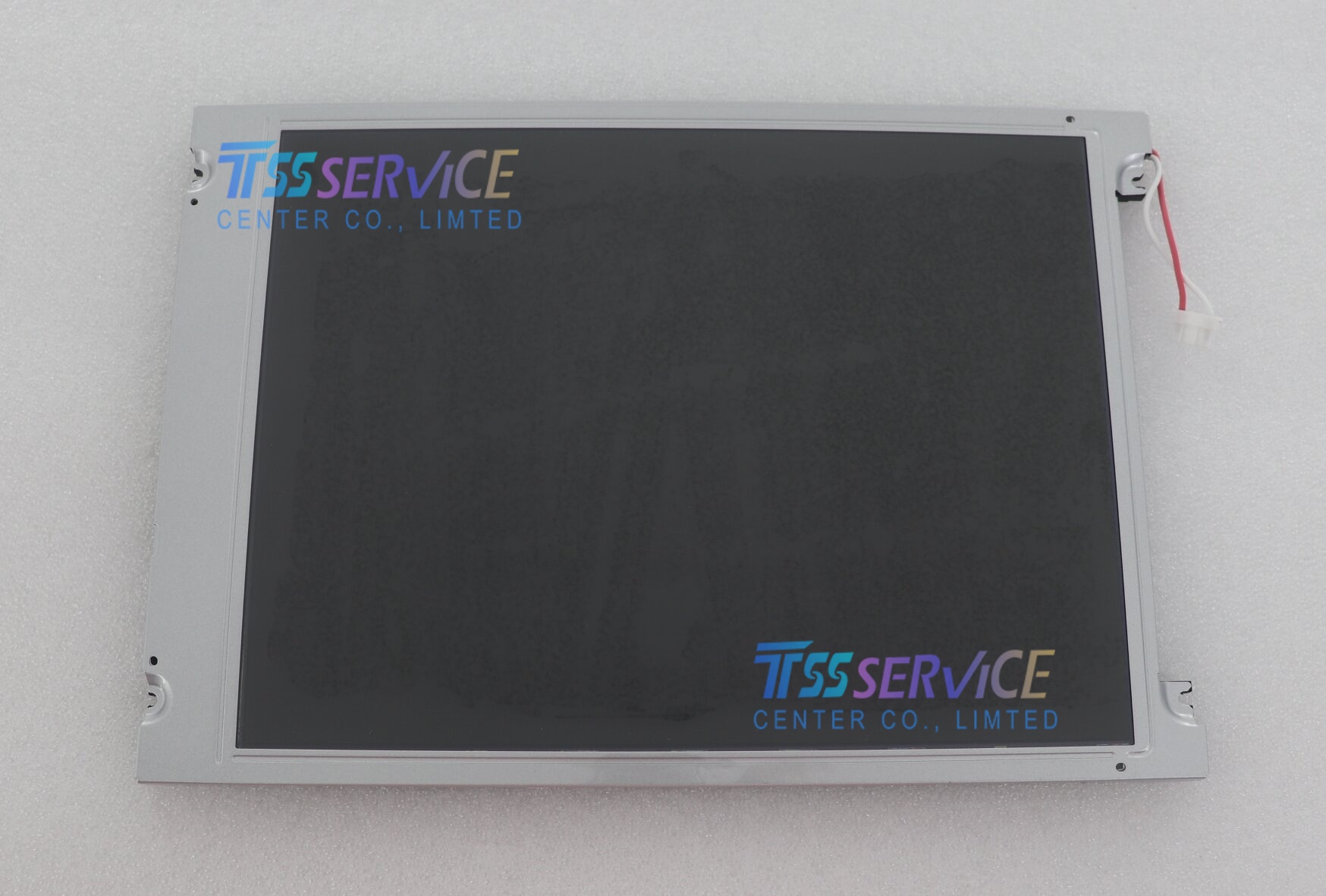

LRUGB6022A 10.4 Inch LCD Panel Screen for Industrial

Name: LRUGB6022A 10.4 Inch LCD Panel Screen for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LRUGB6022A
Price: 198 USD
Availability: InStock

SKU: LRUGB6022A

Model P/N: LRUGB6022A
Diagonal Size: 10.4"
Panel Type: STN Monochrome LCD
Resolution: 640 × 480 (VGA)

0.0 (0 Reviews)

0 Sold

~~$200.00~~ $198.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LRUGB6022A 10.4 Inch LCD Panel Screen for Industrial

Parameter	Specification
Part Number	LRUGB6022A
Manufacturer	ALPS Alpine Co., Ltd.
Status	Obsolete (Discontinued)
Panel Type	STN Monochrome LCD, Transflective, Normally Black
Diagonal Size	10.4 inches
Resolution	640 × 480 (VGA), 4:3 Aspect Ratio
Active Area	210.0 × 157.5 mm (W×H)
Outline Dimensions	260.0 × 190.0 × 15.0 mm (W×H×D)
Brightness	140 cd/m² (Typ.)
Contrast Ratio	18:1 (Typ.)
Viewing Angle	30/30/30/15° (L/R/U/D) @ CR≥5:1
Response Time	200 ms (Typ.)
Display Colors	Monochrome (Single-color, Blue/Gray)
Backlight	2-lamp CCFL (Cold Cathode Fluorescent Lamp)
Driver IC	Built-in LCD driver
Interface	Parallel 8-bit TTL
Supply Voltage	5.0V (Typ.)
Operating Temperature	0°C ~ +50°C
Storage Temperature	-20°C ~ +60°C
RoHS	Compliant
