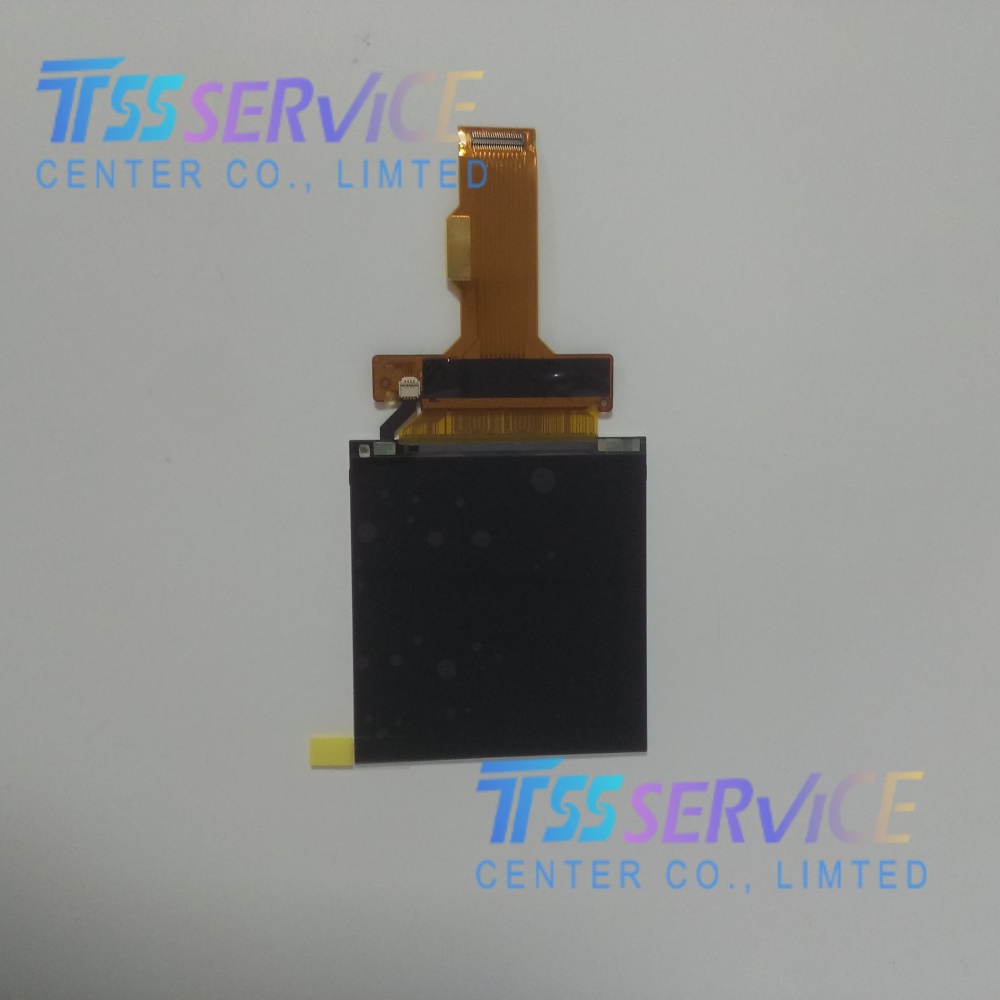

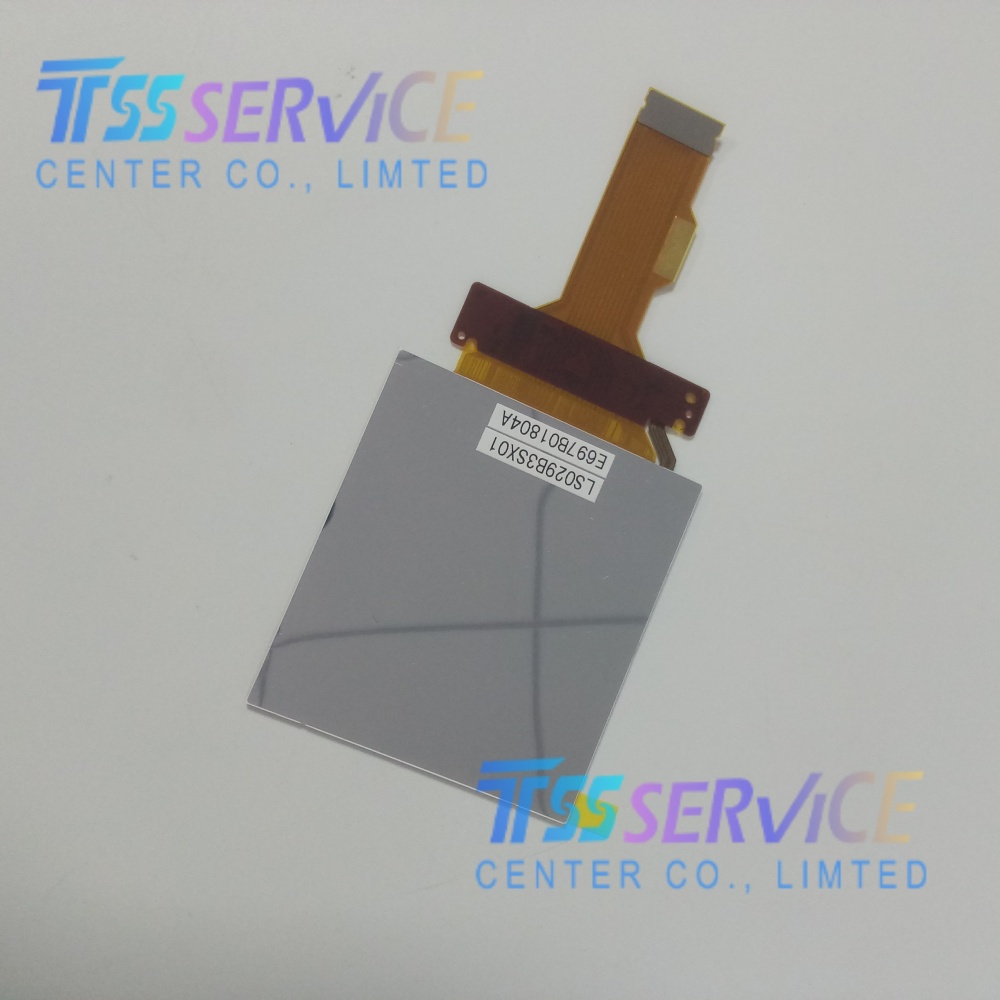

Sharp LS029B3SX01 2.9 Inch 1440×1440 TFT LCD Panel For Industrial

Name: Sharp LS029B3SX01 2.9 Inch 1440×1440 TFT LCD Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LS029B3SX01
Price: 40 USD
Availability: InStock

SKU: LS029B3SX01

Model Number: LS029B3SX01
Brand: Sharp
Diagonal Size: 2.9 inch
Panel Technology: CG-Silicon TFT-LCD, New Mode2, Normally Black, Transmissive
Native Resolution: 1440(RGB) × 1440 Square, 705 PPI

0.0 (0 Reviews)

0 Sold

~~$50.00~~ $40.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LS029B3SX01 2.9 Inch 1440×1440 TFT LCD Panel For Industrial

Spec Item	Parameter Details
Model Number	LS029B3SX01
Brand	Sharp
Diagonal Size	2.9 inch
Panel Technology	CG-Silicon TFT-LCD, New Mode2, Normally Black, Transmissive
Native Resolution	1440(RGB) × 1440 Square, 705 PPI
Pixel Pitch	0.012(H) × 0.036(V) mm
Active Display Area (AA)	51.84 (W) × 51.84 (H) mm
Typical Brightness	300 cd/m²
Contrast Ratio	1100:1 (Typical)
Viewing Angle L/R/U/D (CR≥10)	80°/80°/80°/80° Full Symmetric View
Response Time (Tr+Td)	11 ms Typical
Color Depth	16.7M, 75% NTSC
Backlight	4S2P WLED, External LED Driver Required
Signal Interface	Dual Channel MIPI, 4 Data Lanes, 40Pin FPC Connector
Supply Voltage	VDDI=1.8V, VSP=5.5V, VSN=-5.5V
Net Weight	7g (Typical)
Surface Treatment	Standard Clear Polarizer, No Touch Layer
Operating Temperature	-20 ℃ ~ +60 ℃
Storage Temperature	-30 ℃ ~ +70 ℃
Core Features	Ultra high PPI square panel, lightweight, symmetric wide viewing angle, low power consumption, dedicated for VR/AR HMD equipment
