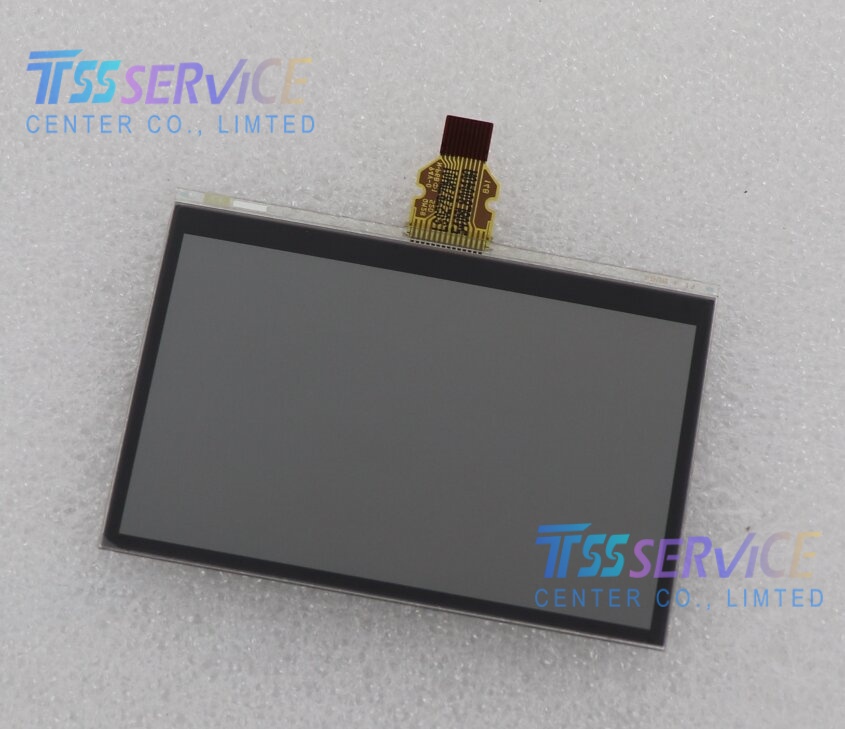

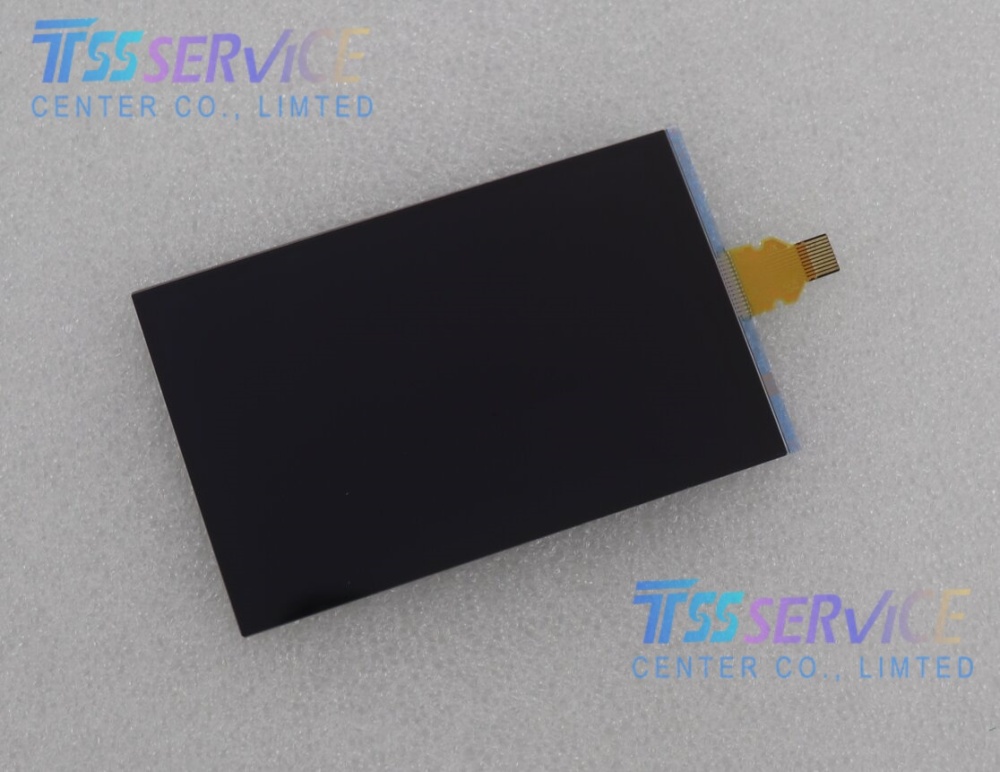

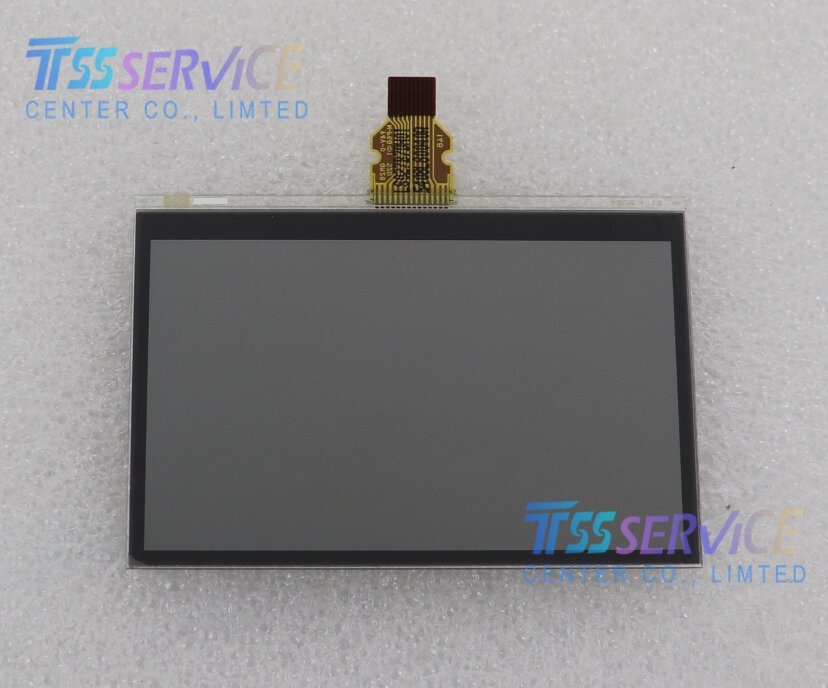

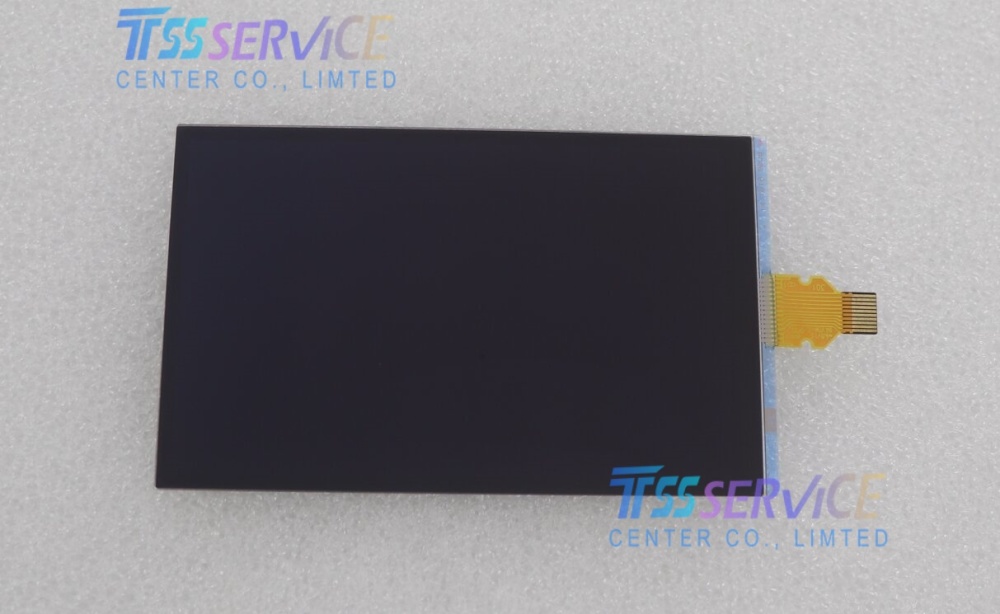

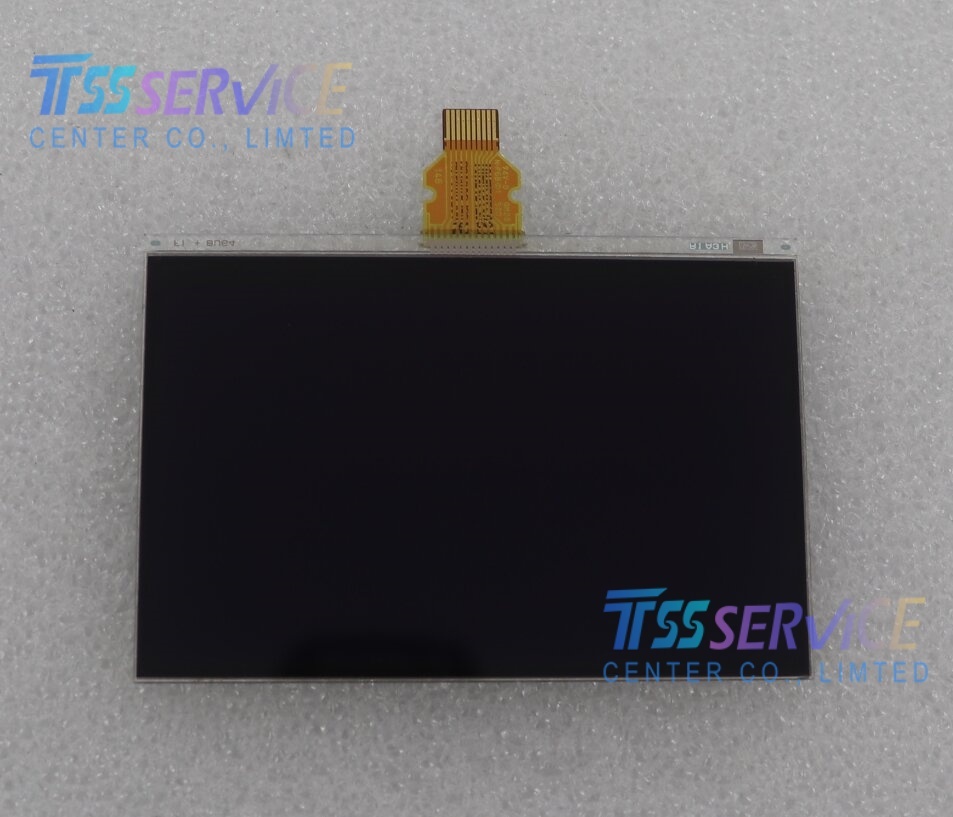

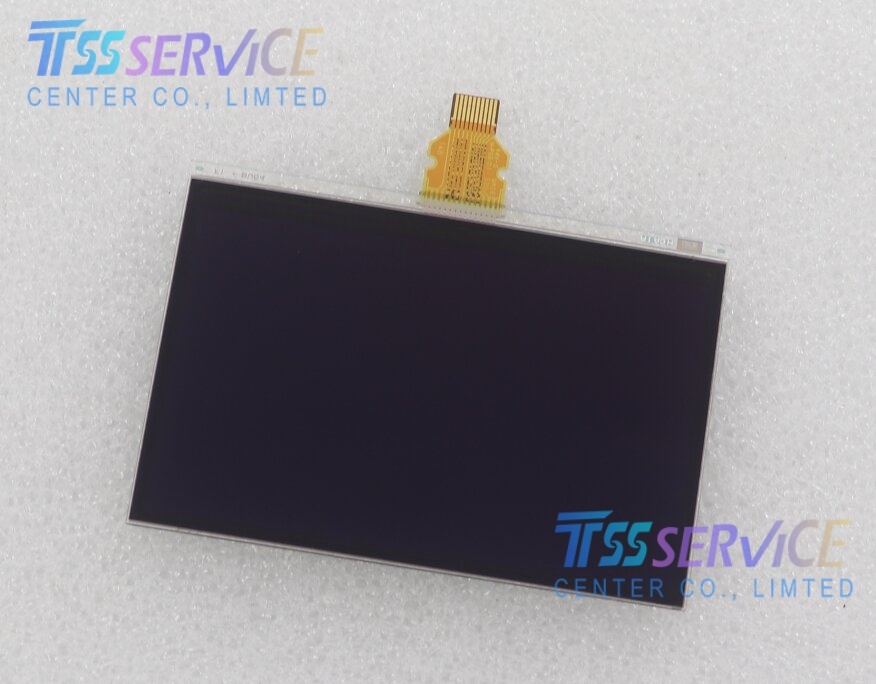

LS032B7DD02 SHARP 3.2 inch 336×536 LCD Panel Display Screen for Industrial
| Parameter |
Details |
| Manufacturer |
Sharp |
| Part Number |
LS032B7DD02 |
| Display Type |
Memory-in-Pixel (MIP) LCD, Reflective, TN, Normally White |
| Diagonal Size |
3.16 inches (3.2" nominal) |
| Resolution |
336 (H) × 536 (V) pixels |
| Dot Pitch |
0.127 (H) × 0.127 (V) mm |
| Active Area |
42.672 (W) × 68.072 (H) mm |
| Outline Dimensions |
47.02 (W) × 76.0 (H) × 0.705 (D) mm |
| Contrast Ratio |
35:1 (Typical) |
| Reflectivity |
14.0% |
| Response Time |
10–30 ms |
| Viewing Angle |
60/60/60/60 (Typ.)(CR≥2) |
| Color |
Monochrome (Black & White) |
| Backlight |
None (Reflective type) |
| Touch Panel |
No |
| Interface |
3-wire SPI, 10-pin connector |
| Supply Voltage |
3.0/5.0/5.0V (Typ.)(VIH/VDD/VDDA) |
| Power Consumption |
- Static: 30 μW (Typical @ 1 Hz)
- Refresh: 250 μW (Typical) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Weight |
Max. 5.5 g |
| Surface Treatment |
Hard coating |
| RoHS Compliance |
Yes |
| Status |
Active (Mass Production) |
|
|
LS032B7DD02 is a ultra-low-power reflective memory LCD designed for battery-powered and portable devices where constant visibility and minimal energy use are critical. Key applications include:
- Wearable Devices: Smart watches, fitness bands, health monitors (always-on display, low power)
- Portable Instruments: Handheld meters, multimeters, sensors, data loggers
- Industrial Controls: Factory HMI, small control panels, status indicators
- Electronic Shelf Labels (ESL): Retail price tags, low-power update
- E-Readers & E-Notes: Small pocket readers, note-taking devices
- IoT & Smart Home: Sensors, thermostats, access controls, low-power displays
- Medical Devices: Portable diagnostic tools, patient monitors
- Consumer Electronics: Remote controls, small appliances, ticketing machines
