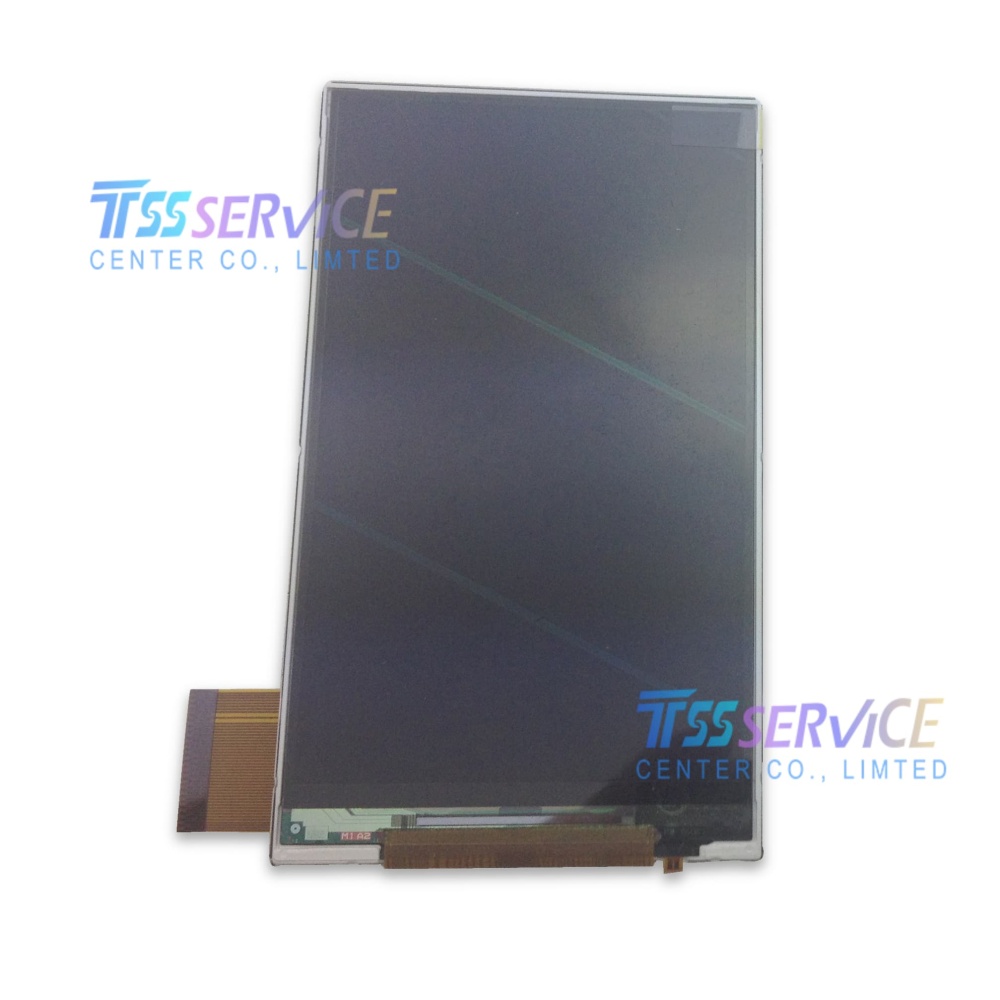

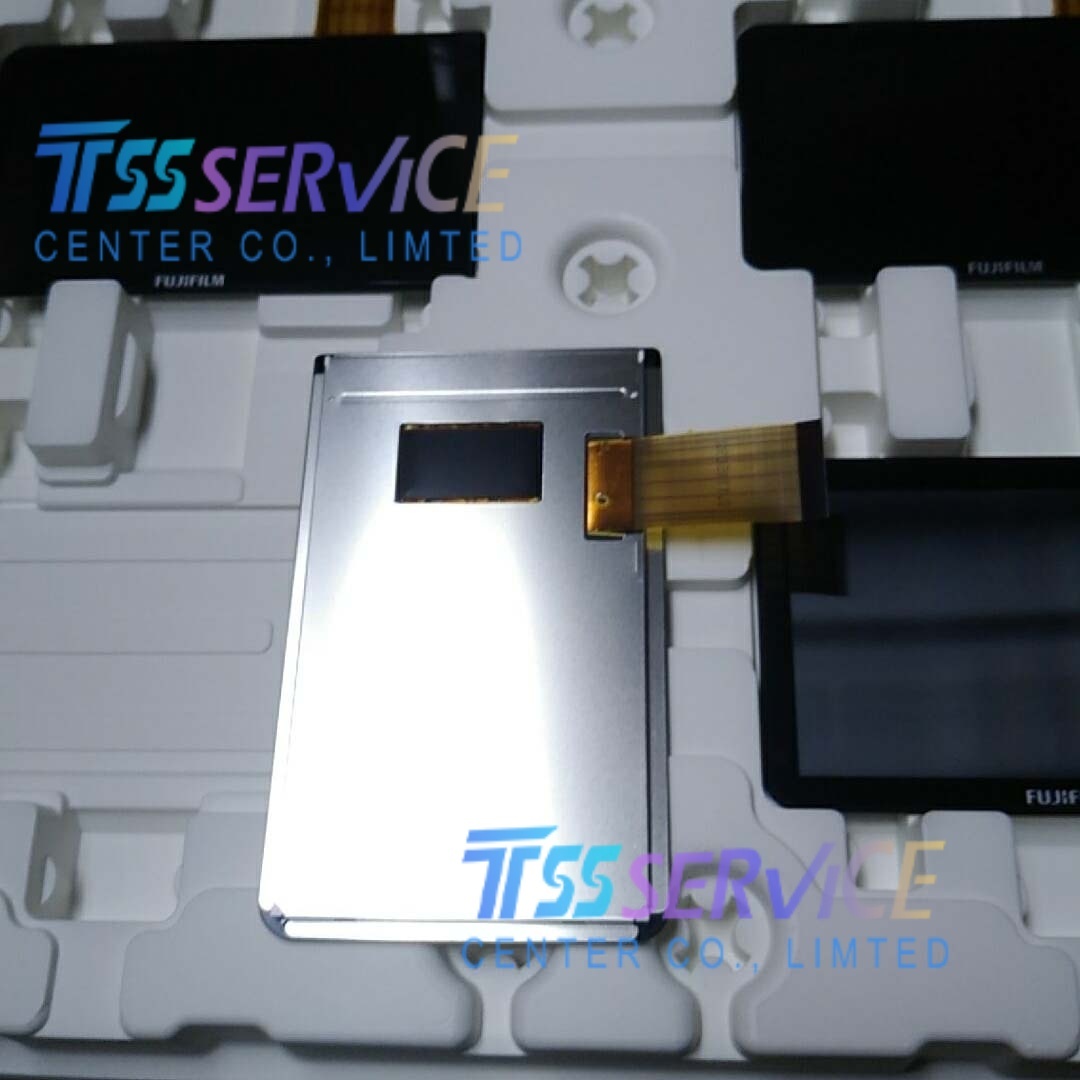

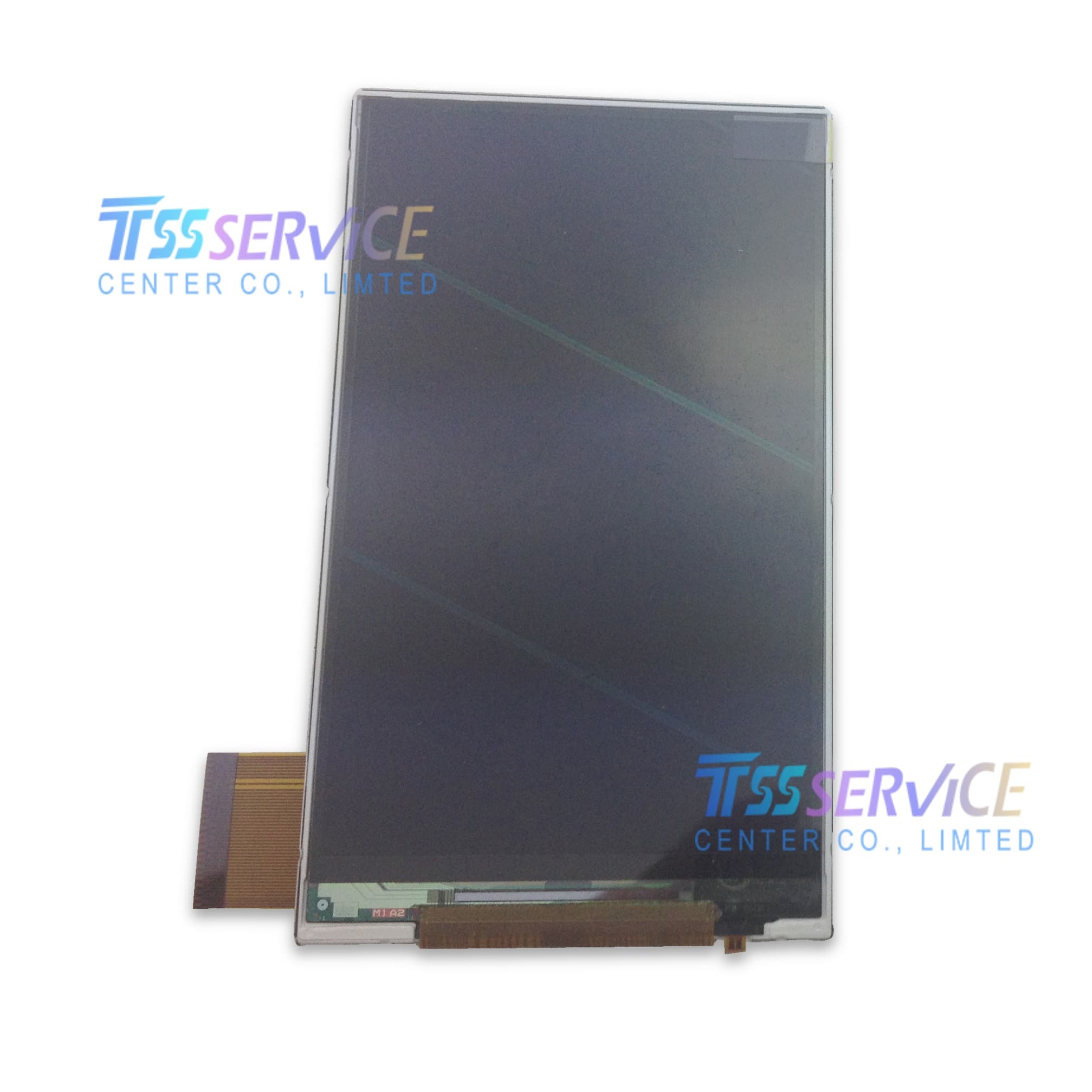

Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial

SKU: LS035Y3DE01
Model No.: LS035Y3DE01
Brand: Sharp
Diagonal Size: 3.5 inch
Display Type: a-Si TN TFT-LCD, Transmissive Normally White
Native Resolution: 320(RGB) × 240 (QVGA, 4:3), RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$37.00 $30.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
1/1
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
  • Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
  • Description
Sharp LS035Y3DE01 3.5 Inch 320×240 TFT LCD Panel Display Screen for Industrial
Parameter Item Specific Specification
Model No. LS035Y3DE01
Brand Sharp
Diagonal Size 3.5 inch
Display Type a-Si TN TFT-LCD, Transmissive Normally White
Native Resolution 320(RGB) × 240 (QVGA, 4:3), RGB Vertical Stripe
Active Area 70.08(W) × 52.56(H) mm
Overall Outline Dimension 82.2(W) × 64.2(H) × 3.8(D) mm
Typical Net Weight 48g
Typical Brightness 400 cd/m²
Contrast Ratio 450:1 (Typ.)
View Direction 6 o’clock
Viewing Angle (CR≥10) Horizontal 70°/70°, Vertical 50°/60°
Response Time Tr+Td = 30ms Typical
Display Color 262K RGB Colors
Backlight WLED, Built-in LED Driver, Lifespan 50,000 Hours
Signal Interface Parallel TTL RGB, 54Pin FPC Connector
Supply Voltage 3.3V DC
Frame Rate 60Hz
Touch Panel Without Touch Glass, Compatible external resistive touch overlay
Surface Treatment Anti-Glare Hard Coating
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃

Application Scenarios

  1. Mini compact industrial HMI, small PLC control cabinet embedded display terminals
  2. Handheld industrial flaw detectors, portable visual inspection test equipment
  3. Portable handheld medical diagnostic instruments, mini patient monitoring devices
  4. Handheld data collectors, industrial barcode scanning PDA display modules
  5. Small injection molding, textile miniature automation operation panels
  6. Light construction machinery, forklift portable remote control screen
  7. Laboratory portable environmental monitoring analyzers, handheld measuring equipment
  8. Intelligent access control, small portable POS payment terminals
  9. Portable visual inspection camera, miniature industrial vision equipment
