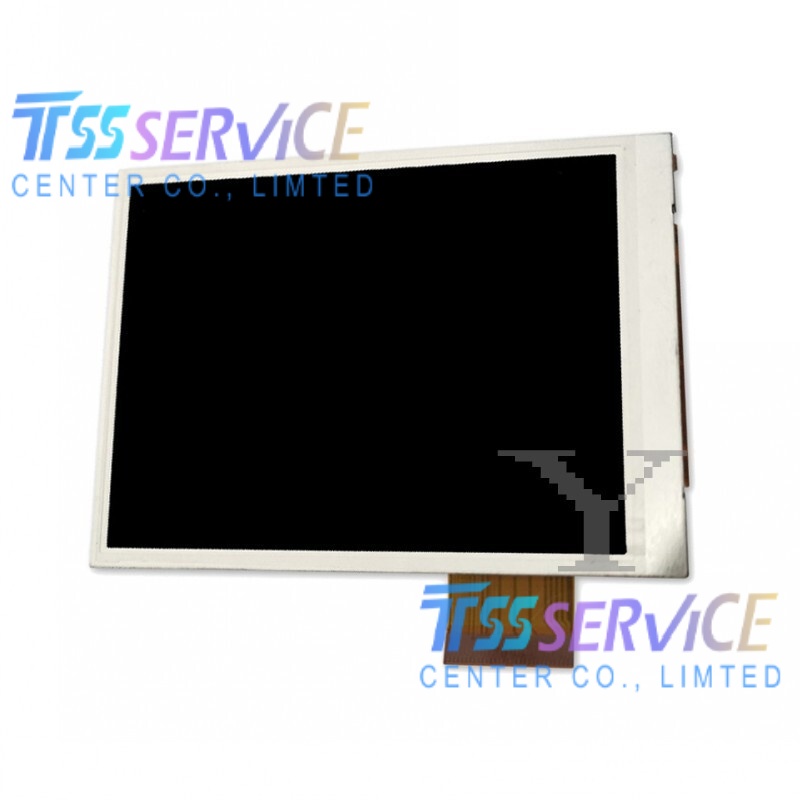

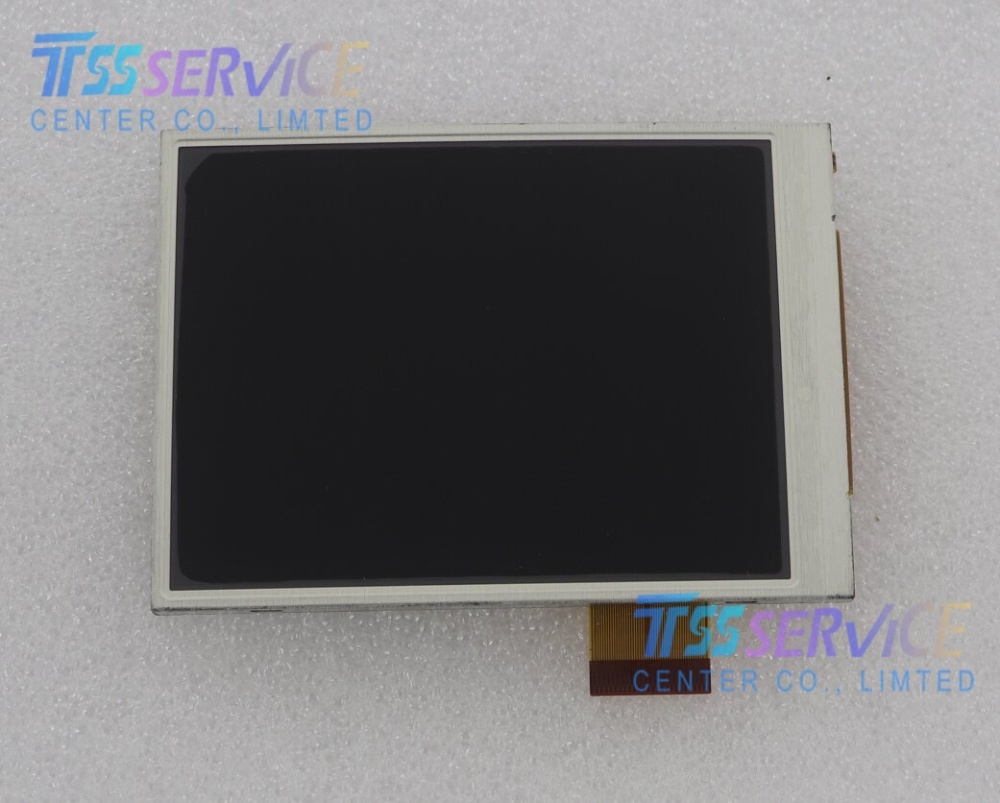

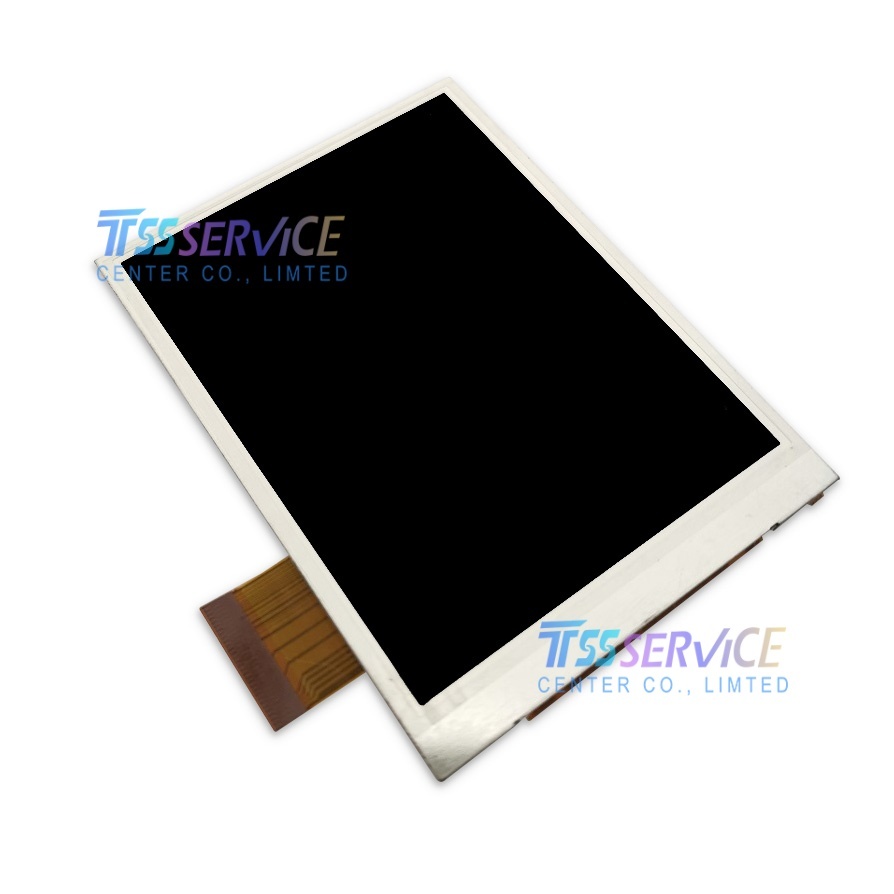

LS037V7DW03B Sharp 3.7 Inch 480×640 VGA CG-Silicon Transflective TFT LCD Panel

Name: LS037V7DW03B Sharp 3.7 Inch 480×640 VGA CG-Silicon Transflective TFT LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LS037V7DW03B
Price: 68 USD
Availability: InStock

SKU: LS037V7DW03B

Model Number: LS037V7DW03B
Brand: Sharp
Diagonal Size: 3.7 inch
Panel Technology: CG-Silicon TFT-LCD, ASV, Normally Black, Transflective
Native Resolution: 480(RGB) × 640 VGA, Portrait 3:4, 217 PPI

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $68.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LS037V7DW03B Sharp 3.7 Inch 480×640 VGA CG-Silicon Transflective TFT LCD Panel

Spec Item	Parameter Details
Model Number	LS037V7DW03B
Brand	Sharp
Diagonal Size	3.7 inch
Panel Technology	CG-Silicon TFT-LCD, ASV, Normally Black, Transflective
Native Resolution	480(RGB) × 640 VGA, Portrait 3:4, 217 PPI
Pixel Pitch	0.117 × 0.117 mm
Active Display Area (AA)	56.16 (W) × 74.88 (H) mm
Bezel Opening Size	59.8 (W) × 78.5 (H) mm
Outline Dimension	65(H)×89.2(V)×5.7(D) mm
Net Weight	38 g (Typical)
Typical Brightness	200 cd/m²
Contrast Ratio	200:1 (Transmissive Mode)
Viewing Angle L/R/U/D (CR≥5)	80°/80°/80°/80° Full Symmetric Wide View
Response Time (Tr/Td)	15 ms / 20 ms Typical
Color Depth	6-bit RGB, 262K Colors, 35% NTSC
Backlight	7S1P WLED, Lifespan 30,000 Hours, No Built-in Driver IC
Signal Interface	Single Channel 6-bit Parallel RGB TTL, 51Pin FPC Connector
Supply Voltage (VSHD)	3.3 V Typical
Surface Treatment	Standard clear polarizer, no anti-glare coating
Touch Function	Non-Touch, compatible with external resistive touch glass
Operating Temperature	-10 ℃ ~ +60 ℃
Storage Temperature	-20 ℃ ~ +70 ℃
Core Features	Transflective design (workable under strong sunlight), compact portrait size, low power consumption, CG-Silicon stable performance for handheld devices

Application

Handheld industrial measuring instruments, portable data collectors & PDA terminals
Portable medical handheld detectors, endoscope auxiliary display modules
Handheld barcode scanners, industrial inspection portable devices
Small industrial control handheld terminals, injection molding machine handheld controllers
Outdoor portable navigation equipment, field operation handheld monitors
Miniature testing equipment, environmental monitoring portable instruments
Compact portable data logging devices & field service terminals
