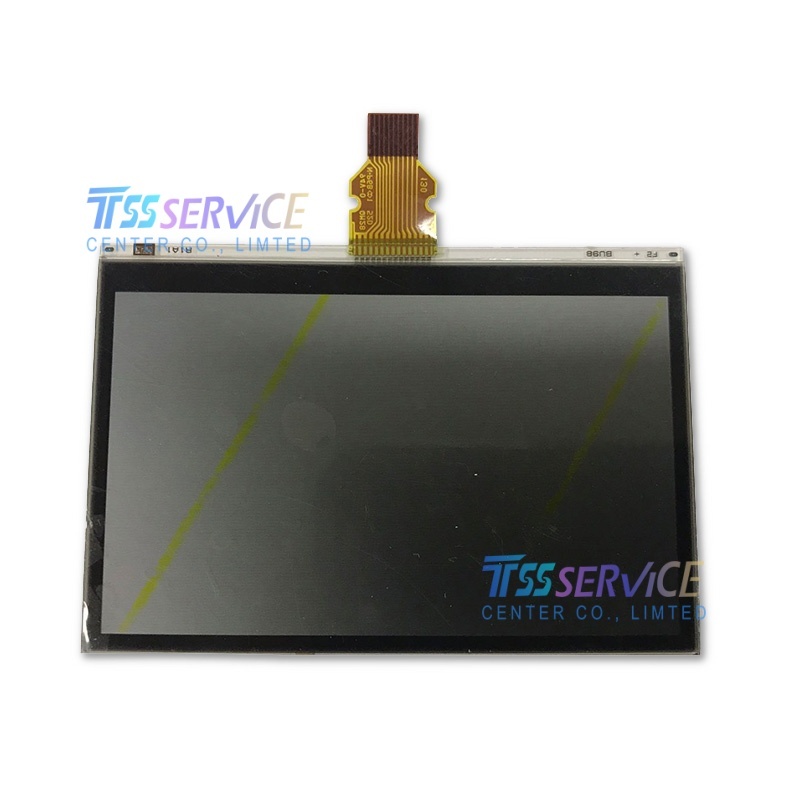

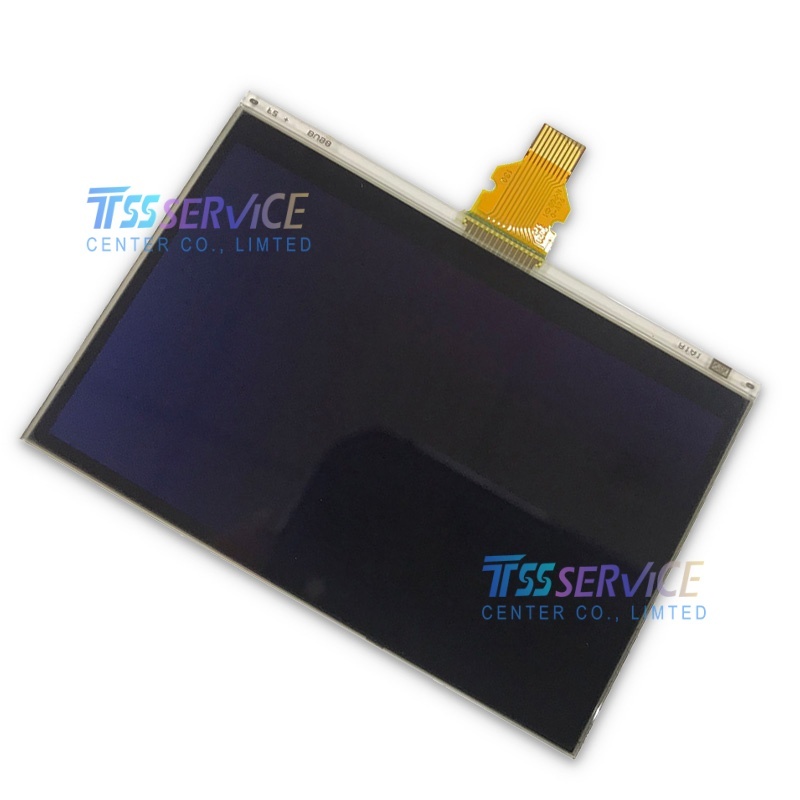

LS044Q7DH01 4.4inch 320×240 CG-Silicon lcd panel

SKU: LS044Q7DH01
Model P/N:LS044Q7DH01
Size: 4.4"
Panel Type:CG-Silicon, LCM
Resolution:320×240, QVGA  90PPI
Pixel Format:Rectangle
0.0 (0 Reviews)
0 Sold
$72.00 $68.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LS044Q7DH01 4.4inch 320×240 CG-Silicon lcd panel in stock
  • LS044Q7DH01 4.4inch 320×240 CG-Silicon lcd panel in stock
  • LS044Q7DH01 4.4inch 320×240 CG-Silicon lcd panel in stock
  • LS044Q7DH01 4.4inch 320×240 CG-Silicon lcd panel in stock
1/1
  • LS044Q7DH01 4.4inch 320×240 CG-Silicon lcd panel in stock
  • LS044Q7DH01 4.4inch 320×240 CG-Silicon lcd panel in stock
  • Description
The LS044Q7DH01 is a compact and high-performance TFT-LCD module, distinguished by its advanced CG-Silicon (Continuous Grain Silicon) technology. CG-Silicon, often associated with Sharp's proprietary process, enables the integration of high-performance driver circuitry directly onto the glass substrate. This results in a superior display with excellent electrical characteristics and a highly compact form factor. This module is well-suited for applications requiring a premium small-size display with sharp image quality and reliable performance.
Feature Specification
Model LS044Q7DH01
Display Technology CG-Silicon, LCM
Screen Size 4.4 inches
Resolution 320×240, QVGA  90PPI
Active Area 89.6(W)×67.2(H) mm
Pixel Arrangement RGB Vertical Stripe
Brightness (Typical) ~ 300 cd/m²
Contrast Ratio (Typical) 600:1
Viewing Angle (CR≥10) 60/60/60/60 (Typ.)(CR≥10)
Color Depth 262K / 16.2M colors (6-bit + FRC typical)
Response Time (Typical) 10/20 (Typ.)(Tr/Td)
Interface SPI 10 pins FPC
Backlight Type LED, Edge-light
Supply Voltage (VDD / Logic) 5.0/5.0V (VDD/VDDA)
Operating Temperature -20 ~ 70 °C ;
Storage Temperature -30 ~ 80 °C

Typical Applications

  • Portable Industrial Devices (Handheld Scanners, Meters)

  • Premium Consumer Electronics (Auxiliary Displays, Smart Home Panels)

  • Automotive Clusters / Secondary Displays

  • Medical Monitoring Devices

  • High-reliability Instrumentation and Control Panels
