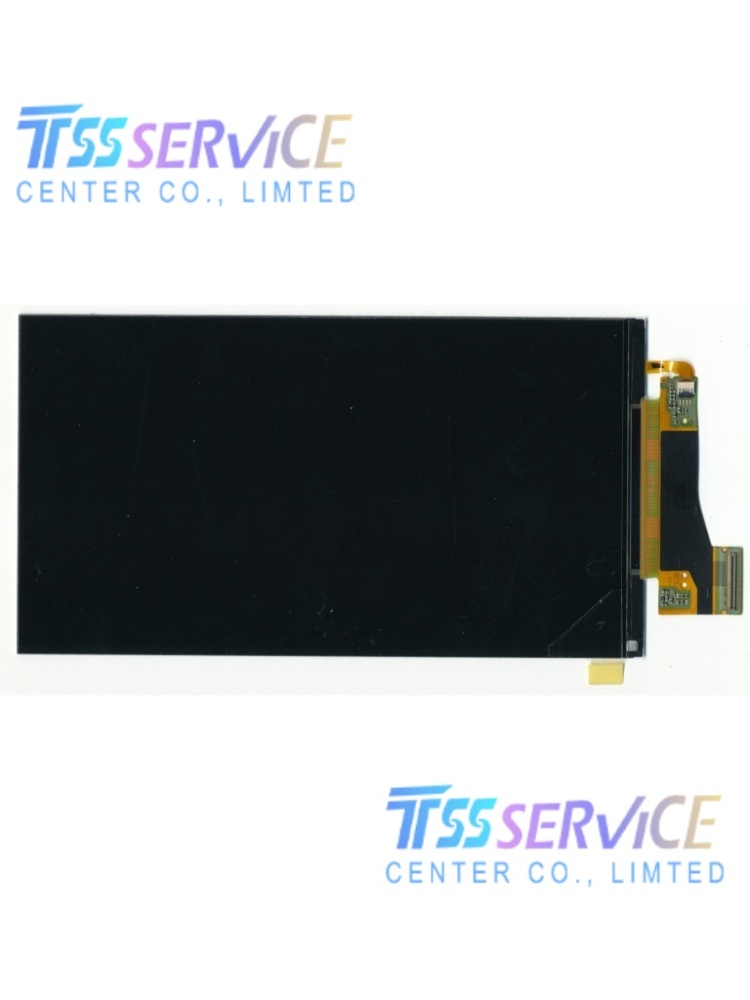

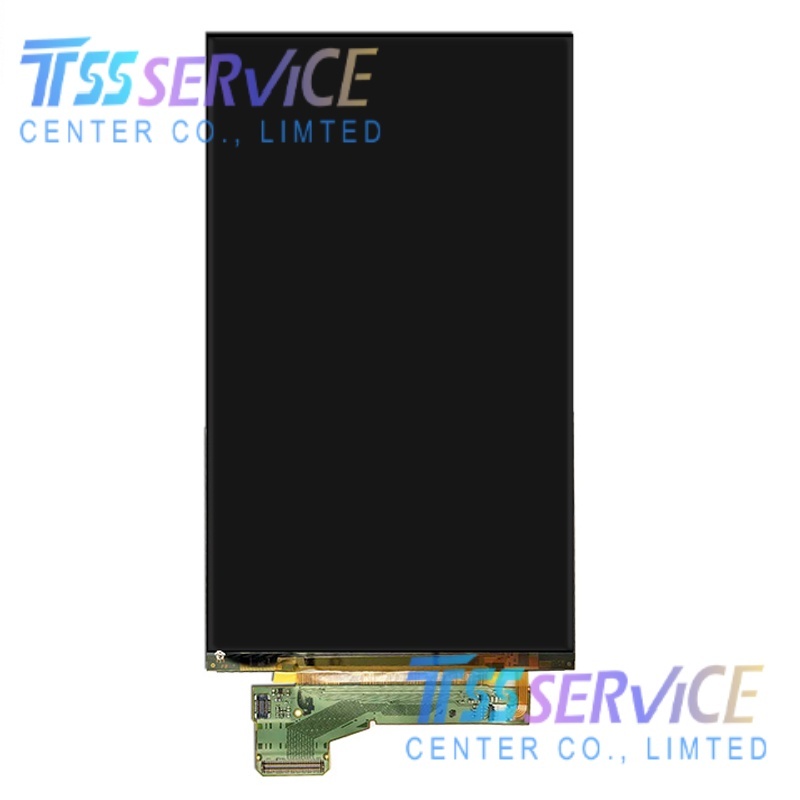

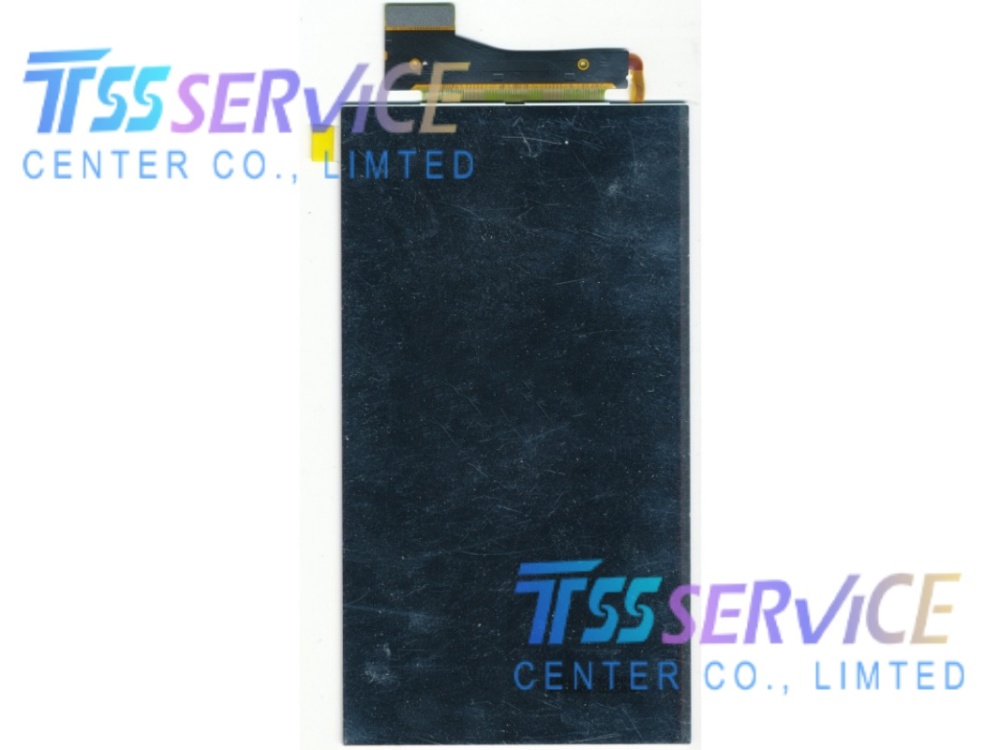

5.5 Inch Sharp LS055D1SX05 2160×3840 CG-Silicon LCD Screen Display Panel for Industrial

Name: 5.5 Inch Sharp LS055D1SX05 2160×3840 CG-Silicon LCD Screen Display Panel for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LS055D1SX05
Price: 75 USD
Availability: InStock

SKU: LS055D1SX05

Model Number: LS055D1SX05
Brand: SHARP CG-Silicon High Precision TFT-LCD
Diagonal Size: 5.5 Inch
Native Resolution: 2160(RG/BR/GB) × 3840 UHD 4K, 9:16 Vertical, 658 PPI
Pixel Arrangement: Rainbow-RGB Subpixel Layout

0.0 (0 Reviews)

0 Sold

~~$78.00~~ $75.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

5.5 Inch Sharp LS055D1SX05 2160×3840 CG-Silicon LCD Screen Display Panel for Industrial

Item	Specification Parameter
Model Number	LS055D1SX05 (LS055D1SX05(G))
Brand	SHARP CG-Silicon High Precision TFT-LCD
Diagonal Size	5.5 Inch
Native Resolution	2160(RG/BR/GB) × 3840 UHD 4K, 9:16 Vertical, 658 PPI
Pixel Arrangement	Rainbow-RGB Subpixel Layout
Display Mode	New Mode2, Normally Black Transmissive
Backlight	6S3P Built-in WLED, No On-board LED Driver IC
Typical Brightness	530 cd/m²
Contrast Ratio	1200:1 (Typical)
Viewing Angle L/R/U/D (CR≥10)	80° / 80° / 80° / 80° Full Symmetric Wide View
Response Time Tr+Td	30 ms (Typical)
Refresh Rate	60Hz
Color Depth	16.7M
Color Gamut	90% NTSC, 100% sRGB, 91% DCI-P3
Signal Interface	Dual Channel MIPI, 4 Data Lanes, 60Pin FPC Connector
Supply Voltage	DVDD 1.36V / VDD 1.85V / VSP 5.8V / VSN -5.6V
Active Display Area	68.04 (W) × 120.96 (H) mm
Overall Outline Dimension	69.84 (W) × 128.76 (H) × 1.24 (T) mm
Net Weight	17g Ultra Lightweight
Surface Treatment	Standard Clear Hard Coating
Touch Function	Without Touch Digitizer
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +70℃
Production Status	Discontinued

Applications

MSLA 3D Printing Light Curing Screen Core Module
Desktop resin 3D printers, jewelry casting 3D printing equipment, dental model light curing machines, industrial miniature rapid prototyping printers, high-precision lithography exposure panels.
Portable High-Precision Visual Inspection Equipment
Handheld industrial microscopes, pipeline endoscope monitors, PCB defect inspection terminals, optical measuring instruments, precision electronic component testing displays.
VR / AR Compact Headset Display Screens
Lightweight VR glasses internal display modules, portable AR smart eyewear panels, industrial inspection head-mounted visual screens, drone FPV high-definition viewfinders.
Portable Medical Diagnostic Instruments
Handheld ophthalmic inspection equipment, portable ultrasound auxiliary monitors, dental intraoral camera display terminals, miniature clinical analysis equipment.
Custom Compact Handheld & Special Display Devices
Portable game console replacement screens, high-resolution handheld data recorders, portable industrial measuring equipment, miniature aerial photography monitor panels.
