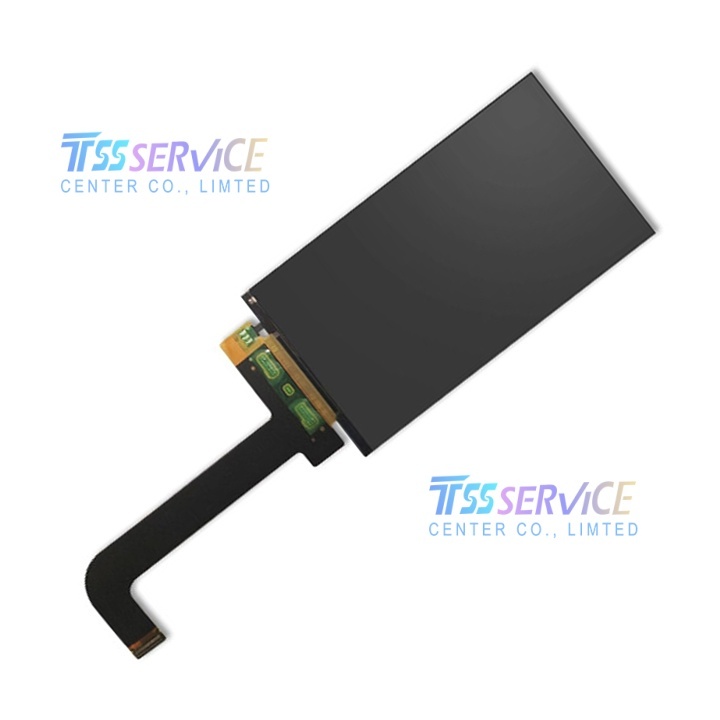

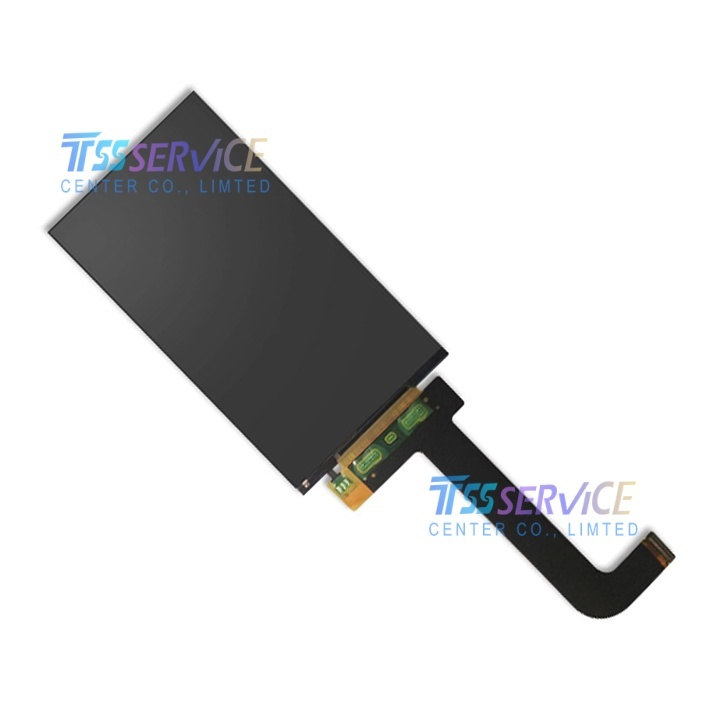

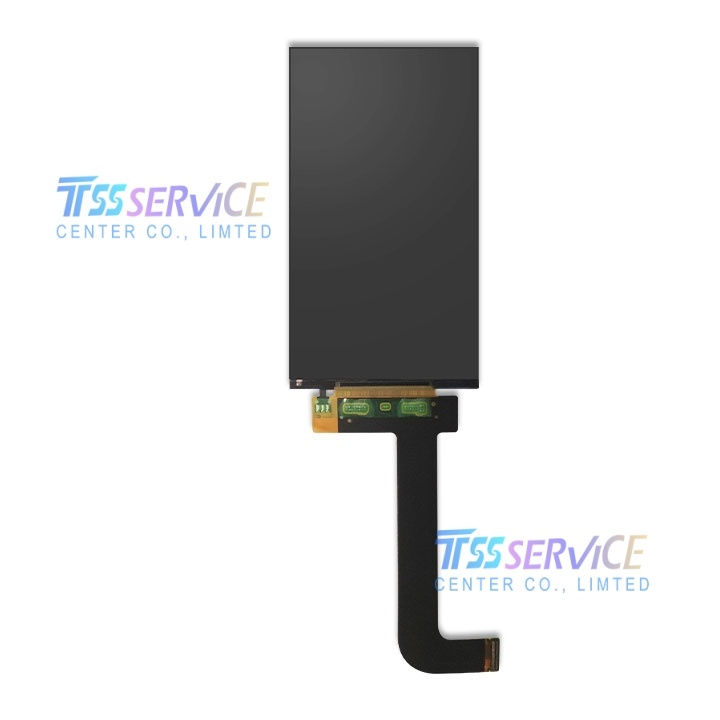

Sharp LS055T1SX01 5.5 Inch 1080×1920 CG-Silicon TFT LCD Panel Display Screen for Industrial HMI Equipment

Name: Sharp LS055T1SX01 5.5 Inch 1080×1920 CG-Silicon TFT LCD Panel Display Screen for Industrial HMI Equipment
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LS055T1SX01
Price: 72 USD
Availability: InStock

SKU: LS055T1SX01

Model No.: LS055T1SX01
Brand: Sharp
Diagonal Size: 5.5 inch
Panel Technology: CG-Silicon TFT-LCD, Transmissive Normally Black
Native Resolution: 1080(RGB) × 1920 (FHD), 397 PPI

0.0 (0 Reviews)

0 Sold

~~$75.00~~ $72.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Sharp LS055T1SX01 5.5 Inch 1080×1920 CG-Silicon TFT LCD Panel Display Screen for Industrial HMI Equipment

Parameter Item	Specific Specification
Model No.	LS055T1SX01
Brand	Sharp
Diagonal Size	5.5 inch
Panel Technology	CG-Silicon TFT-LCD, Transmissive Normally Black
Native Resolution	1080(RGB) × 1920 (FHD), 397 PPI
Aspect Ratio	9:16 Vertical
Active Display Area	69.012(W) × 122.688(H) mm
Overall Outline Size	71.72(W) × 130.4(H) × 1.81(D) mm
Net Weight	25g (Typical)
Typical Brightness	500 cd/m²
Contrast Ratio	1000:1 (Typ.)
Viewing Angle (CR≥10)	80°/80°/80°/80° Full View Angle
Color Gamut & Depth	16.7M Colors, 70% NTSC, 8-bit
Backlight	WLED, No Built-in LED Driver
Signal Interface	30 Pin MIPI, 4 Data Lanes
Power Voltage	VDDIO=1.8V, VSP=5.6V, VSN=-5.4V
Refresh Rate	60Hz
Surface Treatment	Clear Glossy Surface
Touch Function	Without Touch Panel
Operating Temperature	-20°C ~ +60°C
Storage Temperature	-30°C ~ +70°C

Application Scenarios

LCD Mask Photocuring 3D Printers, Resin SLA 3D Printing Equipment Main Display
Handheld Industrial Detectors, Portable Visual Inspection Testing Devices
Mini Portable Medical Diagnostic Instruments, Handheld Patient Monitoring Terminals
Compact Vertical Industrial HMI, Small Embedded Control Display Modules
Portable Digital Microscope, Industrial Visual Inspection Equipment Screen
Handheld POS Terminals, Mini Intelligent Access Control Displays
VR/AR Small High-Pixel Display Prototype Equipment
Laboratory Portable Analysis Instruments, Environmental Monitoring Handheld Units
Small Intelligent Wearable Control Terminals, Mini Embedded Project Displays
